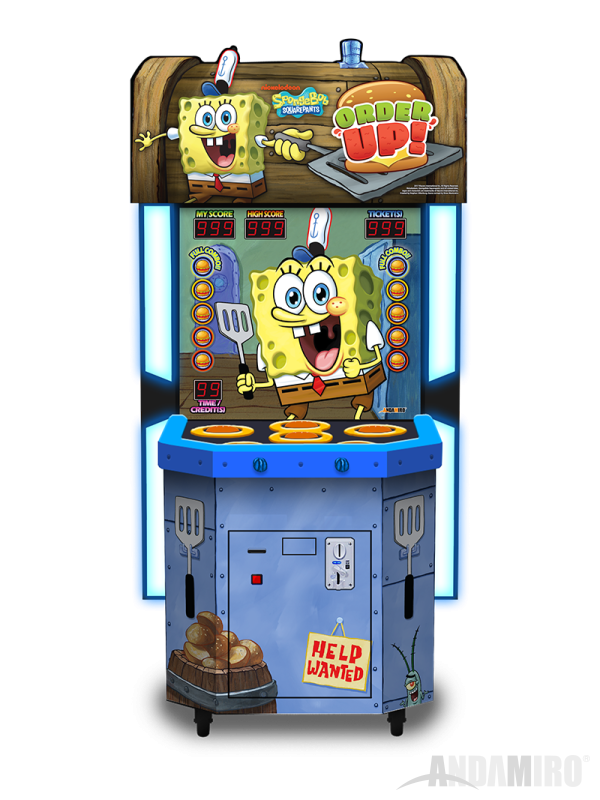

TICKET REDEMTION SPONGEBOB ORDER UP! Multi-Player Stations available
29" x 35" x 68"
39" x 30" x 70"
SUPPORT
-
Leaflets
-
Manuals
-
Trouble shooting Document
-
WATCH & SOLVE
FEATURES

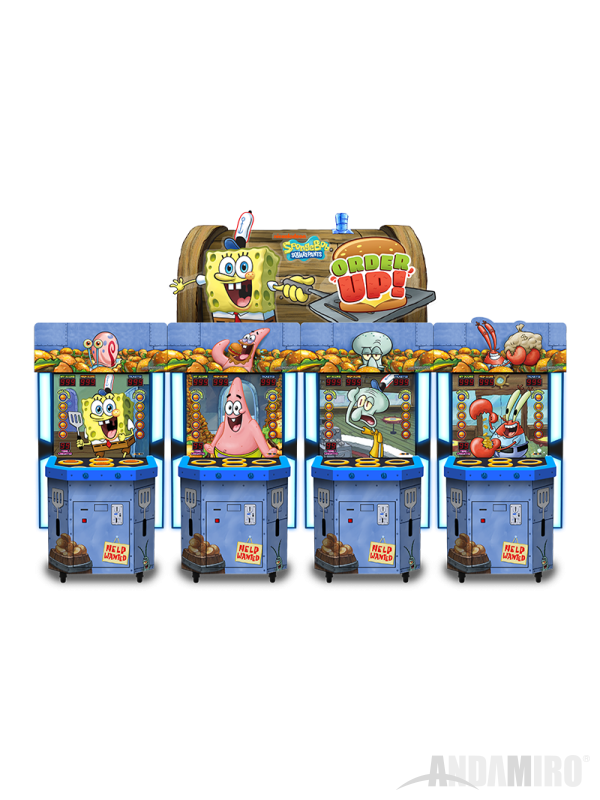

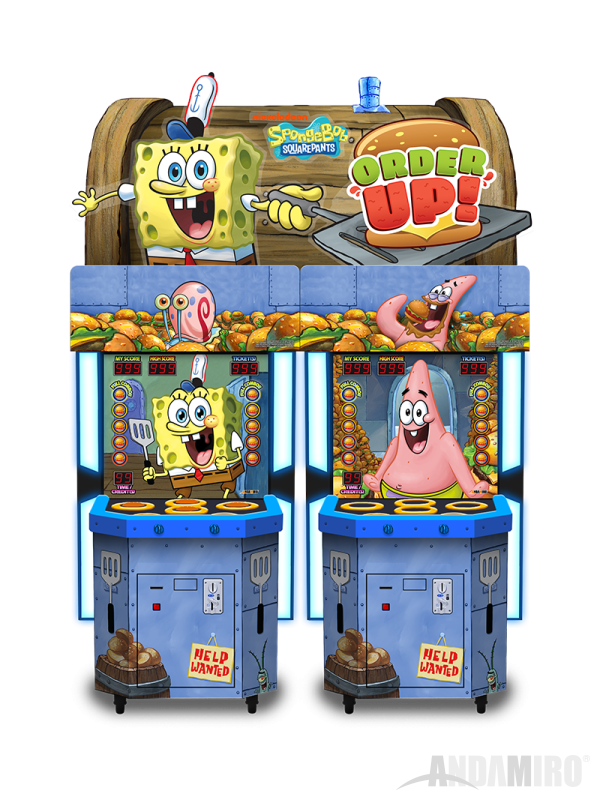

Multi-Player Stations available
It's lunchtime at the Krusty Krab and it's getting busy.
Help SpongeBob feed the hungry customers and save the day!
Use your Spatula skills to serve as many Krabby Patties as possible before time runs out!
GALLERY
PARTS
Total 74
| Number | Part name Part picture | Code Info | Part picture | Part Add |
|---|
| 1 |
AC INPUT DAC-13H |
AC INPUT MELE0SWI015 |
Part picture |
|
| 2 |
BILLBOARD FRONT ACRYL SINGLE . |
BILLBOARD FRONT ACRYL SINGLE AORD0ASS031 |
Part picture |
|
| 3 |
BILLBOARD FRONT ACRYL-COMMON-1P . |
BILLBOARD FRONT ACRYL-COMMON-1P AORD0ASS023 |
Part picture |
|
| 4 |
BILLBOARD FRONT ACRYL-COMMON-2P . |
BILLBOARD FRONT ACRYL-COMMON-2P AORD0ASS024 |
Part picture |
|
| 5 |
BILLBOARD FRONT ACRYL-COMMON-3P . |
BILLBOARD FRONT ACRYL-COMMON-3P AORD0ASS026 |
Part picture |
|
| 6 |
BILLBOARD FRONT ACRYL-COMMON-4P . |
BILLBOARD FRONT ACRYL-COMMON-4P AORD0ASS027 |
Part picture |
|
| 7 |
BUTTON SWITCH TICKET AM1PB-26SH R12D |
BUTTON SWITCH MMUM0BUT002 |
Part picture |
|
| 8 |
COMBO LED ASS'Y . |
COMBO LED ASS'Y AORD0ASS011 |
Part picture |
|
|
|
[COMBO LED ASS'Y] COMBO LED PCB ASS'Y ANX 4PB (BLUE) |
[COMBO LED ASS'Y] COMBO LED PCB ASS'Y AELE0LED005 |
Part picture |
|
| 9 |
COUNTER OA127CL W/2P CONNECTOR_20CM WIRE |
COUNTER MZZZ0COU002 |
Part picture |
|
| 10 |
COVER ASS'Y ORDER UP 5종세트 |
COVER ASS'Y AORD0ASS017 |
Part picture |
|
| 11 |
FLEX_5050_RGB_1000_IP20_L ORD |
FLEX_5050_RGB_1000_IP20_L MORD0HAN080 |
Part picture |
|
| 12 |
FUSE 0218010.MXP 250V,10A,4PA |
FUSE MELE0FUS018 |
Part picture |
|
| 13 |
FUSE LABEL(7A-250V) ETL
|
FUSE LABEL(7A-250V) ETL MZZZ0STI106 |
Part picture |
|
| 14 |
LED 500 12V PCB ASS'Y WHITE |
LED 500 12V PCB ASS'Y AZZZ0PCB157 |
Part picture |
|
|
|
[LED 500 12V PCB ASS'Y] LED L5256 CW K1 1CHIP 6PIN |
[LED 500 12V PCB ASS'Y] LED PDIS0LED049 |
Part picture |
|
| 15 |
LED 600 12V PCB ASS'Y WHITE |
LED 600 12V PCB ASS'Y AZZZ0PCB158 |
Part picture |
|
|
|
[LED 600 12V PCB ASS'Y] LED L5256 CW K1 1CHIP 6PIN |
[LED 600 12V PCB ASS'Y] LED PDIS0LED049 |
Part picture |
|
| 16 |
LED 600 12V PCB ASS'Y RED |
LED 600 12V PCB ASS'Y AZZZ0PCB159 |
Part picture |
|
|
|
[LED 600 12V PCB ASS'Y] LED RED IWS-L5056-UR-K3 |
[LED 600 12V PCB ASS'Y] LED RED PDIS0LED051 |
Part picture |
|
| 17 |
LED BAR 12V ASS'Y 460MM |
LED BAR 12V ASS'Y AZZZ0PCB124 |
Part picture |
|
| 18 |
LED STICK BAR BRK 12MM 90도 |
LED STICK BAR BRK MELE0000022 |
Part picture |
|
| 19 |
NOISE FILTER ES1-F10 |
NOISE FILTER MELE0NOI006 |
Part picture |
|
| 20 |
ORDER UP PART 8종 트랜스제외 |
ORDER UP PART AORD0PAR003 |
Part picture |
|
|
|
[ORDER UP PART] CHARACTER SOLENOID . |
[ORDER UP PART] CHARACTER SOLENOID MORD0PAR048 |
Part picture |
|
|
|
[ORDER UP PART] CHARACTER SOLENOID ASS'Y 기 MORD0PAR042 |
[ORDER UP PART] CHARACTER SOLENOID ASS'Y AORD0PAR005 |
Part picture |
|
|
|
[ORDER UP PART] CHARACTER SOLENOID . |
[ORDER UP PART] CHARACTER SOLENOID MORD0PAR048 |
Part picture |
|
|
|
[ORDER UP PART] VIVRATION SENSOR MASHIMARO_ORDER UP |
[ORDER UP PART] VIVRATION SENSOR MELE0SEN006 |
Part picture |
|
|
|
[ORDER UP PART] DRIVE I/O PCB SPONGE V3 ORDER UP |
[ORDER UP PART] DRIVE I/O PCB SPONGE V3 MORD0PAR035 |
Part picture |
|
|
|
[ORDER UP PART] FND PCB ORDER UP 2 DIGIT |
[ORDER UP PART] FND PCB MORD0PAR038 |
Part picture |
|
|
|
[ORDER UP PART] FND PCB ORDER UP 3 DIGIT |
[ORDER UP PART] FND PCB MORD0PAR037 |
Part picture |
|
|
|
[ORDER UP PART] HAMMER ASS'Y 20170303 |
[ORDER UP PART] HAMMER ASS'Y MORD0PAR043 |
Part picture |
|
|
|
[ORDER UP PART] WIRE FOR HAMMER ASS'Y . |
[ORDER UP PART] WIRE FOR HAMMER ASS'Y MORD0PAR047 |
Part picture |
|
|
|
[ORDER UP PART] MAINBOARD PCB ORDER UP |
[ORDER UP PART] MAINBOARD PCB MORD0PAR034 |
Part picture |
|
|
|
[ORDER UP PART] MASHIMARO SOL PCB ORDER UP |
[ORDER UP PART] MASHIMARO SOL PCB MORD0PAR036 |
Part picture |
|
|
|
[ORDER UP PART] TRANSFORMER ORDER UP 115V DONG-A |
[ORDER UP PART] TRANSFORMER MORD0PAR039 |
Part picture |
|
|
|
[ORDER UP PART] VIVRATION SENSOR MASHIMARO_ORDER UP |
[ORDER UP PART] VIVRATION SENSOR MELE0SEN006 |
Part picture |
|
|
|
[ORDER UP PART] WIRE FOR HAMMER ASS'Y . |
[ORDER UP PART] WIRE FOR HAMMER ASS'Y MORD0PAR047 |
Part picture |
|
| 21 |
ORDER UP PART 9종 220V |
ORDER UP PART AORD0PAR004 |
Part picture |
|
|
|
[ORDER UP PART] CHARACTER SOLENOID . |
[ORDER UP PART] CHARACTER SOLENOID MORD0PAR048 |
Part picture |
|
|
|
[ORDER UP PART] CHARACTER SOLENOID ASS'Y 기 MORD0PAR042 |
[ORDER UP PART] CHARACTER SOLENOID ASS'Y AORD0PAR005 |
Part picture |
|
|
|
[ORDER UP PART] CHARACTER SOLENOID . |
[ORDER UP PART] CHARACTER SOLENOID MORD0PAR048 |
Part picture |
|
|
|
[ORDER UP PART] VIVRATION SENSOR MASHIMARO_ORDER UP |
[ORDER UP PART] VIVRATION SENSOR MELE0SEN006 |
Part picture |
|
|
|
[ORDER UP PART] HAMMER ASS'Y 20170303 |
[ORDER UP PART] HAMMER ASS'Y MORD0PAR043 |
Part picture |
|
|
|
[ORDER UP PART] WIRE FOR HAMMER ASS'Y . |
[ORDER UP PART] WIRE FOR HAMMER ASS'Y MORD0PAR047 |
Part picture |
|
|
|
[ORDER UP PART] VIVRATION SENSOR MASHIMARO_ORDER UP |
[ORDER UP PART] VIVRATION SENSOR MELE0SEN006 |
Part picture |
|
|
|
[ORDER UP PART] WIRE FOR HAMMER ASS'Y . |
[ORDER UP PART] WIRE FOR HAMMER ASS'Y MORD0PAR047 |
Part picture |
|
| 22 |
POWER SMPS LRS 150F-12 |
POWER SMPS MELE0SMP090 |
Part picture |
|
| 23 |
PUSH BUTTON SWITCH DS-412R ROSH |
PUSH BUTTON SWITCH MELE0PUS006 |
Part picture |
|
| 24 |
RENCH_L 2.5MM |
RENCH_L MXXX0REN001 |
Part picture |
|
| 25 |
RENCH_L 3MM |
RENCH_L MXXX0REN004 |
Part picture |
|
| 26 |
ROCKER SWITCH T-125 4P |
ROCKER SWITCH MELE0SWI004 |
Part picture |
|
| 27 |
SCORE BOARD FRONT ACRYL-1P . |
SCORE BOARD FRONT ACRYL-1P AORD0ASS030 |
Part picture |
|
| 28 |
SCORE BOARD FRONT ACRYL-2P . |
SCORE BOARD FRONT ACRYL-2P AORD0ASS025 |
Part picture |
|
| 29 |
SCORE BOARD FRONT ACRYL-3P . |
SCORE BOARD FRONT ACRYL-3P AORD0ASS028 |
Part picture |
|
| 30 |
SCORE BOARD FRONT ACRYL-4P . |
SCORE BOARD FRONT ACRYL-4P AORD0ASS029 |
Part picture |
|
| 31 |
SMPS BKT MEANWELL |
SMPS BKT MZZZ0MEP048 |
Part picture |
|
| 32 |
SPEAKER MSF-2D30SB02U (3W, 8 OHM) OVAL |
SPEAKER MZZZ0SPE041 |
Part picture |
|
| 33 |
SPRING WIRE 1M CARA BENER BLACK |
SPRING WIRE 1M MZZZ0XXX002 |
Part picture |
|
| 34 |
TERMINAL BLOCK KTB1-020 6P UL_CE |
TERMINAL BLOCK MELE0TEB001 |
Part picture |
|
| 35 |
TOP BILLBOARD ASS'Y ORDER UP PART |
TOP BILLBOARD ASS'Y AORD0ASS010 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] LED BAR 12V ASS'Y 460MM |
[TOP BILLBOARD ASS'Y] LED BAR 12V ASS'Y AZZZ0PCB124 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] LED STICK BAR BRK 12MM 90도 |
[TOP BILLBOARD ASS'Y] LED STICK BAR BRK MELE0000022 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] MIDDLE CABINET ASS'Y UPPER FIX BKT TOP BILLBOARD ASS'Y |
[TOP BILLBOARD ASS'Y] MIDDLE CABINET ASS'Y UPPER FIX BKT MORD0MEP060 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] POWER SMPS LRS 150F-12 |
[TOP BILLBOARD ASS'Y] POWER SMPS MELE0SMP090 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] TOP BILLBOARD HAMBURGER FIX SHAFT TOP BILLBOARD |
[TOP BILLBOARD ASS'Y] TOP BILLBOARD HAMBURGER FIX SHAFT MORD0PRO002 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] TOP BILLBOARD LOGO FIX SHAFT TOP BILLBOARD |
[TOP BILLBOARD ASS'Y] TOP BILLBOARD LOGO FIX SHAFT MORD0PRO003 |
Part picture |
|
|
|
[TOP BILLBOARD ASS'Y] TOP BILLBOARD SPONGEBOB FIX SHAFT TOP BILLBOARD |
[TOP BILLBOARD ASS'Y] TOP BILLBOARD SPONGEBOB FIX SHAFT MORD0PRO004 |
Part picture |
|
| 36 |
TRANSFORMER WARNING STICKER-120V . |
TRANSFORMER WARNING STICKER-120V MORD0PRI002 |
Part picture |
|
| 37 |
TRANSFORMER WARNING STICKER-230V . |
TRANSFORMER WARNING STICKER-230V MORD0PRI003 |
Part picture |
|
| 38 |
VOLUME KNOB CAP BLUE |
VOLUME KNOB MELE0VOL007 |
Part picture |
|
| 39 |
VOLUME PCB ASS'Y 1 VOLUME |
VOLUME PCB ASS'Y AHM20PCB016 |
Part picture |
|
| 40 |
WARRANTY STICKER 6개월보증 |
WARRANTY STICKER MZZZ0STI105 |
Part picture |
|
| 41 |
방진고무볼트 Φ20X16MM M6 20MM_B |
방진고무볼트 MZZZ0RUB009 |
Part picture |
