1

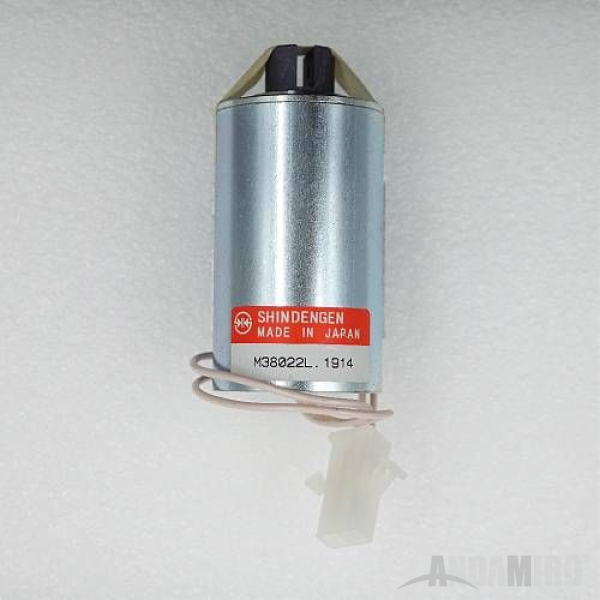

SOLENOID ASS'Y
WITH HARNESS
SOLENOID ASS'Y
AELE0SOL001
1.1
[SOLENOID ASS'Y]
SOLENOID
M38022L
[SOLENOID ASS'Y]

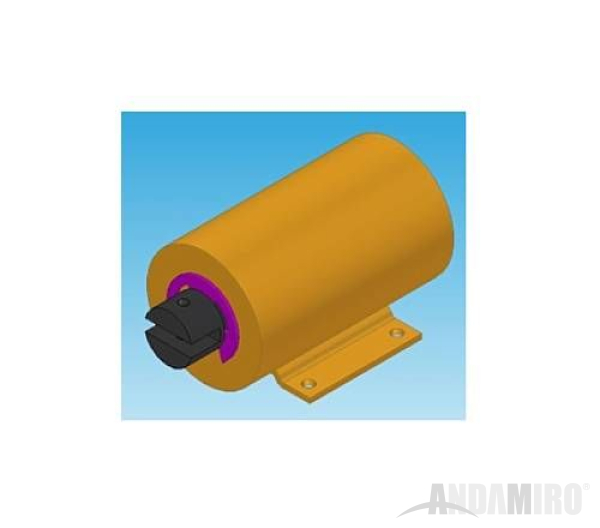

SOLENOID
MELE0SOL008
2

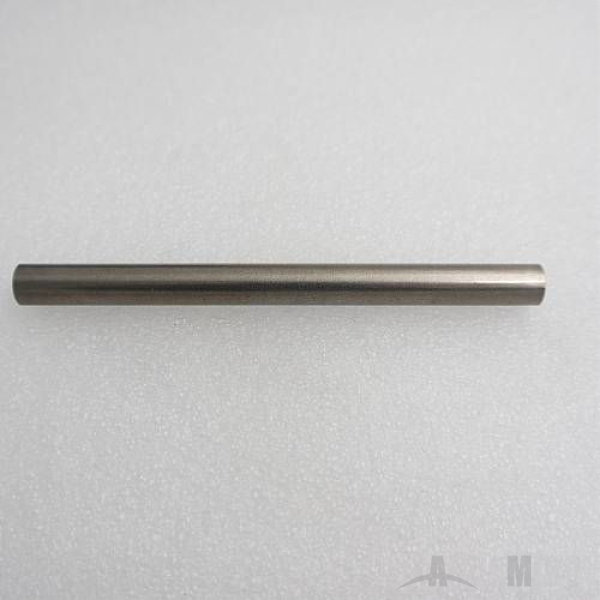

BALL ELEV SUPPORT SHAFT
MAVB0PRO003
3

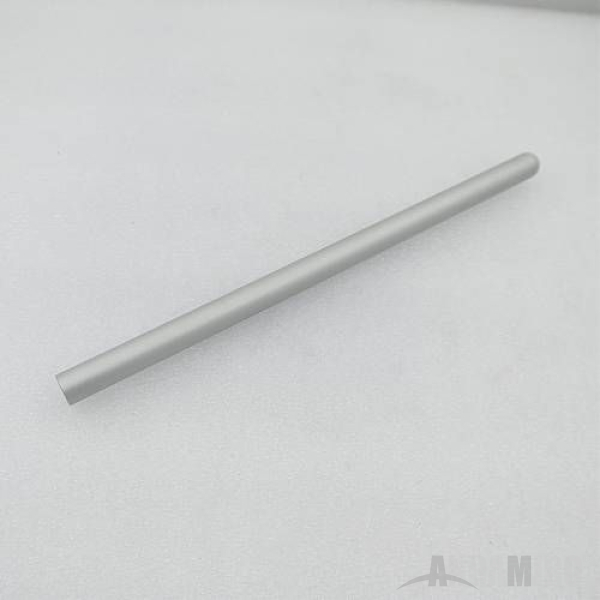

BALL HOPPER GUIDE CENTER POST BAR
BALL HOPPER GUIDE CENTER POST BAR
MAVB0PRO005

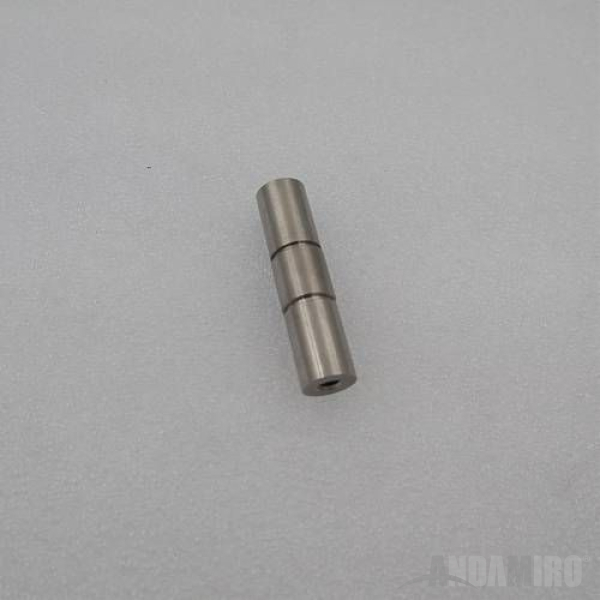

4
BALL OUT ROLLER SHAFT
MAVB0PRO007

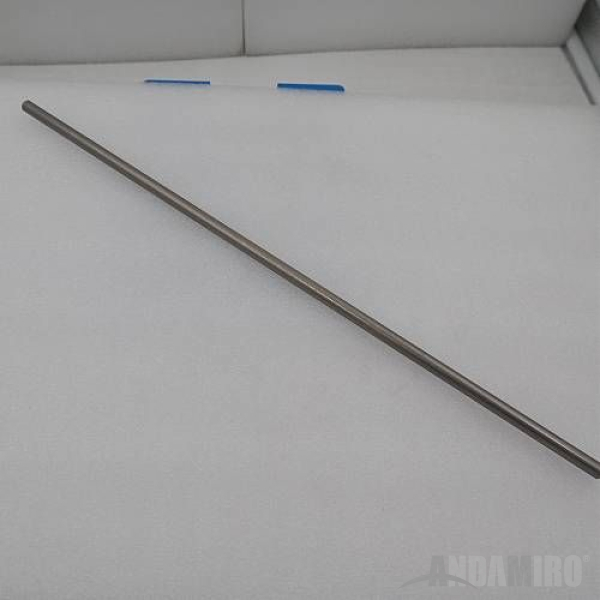

5
BALL START PIPE GUIDE POLE_REV1
BALL START PIPE GUIDE POLE_REV1
MAVB0PRO008
6

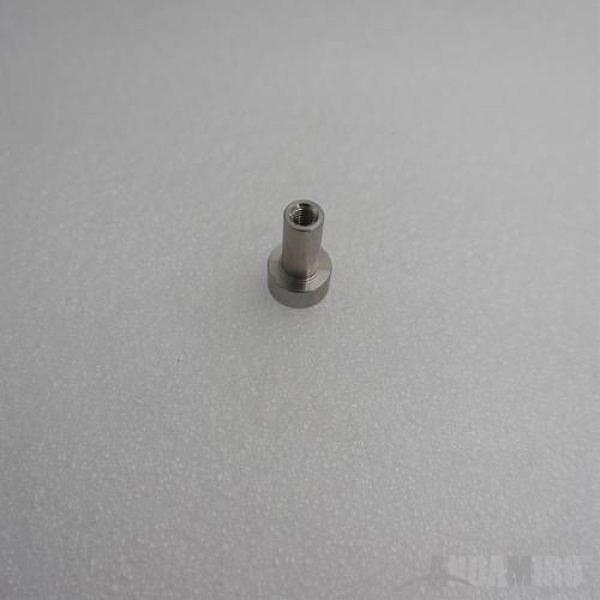

JACKPOT WHEEL ROLLER SHAFT
JACKPOT WHEEL ROLLER SHAFT
MAVB0PRO015
7

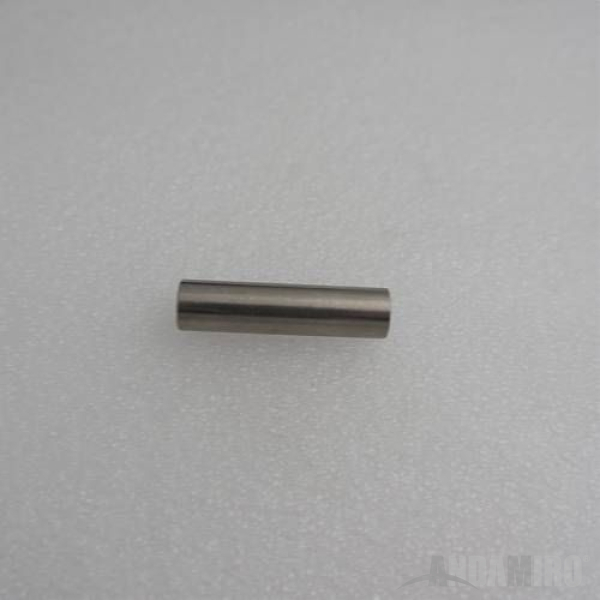

MAIN BILLBOARD SPACE POLE
MAIN BILLBOARD SPACE POLE
MAVB0PRO018
8

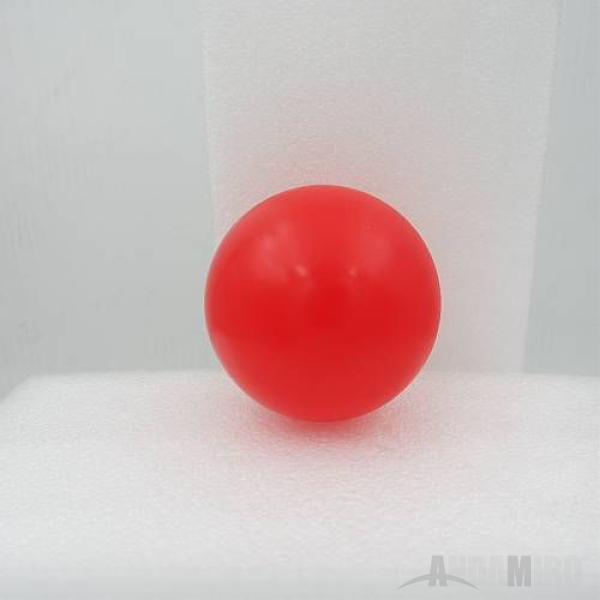

BALL
MZZZ0BLL022

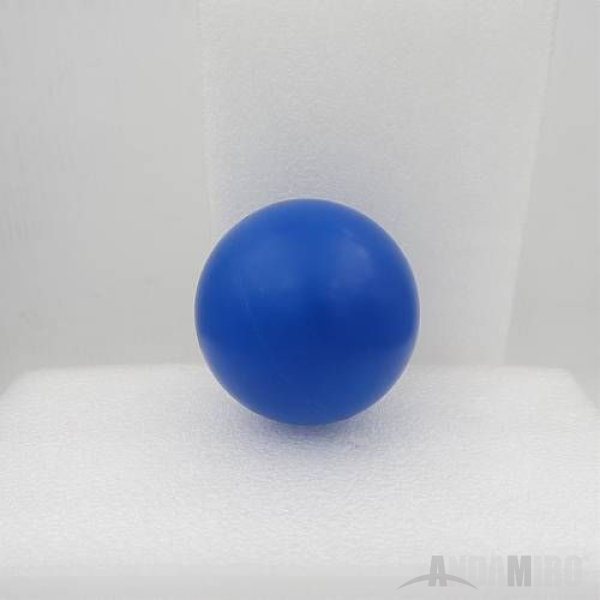

9
BALL
MZZZ0BLL023
10

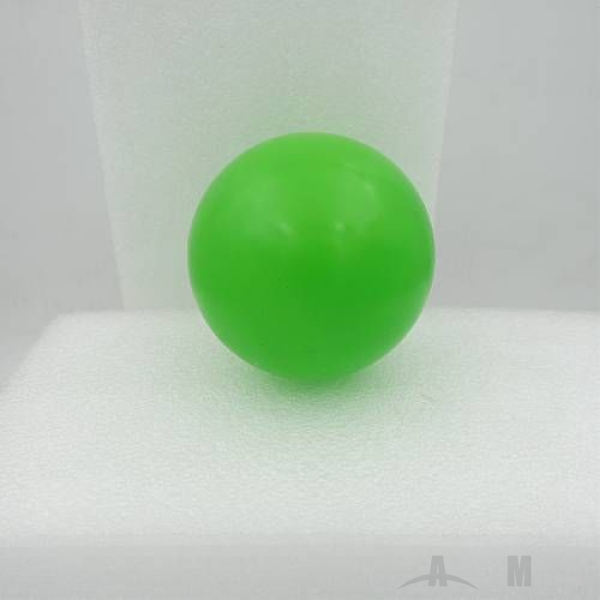

BALL
MZZZ0BLL024

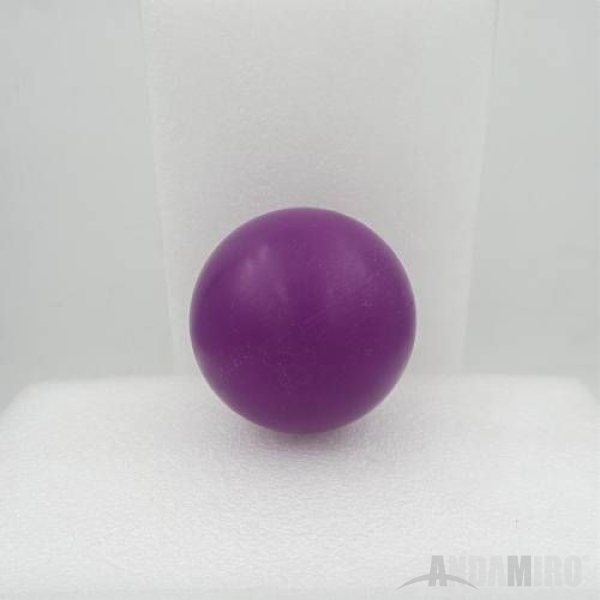

11
BALL
MZZZ0BLL025

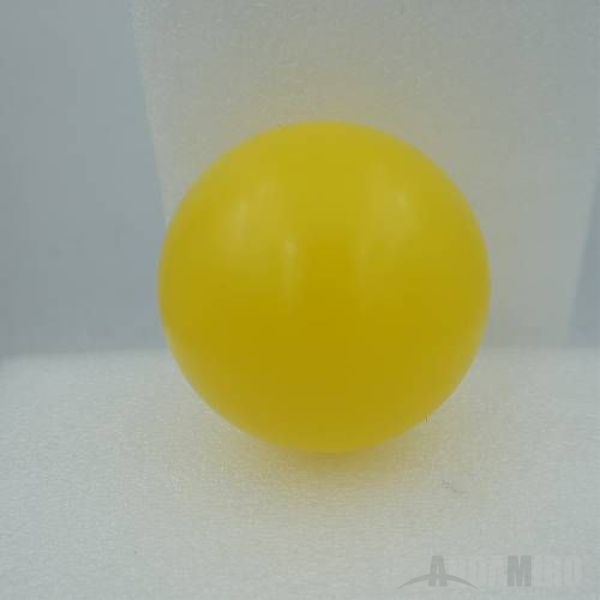

12
BALL
MZZZ0BLL026
13

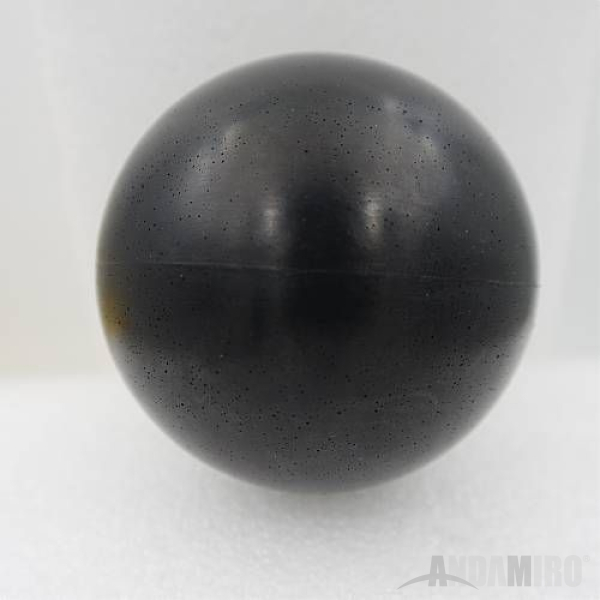

BALL
MZZZ0BLL027
14

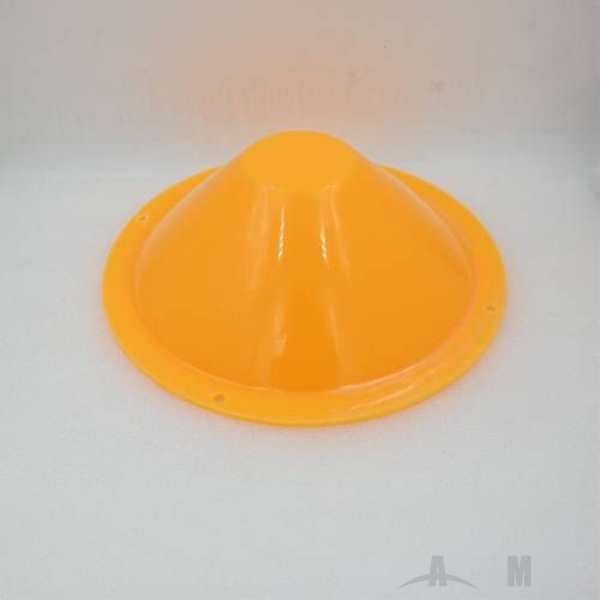

BALL HOPPER GUIDE
MAVB0PAR002
15

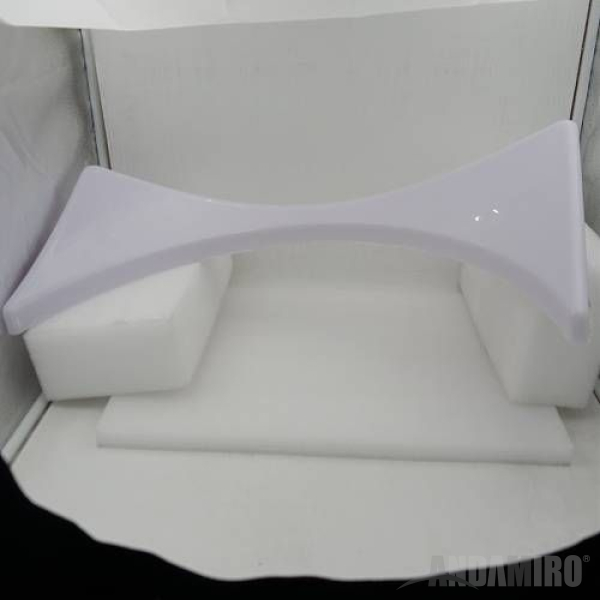

MAIN ROTATE BALL GUIDE
MAVB0PAR003

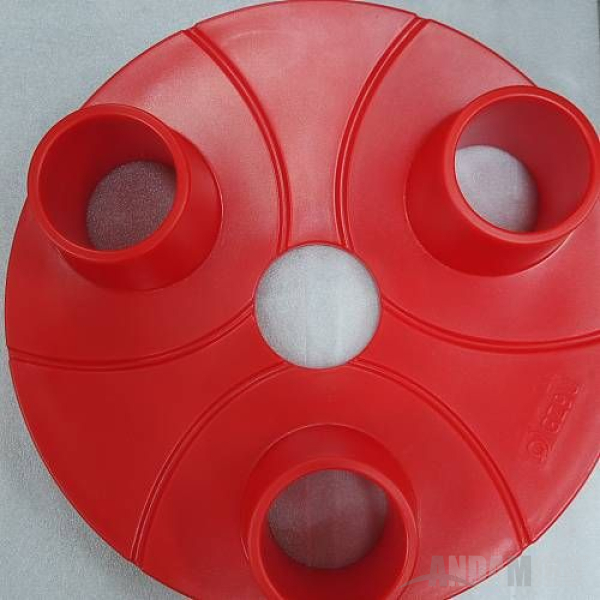

16
MAIN ROTATE BALL PLATE
MAVB0PAR004

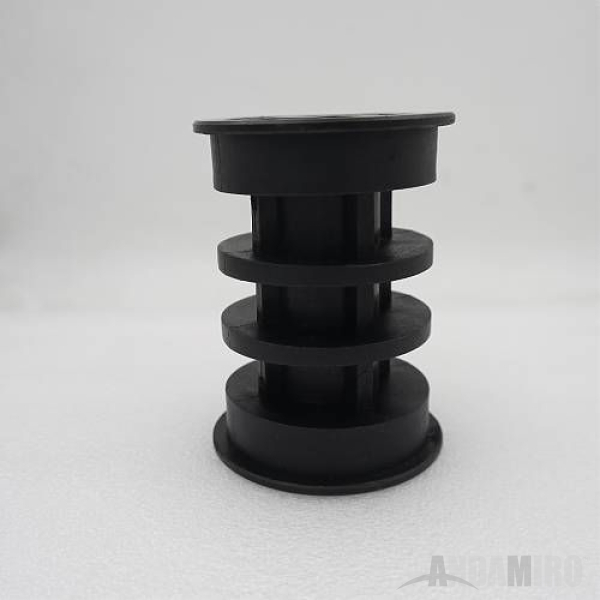

17
BALL ELEV ROLLER
MAVB0PAR005
18

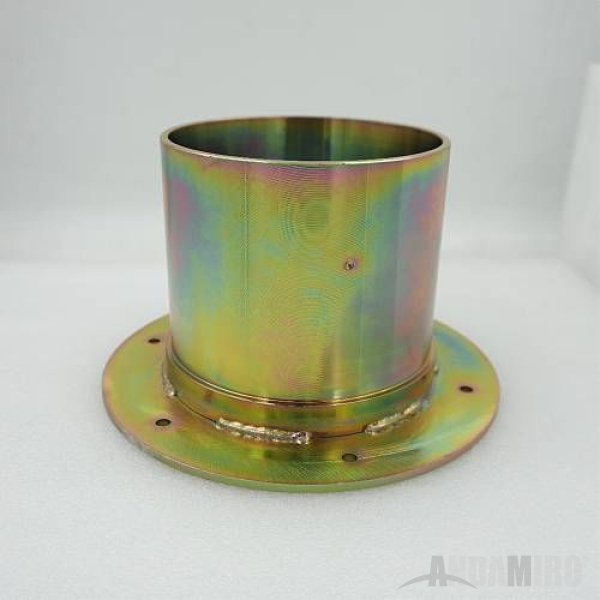

WELD-MAIN ROTATE BALL SHAFT
MAVB0PRO017,MAVB0MEP096
WELD-MAIN ROTATE BALL SHAFT
AAVB0ASS001
19

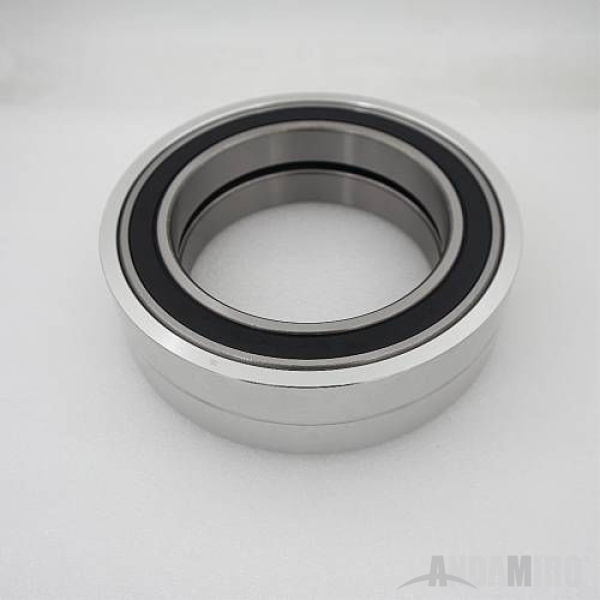

ASS'Y-MAIN WHEEL BEARING HOUSING
MAVB0PRO019,MZZZ0BEA146
ASS'Y-MAIN WHEEL BEARING HOUSING
AAVB0ASS002
20

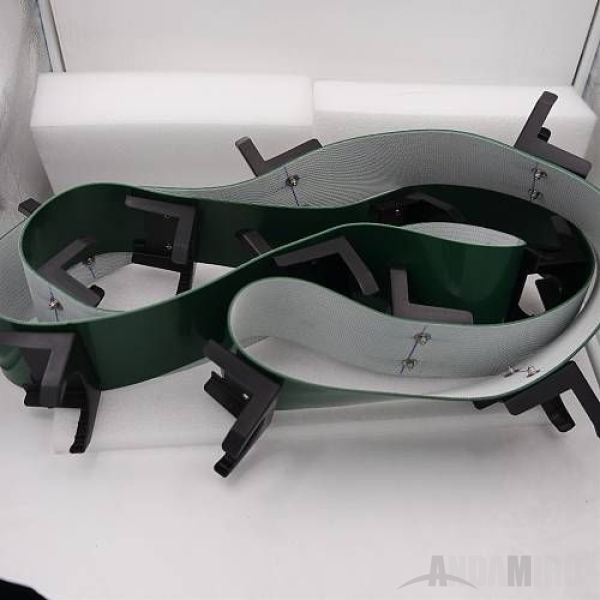

ASS'Y-BALL ELEV BELT
MAVB0PAR006,007
ASS'Y-BALL ELEV BELT
AAVB0ASS003

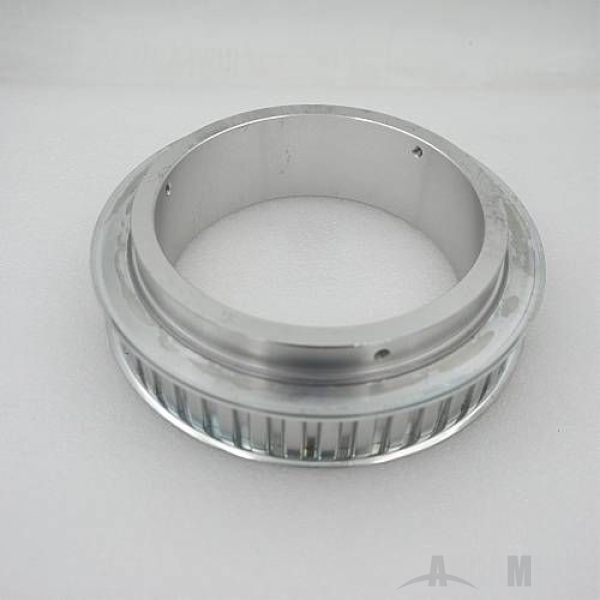

21
BELT PULLEY 44H100-6F
MAVB0PRO013
22

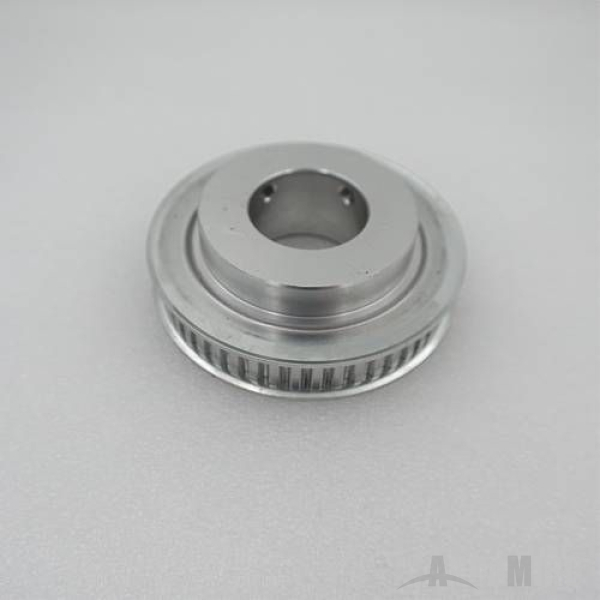

BELT PULLEY 48XL037-6F
MAVB0PRO014
23
BLDC HARNESS
KGE-2140-3640-S1
BLDC HARNESS
MZZZ0HAN086
24
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
PHOTO INT-1 PCB ASS'Y
AZZZ0PCB103
25
PHOTO INT-2 PCB ASS'Y
WINNER,WON,CIR공용
PHOTO INT-2 PCB ASS'Y
AWIW0PCB009
26
FND PCB ASS'Y
2029-2(STRAIGHT)
FND PCB ASS'Y
AFND0PCB001
27

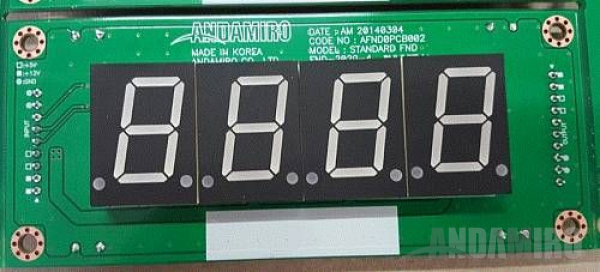

FND PCB ASS'Y
2029-4(STRAIGHT)
FND PCB ASS'Y
AFND0PCB014
28
WHEEL MOTOR PULLEY ASS'Y
ACOC0ASS005
29
FND PCB ASS'Y
6390-4(STRAIGHT)
FND PCB ASS'Y
AFND0PCB011
30
GAUNTLET LED PCB ASS'Y
AVENGERS 2P
GAUNTLET LED PCB ASS'Y
AAV20PCB002
31
VOLUME PCB ASS'Y
1 VOLUME
VOLUME PCB ASS'Y
AHM20PCB016
32
NEW SPOT LED PCB ASS'Y
ONE CHIP_WHITE
NEW SPOT LED PCB ASS'Y
AZZZ0PCB191
33
SETUP LCD PCB ASS'Y
UNISYSTECH
SETUP LCD PCB ASS'Y
AZZZ0PCB113
34

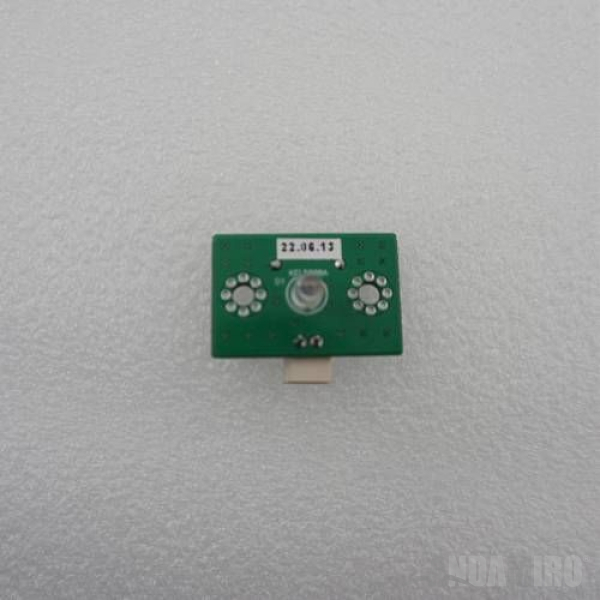

BALL IN IR TR PCB ASS'Y
AVENGERS BALL DROP
BALL IN IR TR PCB ASS'Y
AAVB0PCB001
35

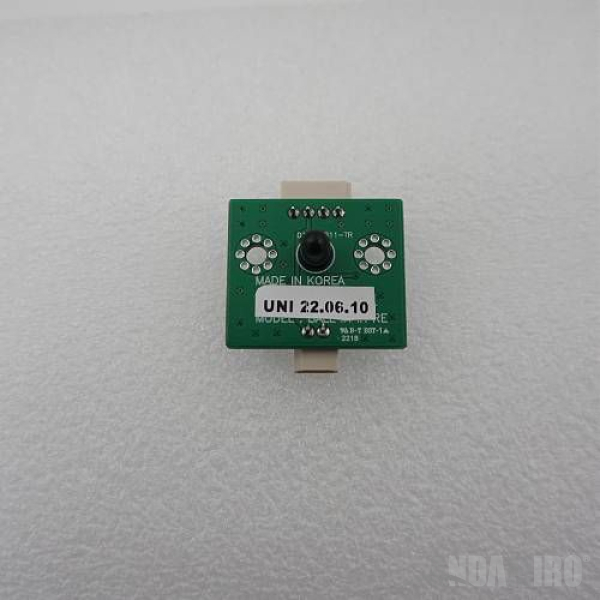

BALL IN IR RE PCB ASS'Y
AVENGERS BALL DROP
BALL IN IR RE PCB ASS'Y
AAVB0PCB002
36

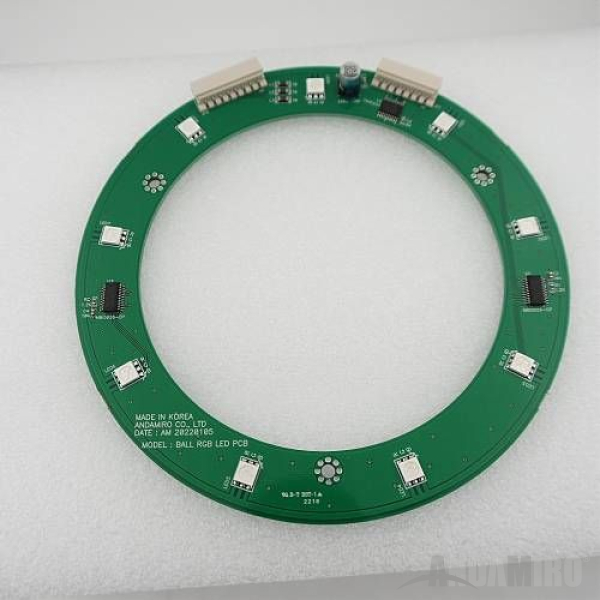

BALL RGB PCB PCB ASS'Y
AVENGERS BALL DROP
BALL RGB PCB PCB ASS'Y
AAVB0PCB003
37

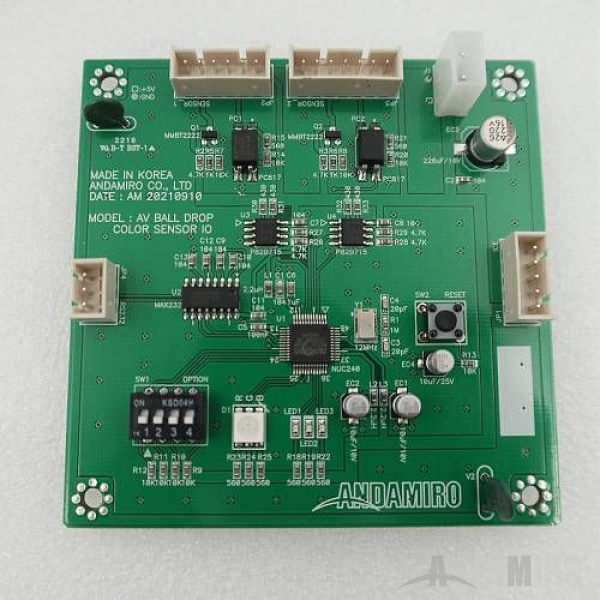

COLOR SENSOR IO PCB ASS'Y
AVENGERS BALL DROP
COLOR SENSOR IO PCB ASS'Y
AAVB0PCB004
38
POWER SMPS
MELE0SMP096
39

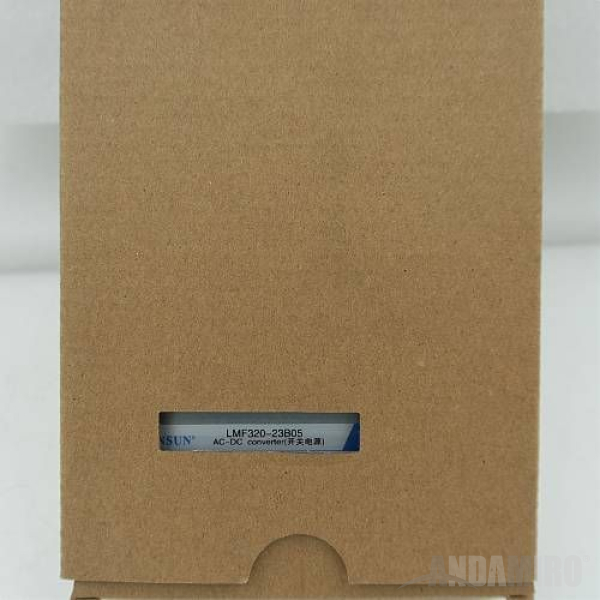

POWER SMPS
MELE0SMP146
40
ROCKER SWITCH
MELE0SWI021
41
NOISE FILTER
MELE0NOI009
42
TERMINAL BLOCK
250V 10P UL_CE
TERMINAL BLOCK
MELE0TEB003
43
AC INPUT ASS'Y
DAC-13H,WITH FUSE10A_2EA
AC INPUT ASS'Y
AELE0FUS002
43.1
[AC INPUT ASS'Y]
AC INPUT
DAC-13H
[AC INPUT ASS'Y]
AC INPUT
MELE0SWI015
43.2
[AC INPUT ASS'Y]
FUSE 10A
0218010.MXP 250V,10A,4PA
[AC INPUT ASS'Y]
FUSE 10A
MELE0FUS018
44

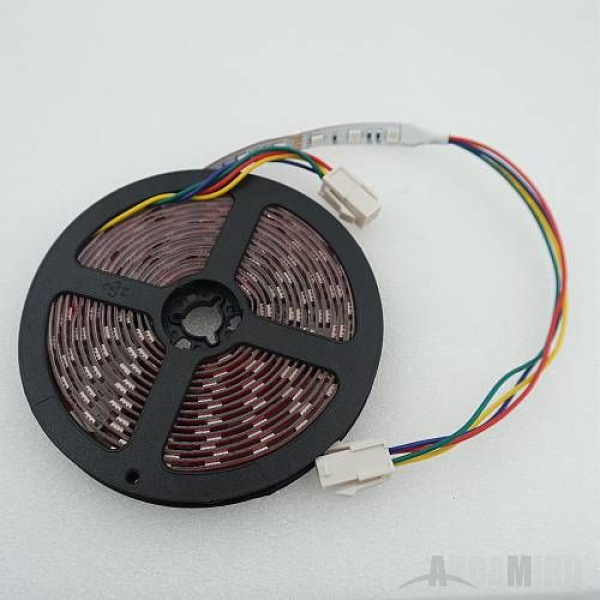

FLEX_3528_RED_150_NWP_L_9
T3528 TOP300구 9알
FLEX_3528_RED_150_NWP_L_9
MELE0LED105
45
FLEX_5050_RGB_600_NWP_L_36
T5050 300구 36알
FLEX_5050_RGB_600_NWP_L_36
MELE0LED101
46

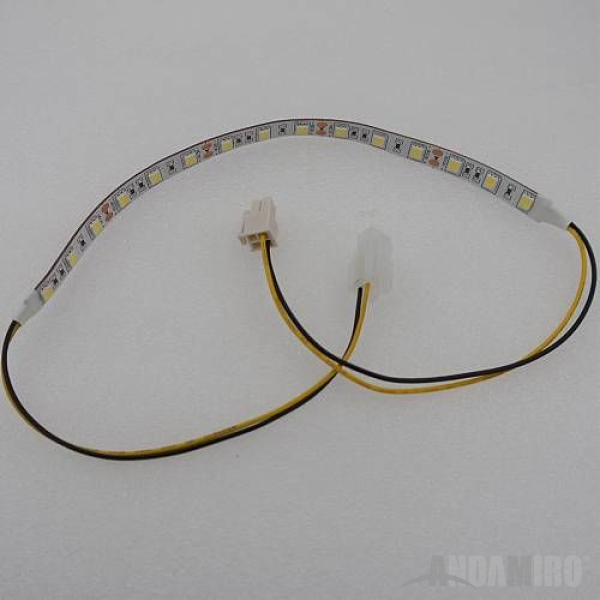

FLEX_5050_WHITE_250_NWP_LR_15
T5050 TOP300구 15알
FLEX_5050_WHITE_250_NWP_LR_15
MELE0LED106
47

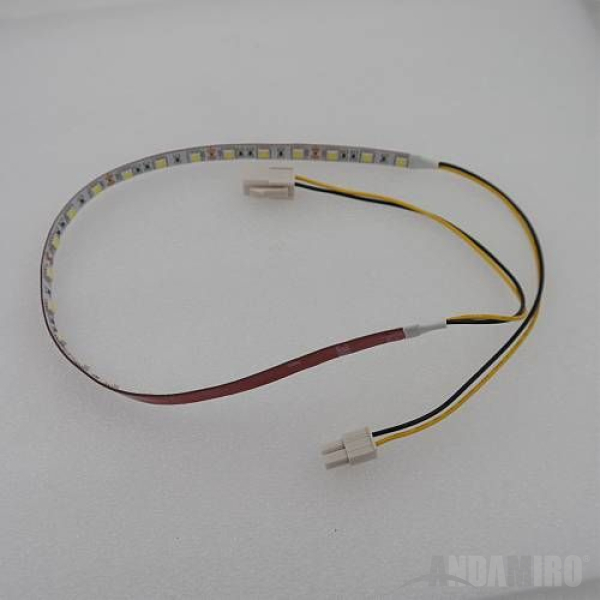

FLEX_5050_WHITE_400_NWP_LR_24
T5050 TOP300구 24알
FLEX_5050_WHITE_400_NWP_LR_24
MELE0LED107
48

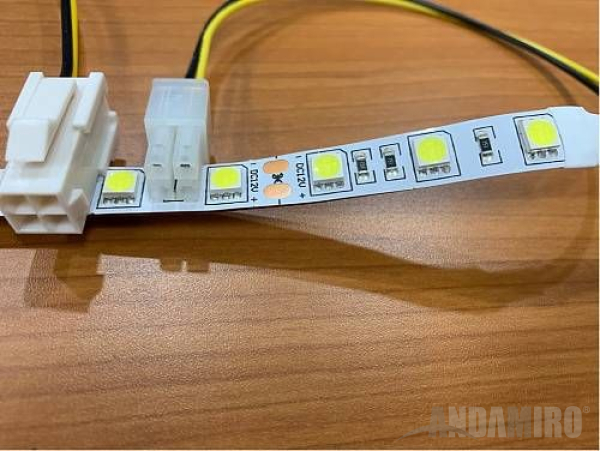

FLEX_5050_WHITE_500_NWP_LR_30
30알
FLEX_5050_WHITE_500_NWP_LR_30
MELE0LED027
49
FLEX_5050_WHITE_500_NWP_LR_30
30알
FLEX_5050_WHITE_500_NWP_LR_30
MELE0LED027
50

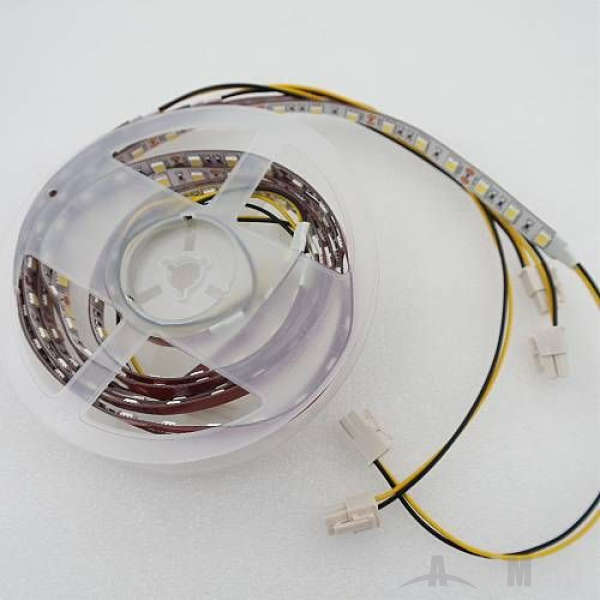

FLEX_5050_WHITE_650_NWP_LR_39
T5050 TOP 300구 39알
FLEX_5050_WHITE_650_NWP_LR_39
MELE0LED075
51
LED BAR 12V ASS'Y
AZZZ0PCB124

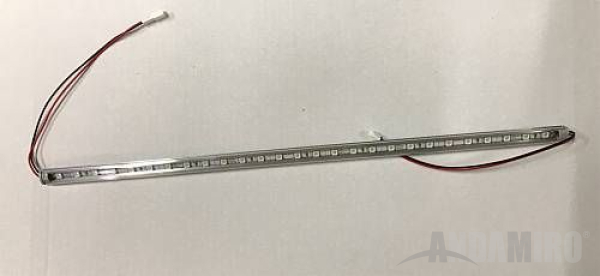

52
LED BAR 12V ASS'Y
460MM_BLUE
LED BAR 12V ASS'Y
AZZZ0PCB167
52.1
[LED BAR 12V ASS'Y]

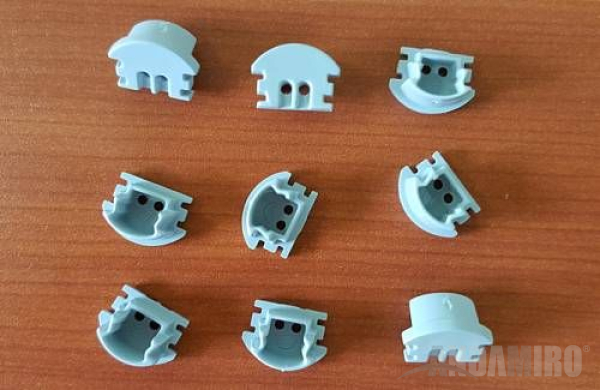

LED BAR SIDE CAP
.
[LED BAR 12V ASS'Y]
LED BAR SIDE CAP
MZZZ0PLA044

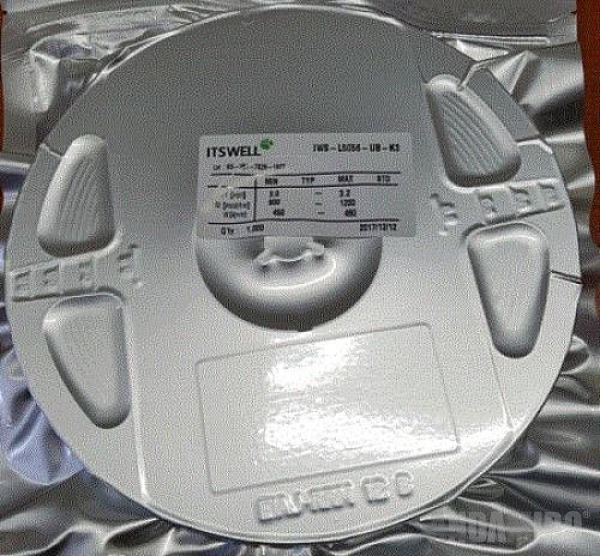

52.2
[LED BAR 12V ASS'Y]
LED BLUE
IWS-L5056-UB-K3
[LED BAR 12V ASS'Y]
LED BLUE
PDIS0LED052
53
LED STICK BAR BRK
12MM 90도
LED STICK BAR BRK
MELE0000022
54
PUSH BUTTON SWITCH
DS-412R ROSH
PUSH BUTTON SWITCH
MELE0PUS006
55
BUTTON SWITCH
TICKET AM1PB-26SH R12D
BUTTON SWITCH
MMUM0BUT002
56

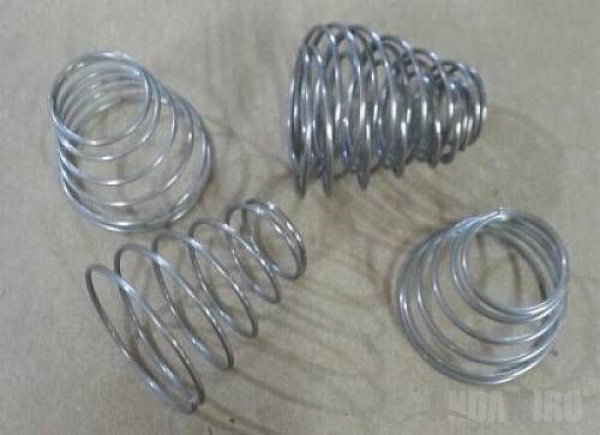

SOLENOIDE RETURN SPRING
RED ELEPHANT
SOLENOIDE RETURN SPRING
MREE0SPR002
57
VOLUME KNOB
MELE0VOL007
58
SMPS BKT
MZZZ0MEP048
59
COUPLING CR050 ASS'Y
8*8_M5_TAB120
COUPLING CR050 ASS'Y
AZZZ0COP002
60
BUTTON SWITCH
CWB 401-WHITE 100MM LED
BUTTON SWITCH
MZZZ0BUT080
61
LED CAP
MZZZ0PLA037
62
SPEAKER
MID 4.5"+TW1/2" 8Ω
SPEAKER
MZZZ0SPE021
63
COUNTER
OA127CL W/2P CONNECTOR_20CM WIRE
COUNTER
MZZZ0COU002
64
KEY ASS'Y 7001
MZZZ0KEY076
65
KEY ONLY 7001
2EA 1SET_WITH RING
KEY ONLY 7001
MZZZ0KEY035
66
PLUG CUSHION RUBBER
공진 [KD-96R-9] 6MM
PLUG CUSHION RUBBER
MCIR0RUB001
67
SWITCH SPRING
MGAC0SPR002
68
MICRO SWITCH
CNR-05H-03 ZIPPY-FOR COIN
MICRO SWITCH
MELE0MIC002
69

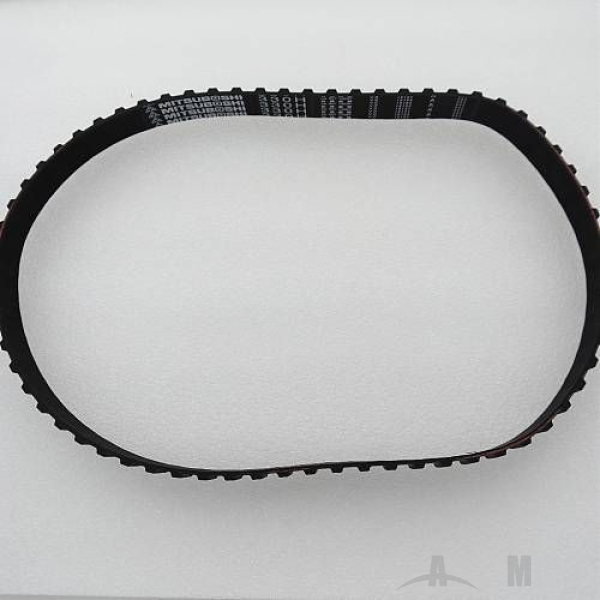

TIMING BELT
MZZZ0BEL060

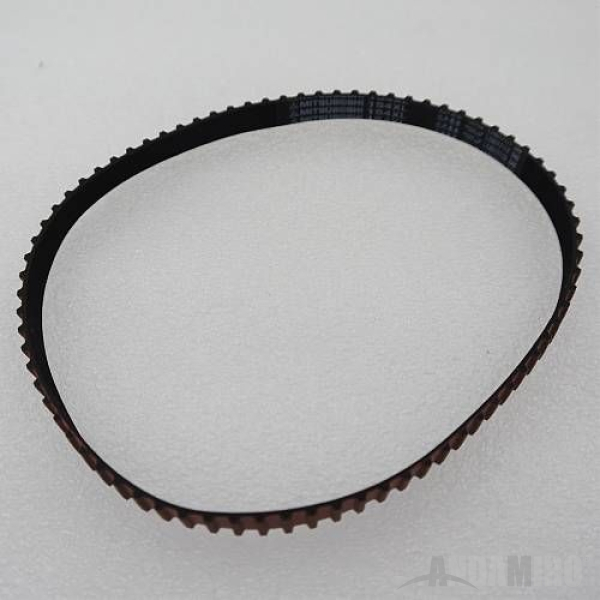

70
TIMING BELT
MZZZ0BEL061

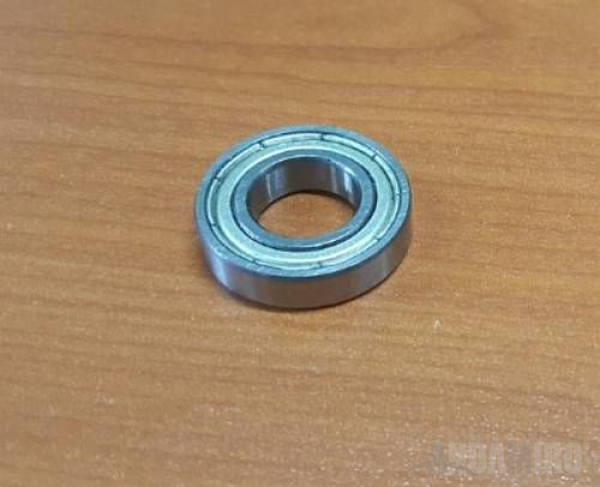

71
BEARING
MZZZ0BEA112
72

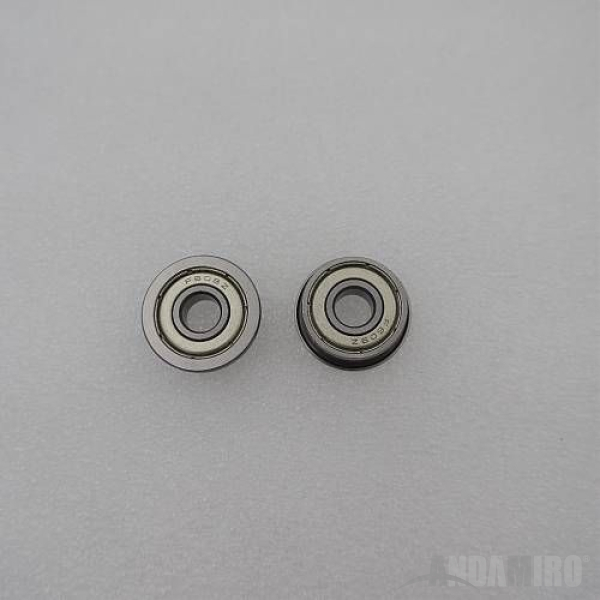

BEARING
MZZZ0BEA145

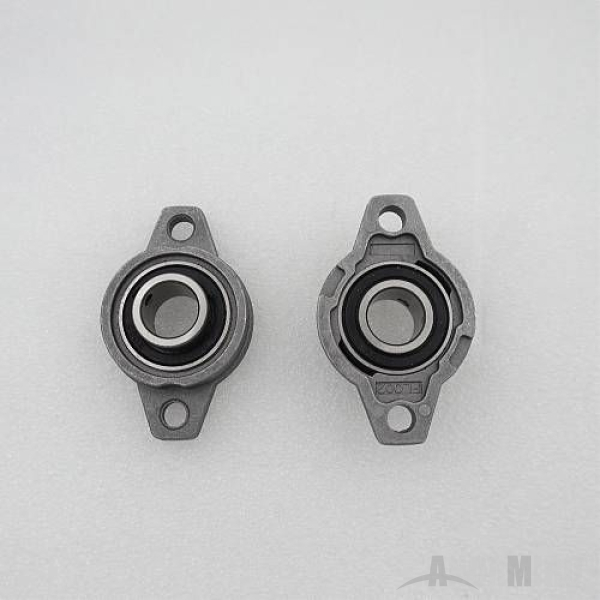

73
BEARING
MZZZ0BEA148
74

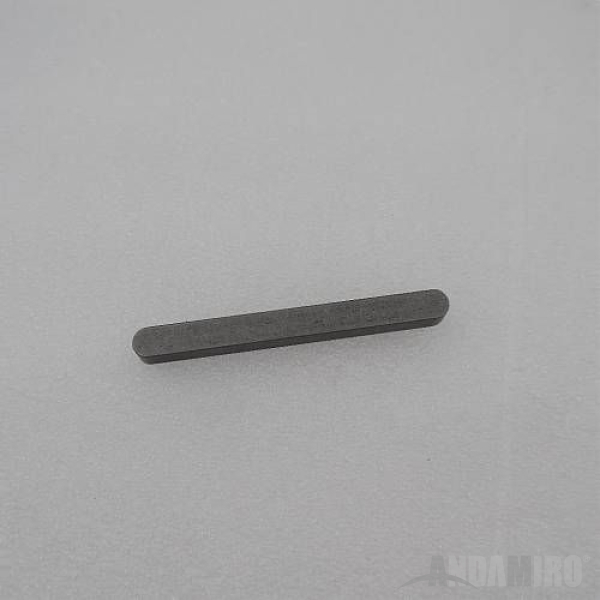

PARALLEL KEY
MZZZ0PAK001
75
MOTOR
KGV2-0200-3657U1 (25 RPM)
MOTOR
MZZZ0MOT161
76

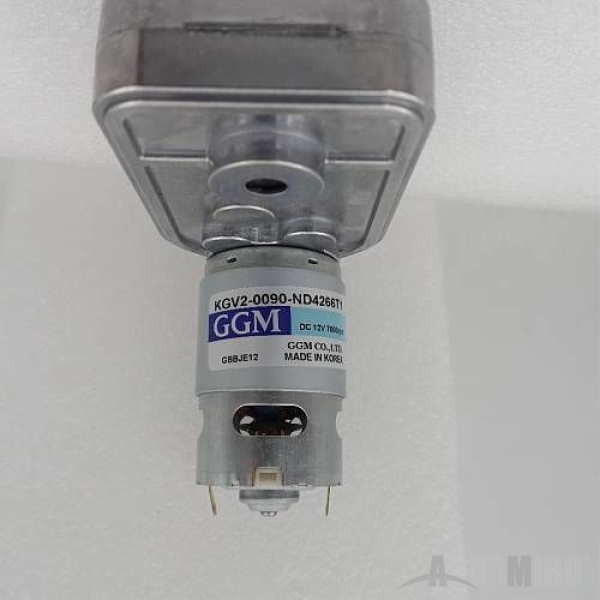

MOTOR
MZZZ0MOT174
77

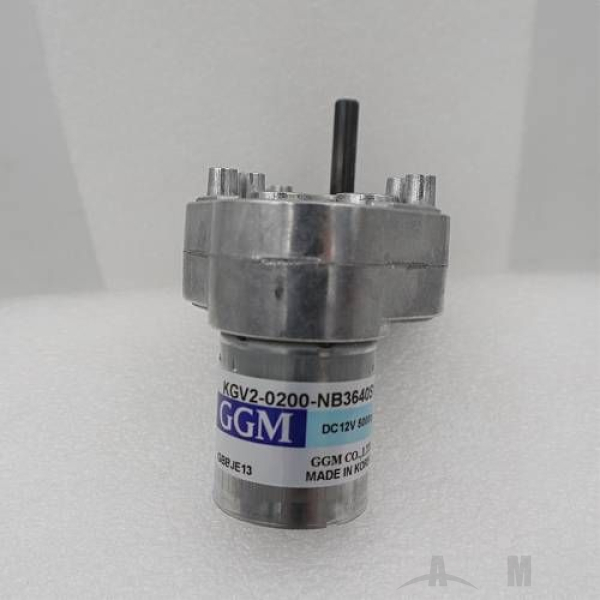

MOTOR
KGV2-0200-K(N)B3640S1
MOTOR
MZZZ0MOT175
78

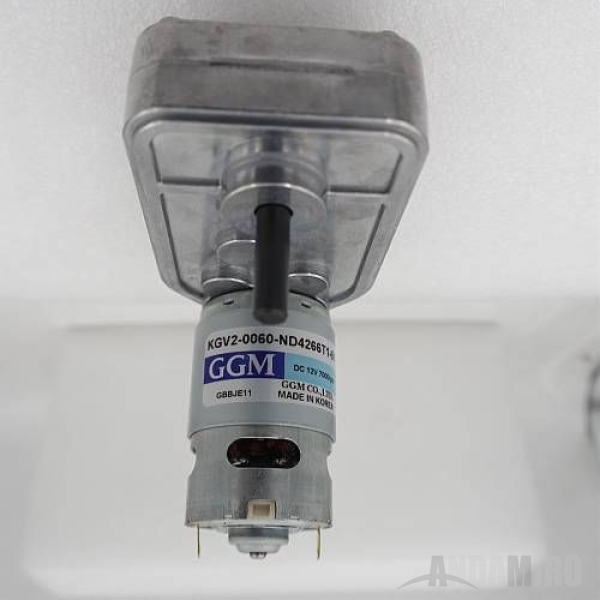

MOTOR
KGV2-0060-KD4266T1,R-TYPE
MOTOR
MZZZ0MOT176
79
KEY ASS'Y 6001
MZZZ0KEY075
80
KEY ONLY 6001
2EA 1SET _WITH RING
KEY ONLY 6001
MZZZ0KEY014
81
COIN BOX SMALL
200*198*107 BLACK
COIN BOX SMALL
MDRE0PLA007
82

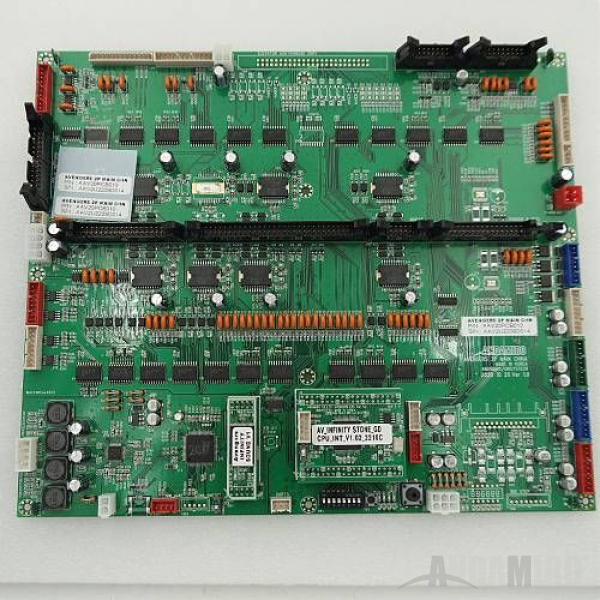

AVB MAIN PCB ASS'Y W_CPU_SOUND
FOR INFINITY
AVB MAIN PCB ASS'Y W_CPU_SOUND
AAV20PCB012
83

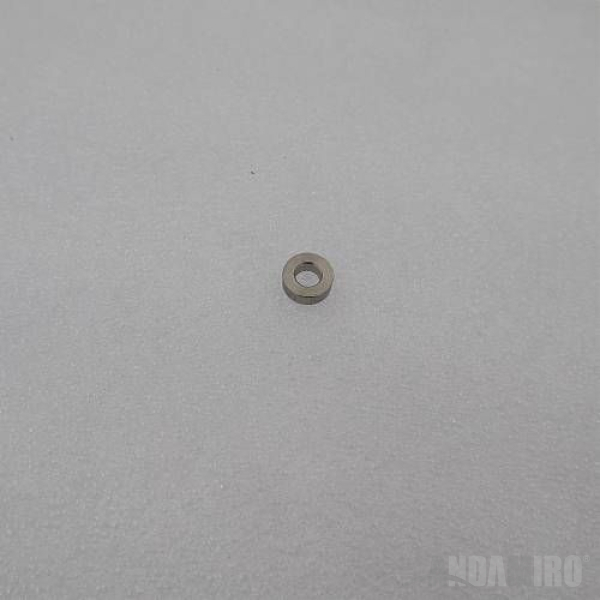

BALL ELEV WASHER
MAVB0PRO027
84

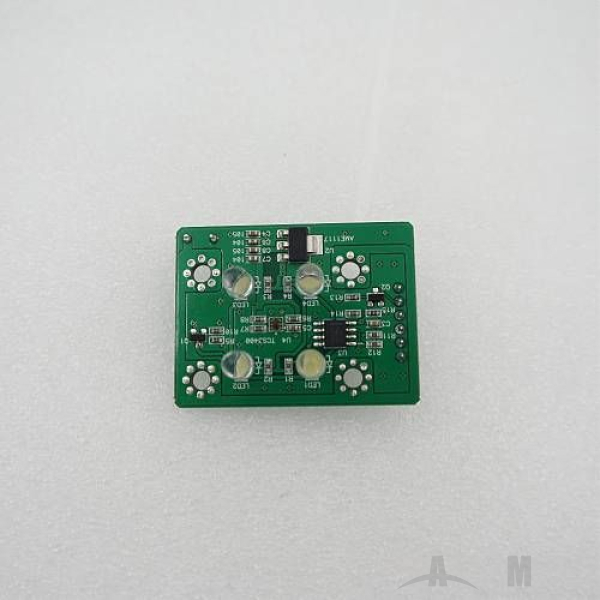

COLOR SENSOR PCB ASS'Y V2
AVENGERS BALL DROP
COLOR SENSOR PCB ASS'Y V2
AAVB0PCB006
85
SPONGE_10X1000 4T
MPCX0PLA007
