TICKET REDEMPTION THE REDEEM MACHINE ANDAMIRO'S HIGH-TECH, INTERACTIVE SELF-SERVICE KIOSK ACCEPTS

  • 트위터로 보내기
  • 페이스북으로 보내기
  • 구글플러스로 보내기
Short url COPY http://www.andamiro.com/games/theredeemmachine
Tags TheRedeemMachine Ticket
Dimensions 656mm x 842mm x 2,272mm
26" x 33" x 89"
Packing Dimensions 795mm x 700mm x 2,020mm
31" x 28" x 80"
Product Weight 110 kg / 243 lbs
Packing Weight 130 kg / 287 lbs
Power 110W
INQUIRY
PARTS INQUIRY

SUPPORT

  • Leaflets (1)

  • Manuals (2)

  • Document (0)

  • Trouble shooting
    Video List (0)

FEATURES

- Andamiro's high-tech, interactive self-service kiosk accepts, validates and counts collectible redemption cards, coins and chips.

- Ships ready for Andamiro's SpongeBob, Minions and WWE game cards as well as Bandai Namco's DC Superheroes cards.

- High-capacity solid-state SSD supports expansion capabilities for additional game cards and items.

- Recognizes bonus sets and awards "e-tickets" and points, accordingly.

- Compatible with popular swipe-card cashless systems, including Embed, Intercard and Sacoa.

- Ships with dual ticket dispensers for traditional "ticket" venues.

- Helps prevent card fraud and theft. Reads barcoded and RFID cards. Securely stores high-value trade-ins.

- Self-service operation eliminates need for staff intervention, reducing bottlenecks at the redemption center.

- Dual screens (23inch) enble user-friendly experience

GALLERY

Sorry, this is not available at the moment.

PARTS


동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 87Parts

No. Part name Part picture Code Info Part picture Part Add
1

AC INPUT

DAC-13H

AC INPUT

MELE0SWI015

Part picture
2

FUSE 10A

0218010.MXP 250V,10A,4PA

FUSE 10A

MELE0FUS018

Part picture
3

POWER SMPS

LRS 150F-12

POWER SMPS

MELE0SMP090

Part picture
4

POWER SMPS

LRS 100_12

POWER SMPS

MELE0SMP084

Part picture
5

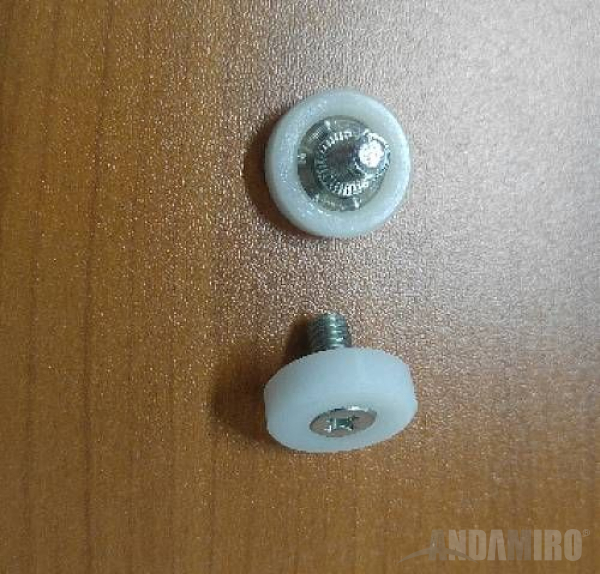

BEARING

DR19-B

BEARING

MZZZ0BEA117

Part picture
6

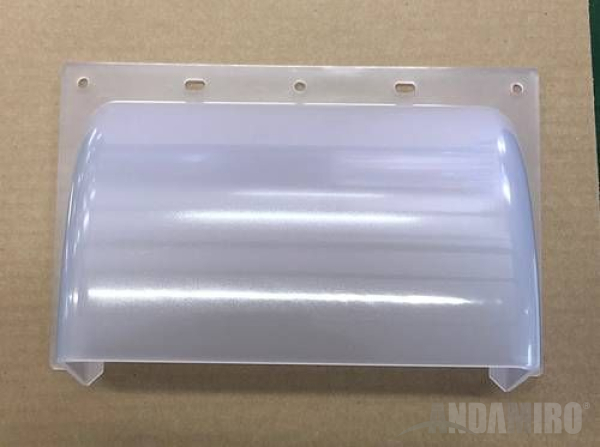

PRIZE OUTLET COVER MOLD

.

PRIZE OUTLET COVER MOLD

MKIS0PLA001

Part picture
6.1

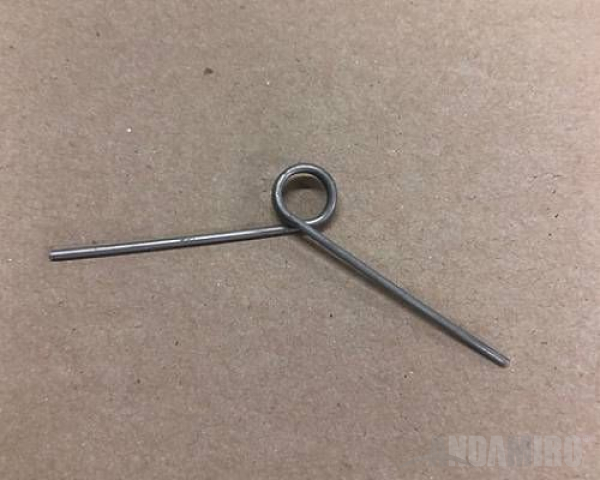

[PRIZE OUTLET COVER MOLD] CARD DISPENSER SPRING-A

.

[PRIZE OUTLET COVER MOLD] CARD DISPENSER SPRING-A

MKIS0SPR001

Part picture
6.2

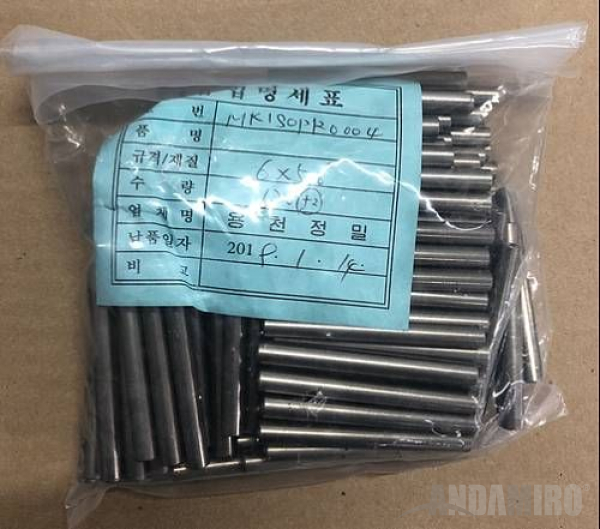

[PRIZE OUTLET COVER MOLD] CARD DISPENSER FRAME SPACER

.

[PRIZE OUTLET COVER MOLD] CARD DISPENSER FRAME SPACER

MKIS0PRO004

Part picture
7

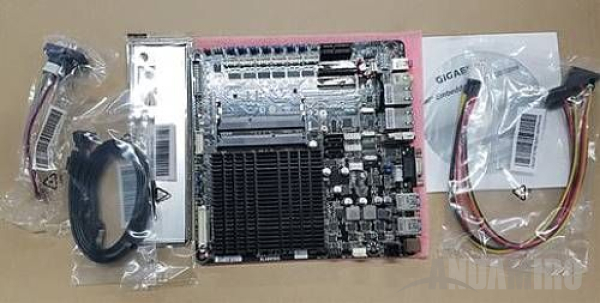

MAIN BOARD V1

GA-N3160TN

MAIN BOARD V1

AZZZ0PCB186

Part picture
8

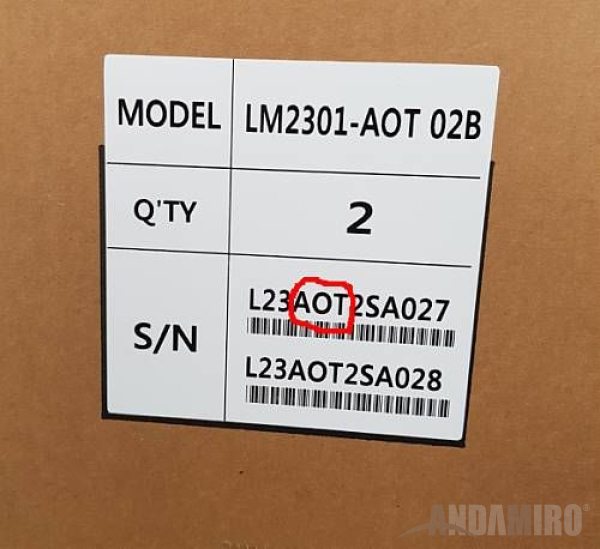

LCD MONITOR_LA230JTVUD

23INCH_TOUCH KIOSK

LCD MONITOR_LA230JTVUD

MZZZ0LCD019

Part picture
9

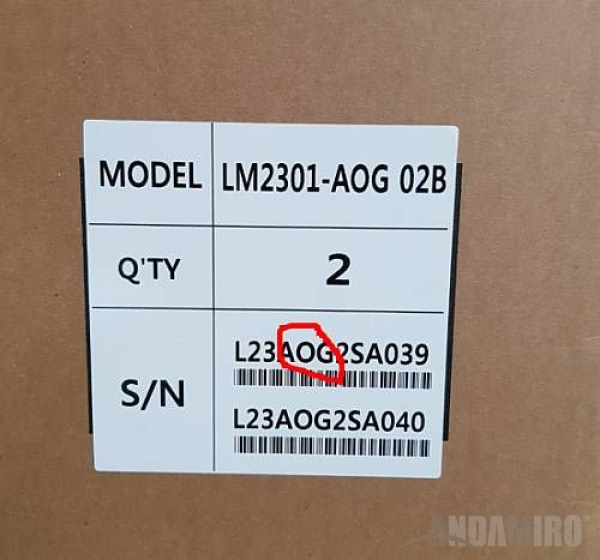

LCD MONITOR_LA230NTVXC

23INCH_KIOSK

LCD MONITOR_LA230NTVXC

MZZZ0LCD018

Part picture
10

RAM_V1

LPDDR3 4GB PC3L-12800 SAMSUNG

RAM_V1

MZZZ0000698

Part picture
11

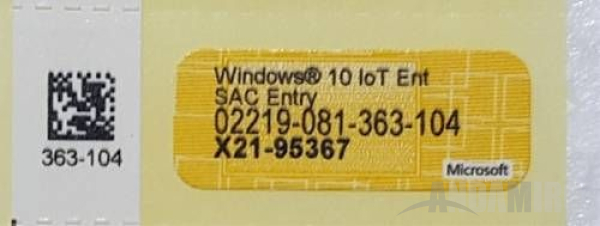

WINDOW LICENSE

WINDOW 10_IOT_CBB

WINDOW LICENSE

MZZZ0OSS001

Part picture
11.1

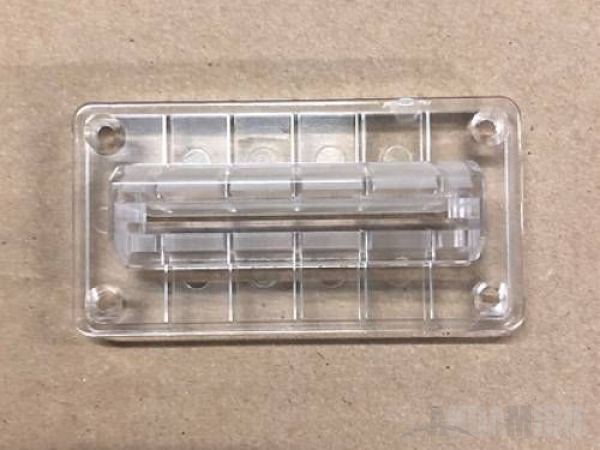

[WINDOW LICENSE] CARD DISPENSER FRONT MASK

PC

[WINDOW LICENSE] CARD DISPENSER FRONT MASK

MKIS0PLA003

Part picture
11.2

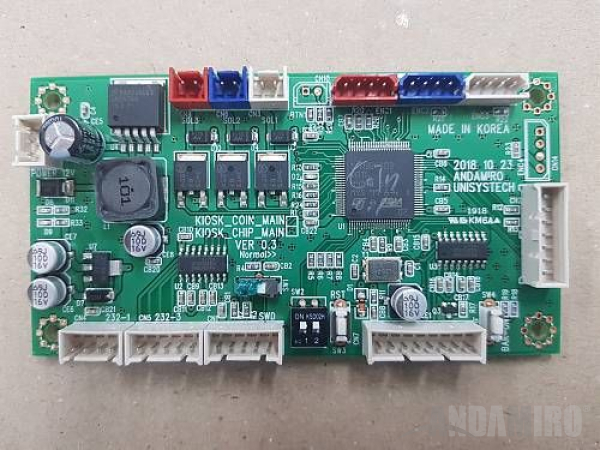

[WINDOW LICENSE] KIOSK COIN MAIN PCB ASS'Y

COIN RAIL

[WINDOW LICENSE] KIOSK COIN MAIN PCB ASS'Y

AKIS0PCB006

Part picture
12

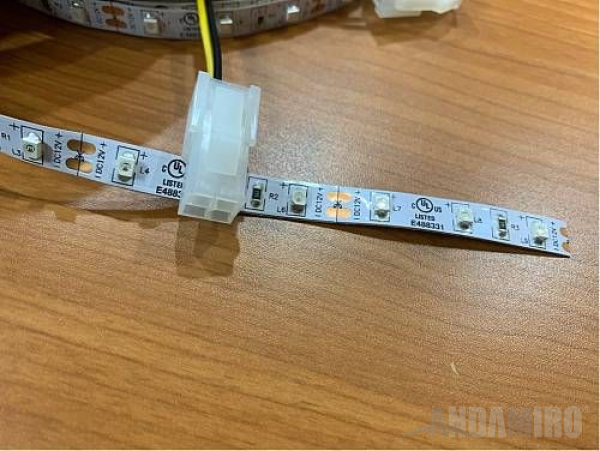

FLEX_3528_GREEN_1150_NWP_L_69

T3528 TOP300구 69알

FLEX_3528_GREEN_1150_NWP_L_69

MELE0LED061

Part picture
12.1

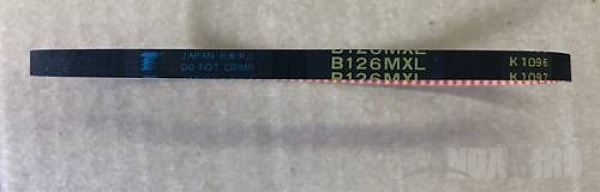

[FLEX_3528_GREEN_1150_NWP_L_69] TIMMING BELT

126MXL,W4.8

[FLEX_3528_GREEN_1150_NWP_L_69] TIMMING BELT

MZZZ0BEL038

Part picture
12.2

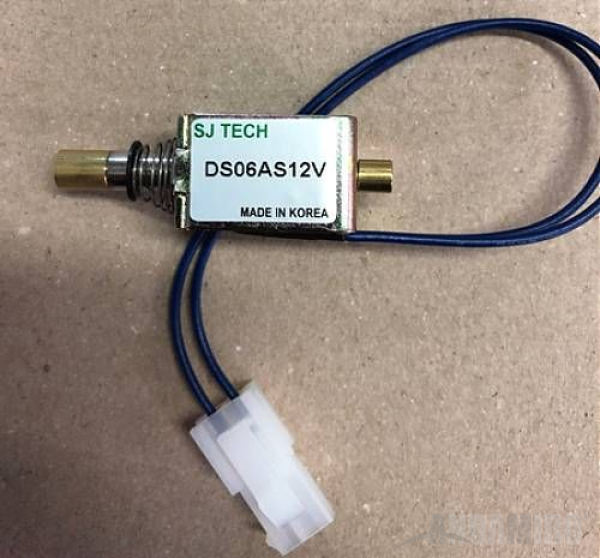

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID ASS'Y

.

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID ASS'Y

AKIS0ASS013

Part picture
12.3

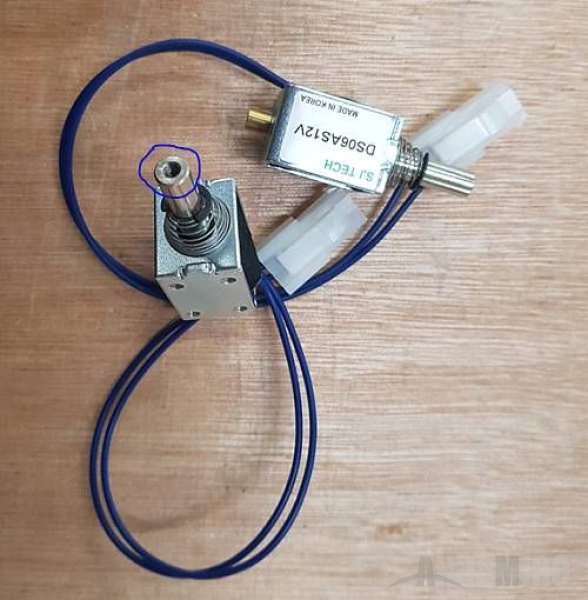

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

DS06AS12V_W/TAP

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

MELE0SOL005

Part picture
12.4

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

DS06AS12V_W/TAP

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

MELE0SOL005

Part picture
12.5

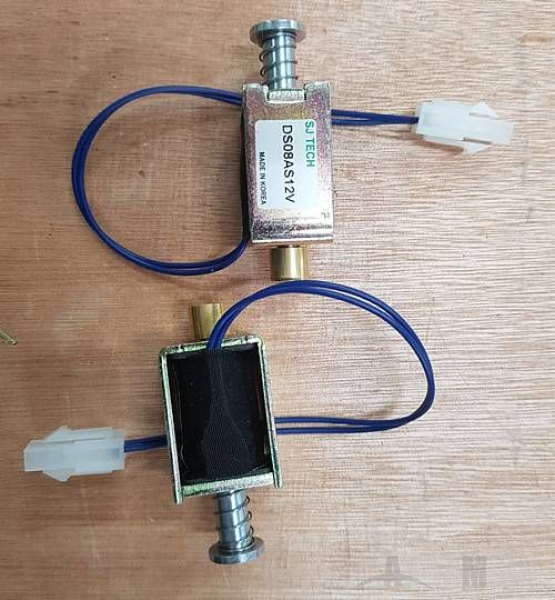

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

DS08AS12V

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

MELE0SOL006

Part picture
12.6

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

DS08AS12V

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

MELE0SOL006

Part picture
12.7

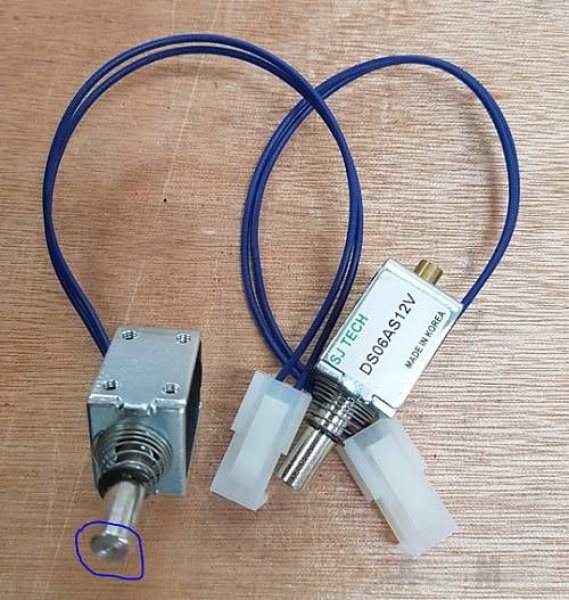

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

DS06AS12V

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID

MELE0SOL004

Part picture
12.7.1

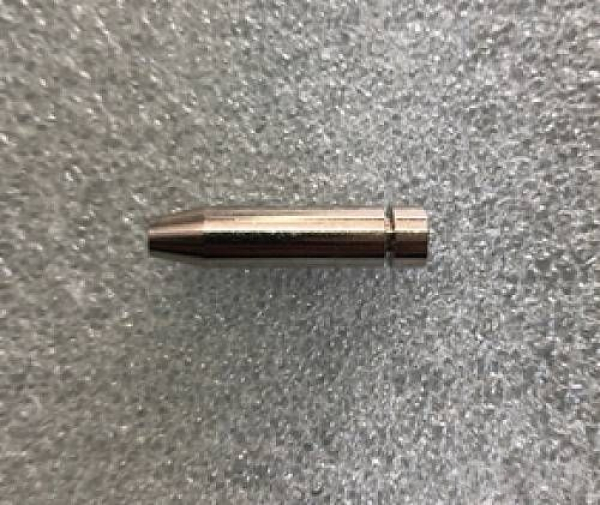

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID SHAFT_KIOSK

.

[FLEX_3528_GREEN_1150_NWP_L_69] SOLENOID SHAFT_KIOSK

MKIS0PRO006

Part picture
13

SPEAKER

MID 4.5"+TW1/2" 8Ω W-C-100 F BK

SPEAKER

MZZZ0SPE021

Part picture
14

CHIP RAIL ASS'Y

CHIP RAIL ASS'Y

AKIS0ASS005

Part picture
15

CARD DISPENSER ASS'Y

CARD DISPENSER ASS'Y

AKIS0ASS001

Part picture
16

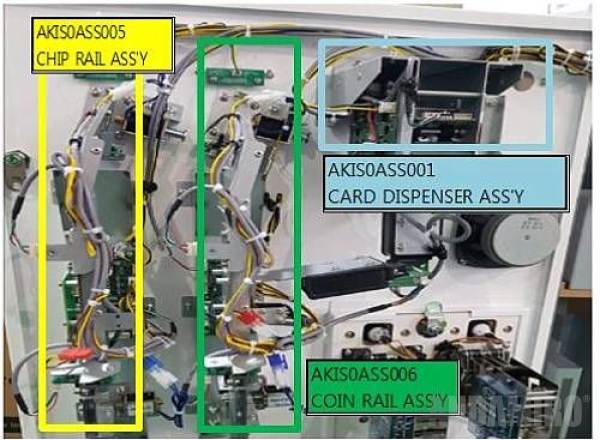

COIN RAIL ASS'Y

OPTION

COIN RAIL ASS'Y

AKIS0ASS006

Part picture
16.1.1

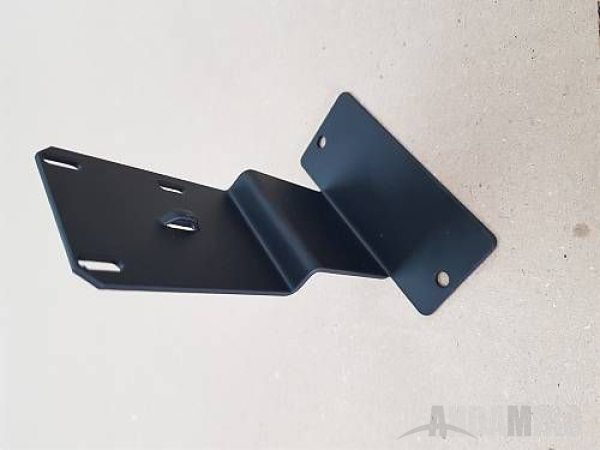

[COIN RAIL ASS'Y] CARD BAR CODE READER BKT

.

[COIN RAIL ASS'Y] CARD BAR CODE READER BKT

MKIS0MEP007

Part picture
17

LED BAR 12V ASS'Y

460MM

LED BAR 12V ASS'Y

AZZZ0PCB124

Part picture
18

FLEX_3528_GREEN_1150_NWP_L_69

T3528 TOP300구 69알

FLEX_3528_GREEN_1150_NWP_L_69

MELE0LED061

Part picture
18.1.1

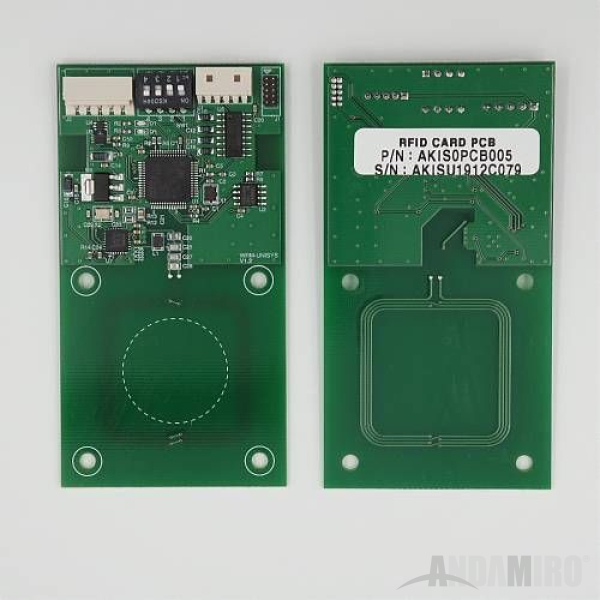

[FLEX_3528_GREEN_1150_NWP_L_69] RFID CARD SENSOR PCB ASS'Y

CARD DIS, CHIP RAIL

[FLEX_3528_GREEN_1150_NWP_L_69] RFID CARD SENSOR PCB ASS'Y

AKIS0PCB005

Part picture
19

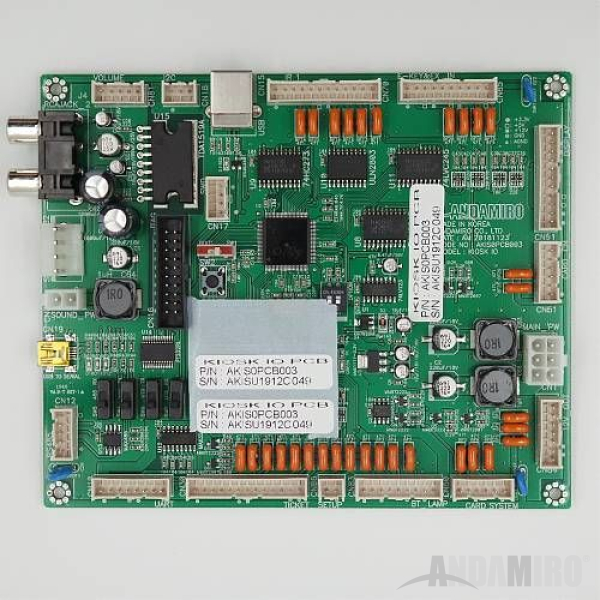

KIOSK IO PCB ASS'Y

KIOSK

KIOSK IO PCB ASS'Y

AKIS0PCB003

Part picture
19.1.1

[KIOSK IO PCB ASS'Y] BUTTON SWITCH

TICKET AM1PB-26SH R12D

[KIOSK IO PCB ASS'Y] BUTTON SWITCH

MMUM0BUT002

Part picture
20

LED STICK BAR BRK

12MM 90도

LED STICK BAR BRK

MELE0000022

Part picture
20.1.1

[LED STICK BAR BRK] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[LED STICK BAR BRK] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
20.2.1

[LED STICK BAR BRK] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[LED STICK BAR BRK] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
21

NOISE FILTER

RNS-2010

NOISE FILTER

MELE0NOI009

Part picture
22

TERMINAL BLOCK

250V 10P UL_CE

TERMINAL BLOCK

MELE0TEB003

Part picture
23

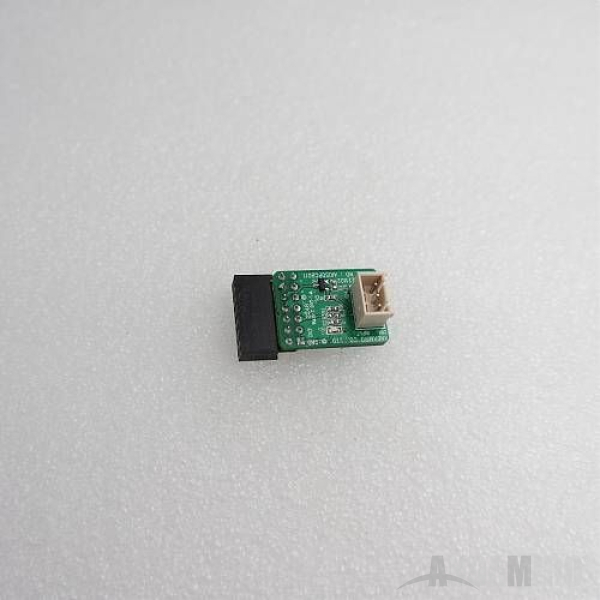

AUTO POWER V2 PCB ASS'Y

KIOSK_V2

AUTO POWER V2 PCB ASS'Y

AKIS0PCB011

Part picture
23.1.1

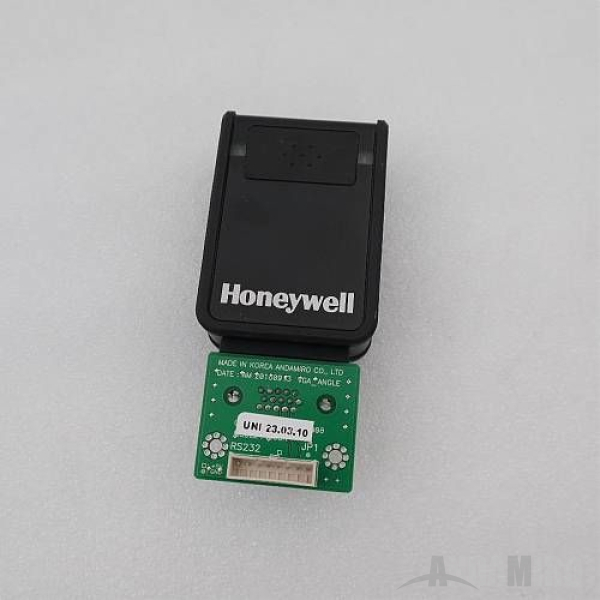

[AUTO POWER V2 PCB ASS'Y] BARCODE READER HONEYWELL-3330G

WITH LICENSE

[AUTO POWER V2 PCB ASS'Y] BARCODE READER HONEYWELL-3330G

AZZZ0ASS054

Part picture
23.2.1

[AUTO POWER V2 PCB ASS'Y] BARCODE READER HONEYWELL-3330G

WITH LICENSE

[AUTO POWER V2 PCB ASS'Y] BARCODE READER HONEYWELL-3330G

AZZZ0ASS054

Part picture
24

RAM_V1

LPDDR3 4GB PC3L-12800 SAMSUNG

RAM_V1

MZZZ0000698

Part picture
25

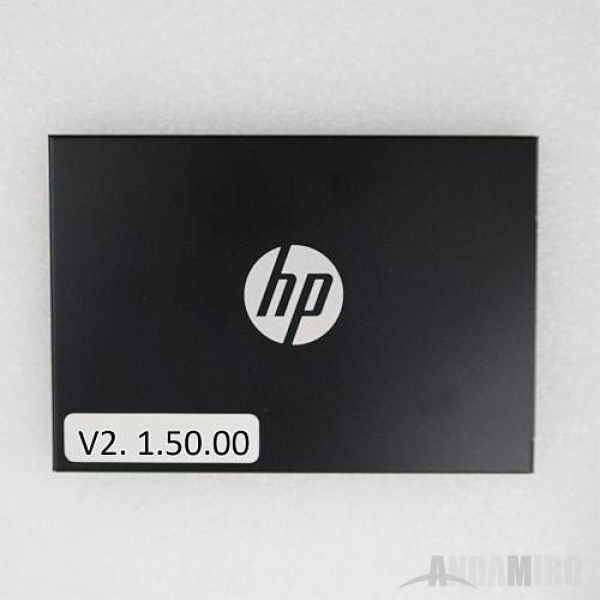

PROGRAM WITH SSD V2_NEW

FOR BIELK IHT-R05

PROGRAM WITH SSD V2_NEW

AZZZ0MEM002

Part picture
25.1.1

[PROGRAM WITH SSD V2_NEW] SSD

HP S700 120

[PROGRAM WITH SSD V2_NEW] SSD

MZZZ0MEM025

Part picture
25.2.1

[PROGRAM WITH SSD V2_NEW] SSD

HP S700 120

[PROGRAM WITH SSD V2_NEW] SSD

MZZZ0MEM025

Part picture
26

PROGRAM WITH SSD V1_OLD

FOR_GA-N3160TN

PROGRAM WITH SSD V1_OLD

AZZZ0MEM001

Part picture
27

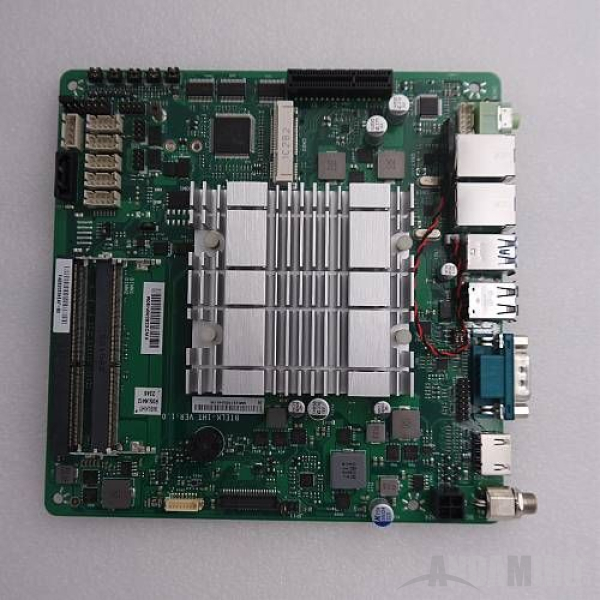

MAIN BOARD V2

BIOSTAR BIELK IHT-R05

MAIN BOARD V2

AZZZ0PCB221

Part picture
28

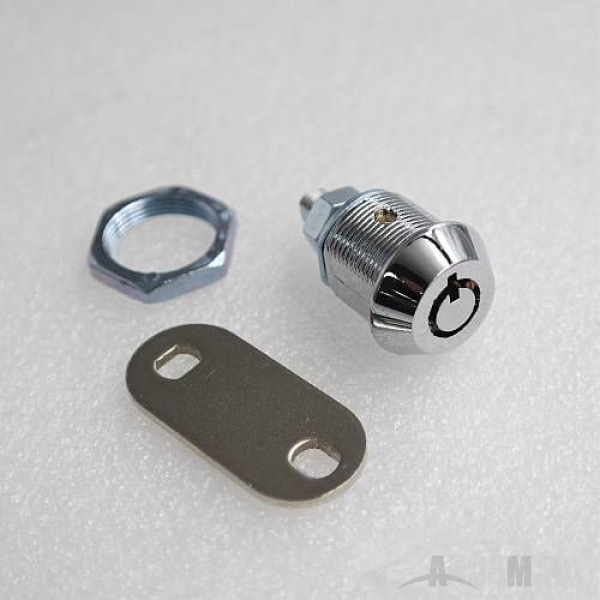

KEY ASS'Y 7001

7001 ONLY BODY

KEY ASS'Y 7001

MZZZ0KEY076

Part picture
29

KEY ONLY 7001

2EA 1SET_WITH RING

KEY ONLY 7001

MZZZ0KEY035

Part picture
30

ROCKER SWITCH

R595KDF

ROCKER SWITCH

MELE0SWI021

Part picture
31

PUSH BUTTON SWITCH

DS-412R ROSH

PUSH BUTTON SWITCH

MELE0PUS006

Part picture
31.1.1

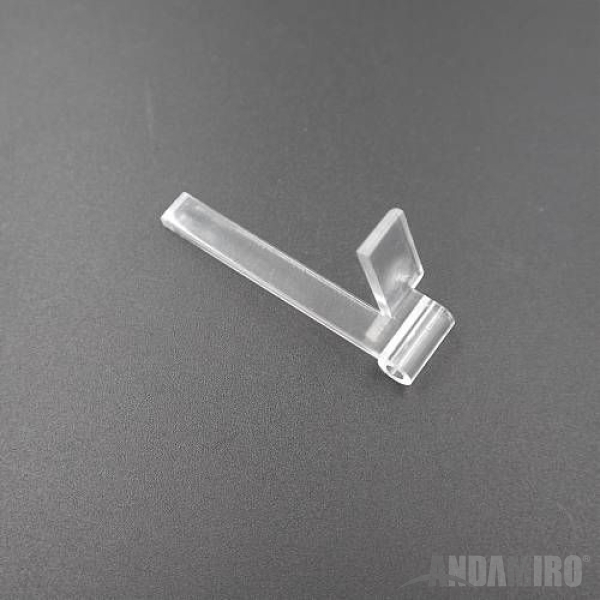

[PUSH BUTTON SWITCH] SOLENOID GUIDE HINGE

.

[PUSH BUTTON SWITCH] SOLENOID GUIDE HINGE

MKIS0PLA002

Part picture
31.2.1

[PUSH BUTTON SWITCH] SOLENOID GUIDE HINGE

.

[PUSH BUTTON SWITCH] SOLENOID GUIDE HINGE

MKIS0PLA002

Part picture
32

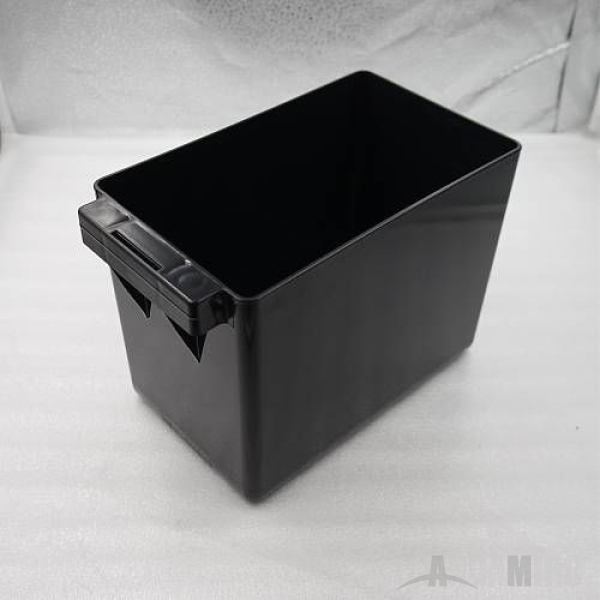

MONEY BOX LARGE

ABS [BLACK]

MONEY BOX LARGE

MPUS0PLA012

Part picture
33

VOLUME PCB ASS'Y

1 VOLUME

VOLUME PCB ASS'Y

AHM20PCB016

Part picture
33.1.1

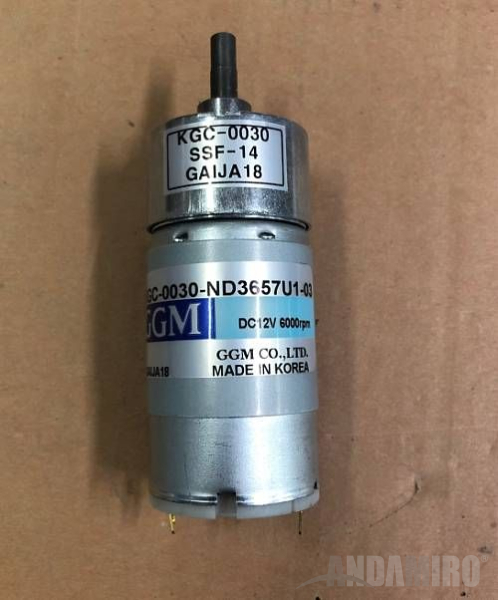

[VOLUME PCB ASS'Y] MOTOR ASS'Y

KGC-ND3657U1 WITH SHAFT

[VOLUME PCB ASS'Y] MOTOR ASS'Y

AZZZ0MOT005

Part picture
33.1.1

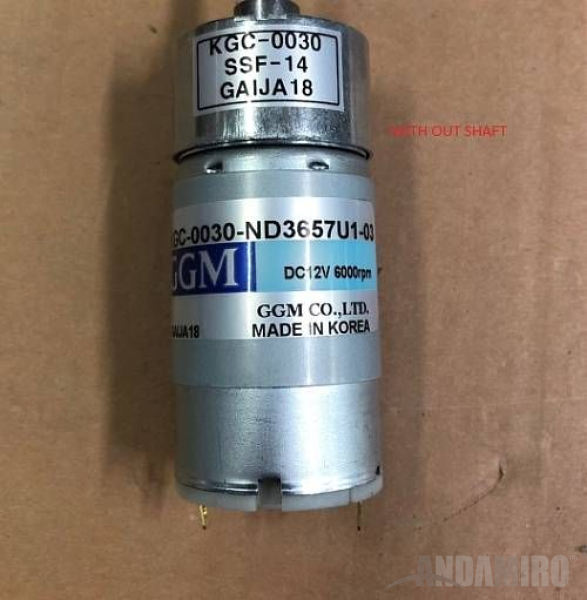

[VOLUME PCB ASS'Y] MOTOR ASS'Y

CODE CHANGE AZZZ0MOT005

[VOLUME PCB ASS'Y] MOTOR ASS'Y

MZZZ0MOT140

Part picture
34

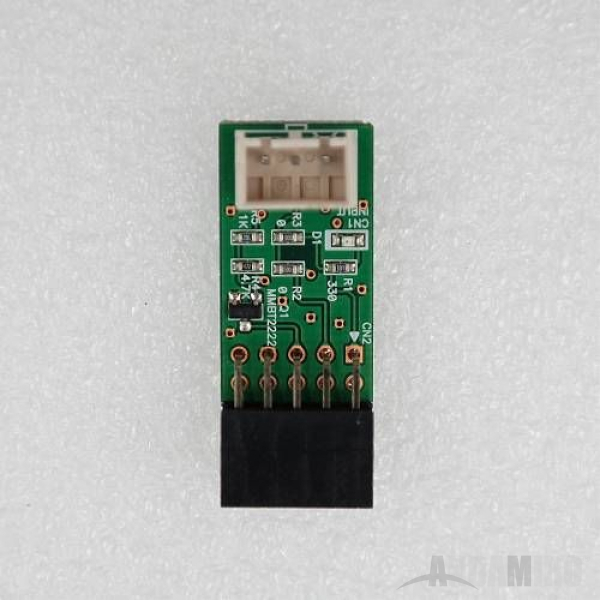

AUTO POWER PCB ASS'Y

KIOSK_V1

AUTO POWER PCB ASS'Y

AKIS0PCB010

Part picture
34.1.1

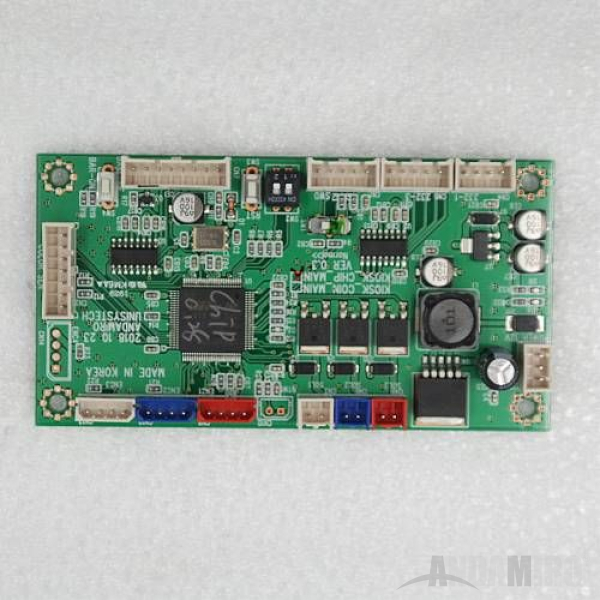

[AUTO POWER PCB ASS'Y] KIOSK CHIP MAIN PCB ASS'Y

CHIP RAIL

[AUTO POWER PCB ASS'Y] KIOSK CHIP MAIN PCB ASS'Y

AKIS0PCB007

Part picture
34.2.1

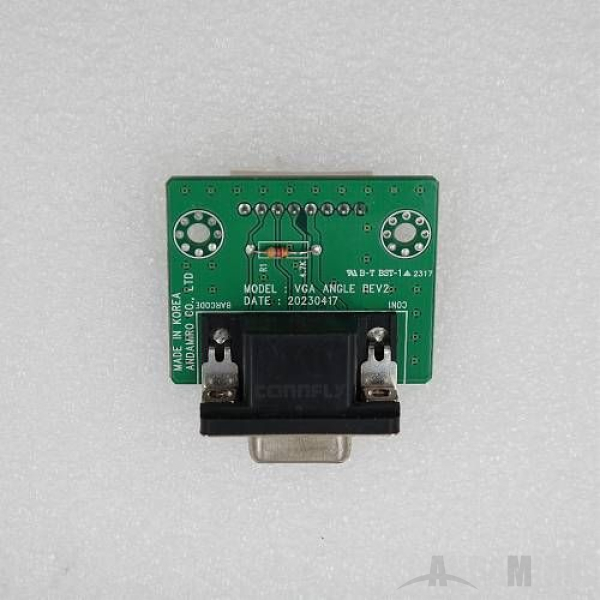

[AUTO POWER PCB ASS'Y] VGA ANGLE PCB ASS'Y

KIOSK

[AUTO POWER PCB ASS'Y] VGA ANGLE PCB ASS'Y

AKIS0PCB009

Part picture
34.3.1

[AUTO POWER PCB ASS'Y] VGA ANGLE PCB ASS'Y

KIOSK

[AUTO POWER PCB ASS'Y] VGA ANGLE PCB ASS'Y

AKIS0PCB009

Part picture
34.4.1

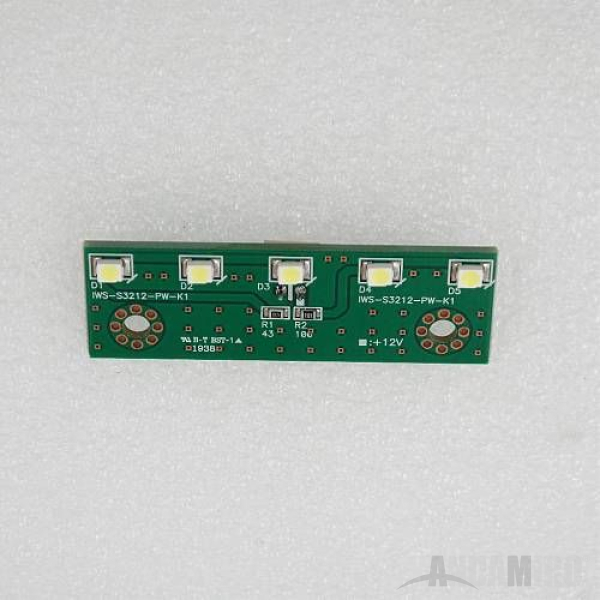

[AUTO POWER PCB ASS'Y] LED PCB ASS'Y

KIOSK

[AUTO POWER PCB ASS'Y] LED PCB ASS'Y

AKIS0PCB002

Part picture
34.5.1

[AUTO POWER PCB ASS'Y] LED PCB ASS'Y

KIOSK

[AUTO POWER PCB ASS'Y] LED PCB ASS'Y

AKIS0PCB002

Part picture
34.6.1

[AUTO POWER PCB ASS'Y] LED PCB ASS'Y

KIOSK

[AUTO POWER PCB ASS'Y] LED PCB ASS'Y

AKIS0PCB002

Part picture
35

LED PCB ASS'Y

KIOSK

LED PCB ASS'Y

AKIS0PCB002

Part picture
35.1.1

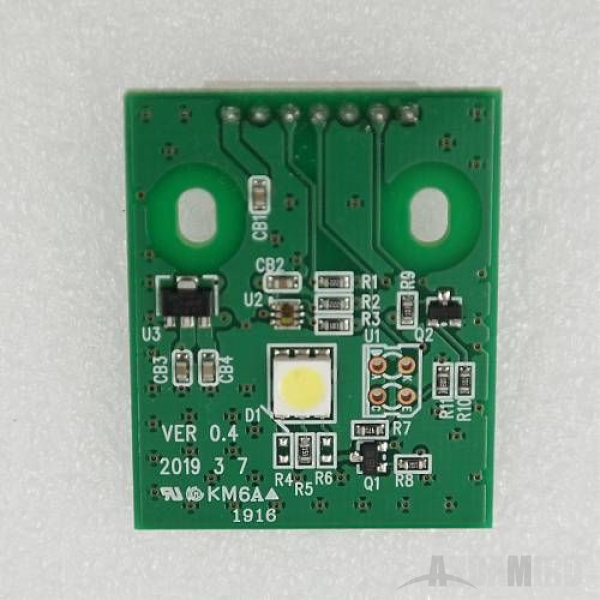

[LED PCB ASS'Y] COLOR SENSOR PCB ASS'Y

CHIP RAIL

[LED PCB ASS'Y] COLOR SENSOR PCB ASS'Y

AKIS0PCB008

Part picture
36

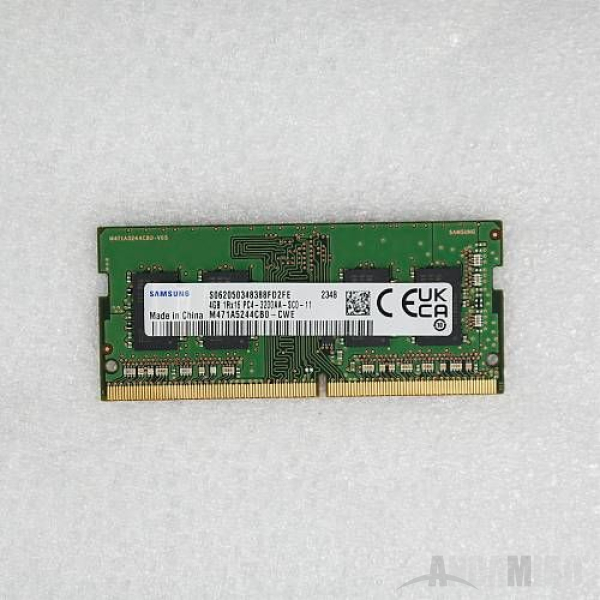

RAM V2

DDR4-3200 4GB PC4-25600

RAM V2

MZZZ0PCB100

Part picture
36.1.1

[RAM V2] SHAFT MOTOR

KGC-ND3657U1 MZZZ0MOT140

[RAM V2] SHAFT MOTOR

MZZZ0PRO053

Part picture
37

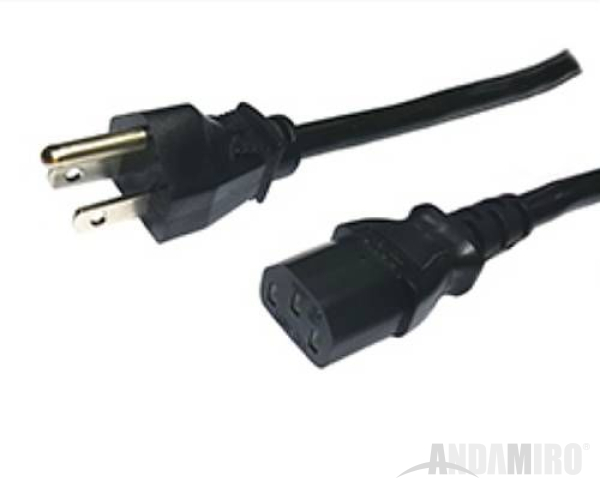

AC POWER CORD UL

125V_10A_SVT 3/18AWG 1.8M

AC POWER CORD UL

MELE0ACP001

Part picture
38

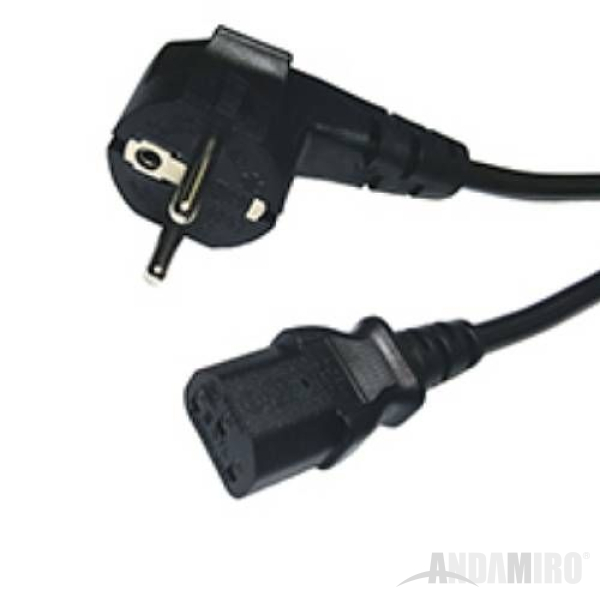

AC POWER CORD

250V 16A KKP-4819R CE 1.8M

AC POWER CORD

MELE0ACP008

Part picture
39

VOLUME KNOB

CAP BLUE

VOLUME KNOB

MELE0VOL007

Part picture
40

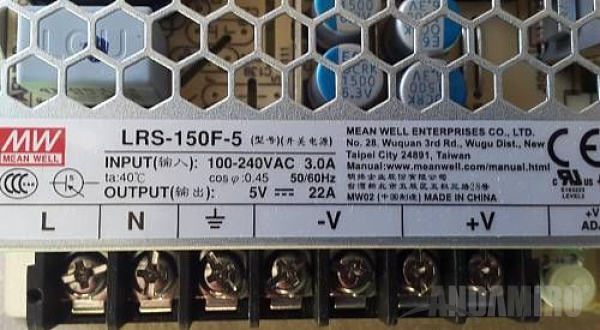

POWER SMPS

LRS 150F-5

POWER SMPS

MELE0SMP096

Part picture
41

LOCK KEY

ELIGHT LC

LOCK KEY

MZZZ0MEM021

Part picture
41.1.1

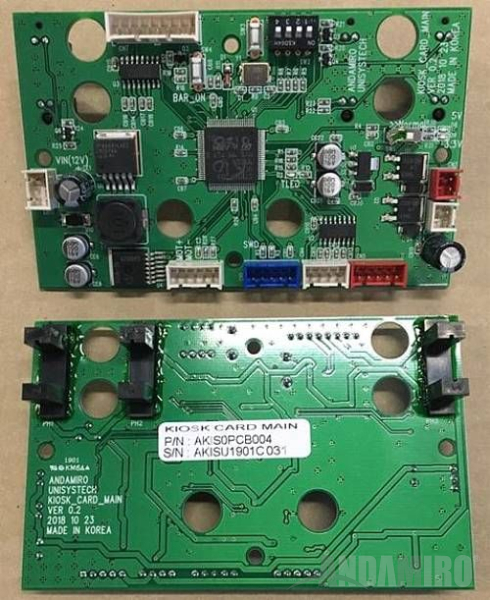

[LOCK KEY] KIOSK CARD MAIN PCB ASS'Y

CARD DIS

[LOCK KEY] KIOSK CARD MAIN PCB ASS'Y

AKIS0PCB004

Part picture
41.2.1

[LOCK KEY] TIMMING PULLEY

MXL-29,분말야금

[LOCK KEY] TIMMING PULLEY

MZZZ0MOL002

Part picture
41.3.1

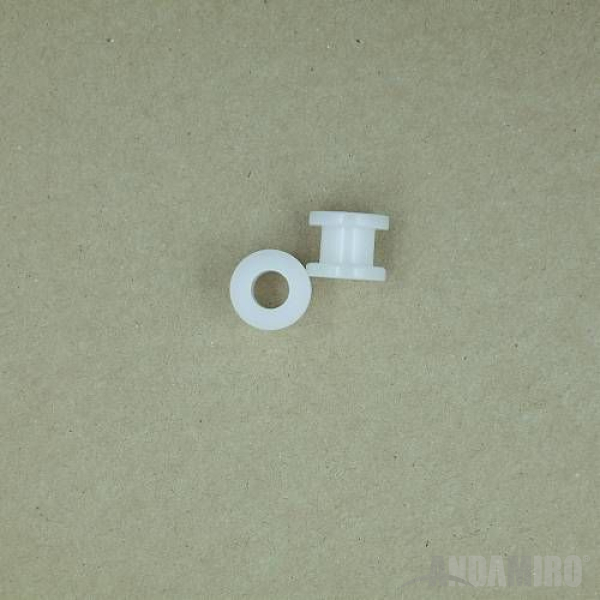

[LOCK KEY] TIMMING BELT TENSION ROLLER

.

[LOCK KEY] TIMMING BELT TENSION ROLLER

MSBP0PRO017

Part picture
41.4.1

[LOCK KEY] KIOSK COIN SLOT

.

[LOCK KEY] KIOSK COIN SLOT

MKIS0SHE005

Part picture
41.5.1

[LOCK KEY] KIOSK TICKET DOOR SHEET

.

[LOCK KEY] KIOSK TICKET DOOR SHEET

MKIS0SHE002

Part picture
41.6.1

[LOCK KEY] KIOSK PRINT DOOR SHEET

.

[LOCK KEY] KIOSK PRINT DOOR SHEET

MKIS0SHE003

Part picture
41.7.1

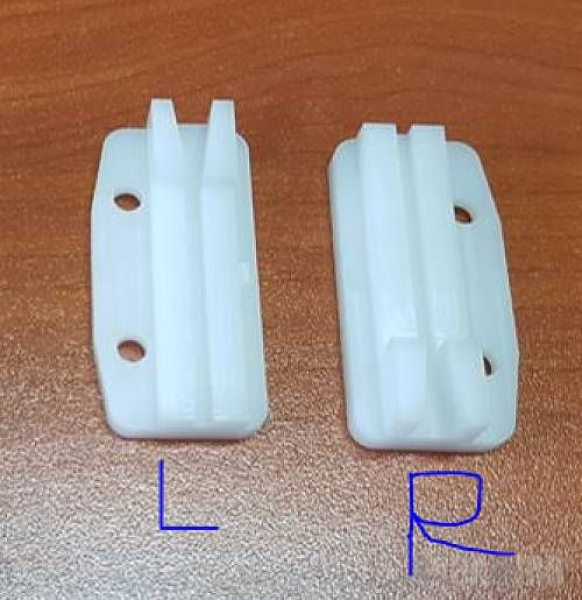

[LOCK KEY] CARD DISPENSER INLET GUIDE BLOCK

.

[LOCK KEY] CARD DISPENSER INLET GUIDE BLOCK

MKIS0ACR005

Part picture
41.8.1

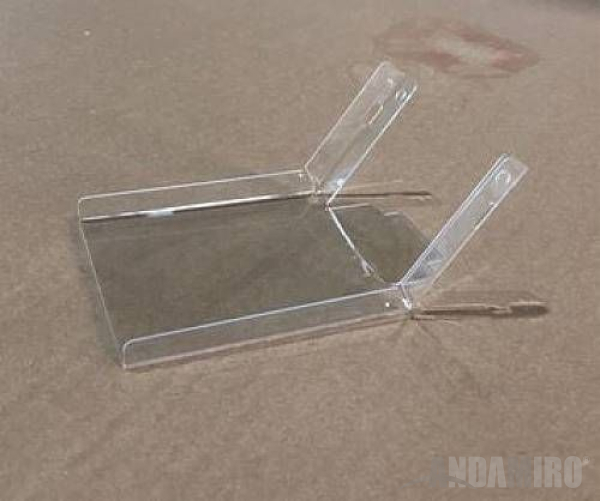

[LOCK KEY] CARD DISPENSER OUTLET GUIDE

.

[LOCK KEY] CARD DISPENSER OUTLET GUIDE

MKIS0ACR009

Part picture
41.8.1

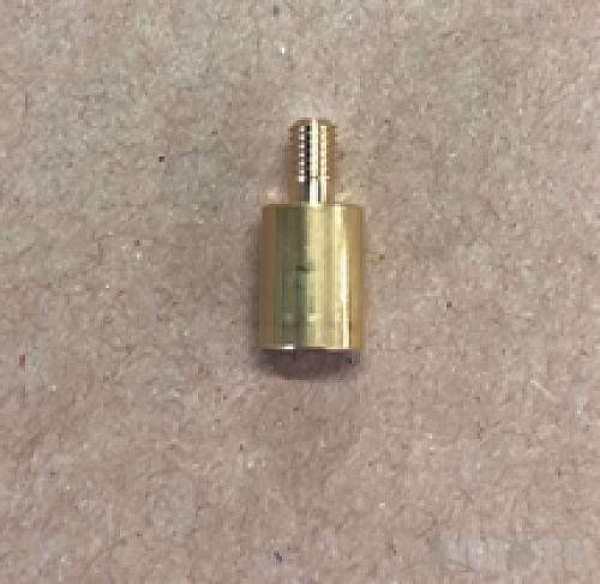

[LOCK KEY] SOLENOID SHAFT BUSH

.

[LOCK KEY] SOLENOID SHAFT BUSH

MKIS0PRO005

Part picture
41.9

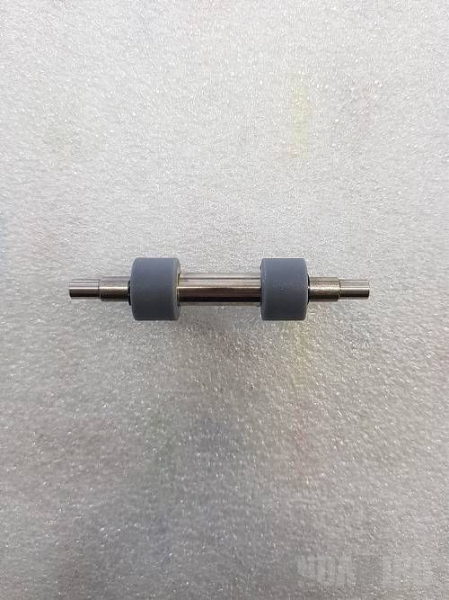

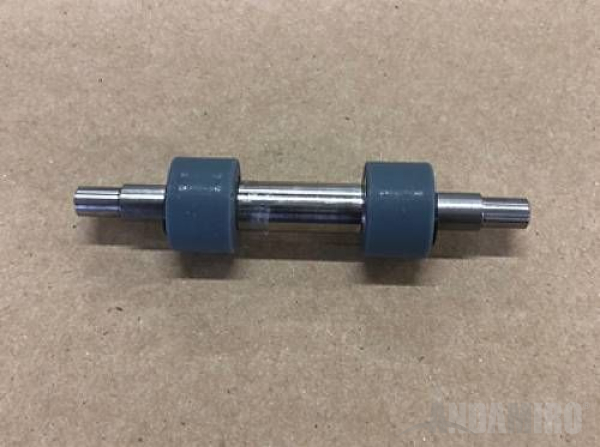

[LOCK KEY] CARD DISPENSER RUBBER SHAFT-A

.

[LOCK KEY] CARD DISPENSER RUBBER SHAFT-A

AKIS0ASS010

Part picture
41.10

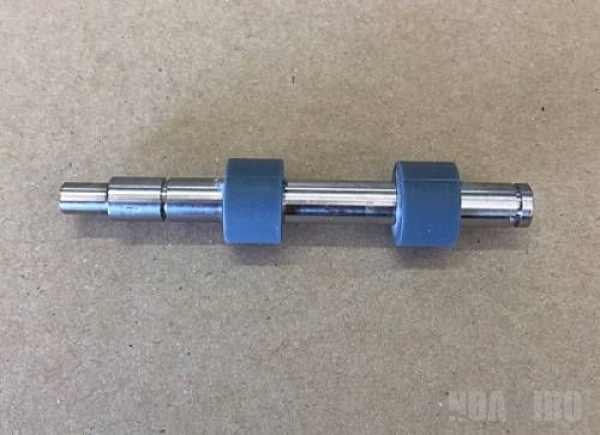

[LOCK KEY] CARD DISPENSER RUBBER SHAFT-B

.

[LOCK KEY] CARD DISPENSER RUBBER SHAFT-B

AKIS0PRO002

Part picture
42

TICKET DOOR ASS'Y

TICKET DOOR ASS'Y

AKIS0ASS007

Part picture
43

PRINTER DOOR ASS'Y

OPTION

PRINTER DOOR ASS'Y

AKIS0ASS008

Part picture
PARTS INQUIRY
Game List

Sign up to our newsletter to stay in touch with our work and everything that's going on at our company.
receive the latest updates, news, and special offers. We can't wait to get started!

[Headquarters]#704-1, Gongjang-dong, Ilsan Techno Town, 138, Ilsan-ro, Ilsandong-gu,
Goyang-si, Gyeonggi-do, Republic of Korea

[ANDAMIRO USA]2222 Century Cir, Irving TX 75062 U.S.A

Copyright ⓒ 1993~2025 By Andamiro Co., LTD. All rights reserved.

ContactHeadquarters (International)
Sales: sales@andamiro.com
Tech and Parts: sales@andamiro.com
TEL: 82-31-909-2046

North AmericaSales: min@andamirousa.com
Tech support: service@andamirousa.com
Parts : parts@andamirousa.com
Tel: 1-310-767-5800
Fax: 972-445-9111

Copyright ⓒ 1993~2025 By Andamiro Co., LTD. All rights reserved.
