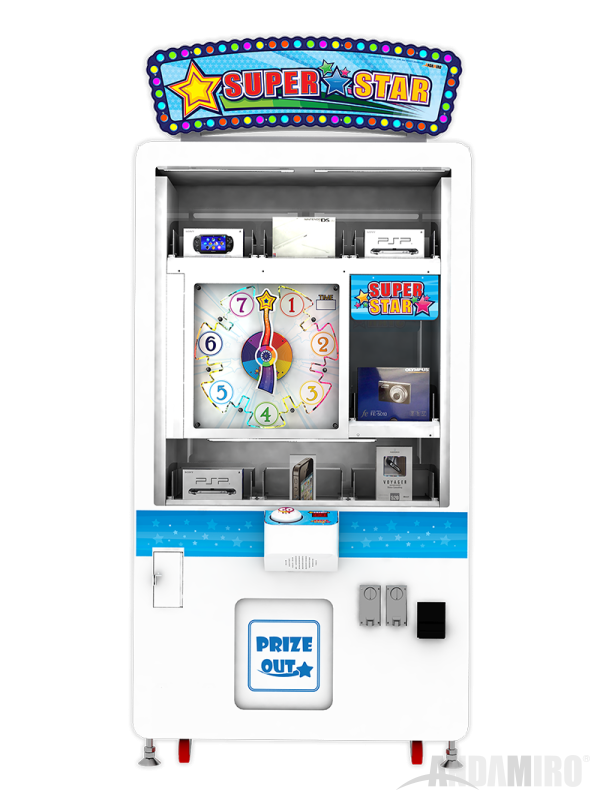

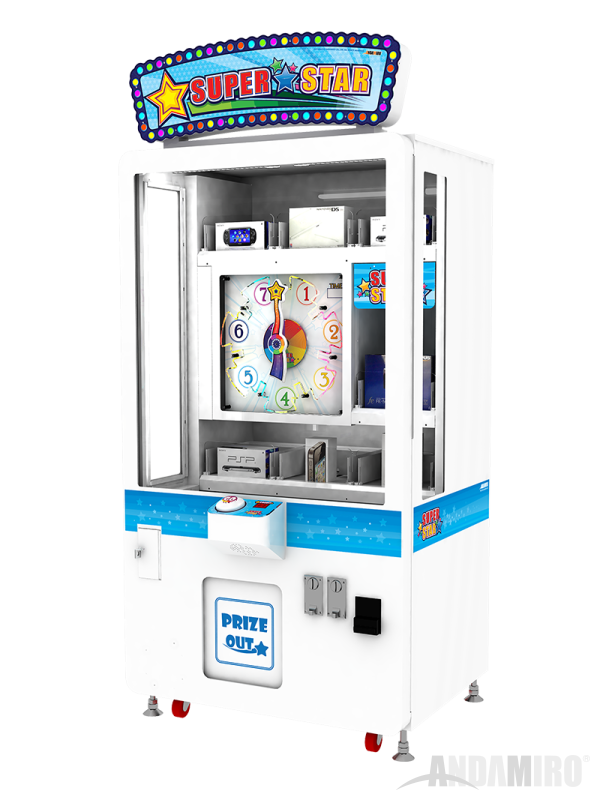

SUPER STAR HERE IS YOUR SUPERSTAR!

  • 트위터로 보내기
  • 페이스북으로 보내기
  • 구글플러스로 보내기
Dimensions 1,026mm x 932mm x 2,254mm
40" x 37" x 89"
Packing Dimensions 1,150mm x 850mm x 2,260mm
45" x 33" x 89"
Product Weight 280 kg / 617 lbs
Packing Weight 310 kg / 683 lbs
Power 280W
INQUIRY
PARTS INQUIRY

SUPPORT

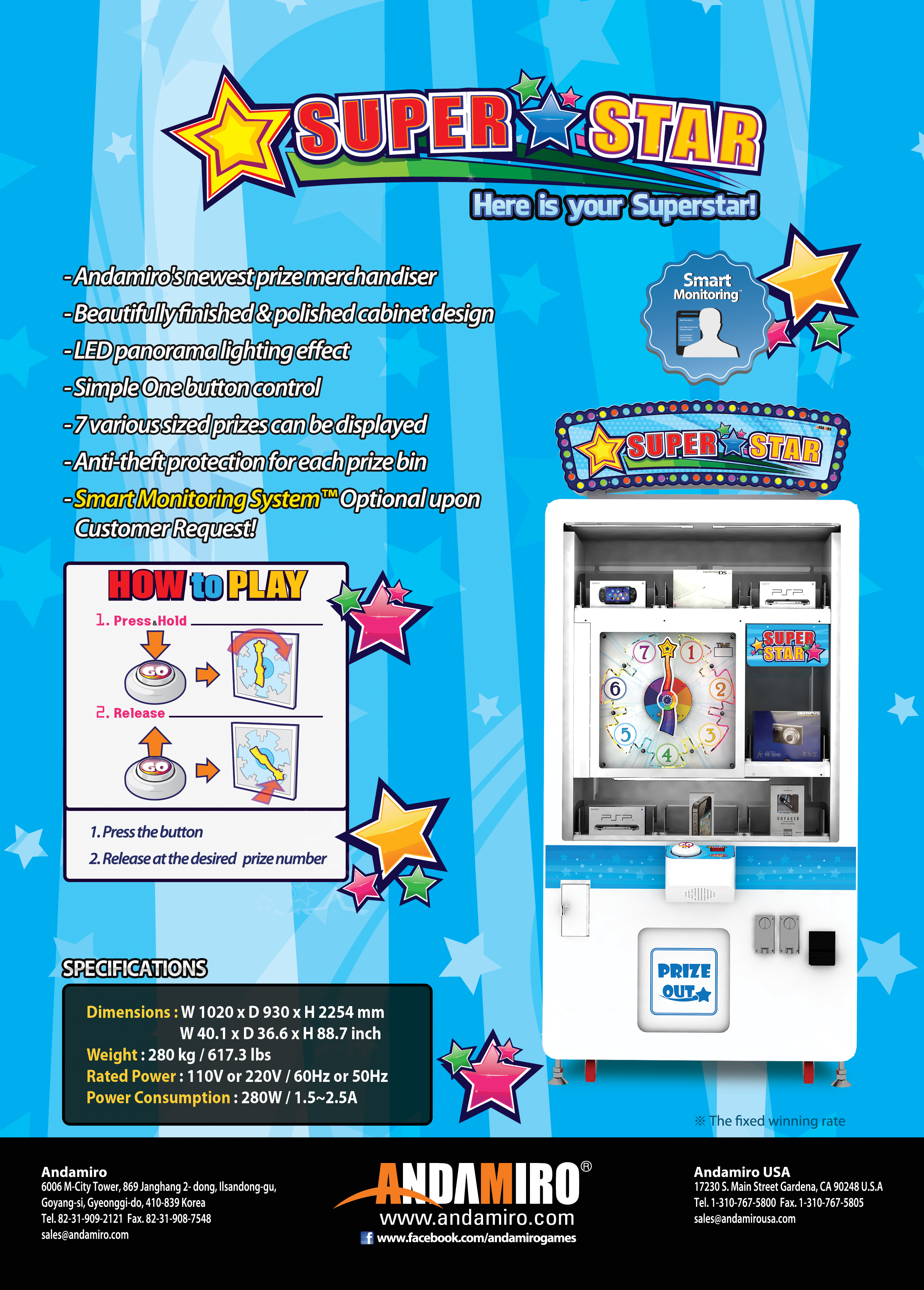

  • Leaflets (1)

  • Manuals (2)

  • Document (1)

  • Trouble shooting
    Video List (0)

FEATURES

- Andamiro's newest prize merchandiser

- Beautifully finished & polished cabinet design

- LED panorama lighting effect

- Simple One button control

- 7 various sized prizes can be displayed

- Anti-theft protection for each prize bin

- Smart Monitoring System™ Optional upon Customer Request!

- The fixed winning rate



GALLERY

Sorry, this is not available at the moment.

PARTS


동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 97Parts

No. Part name Part picture Code Info Part picture Part Add
1

SHEET ACRYL ASS'Y

19종_해외_국내1종옵션

SHEET ACRYL ASS'Y

ASHS0SHE001

Part picture

1.1

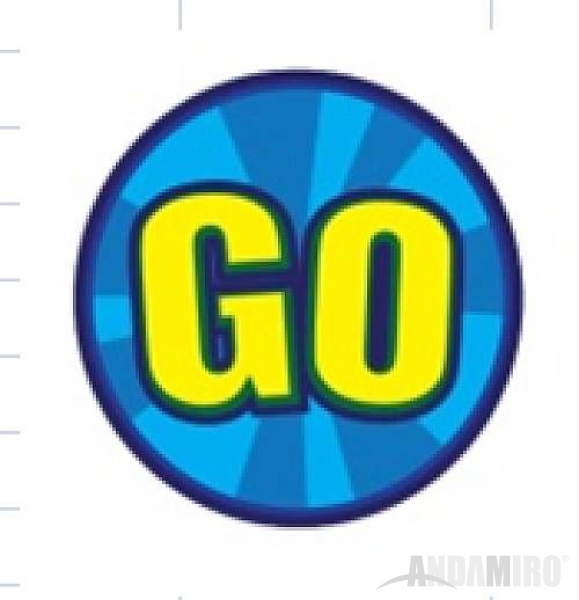

[SHEET ACRYL ASS'Y] BUTTON SHEET_ GO

SUPER STAR

[SHEET ACRYL ASS'Y] BUTTON SHEET_ GO

MSHS0SHE018

Part picture

1.2

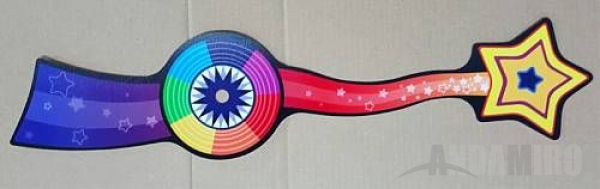

[SHEET ACRYL ASS'Y] ARROW BODY SHEET

.

[SHEET ACRYL ASS'Y] ARROW BODY SHEET

MSHS0SHE011

Part picture

1.3

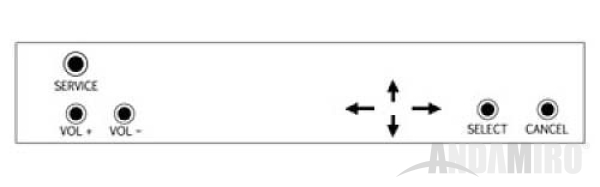

[SHEET ACRYL ASS'Y] MAIN BOARD PC COVER SHEET

.

[SHEET ACRYL ASS'Y] MAIN BOARD PC COVER SHEET

MSCU0SHE007

Part picture

1.4

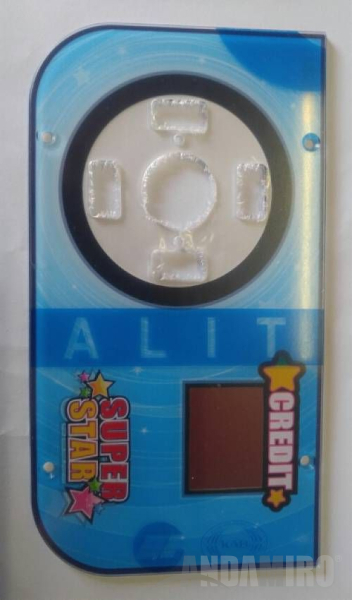

[SHEET ACRYL ASS'Y] BUTTON ACRYL

.

[SHEET ACRYL ASS'Y] BUTTON ACRYL

MSHS0ACR008

Part picture

1.5

[SHEET ACRYL ASS'Y] PRIZE DISPENSER LOGO ACRYL

SUPER STAR

[SHEET ACRYL ASS'Y] PRIZE DISPENSER LOGO ACRYL

MSHS0ACR010

Part picture

2

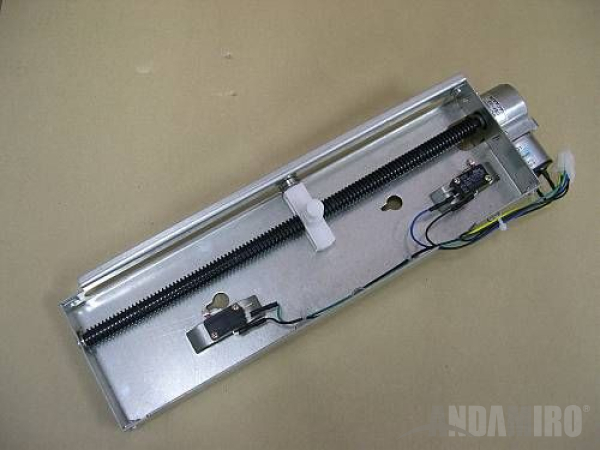

PRIZE DISPENSER ASS'Y

I-CUBE

PRIZE DISPENSER ASS'Y

AICU0ASS003

Part picture

2.1

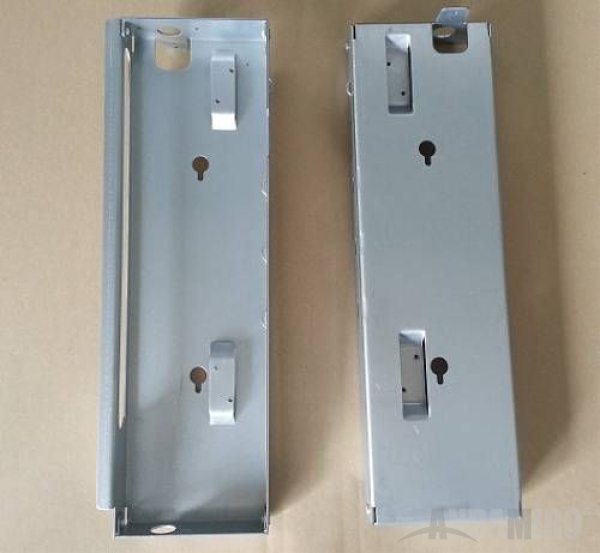

[PRIZE DISPENSER ASS'Y] PRIZE DISPENSER MAIN BKT

.

[PRIZE DISPENSER ASS'Y] PRIZE DISPENSER MAIN BKT

MICU0MEP009

Part picture

2.2

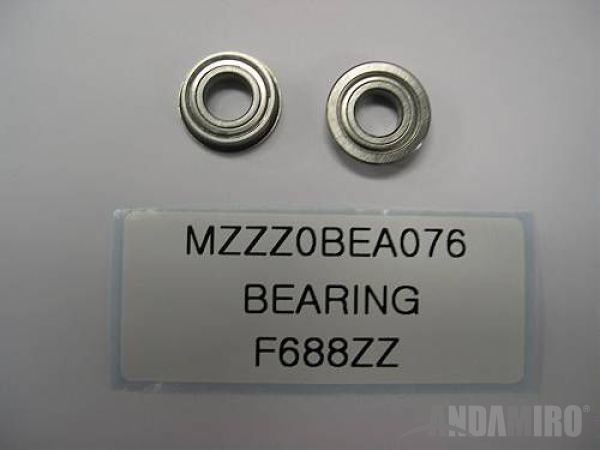

[PRIZE DISPENSER ASS'Y] BEARING

F688ZZ

[PRIZE DISPENSER ASS'Y] BEARING

MZZZ0BEA076

Part picture

2.3

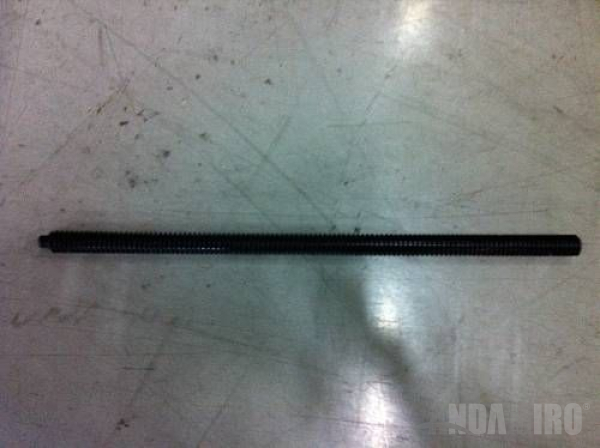

[PRIZE DISPENSER ASS'Y] PRIZE DISPENSER SCREW

ABS.

[PRIZE DISPENSER ASS'Y] PRIZE DISPENSER SCREW

MICU0PLA001

Part picture

2.4

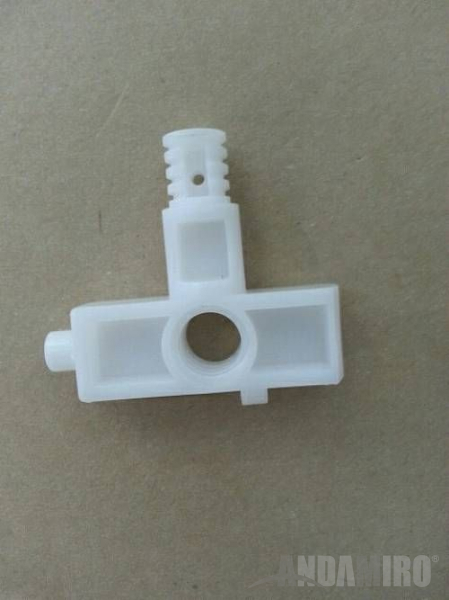

[PRIZE DISPENSER ASS'Y] PRIZE DISPENSER BLOCK

ACETAL

[PRIZE DISPENSER ASS'Y] PRIZE DISPENSER BLOCK

MICU0PLA002

Part picture

2.5

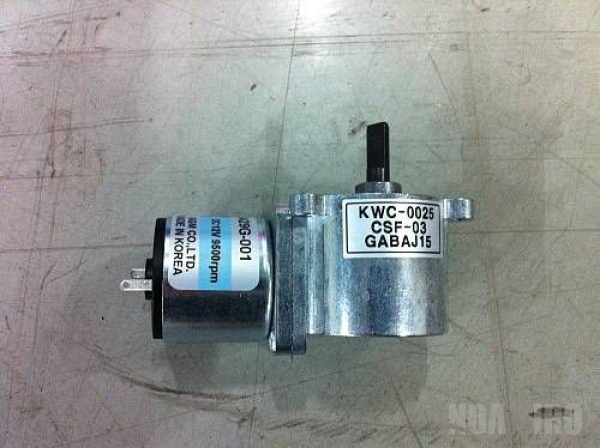

[PRIZE DISPENSER ASS'Y] MOTOR

KWC-0025-3429G-0004

[PRIZE DISPENSER ASS'Y] MOTOR

MZZZ0MOT063

Part picture

2.6

[PRIZE DISPENSER ASS'Y] MICRO SWITCH

GSMV1651A2(스텐롤러)

[PRIZE DISPENSER ASS'Y] MICRO SWITCH

MELE0MIC021

Part picture

2.7

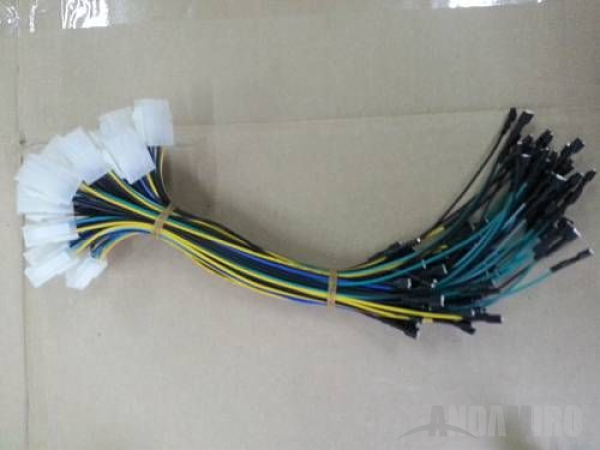

[PRIZE DISPENSER ASS'Y] PRIZES/W3-1

I CUBE

[PRIZE DISPENSER ASS'Y] PRIZES/W3-1

MICU0HAN001

Part picture

3

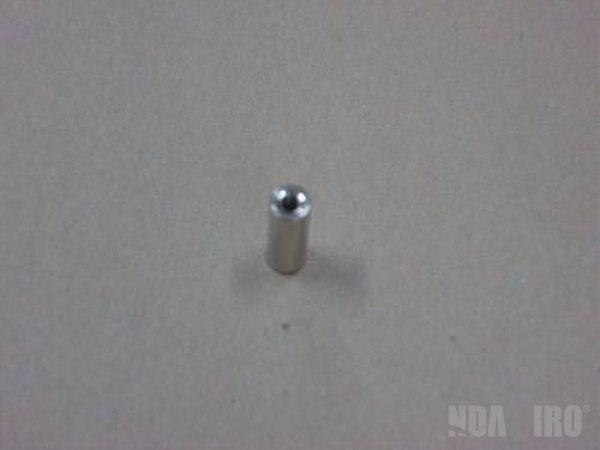

Z MOTOR PART GUIDE SHAFT

8*20

Z MOTOR PART GUIDE SHAFT

MICU0PRO008

Part picture

4

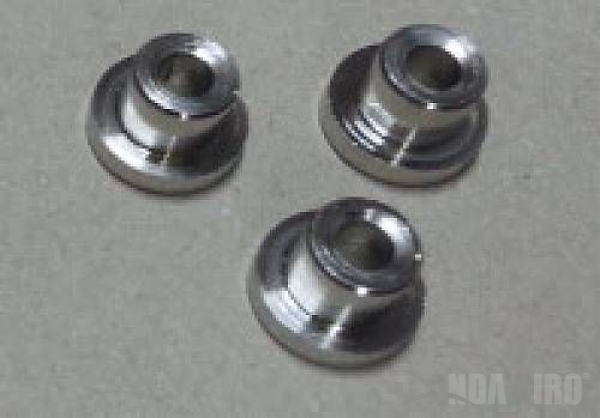

PRIZE INNER DOOR BUSHING

15*10

PRIZE INNER DOOR BUSHING

MICU0PRO012

Part picture

5

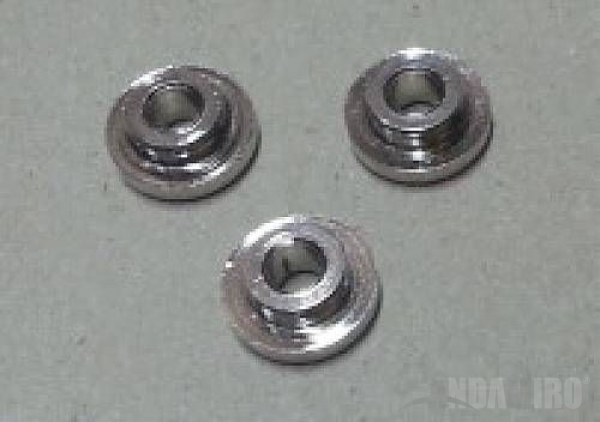

PRIZE INNER DOOR ROTATE BUSHING

15*6

PRIZE INNER DOOR ROTATE BUSHING

MICU0PRO013

Part picture

6

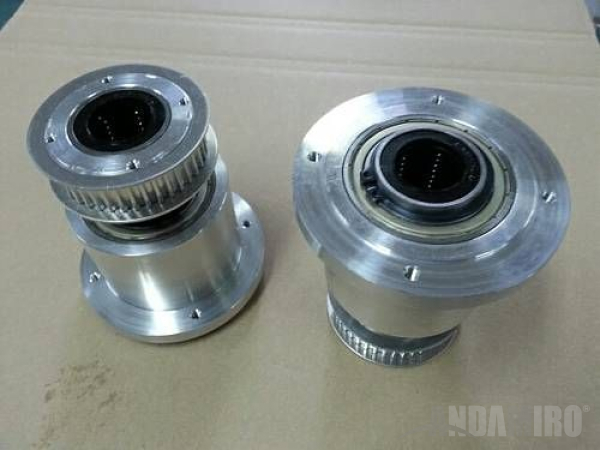

ARROW SHAFT BEARING HOUSING ASS'Y

.

ARROW SHAFT BEARING HOUSING ASS'Y

ASHS0ASS001

Part picture

7

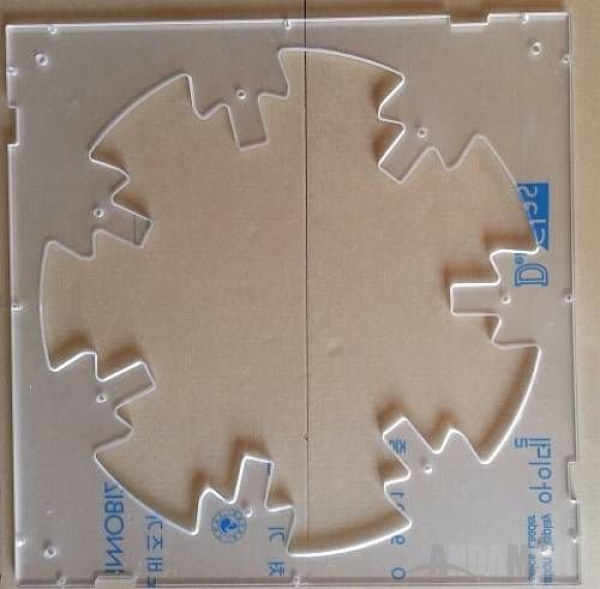

TARGET DISPLAY ACRYL

.

TARGET DISPLAY ACRYL

MSSS0PRO012

Part picture

8

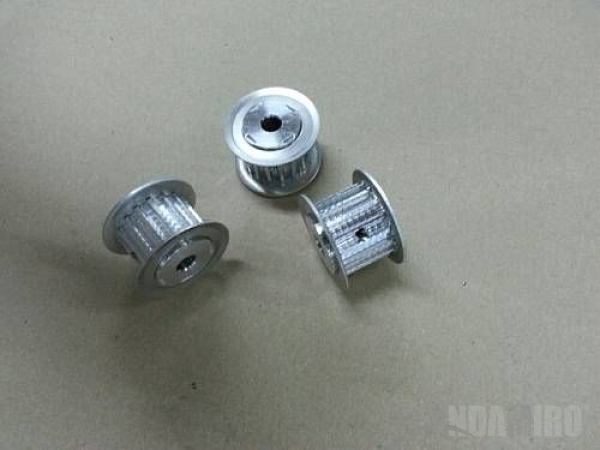

TIMMING BELT PULLEY-B

P16S5M 33F

TIMMING BELT PULLEY-B

MSSS0PRO004

Part picture

9

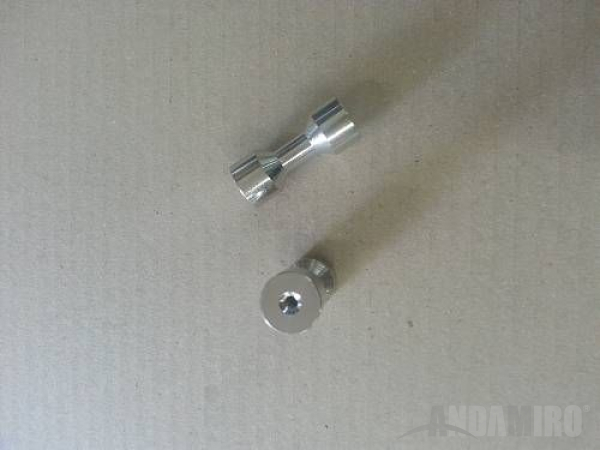

TARGET BASE SPACER

.

TARGET BASE SPACER

MSHS0PRO003

Part picture

10

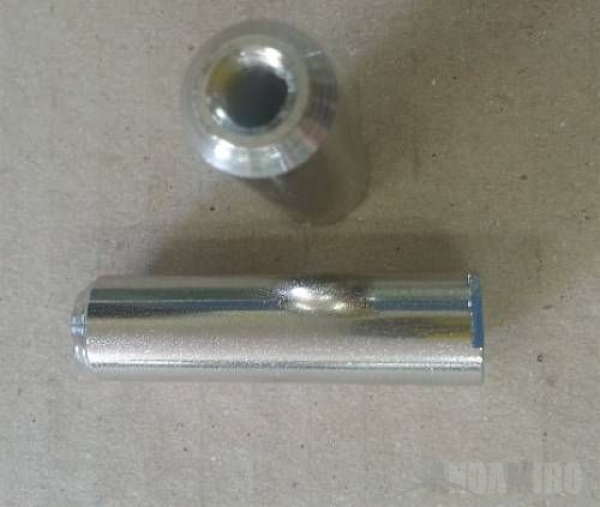

TARGET DISPLAY FIX BAR

.

TARGET DISPLAY FIX BAR

MSHS0PRO004

Part picture

11

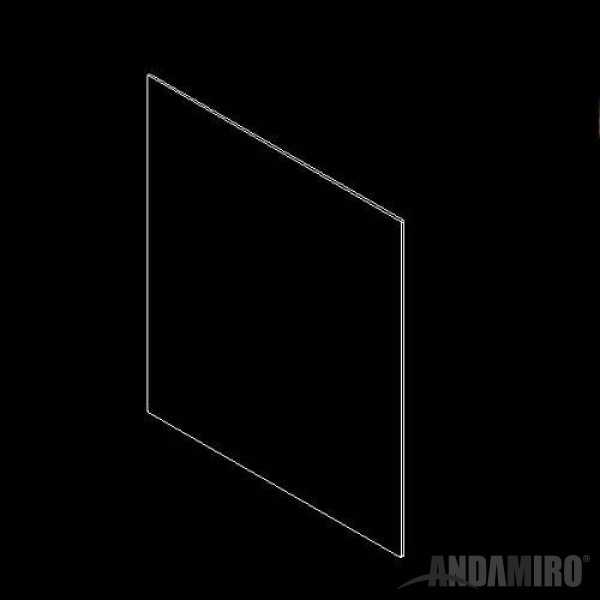

FRONT DOOR GLASS

930*1065*8T

FRONT DOOR GLASS

MSHS0GLA002

Part picture

12

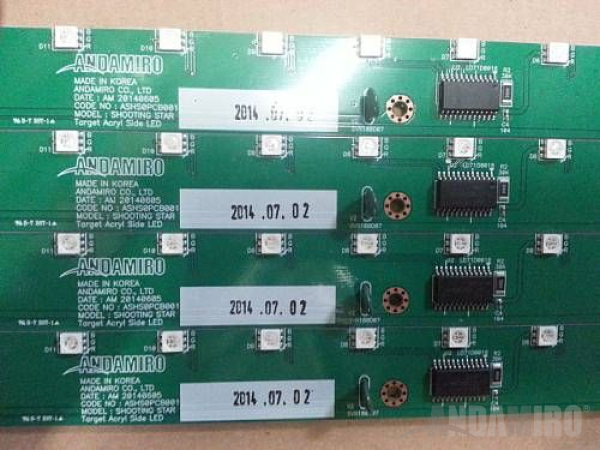

TARGET SIDE LED PCB ASS'Y

BGR

TARGET SIDE LED PCB ASS'Y

ASHS0PCB001

Part picture

13

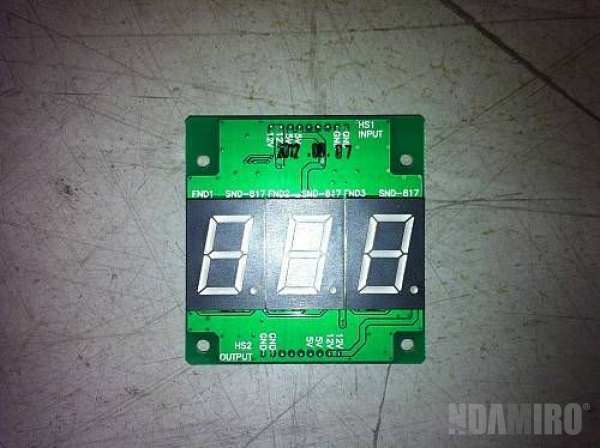

FND PCB ASS'Y

SUSHI PARTY

FND PCB ASS'Y

ASUP0PCB004

Part picture

14

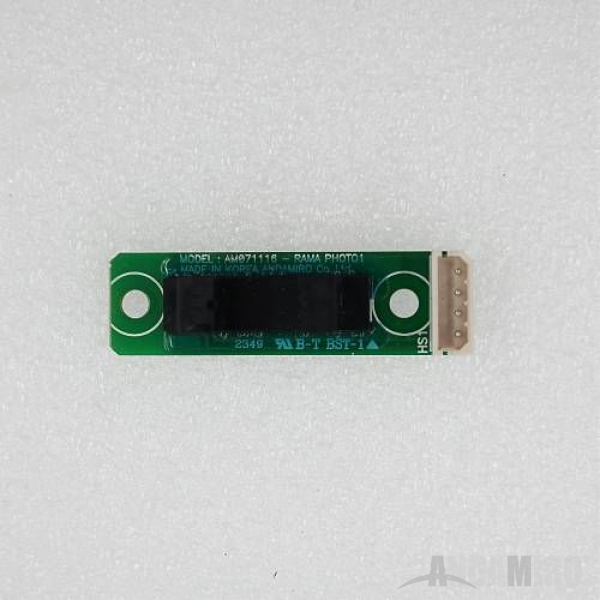

PHOTO INT-1 PCB ASS'Y

STRIGHT_CIRCLE RAMA

PHOTO INT-1 PCB ASS'Y

ACIR0PCB011

Part picture

15

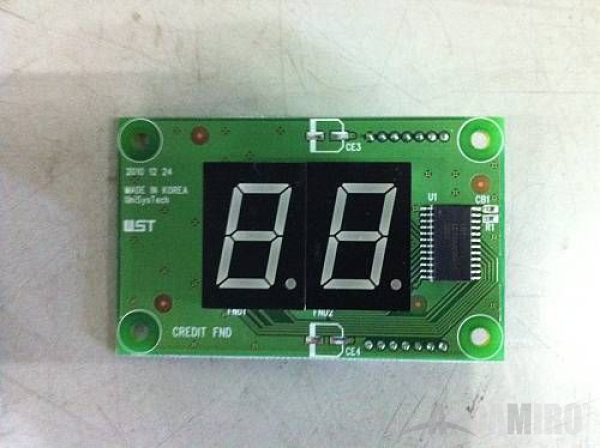

CREDIT FND PCB ASS'Y

WINNERS CUBE DX

CREDIT FND PCB ASS'Y

AWID0PCB004

Part picture

16

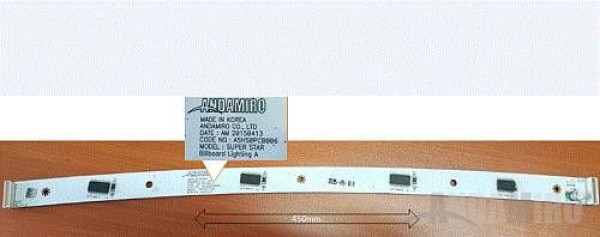

BILLBOARD LIGHTING PCB-A

.

BILLBOARD LIGHTING PCB-A

ASHS0PCB006

Part picture

17

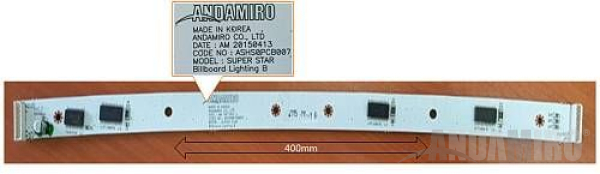

BILLBOARD LIGHTING PCB-B

.

BILLBOARD LIGHTING PCB-B

ASHS0PCB007

Part picture

18

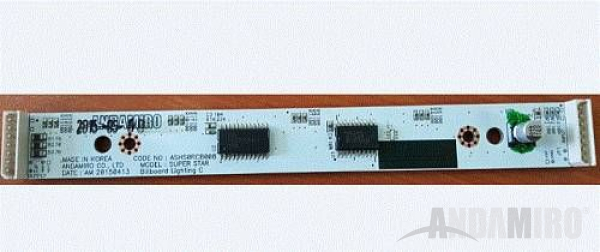

BILLBOARD LIGHTING PCB-C

.

BILLBOARD LIGHTING PCB-C

ASHS0PCB008

Part picture

19

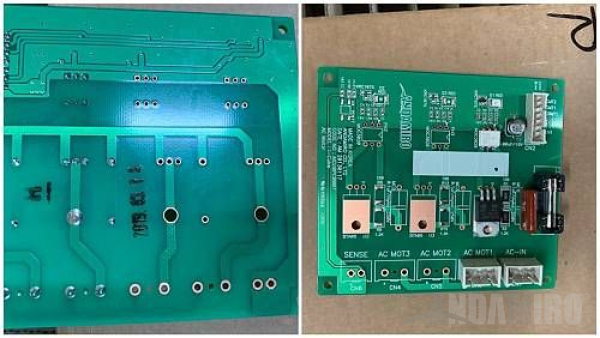

AC MOTOR PCB ASS'Y

I-CUBE

AC MOTOR PCB ASS'Y

AICU0PCB007

Part picture

20

AC MOTOR PCB ASS'Y

I-CUBE

AC MOTOR PCB ASS'Y

AICU0PCB007

Part picture

21

Z MOTOR PART TENSION SPRING

.

Z MOTOR PART TENSION SPRING

MWID0SPR001

Part picture

22

PLUG CUSHION RUBBER

공진 [KD-96R-9] 6MM

PLUG CUSHION RUBBER

MCIR0RUB001

Part picture

23

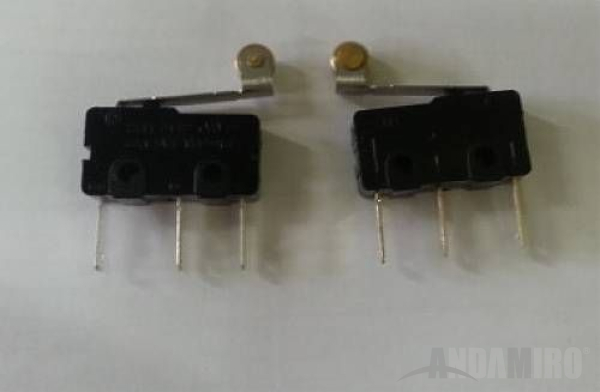

MICRO SWITCH-S

SSM3142

MICRO SWITCH-S

MELE0MIC003

Part picture

24

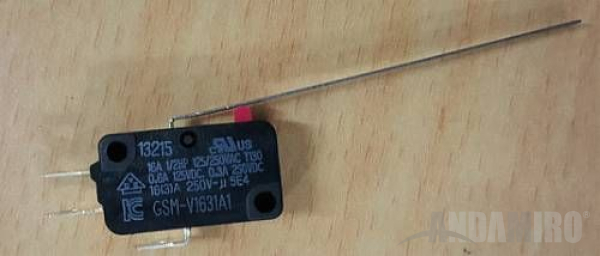

MICRO SWITCH

GSM-V1631A1

MICRO SWITCH

MELE0MIC022

Part picture

25

TERMINAL BLOCK

250V 10P UL_CE

TERMINAL BLOCK

MELE0TEB003

Part picture

26

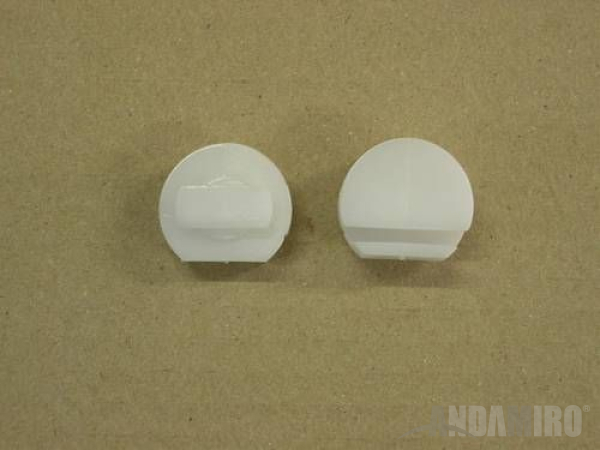

PRIZE DISPENSER PUSH BKT GUIDE

ACETAL

PRIZE DISPENSER PUSH BKT GUIDE

MICU0PLA003

Part picture

27

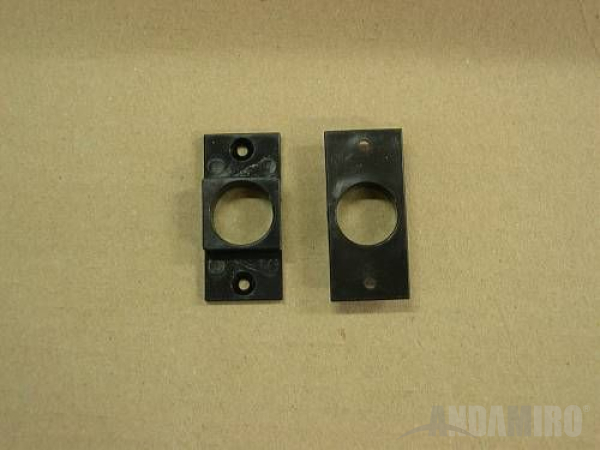

PRIZE DISPENSER GUIDE BLOCK

.

PRIZE DISPENSER GUIDE BLOCK

MICU0PLA004

Part picture

28

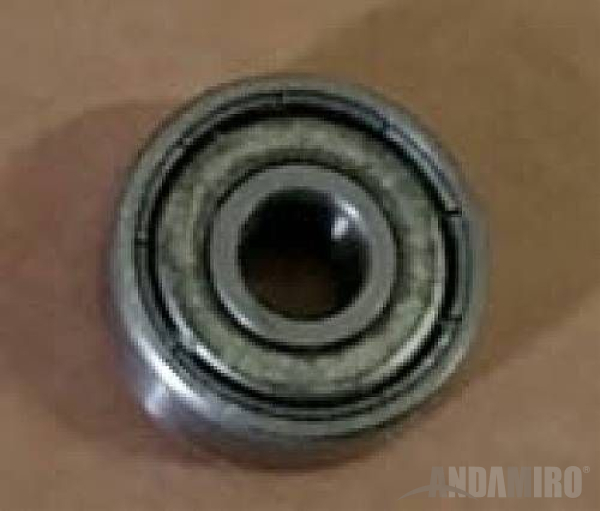

BEARING

626ZZ

BEARING

MZZZ0BEA087

Part picture

29

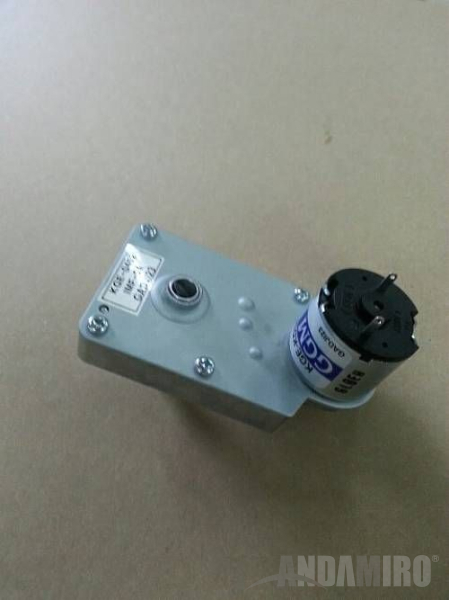

MOTOR

KGE-3429-050,1/452(10 RPM)

MOTOR

MZZZ0MOT082

Part picture

30

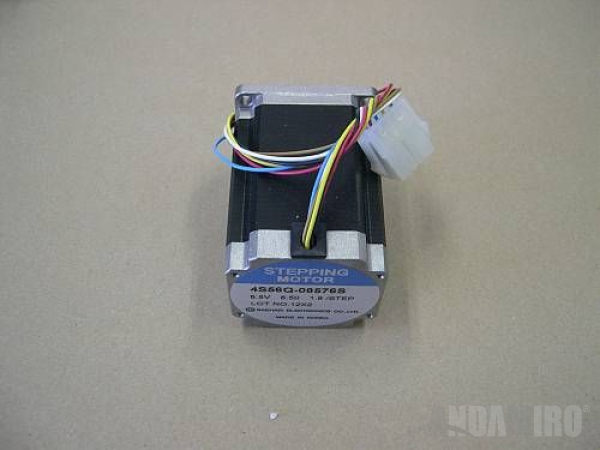

STEPPING MOTOR

4S56Q-08576S

STEPPING MOTOR

MZZZ0MOT064

Part picture

31

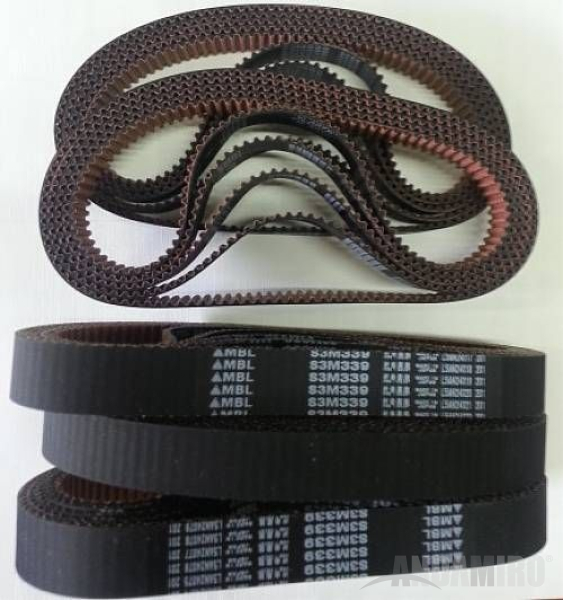

TIMMING BELT

BS3M-339 15MM

TIMMING BELT

MZZZ0BEL023

Part picture

32

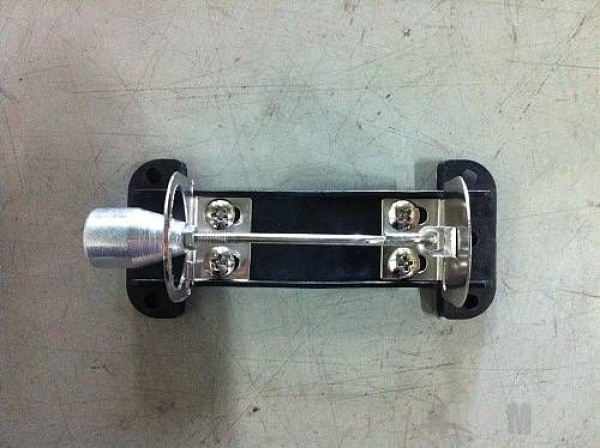

TILT

.

TILT

MWIC0PAR100

Part picture

33

COUNTER

OA127CL W/2P CONNECTOR_20CM WIRE

COUNTER

MZZZ0COU002

Part picture

34

COIN SELECTOR

TW-333_WITHOUT FND

COIN SELECTOR

MZZZ0COS045

Part picture

35

KEY ONLY 6001

2EA 1SET _WITH RING

KEY ONLY 6001

MZZZ0KEY014

Part picture

36

SPEAKER

MID 4.5"+TW1/2" 8Ω

SPEAKER

MZZZ0SPE021

Part picture

37

AC POWER CORD UL

125V_10A_SVT 3/18AWG

AC POWER CORD UL

MELE0ACP001

Part picture

38

AC POWER CORD

250V 16A KKP-4819R CE

AC POWER CORD

MELE0ACP008

Part picture

39

LED STICK BAR BRK

12MM 90도

LED STICK BAR BRK

MELE0000022

Part picture

40

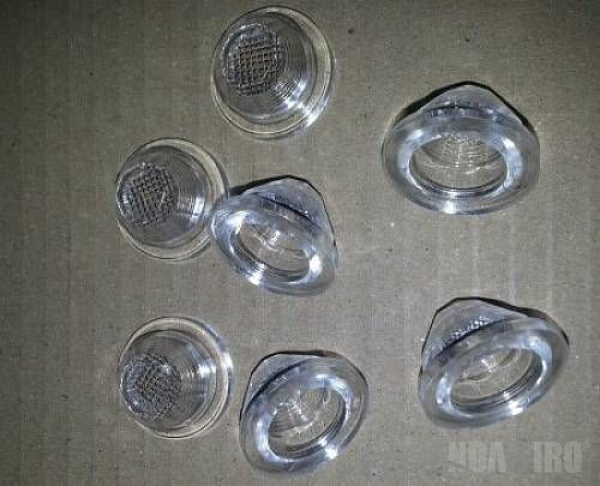

LED CAP

20MM 투명 LED

LED CAP

MZZZ0000521

Part picture

41

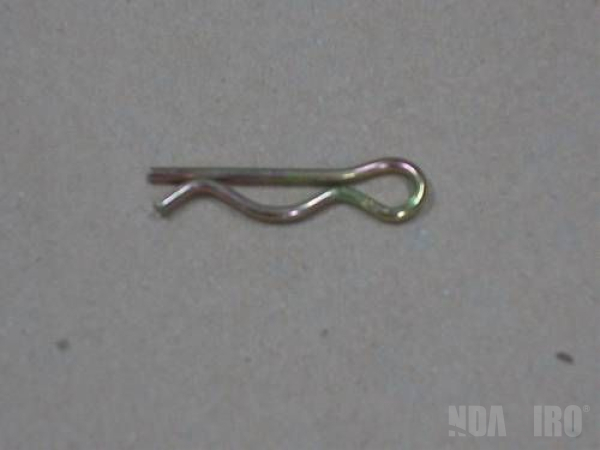

SSP R PIN

12

SSP R PIN

MZZZ0SPR030

Part picture

42

ATTENTION OPERATORS SHEET

.

ATTENTION OPERATORS SHEET

MICU0SHE027

Part picture

43

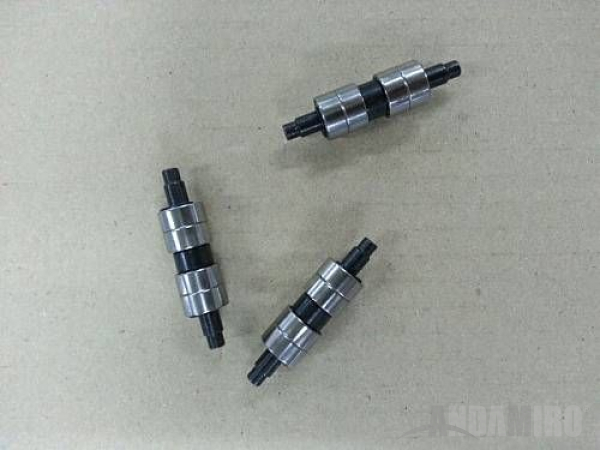

BEARING GUIDE SHAFT ASS'Y

.

BEARING GUIDE SHAFT ASS'Y

MSSS0PRO009

Part picture

44

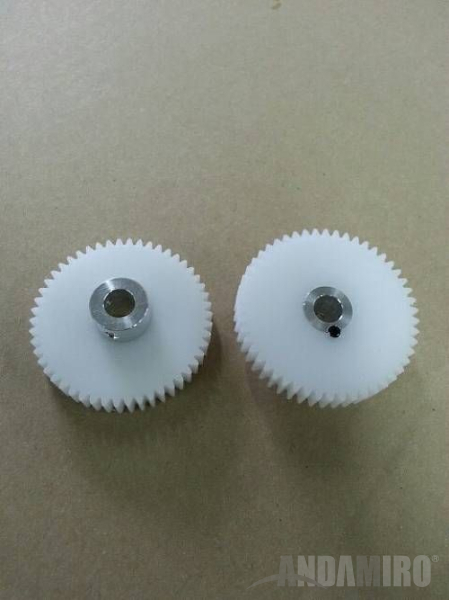

Z MOTOR GEAR ASS'Y

.

Z MOTOR GEAR ASS'Y

MSSS0PRO006

Part picture

45

PRIZE SIZE SHEET

SUPER STAR

PRIZE SIZE SHEET

MSHS0SHE026

Part picture

46

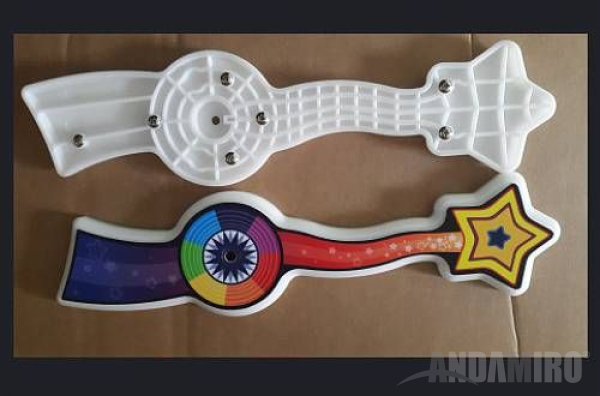

ARROW BODY MAIN ASS'Y

STD

ARROW BODY MAIN ASS'Y

ASHS0ASS004

Part picture

46.1

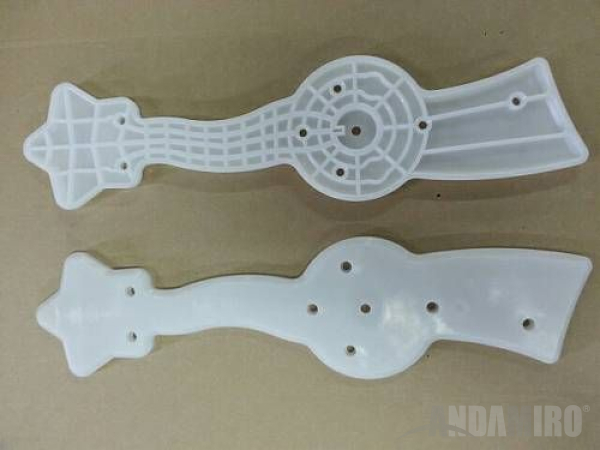

[ARROW BODY MAIN ASS'Y ] ARROW BODY ACRYL

BASIC

[ARROW BODY MAIN ASS'Y ] ARROW BODY ACRYL

MSSS0PRO013

Part picture

46.2

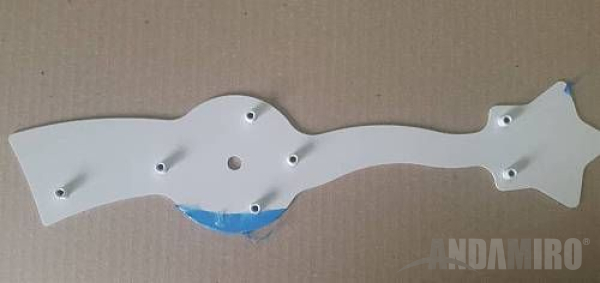

[ARROW BODY MAIN ASS'Y ] ARROW BODY MOLD BKT

STD

[ARROW BODY MAIN ASS'Y ] ARROW BODY MOLD BKT

MSHS0MEP082

Part picture

46.3

[ARROW BODY MAIN ASS'Y ] ARROW BODY SHEET

.

[ARROW BODY MAIN ASS'Y ] ARROW BODY SHEET

MSHS0SHE011

Part picture

47

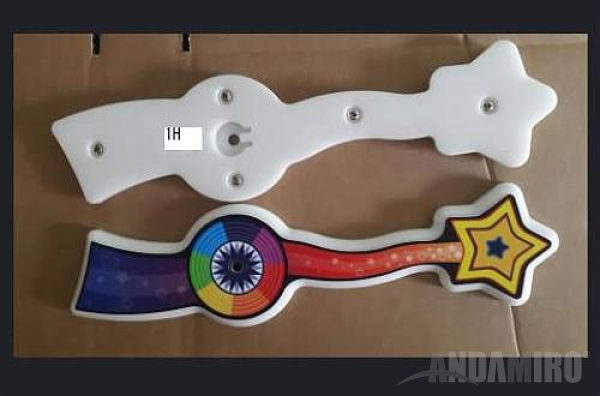

ARROW BODY MAIN ASS'Y

1H

ARROW BODY MAIN ASS'Y

ASHS0ASS005

Part picture

47.1

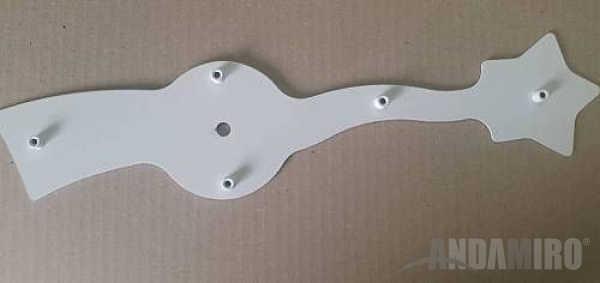

[ARROW BODY MAIN ASS'Y ] ARROW BODY BASE BKT_SKILL

SKILL용

[ARROW BODY MAIN ASS'Y ] ARROW BODY BASE BKT_SKILL

MSHS0MEP092

Part picture

47.2

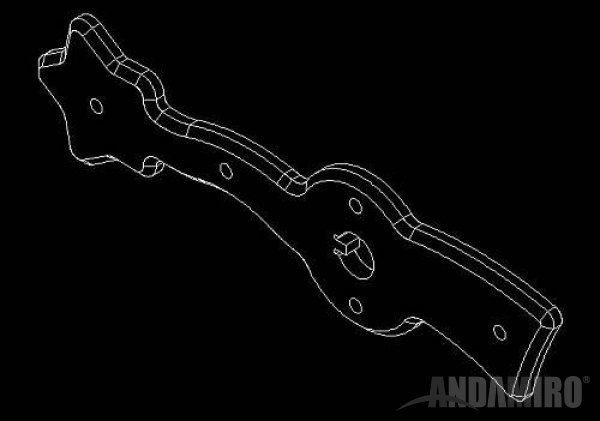

[ARROW BODY MAIN ASS'Y ] ARROW BODY MAIN_1H SKILL

.

[ARROW BODY MAIN ASS'Y ] ARROW BODY MAIN_1H SKILL

MSHS0PRO005

Part picture

47.3

[ARROW BODY MAIN ASS'Y ] ARROW BODY SHEET

.

[ARROW BODY MAIN ASS'Y ] ARROW BODY SHEET

MSHS0SHE011

Part picture

48

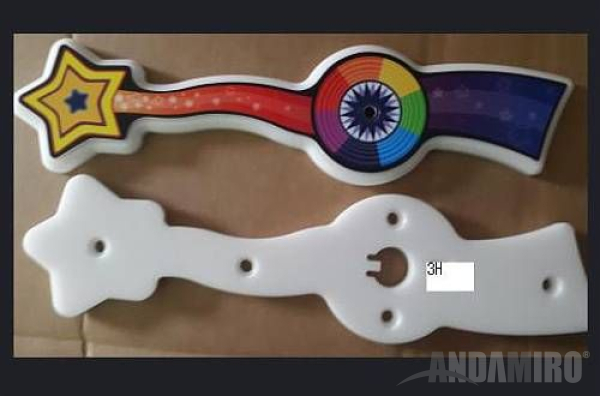

ARROW BODY MAIN ASS'Y

3H

ARROW BODY MAIN ASS'Y

ASHS0ASS006

Part picture

48.1

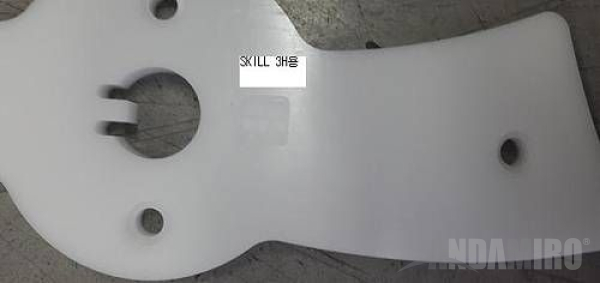

[ARROW BODY MAIN ASS'Y ] ARROW BODY MAIN_3H SKILL

3H용

[ARROW BODY MAIN ASS'Y ] ARROW BODY MAIN_3H SKILL

MSHS0PRO006

Part picture

48.2

[ARROW BODY MAIN ASS'Y ] ARROW BODY BASE BKT_SKILL

SKILL용

[ARROW BODY MAIN ASS'Y ] ARROW BODY BASE BKT_SKILL

MSHS0MEP092

Part picture

48.3

[ARROW BODY MAIN ASS'Y ] ARROW BODY SHEET

.

[ARROW BODY MAIN ASS'Y ] ARROW BODY SHEET

MSHS0SHE011

Part picture

49

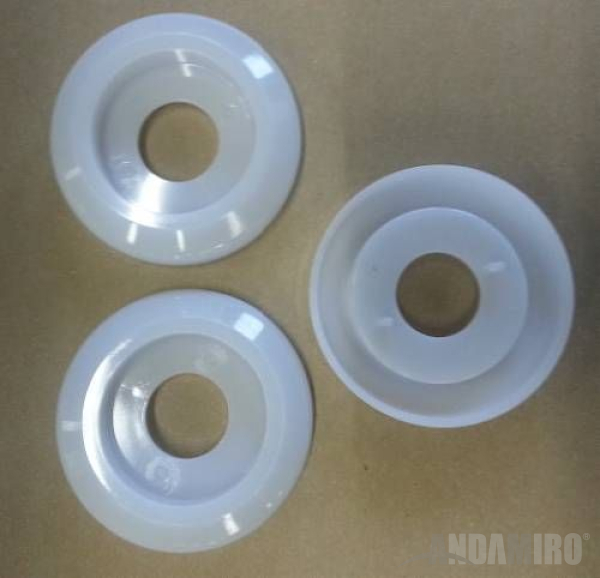

BUTTON LED HOUSING

BUTTON LED HOUSING

MZZZ0PLA038

Part picture

50

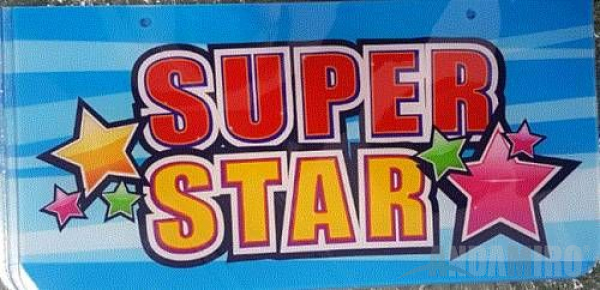

PRIZE DISPENSER LOGO ACRYL

SUPER STAR

PRIZE DISPENSER LOGO ACRYL

MSHS0ACR010

Part picture

51

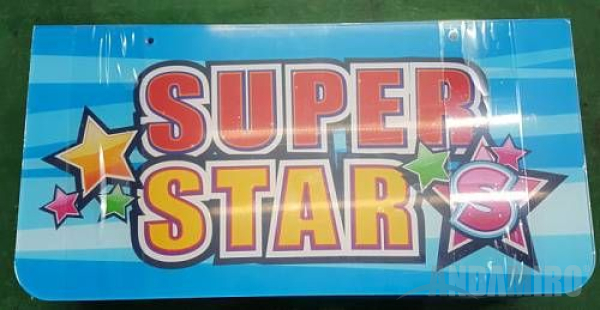

PRIZE DISPENSER LOGO ACRYL

SUPER STAR S

PRIZE DISPENSER LOGO ACRYL

MSHS0ACR017

Part picture

52

KEY ASS'Y 7001

7001 키뭉치만

KEY ASS'Y 7001

MZZZ0KEY076

Part picture

53

KEY ONLY 7001

2EA 1SET_WITH RING

KEY ONLY 7001

MZZZ0KEY035

Part picture

54

LED BAR 12V ASS'Y

460MM

LED BAR 12V ASS'Y

AZZZ0PCB124

Part picture

55

LED BAR 12V ASS'Y

910MM

LED BAR 12V ASS'Y

AZZZ0PCB128

Part picture

56

NOISE FILTER

RNS-2010

NOISE FILTER

MELE0NOI009

Part picture

57

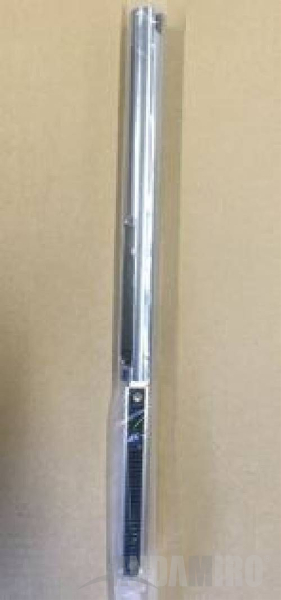

ARROW SHAFT MAIN ASS'Y

.

ARROW SHAFT MAIN ASS'Y

ASSS0ASS002

Part picture

58

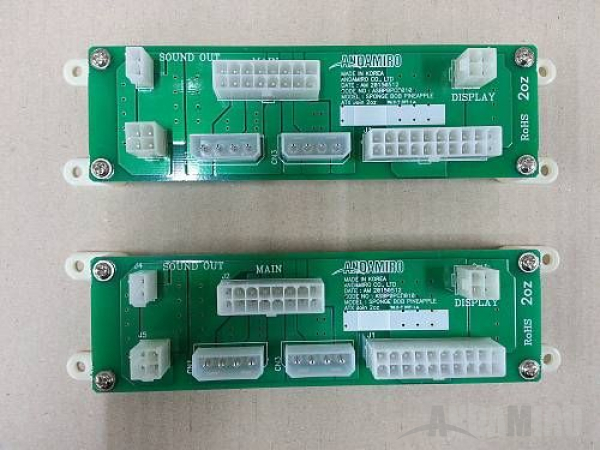

ATX JOIN 2 OZ PCB ASS'Y

SPONGE BOB PINEAPPLE

ATX JOIN 2 OZ PCB ASS'Y

ASBP0PCB010

Part picture

59

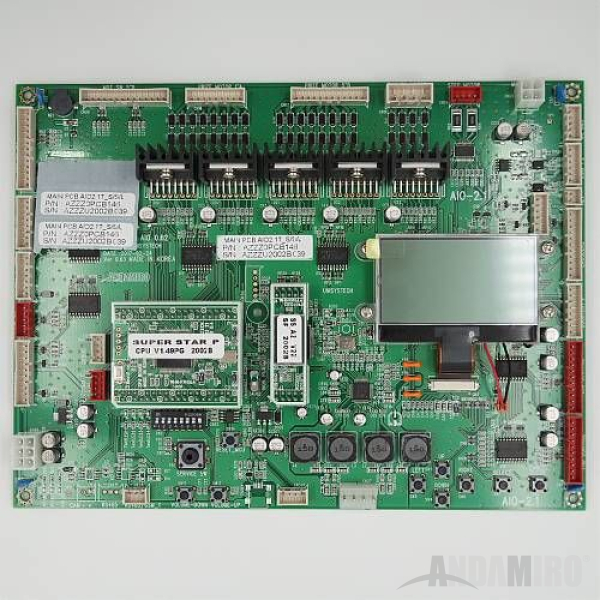

MAIN PCB ASS'Y WITH CPU_SOUND

AIO2 I_S CUBE,SHS,SAFE

MAIN PCB ASS'Y WITH CPU_SOUND

AZZZ0PCB146

Part picture

59.1

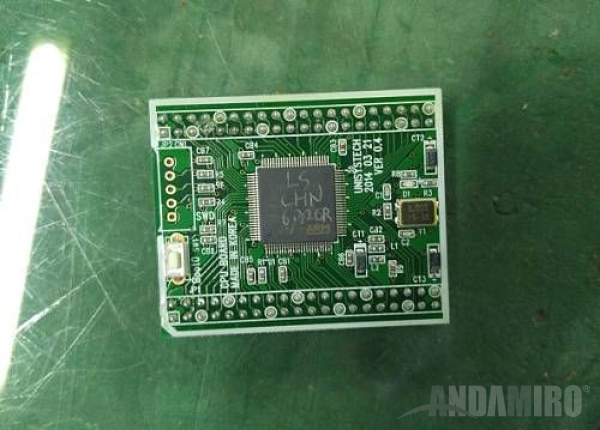

[MAIN PCB ASS'Y WITH CPU_SOUND] CPU PCB C ASS'Y

SCU_ICU_MAG_SM1,3H_SU1,3H_MAG

[MAIN PCB ASS'Y WITH CPU_SOUND] CPU PCB C ASS'Y

ASHS0PCB004

Part picture

59.2

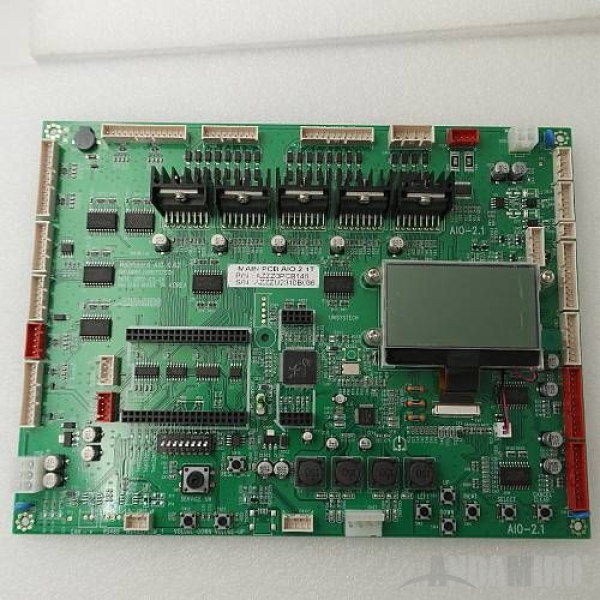

[MAIN PCB ASS'Y WITH CPU_SOUND] MAIN PCB ASS'Y

AIO2 I_S CUBE,SHS

[MAIN PCB ASS'Y WITH CPU_SOUND] MAIN PCB ASS'Y

AZZZ0PCB138

Part picture

59.3

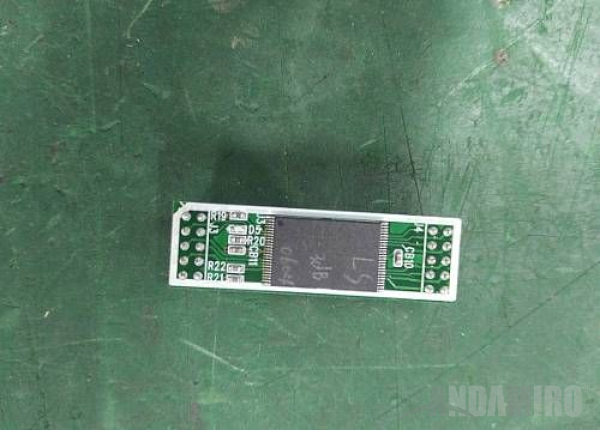

[MAIN PCB ASS'Y WITH CPU_SOUND] SOUND ROM PCB ASS'Y

SHOOTING STAR

[MAIN PCB ASS'Y WITH CPU_SOUND] SOUND ROM PCB ASS'Y

ASHS0PCB005

Part picture

60

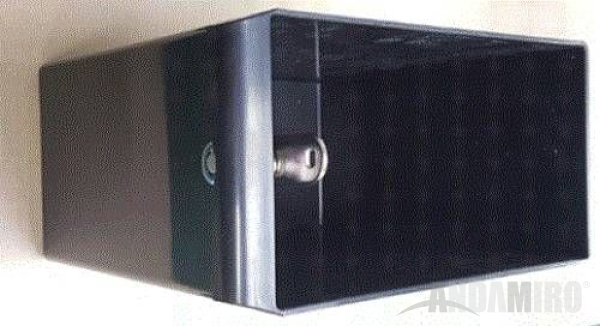

COIN BOX ASS WITH 6001

SMALL 200*198*107

COIN BOX ASS WITH 6001

AZZZ0ASS002

Part picture

60.1

[COIN BOX ASS WITH 6001] KEY ASS'Y 6001

6001 키뭉치만

[COIN BOX ASS WITH 6001] KEY ASS'Y 6001

MZZZ0KEY075

Part picture

60.2

[COIN BOX ASS WITH 6001] COIN BOX SMALL

200*198*107 BLACK

[COIN BOX ASS WITH 6001] COIN BOX SMALL

MDRE0PLA007

Part picture

61

ATX POWER SUPPLY

FSP300_60GHT_85

ATX POWER SUPPLY

MELE0SMP099

Part picture

62

ROCKER SWITCH

R595KDF

ROCKER SWITCH

MELE0SWI021

Part picture

63

AC INPUT ASS'Y

DAC-13H,WITH FUSE10A_2EA

AC INPUT ASS'Y

AELE0FUS002

Part picture

64

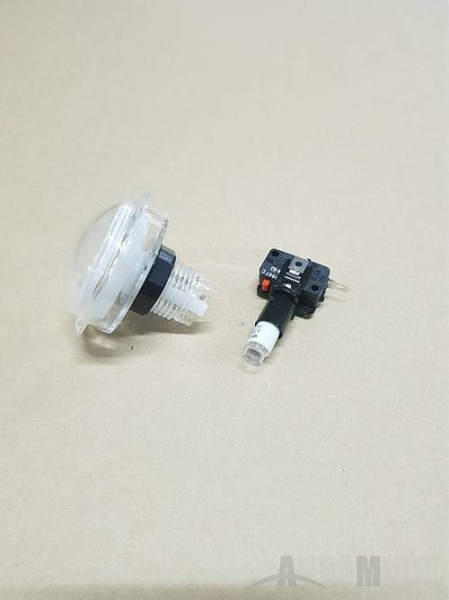

BUTTON ASS'Y

CL-2020 65 WITH LED

BUTTON ASS'Y

AZZZ0BUT009

Part picture

64.1

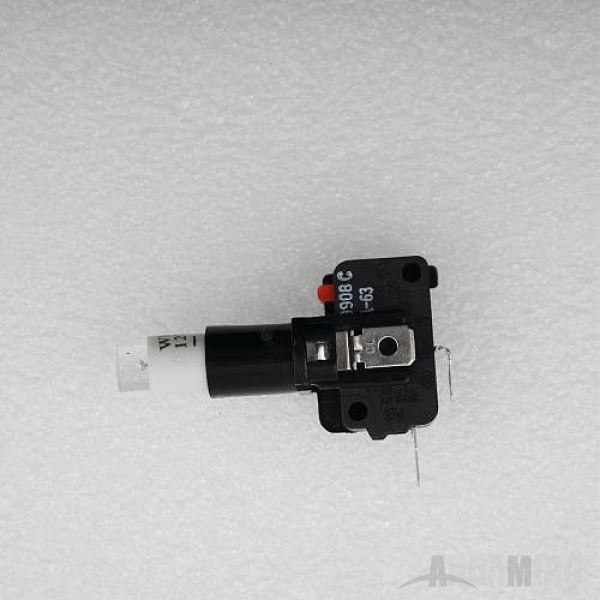

[BUTTON ASS'Y] HOLDER ASS'Y

LED포함

[BUTTON ASS'Y] HOLDER ASS'Y

MZZZ0BUT103

Part picture

64.2

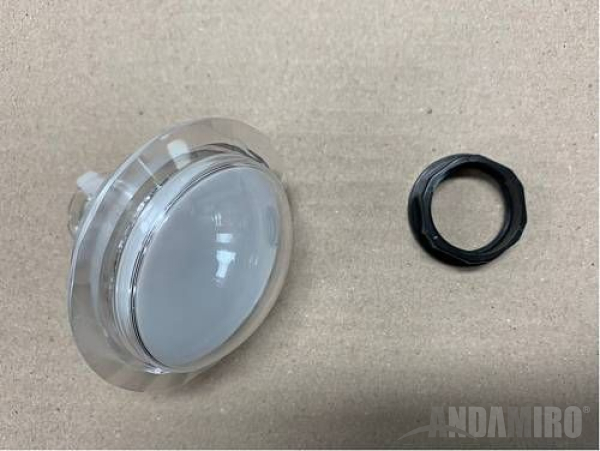

[BUTTON ASS'Y] BUTTON ASS'Y _NO HOLDER

CL-2020 65 TYPE LED

[BUTTON ASS'Y] BUTTON ASS'Y _NO HOLDER

MZZZ0BUT101

Part picture

64.3

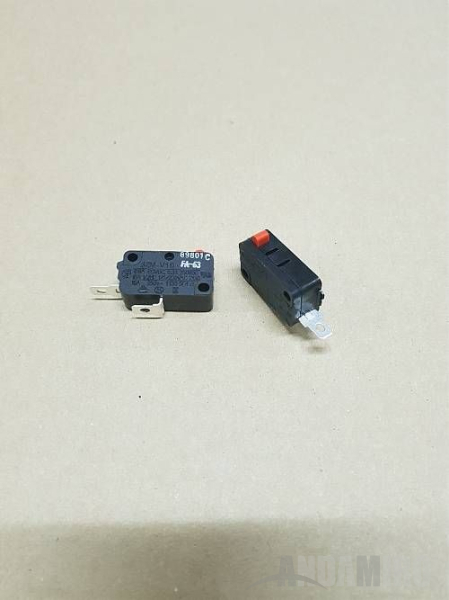

[BUTTON ASS'Y] MICRO SWITCH(BUTTON용)

SZM-V16-FA-63(200G)

[BUTTON ASS'Y] MICRO SWITCH(BUTTON용)

MELE0MIC013

Part picture

65

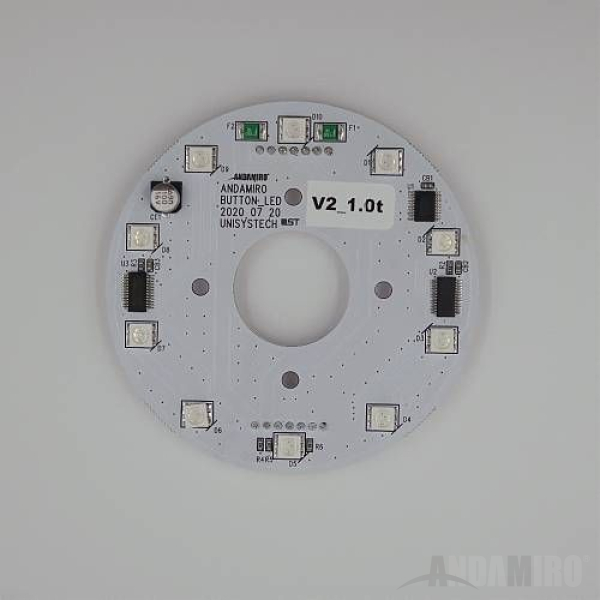

RGB_BUTTON_LED PCB ASS'Y V2

1K

RGB_BUTTON_LED PCB ASS'Y V2

AZZZ0PCB209

Part picture

65.1

[RGB_BUTTON_LED PCB ASS'Y V2] HOLDER ASS'Y

LED포함

[RGB_BUTTON_LED PCB ASS'Y V2] HOLDER ASS'Y

MZZZ0BUT103

Part picture

65.2

[RGB_BUTTON_LED PCB ASS'Y V2] BUTTON ASS'Y _NO HOLDER

CL-2020 65 TYPE LED

[RGB_BUTTON_LED PCB ASS'Y V2] BUTTON ASS'Y _NO HOLDER

MZZZ0BUT101

Part picture

65.3

[RGB_BUTTON_LED PCB ASS'Y V2] MICRO SWITCH(BUTTON용)

SZM-V16-FA-63(200G)

[RGB_BUTTON_LED PCB ASS'Y V2] MICRO SWITCH(BUTTON용)

MELE0MIC013

Part picture

Sign up to our newsletter to stay in touch with our work and everything that's going on at our company.
receive the latest updates, news, and special offers. We can't wait to get started!

[Headquarters]#704-1, Gongjang-dong, Ilsan Techno Town, 138, Ilsan-ro, Ilsandong-gu,
Goyang-si, Gyeonggi-do, Republic of Korea

[ANDAMIRO USA]2222 Century Cir, Irving TX 75062 U.S.A

Copyright ⓒ 1993~2022 By Andamiro Co., LTD. All rights reserved.

ContactHeadquarters (International)
Sales: sales@andamiro.com
Tech and Parts: sales@andamiro.com
TEL: 82-31-909-2046

North AmericaSales: min@andamirousa.com
Tech support: service@andamirousa.com
Parts : parts@andamirousa.com
Tel: 1-310-767-5800
Fax: 972-445-9111

Copyright ⓒ 1993~2022 By Andamiro Co., LTD. All rights reserved.
