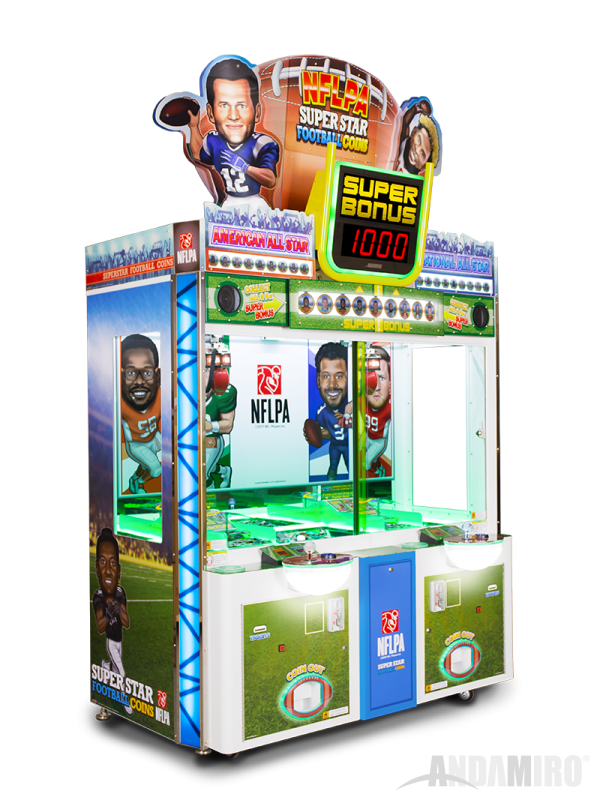

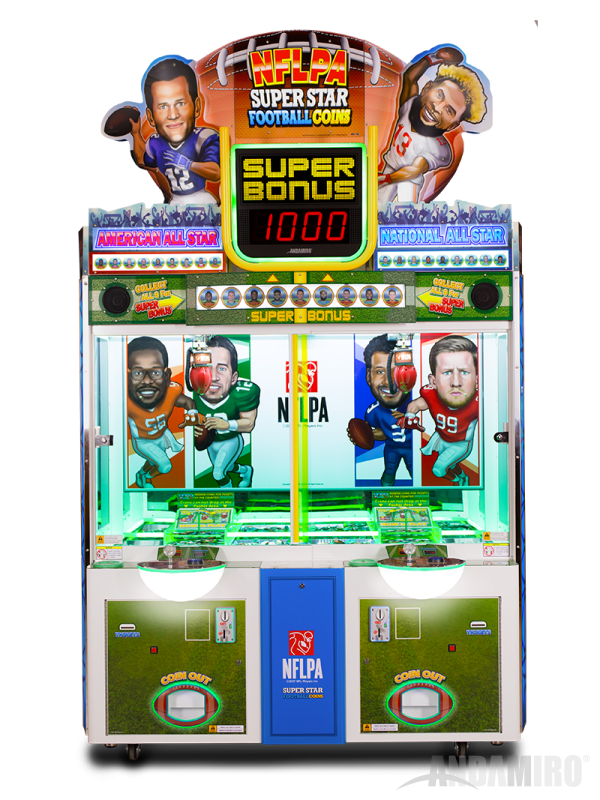

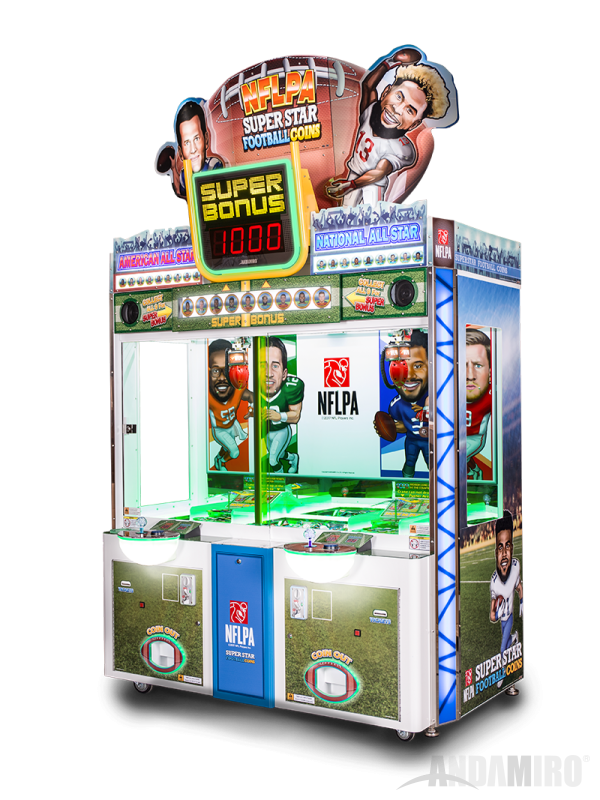

TICKET REDEMPTION NFLPA Super Star Football Coins The world's greatest football players in one cabinet!

Short url COPY http://www.andamiro.com/games/nflpa

Tags NflpaSuperStarFootballCoins Ticket

Dimensions 1,679mm x 1,088mm x 2,767mm
66" x 43" x 109"

Packing Dimensions 2,280mm x 990mm x 2,180mm
90" x 39" x 86"

Product Weight 350 kg / 772 lbs

Packing Weight 456 kg / 1,005 lbs

Power 450W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (1)
Trouble shooting
Video List (0)

FEATURES

The world's greatest football players in one cabinet!

- Game combines elements of a skill crane and coin pusher

- Ships with 4,000 NFLPA. coins 60 players Featured!

- Patrons can collect all 60 coins, or trade them

- Also ships with 50 NFLPA collector albums. This limited-time offer expires 3/31/18

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 113Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
2	TILT .	TILT MWIC0PAR100	Part picture
3	MICRO SWITCH GSMV16_51A2	MICRO SWITCH MELE0MIC021	Part picture
4	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture

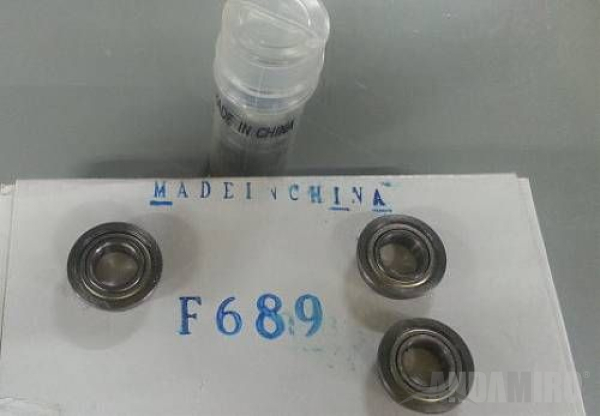

5	BEARING F689ZZ	BEARING MZZZ0BEA068	Part picture

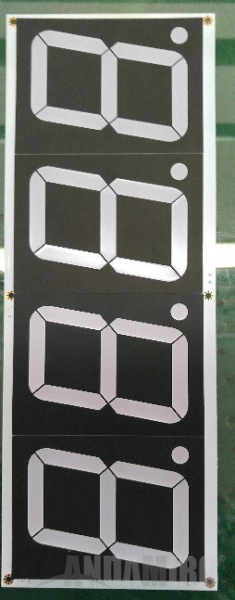

6	FND PCB ASS'Y 90120-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB024	Part picture

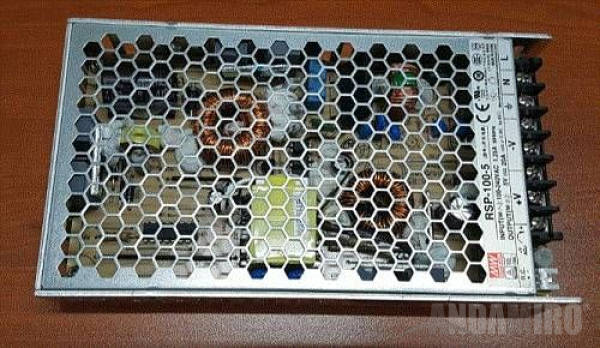

7	POWER SMPS RSP-100-5V	POWER SMPS MELE0SMP104	Part picture

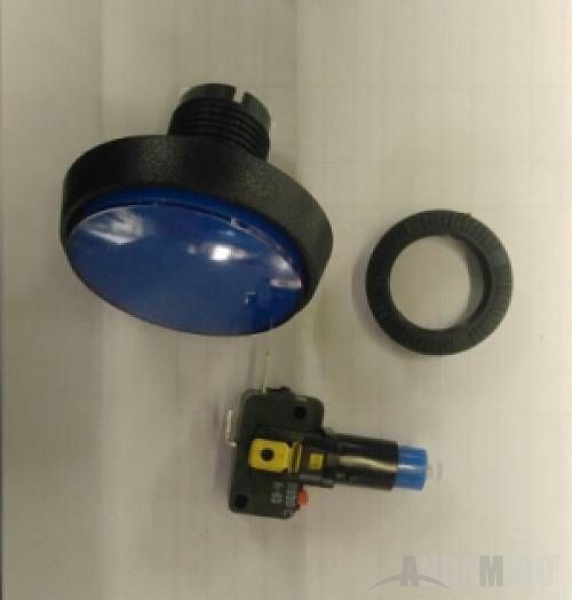

8	BUTTON SWITCH AMIPB-60HR-B12D(BLUE)	BUTTON SWITCH MZZZ0BUT026	Part picture

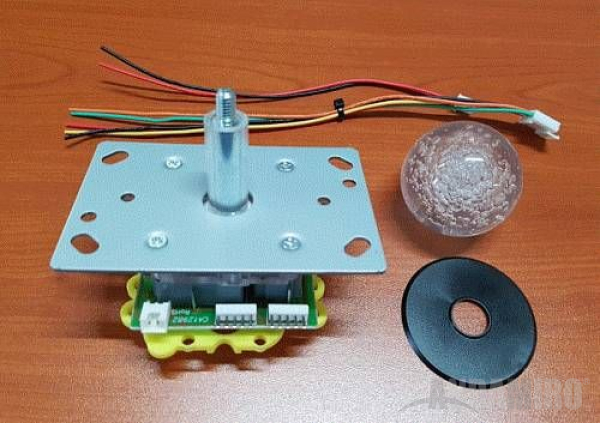

9	JOYSTICK RGB JS-EPCM- BU-45-CW-CT	JOYSTICK RGB MZZZ0JOY014	Part picture

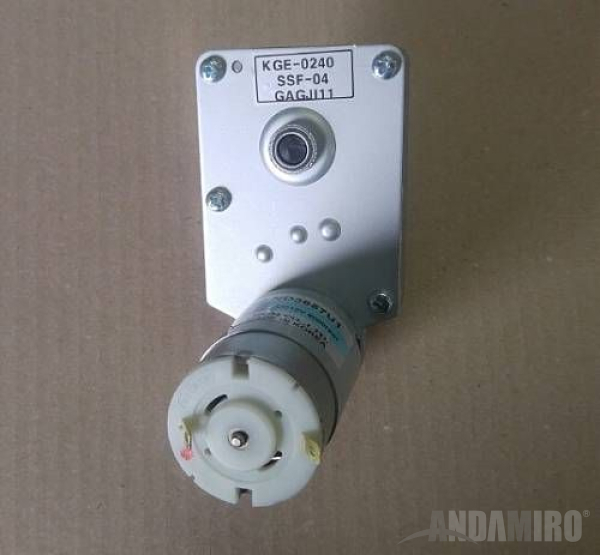

10	MOTOR KGE 3657-240-U1 (F-TYPE,20RPM)	MOTOR MZZZ0MOT130	Part picture

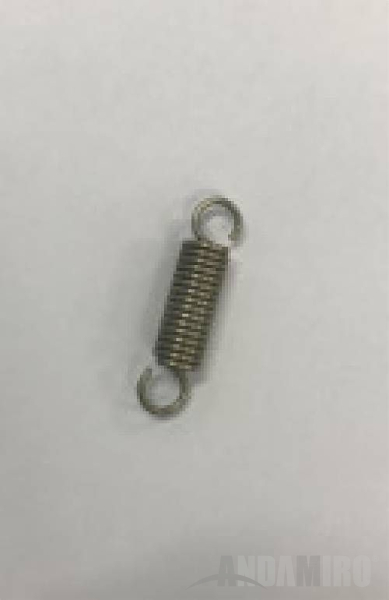

11	Y WIRE TENSION SPRING .	Y WIRE TENSION SPRING MNFL0SPR001	Part picture

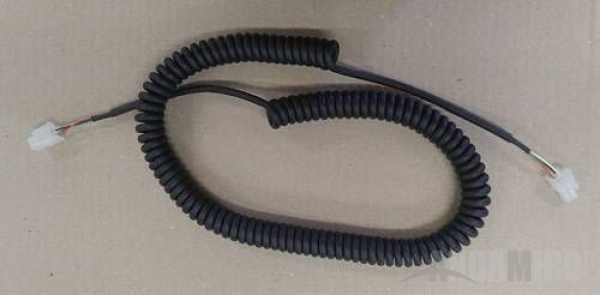

12	CRANE Z AXIS HARNESS 4 LINE 50/500/50	CRANE Z AXIS HARNESS MZZZ0HAN085	Part picture
13	EARTH BKT .	EARTH BKT MSHS0MEP010	Part picture
13.1	[EARTH BKT] MOTOR KGC-0070-3657-U1	[EARTH BKT] MOTOR MZZZ0MOT127	Part picture
13.2	[EARTH BKT] MOTOR KGC-0070-3657-U1	[EARTH BKT] MOTOR MZZZ0MOT127	Part picture

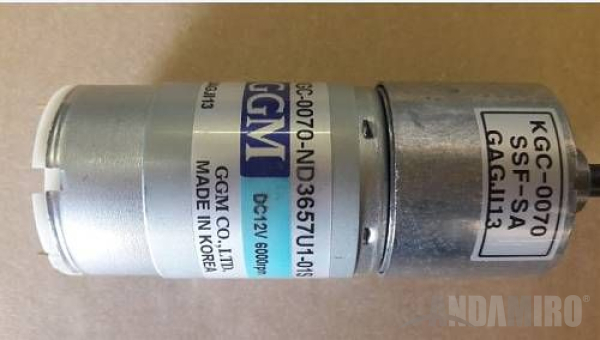

14	MOTOR KGC-0070-3657-U1	MOTOR MZZZ0MOT127	Part picture

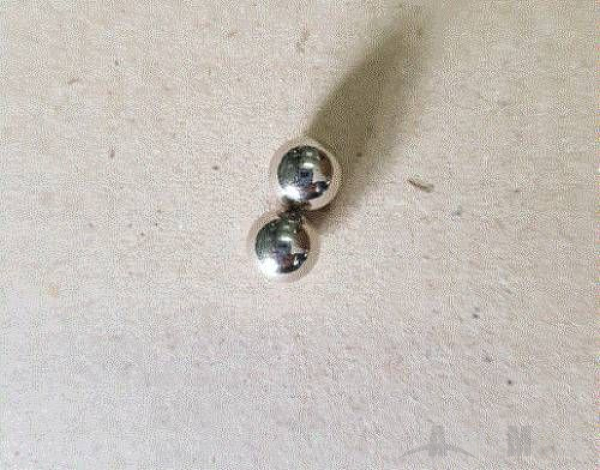

15	MAGNETIC BALL 10MM	MAGNETIC BALL MNFL0ZZZ002	Part picture

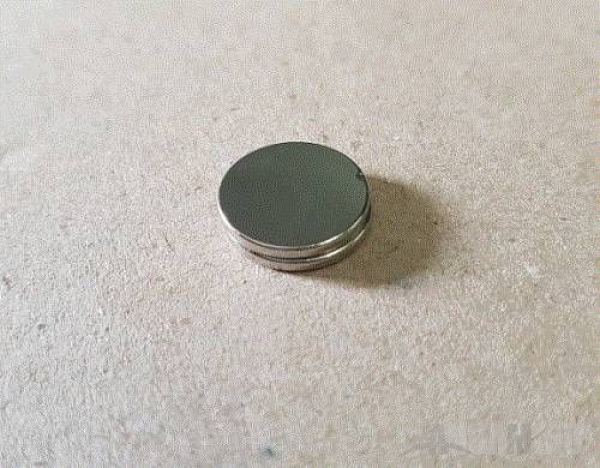

16	MAGNETIC BLOCK Φ15 X T1.5	MAGNETIC BLOCK MNFL0ZZZ003	Part picture

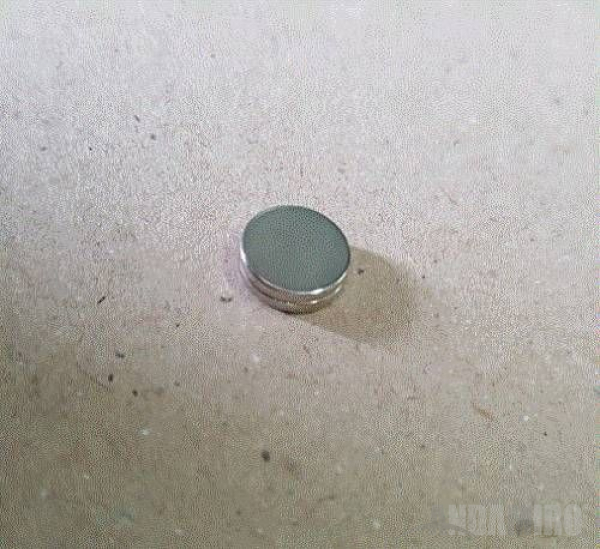

17	MAGNETIC BLOCK Φ10 X T1.5	MAGNETIC BLOCK MNFL0ZZZ004	Part picture

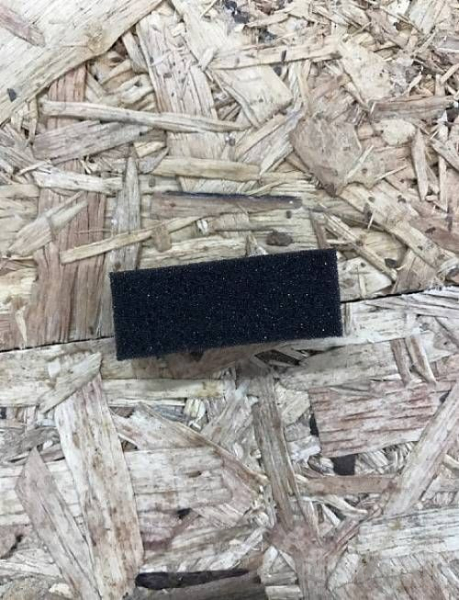

18	FRONT WINDOW GLASS SPONGE-A .	FRONT WINDOW GLASS SPONGE-A MNFL0SPO001	Part picture

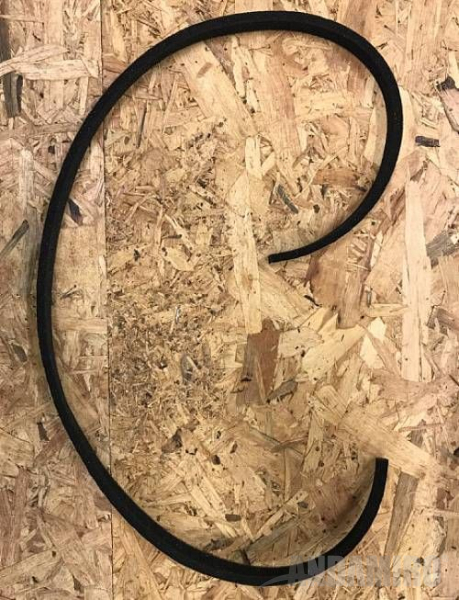

19	FRONT WINDOW GLASS SPONGE-B .	FRONT WINDOW GLASS SPONGE-B MNFL0SPO002	Part picture

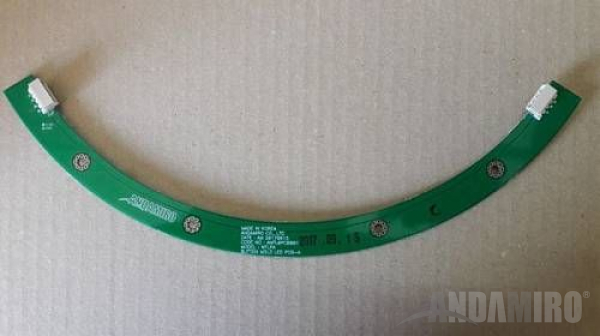

20	BUTTON MOLD LED PCB-A ASS'Y NFLPA	BUTTON MOLD LED PCB-A ASS'Y ANFL0PCB001	Part picture

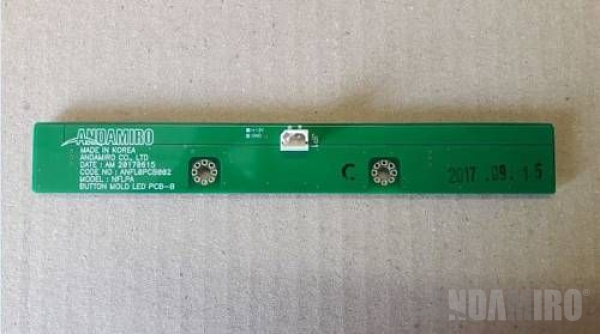

21	BUTTON MOLD LED PCB-B ASS'Y NFLPA	BUTTON MOLD LED PCB-B ASS'Y ANFL0PCB002	Part picture

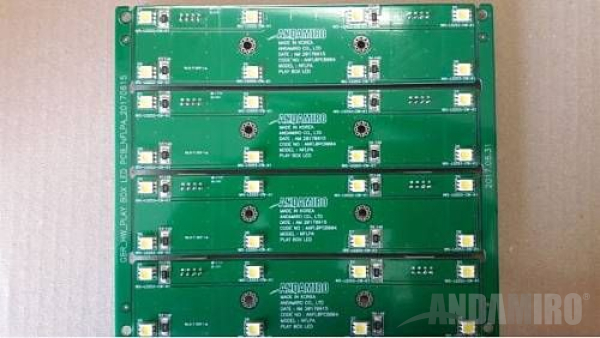

22	PLAY BOX LED PCB ASS'Y NFLPA	PLAY BOX LED PCB ASS'Y ANFL0PCB004	Part picture

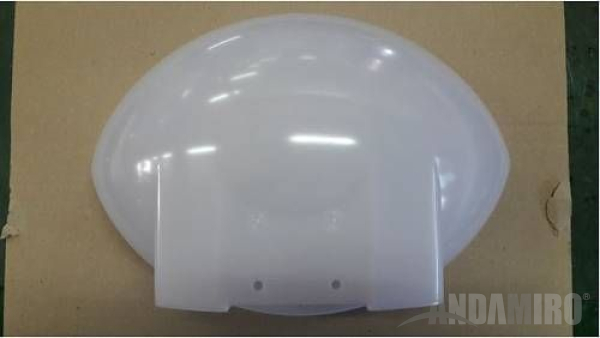

23	BUTTON FRAME MOLD ASS'Y .	BUTTON FRAME MOLD ASS'Y ANFL0ASS006	Part picture
24	COIN BOOK ASS'Y .	COIN BOOK ASS'Y ANFL0ASS005	Part picture

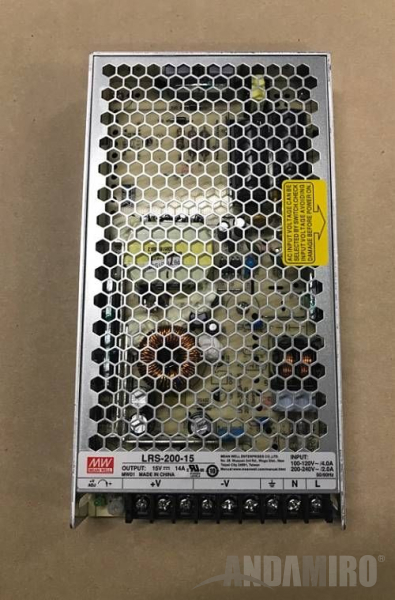

25	POWER SMPS LRS 200_15	POWER SMPS MELE0SMP120	Part picture

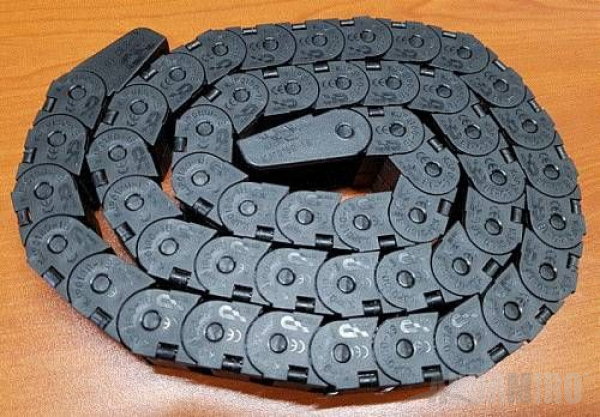

26	CABLE CHAIN KJP018-1B-26LINK (END/MOVE 제외)	CABLE CHAIN MZZZ0CBC015	Part picture

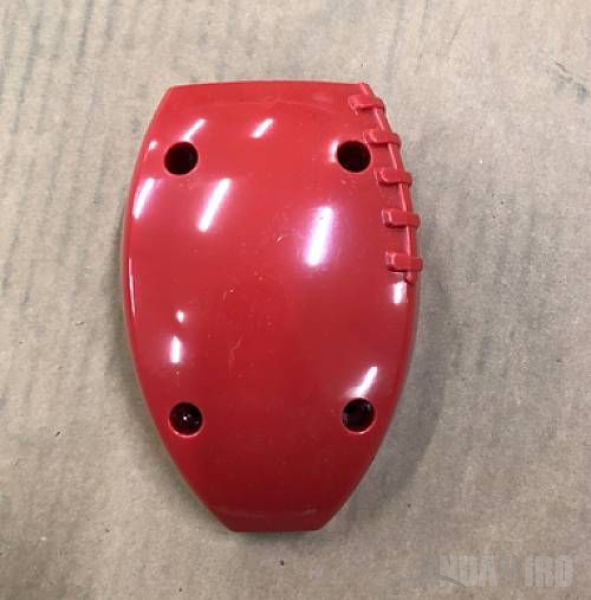

27	RUGBY CRANE MOLD-L .	RUGBY CRANE MOLD-L MNFL0PLA002	Part picture

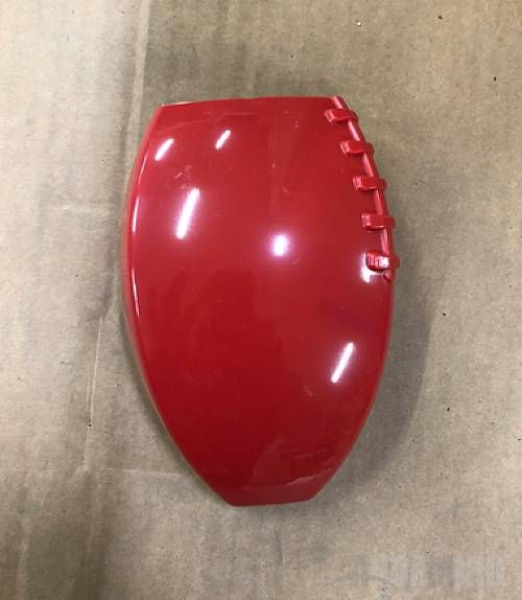

28	RUGBY CRANE MOLD-R .	RUGBY CRANE MOLD-R MNFL0PLA003	Part picture
28.1	[RUGBY CRANE MOLD-R] MAIN BOARD PCB ASS'Y NO CPU	[RUGBY CRANE MOLD-R] MAIN BOARD PCB ASS'Y ANFL0PCB006	Part picture

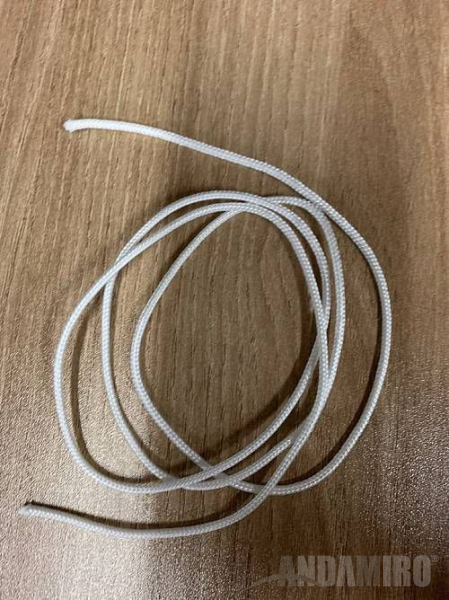

29	RUGBY Z WIRE 길이 : 1000MM	RUGBY Z WIRE MNFL0PRO040	Part picture
30	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture

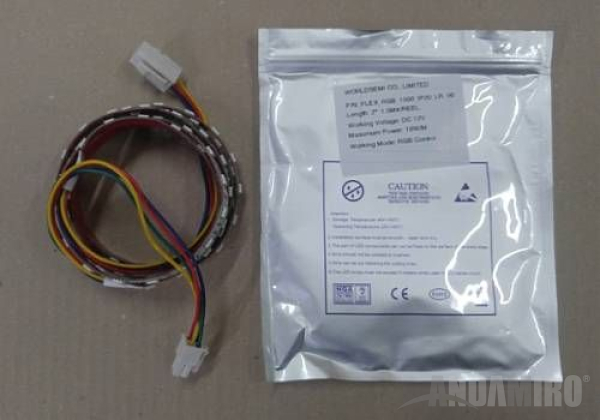

31	FLEX_5050_RGB_1500_NWP_LR_90 T5050 TOP300구 90알	FLEX_5050_RGB_1500_NWP_LR_90 MELE0LED032	Part picture
32	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
33	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture

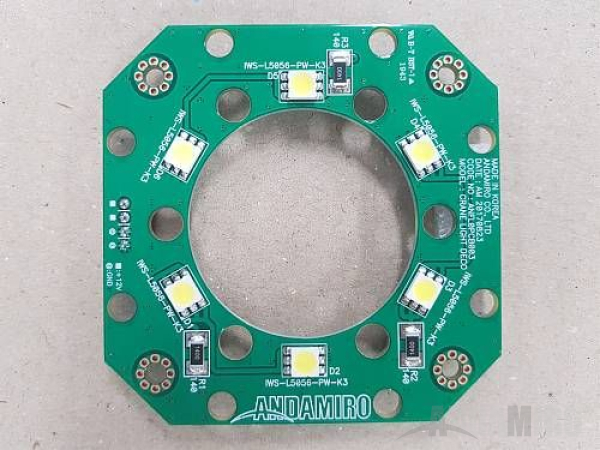

34	CRANE DECO LIGHT PCB ASS'Y NFLPA	CRANE DECO LIGHT PCB ASS'Y ANFL0PCB003	Part picture

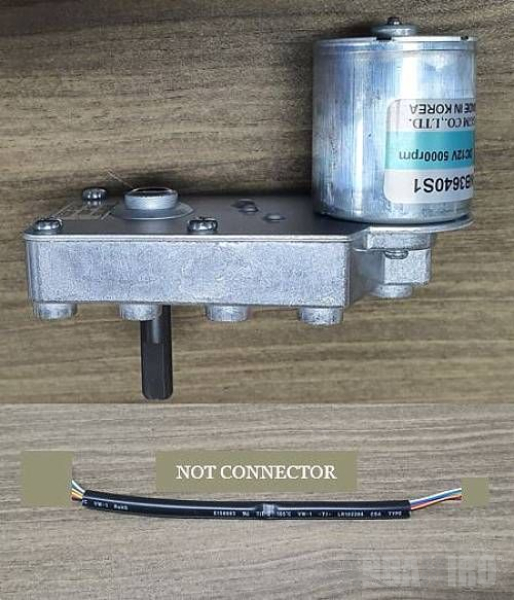

35	MOTOR KGE-240-3640S1 BLDC (18.7 RPM)	MOTOR MZZZ0MOT129	Part picture
36	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
37	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
38	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
39	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
40	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
41	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture

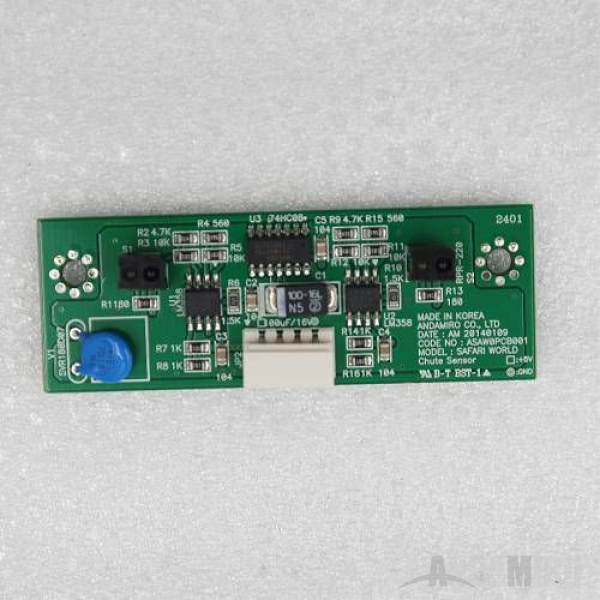

42	CHUTE SENSOR PCB ASS'Y .	CHUTE SENSOR PCB ASS'Y ASAW0PCB001	Part picture
43	KEY ASS'Y 6001 BODY	KEY ASS'Y 6001 MZZZ0KEY075	Part picture
44	KEY ASS'Y 7001 BODY	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
45	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
46	KEY ONLY 6001 2EA 1SET_WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture

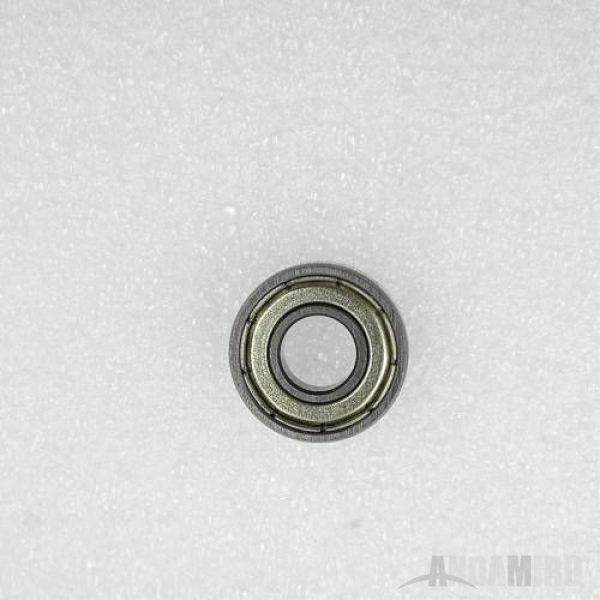

47	BEARING 698ZZ	BEARING MZZZ0BEA122	Part picture
48	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
49	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
50	CREDIT FND PCB ASS'Y WINNERS CUBE DX	CREDIT FND PCB ASS'Y AWID0PCB004	Part picture
51	FLEX_3528_GREEN_600_NWP_L DM3	FLEX_3528_GREEN_600_NWP_L MDM30HAN099	Part picture
52	NFLPA COIN BOX V2 4410	NFLPA COIN BOX AZZZ0ASS072	Part picture

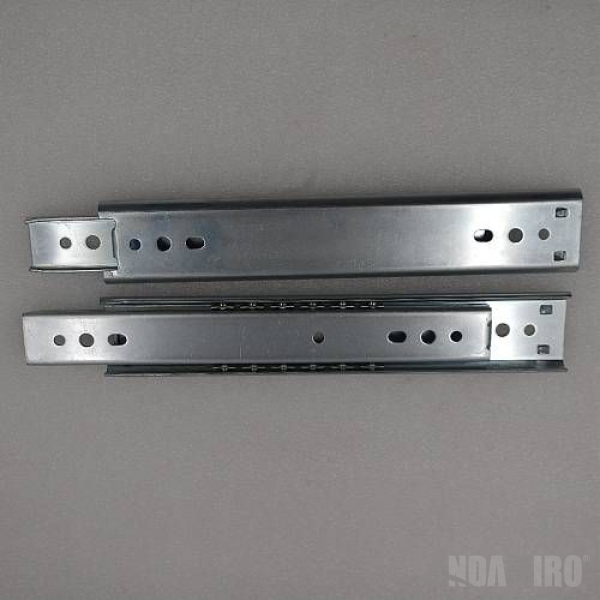

53	PUSHER GUIDE RAIL 200MM_양쪽 인출방식_100323	PUSHER GUIDE RAIL MSBP0ZZZ011	Part picture
54	LED PCB ASS'Y MULTI MAGIC 070618	LED PCB ASS'Y AMUM0PCB005	Part picture
55	AC POWER CORD UL 125V_10A_SVT 3/18AWG 1.8M	AC POWER CORD UL MELE0ACP001	Part picture
56	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
57	RGB PWM PCB RGB_CTRL-G2GSTC0131	RGB PWM PCB MZZZ0000629	Part picture
58	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture

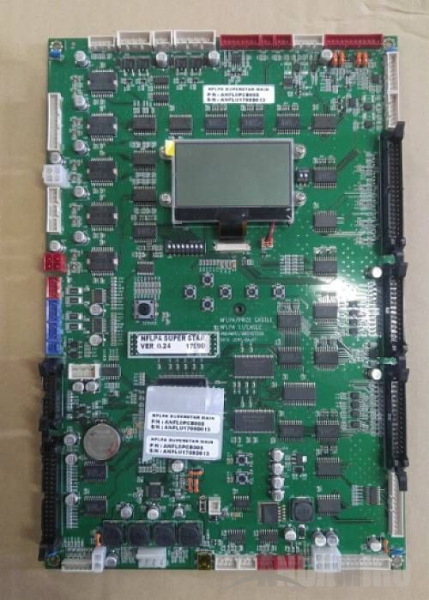

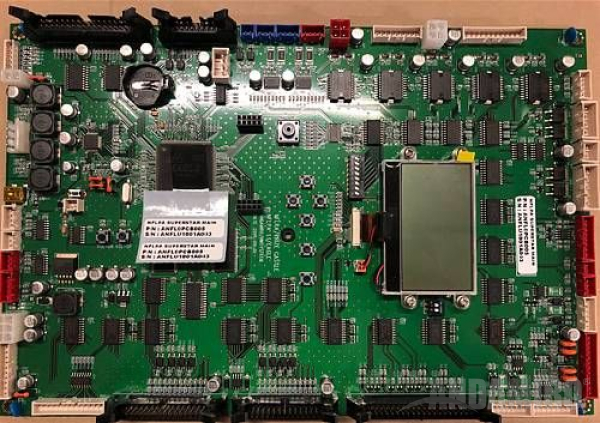

59	MAIN BOARD PCB ASS'Y NFLPA 전용 WITH CPU	MAIN BOARD PCB ASS'Y ANFL0PCB005	Part picture
59.1	[MAIN BOARD PCB ASS'Y] BILLBOARD MAIN DECO CENTER .	[MAIN BOARD PCB ASS'Y] BILLBOARD MAIN DECO CENTER MNFL0SHE001	Part picture
59.2	[MAIN BOARD PCB ASS'Y] BILLBOARD MAIN DECO L .	[MAIN BOARD PCB ASS'Y] BILLBOARD MAIN DECO L MNFL0SHE002	Part picture
59.3	[MAIN BOARD PCB ASS'Y] BILLBOARD MAIN DECO R .	[MAIN BOARD PCB ASS'Y] BILLBOARD MAIN DECO R MNFL0SHE003	Part picture
59.4	[MAIN BOARD PCB ASS'Y] HOW TO PLAY .	[MAIN BOARD PCB ASS'Y] HOW TO PLAY MNFL0SHE004	Part picture
59.5	[MAIN BOARD PCB ASS'Y] CABINET SIDE SHEET L .	[MAIN BOARD PCB ASS'Y] CABINET SIDE SHEET L MNFL0SHE006	Part picture
59.6	[MAIN BOARD PCB ASS'Y] CABINET SIDE SHEET R .	[MAIN BOARD PCB ASS'Y] CABINET SIDE SHEET R MNFL0SHE007	Part picture
59.7	[MAIN BOARD PCB ASS'Y] CABINET FRONT DOOR SHEET L .	[MAIN BOARD PCB ASS'Y] CABINET FRONT DOOR SHEET L MNFL0SHE010	Part picture
59.8	[MAIN BOARD PCB ASS'Y] CABINET FRONT DOOR SHEET R .	[MAIN BOARD PCB ASS'Y] CABINET FRONT DOOR SHEET R MNFL0SHE011	Part picture
59.9	[MAIN BOARD PCB ASS'Y] CABINET INNER DECO PANEL SHEET_REV .	[MAIN BOARD PCB ASS'Y] CABINET INNER DECO PANEL SHEET_REV MNFL0SHE012	Part picture
59.10	[MAIN BOARD PCB ASS'Y] COIN OUT DECO SHEET .	[MAIN BOARD PCB ASS'Y] COIN OUT DECO SHEET MNFL0SHE016	Part picture
59.11	[MAIN BOARD PCB ASS'Y] CENTER DOOR SHEET .	[MAIN BOARD PCB ASS'Y] CENTER DOOR SHEET MNFL0SHE017	Part picture
59.12	[MAIN BOARD PCB ASS'Y] FRONT WONDOW CENTER DECO SHEET .	[MAIN BOARD PCB ASS'Y] FRONT WONDOW CENTER DECO SHEET MNFL0SHE018	Part picture
59.13	[MAIN BOARD PCB ASS'Y] GAME INSTRUCTION SUB SHEET-A .	[MAIN BOARD PCB ASS'Y] GAME INSTRUCTION SUB SHEET-A MNFL0SHE019	Part picture
59.14	[MAIN BOARD PCB ASS'Y] GAME INSTRUCTION SUB SHEET-A .	[MAIN BOARD PCB ASS'Y] GAME INSTRUCTION SUB SHEET-A MNFL0SHE020	Part picture
59.15	[MAIN BOARD PCB ASS'Y] COIN REDEEM SHEET .	[MAIN BOARD PCB ASS'Y] COIN REDEEM SHEET MNFL0SHE005	Part picture
59.16	[MAIN BOARD PCB ASS'Y] GAME INSTRUCTION SHEET .	[MAIN BOARD PCB ASS'Y] GAME INSTRUCTION SHEET MNFL0SHE015	Part picture
59.17	[MAIN BOARD PCB ASS'Y] GMAE INSTRUCTION NUMBER SHEET .	[MAIN BOARD PCB ASS'Y] GMAE INSTRUCTION NUMBER SHEET MNFL0SHE021	Part picture
59.18	[MAIN BOARD PCB ASS'Y] COIN REDEEM SHEET(MERCHANDISER VER) .	[MAIN BOARD PCB ASS'Y] COIN REDEEM SHEET(MERCHANDISER VER) MNFL0SHE024	Part picture
59.19	[MAIN BOARD PCB ASS'Y] PUSHER PANEL TOP ROOF .	[MAIN BOARD PCB ASS'Y] PUSHER PANEL TOP ROOF MNFL0ACR042	Part picture
59.20	[MAIN BOARD PCB ASS'Y] FRONT WINDOW SIDE COVER-A .	[MAIN BOARD PCB ASS'Y] FRONT WINDOW SIDE COVER-A MNFL0ACR044	Part picture
59.21	[MAIN BOARD PCB ASS'Y] PUSHER DECO REAR MIRROR ACRYL .	[MAIN BOARD PCB ASS'Y] PUSHER DECO REAR MIRROR ACRYL MNFL0ACR045	Part picture
59.22	[MAIN BOARD PCB ASS'Y] PUSHER PANEL COVER-A SHEET NFLPA	[MAIN BOARD PCB ASS'Y] PUSHER PANEL COVER-A SHEET ANFL0ACP001	Part picture
59.23	[MAIN BOARD PCB ASS'Y] BILLBOARD LIGHT BOX COVER ACRYL SHEET NFLPA	[MAIN BOARD PCB ASS'Y] BILLBOARD LIGHT BOX COVER ACRYL SHEET ANFL0ACP002	Part picture
59.24	[MAIN BOARD PCB ASS'Y] BILLBOARD SUB DECO PANEL-L SHEET NFLPA	[MAIN BOARD PCB ASS'Y] BILLBOARD SUB DECO PANEL-L SHEET ANFL0ACP003	Part picture
59.25	[MAIN BOARD PCB ASS'Y] BILLBOARD SUB DECO PANEL-R SHEET NFLPA	[MAIN BOARD PCB ASS'Y] BILLBOARD SUB DECO PANEL-R SHEET ANFL0ACP004	Part picture
59.26	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COVER ACRYL-L NFLPA	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COVER ACRYL-L ANFL0ACP005	Part picture
59.27	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COVER ACRYL-R NFLPA	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COVER ACRYL-R ANFL0ACP006	Part picture
59.28	[MAIN BOARD PCB ASS'Y] BILLBOARD SIDE DECO ACRYL-L NFLPA	[MAIN BOARD PCB ASS'Y] BILLBOARD SIDE DECO ACRYL-L ANFL0ACP007	Part picture
59.29	[MAIN BOARD PCB ASS'Y] BILLBOARD SIDE DECO ACRYL-R NFLPA	[MAIN BOARD PCB ASS'Y] BILLBOARD SIDE DECO ACRYL-R ANFL0ACP008	Part picture
59.30	[MAIN BOARD PCB ASS'Y] PLAY BOX ACRYL SHEET NFLPA	[MAIN BOARD PCB ASS'Y] PLAY BOX ACRYL SHEET ANFL0ACP009	Part picture
59.31	[MAIN BOARD PCB ASS'Y] PUSHER BODY ACRYL NFLPA	[MAIN BOARD PCB ASS'Y] PUSHER BODY ACRYL ANFL0ACP010	Part picture
59.32	[MAIN BOARD PCB ASS'Y] SUPER BONUS DECO COIN ACRYL SHEET NFLPA	[MAIN BOARD PCB ASS'Y] SUPER BONUS DECO COIN ACRYL SHEET ANFL0ACP011	Part picture
59.33	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COIN(AMERICAN) NFLPA	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COIN(AMERICAN) ANFL0ACP012	Part picture
59.34	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COIN(NATIONAL) NFLPA	[MAIN BOARD PCB ASS'Y] BONUS FND BOX COIN(NATIONAL) ANFL0ACP013	Part picture
59.35	[MAIN BOARD PCB ASS'Y] RUGBY CRANE LIGHT BKT SHEET NFLPA	[MAIN BOARD PCB ASS'Y] RUGBY CRANE LIGHT BKT SHEET ANFL0ACP014	Part picture
59.36	[MAIN BOARD PCB ASS'Y] BUTTON FRAME COVER ACRYL-B NFLPA	[MAIN BOARD PCB ASS'Y] BUTTON FRAME COVER ACRYL-B ANFL0ACP015	Part picture
59.37	[MAIN BOARD PCB ASS'Y] CABINET CORNER DECO PANEL SHEET NFLPA	[MAIN BOARD PCB ASS'Y] CABINET CORNER DECO PANEL SHEET ANFL0ACP018	Part picture
59.38	[MAIN BOARD PCB ASS'Y] SUPER BONUS FND COVER ACRYL NFL 2P	[MAIN BOARD PCB ASS'Y] SUPER BONUS FND COVER ACRYL ANFL0ACP021	Part picture
59.39	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-L NFL 2P	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-L ANFL0ACP022	Part picture
59.40	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-R NFL 2P	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-R ANFL0ACP023	Part picture
59.41	[MAIN BOARD PCB ASS'Y] SUPER BONUS FND DECO FRAME COVER ACRYL NFL 2P	[MAIN BOARD PCB ASS'Y] SUPER BONUS FND DECO FRAME COVER ACRYL ANFL0ACP024	Part picture
59.42	[MAIN BOARD PCB ASS'Y] SUPER BONUS MERCHANDISER VER NFL 2P	[MAIN BOARD PCB ASS'Y] SUPER BONUS MERCHANDISER VER ANFL0ACP025	Part picture
59.43	[MAIN BOARD PCB ASS'Y] GOLD COIN DISPLAY ACRYL_MERCHANDISER VER NFL 2P	[MAIN BOARD PCB ASS'Y] GOLD COIN DISPLAY ACRYL_MERCHANDISER VER ANFL0ACP026	Part picture
59.44	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-L(MERCHANDISER VER) NFL 2P	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-L(MERCHANDISER VER) ANFL0ACP027	Part picture
59.45	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-R(MERCHANDISER VER) NFL 2P	[MAIN BOARD PCB ASS'Y] SPEAKER COVER ACRYL-R(MERCHANDISER VER) ANFL0ACP028	Part picture
59.46	[MAIN BOARD PCB ASS'Y] BUTTON PANEL ACRYL SHEET A(LR) B(LR) PRI022 023 025 026 ACR011 047 012 048	[MAIN BOARD PCB ASS'Y] BUTTON PANEL ACRYL SHEET A(LR) B(LR) ANFL0ACP029	Part picture

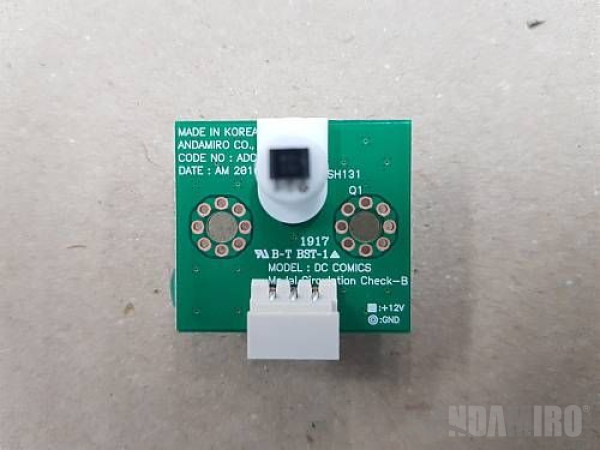

60	MEDAL CIRCULATION CHECK-B(ANGLE) PCB ASS'Y ANGLE TYPE	MEDAL CIRCULATION CHECK-B(ANGLE) PCB ASS'Y AZZZ0PCB168	Part picture
61	ARM ASS'Y L	ARM ASS'Y L ANFL0ASS001	Part picture
62	ARM ASS'Y R	ARM ASS'Y R ANFL0ASS002	Part picture
63	WEB ACR ACP SHEET PART NFLPA	WEB ACR ACP SHEET PART ANFL0PAT003	Part picture

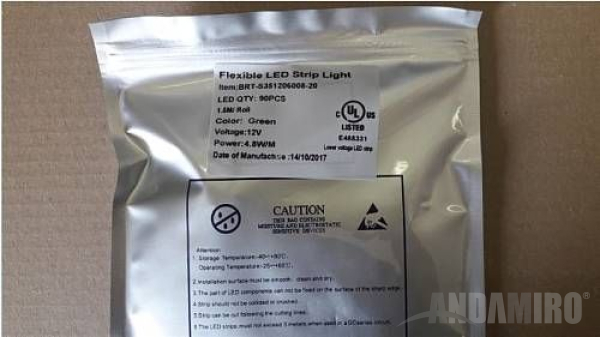

64	FLEX_3528_GREEN_1500_NWP_LR_90 T3528 TOP300구 90알	FLEX_3528_GREEN_1500_NWP_LR_90 MELE0LED031	Part picture
