Pump It Up - LX Pump It Up XX 20th Anniversary Edition

Short url COPY http://www.andamiro.com/games/pumpituplx

Tags PumpItUp-Lx Music

Dimensions 1,676mm x 891mm x 2,386mm
66" x 35" x 94"

Packing Dimensions 1150mm x 1750mm x 2120mm
45" x 69" x 83"

Step Dimensions 1780mm x 1153mm x 1109mm
70" x 45" x 44"

Packing Dimensions 1,150mm x 950mm x 480mm
45" x 37" x 19"

Product Weight 365 kg / 805 lbs

Packing Weight 400 kg / 882 lbs

Power 650W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (2)
Manuals (6)
Document (2)
Trouble shooting
Video List (0)

FEATURES

PUMP IT UP'S NEW 20th ANNIVERSARY LX CABINET (White & Black)

New brilliant light show upgrades any location!

Unleash the Wall of Sound with 4 speakers and 2 subwoofers

HD Graphics Pop on a Giant 55” Screen

Build Revenue & Player Loyalty with A.M. PASS card(PIU login)

World’s No.1 Dance Simulation Game!

Over 100 New Songs and Total 500 Songs, the Largest Volume of PIU Series Ever

Online Matching System

All High-Definition Quality Graphics

Upgrade Reason 1

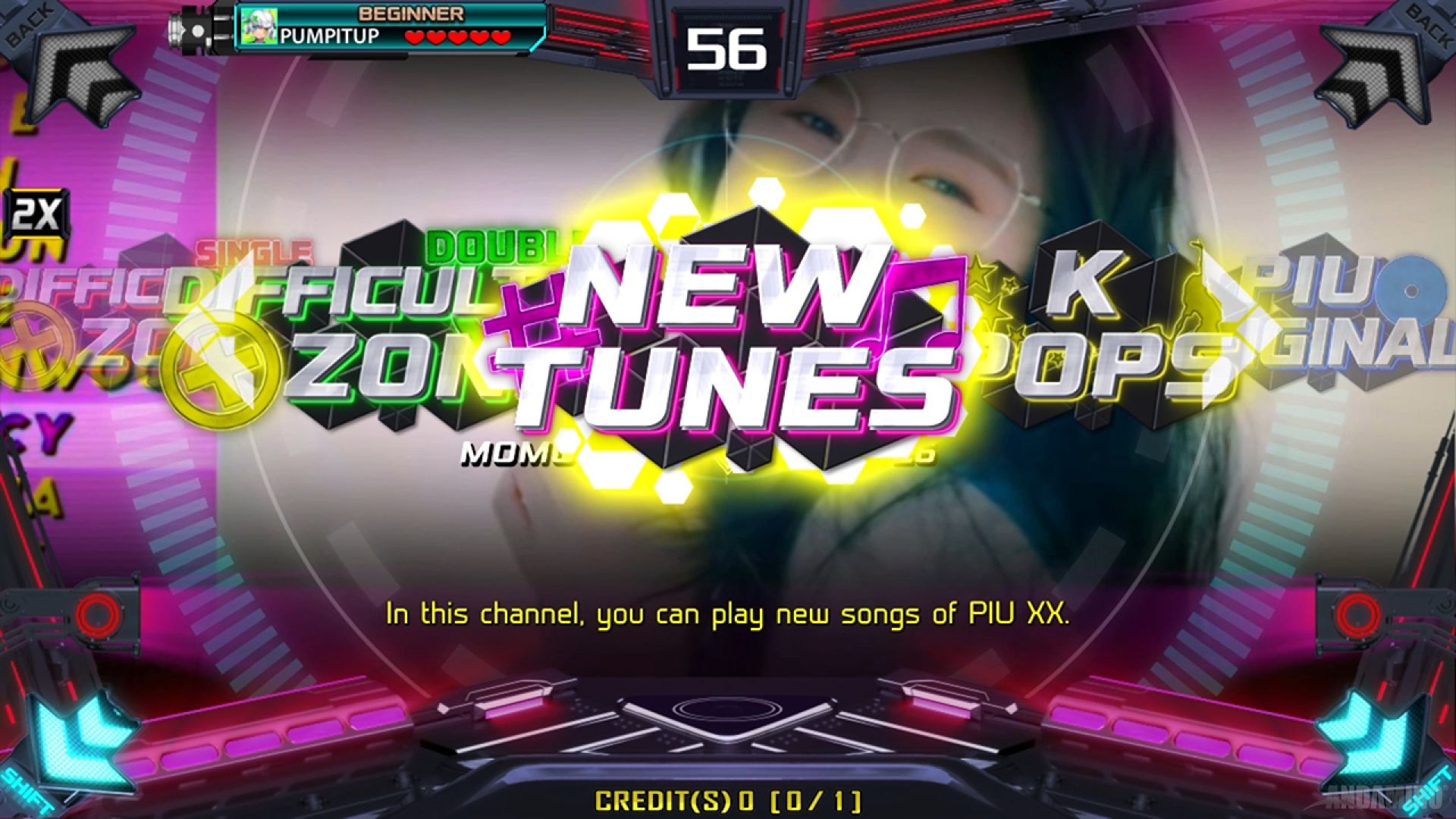

Extensive Music Library

FREE Updates Every 2 Months!

Updates Include 100+ Songs

K-POP, J Music, World Music, PIU Original Music,

and Collaboration with Other Music Games

K-POP, J Music, World Music, PIU Original Music,

and Collaboration with Other Music Games

Upgrade Reason 2

World's NO.1 Dance Simulation Game for 20 years

Linked with PIU M & PIU H5

Upgrade Reason 3

Online Matching System

Match up Game Play with Players Worldwide

Upgrade Reason 4

Enhanced User Interface and Convenience

Renewal for the Level of Song Difficulty

More than 100 Reward Titles

GALLERY

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 124Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	[] AC INPUT DAC-13H	[] AC INPUT MELE0SWI015	Part picture

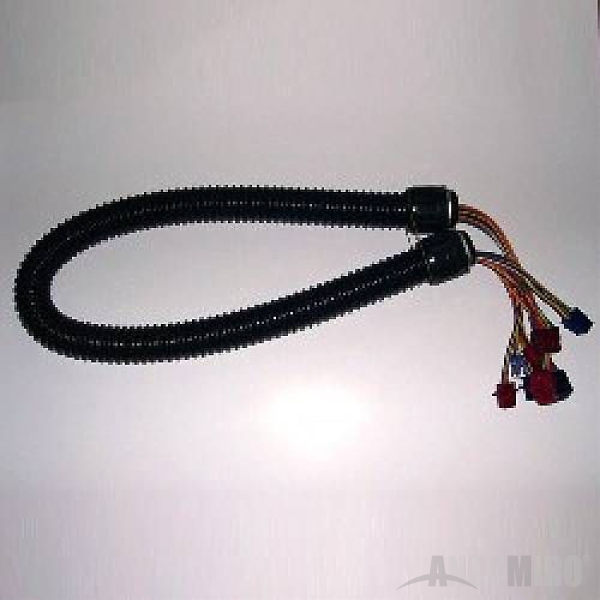

1	FLEXIBLE TUBE ASS'Y 1500MM	FLEXIBLE TUBE ASS'Y APUT0HAR003	Part picture

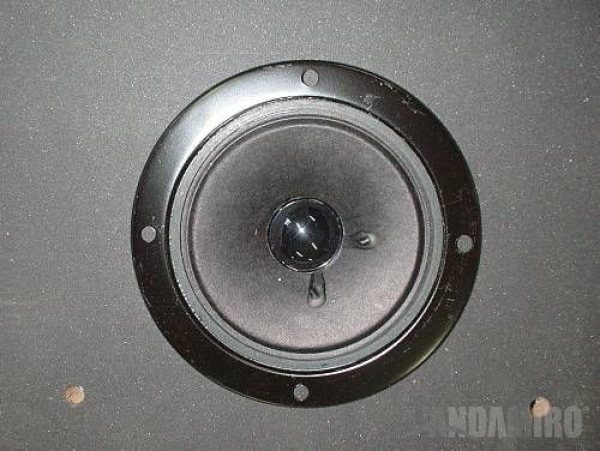

2	SPEAKER PIU TX 3" HIGH R-C-98 F BK	SPEAKER MZZZ0SPE026	Part picture

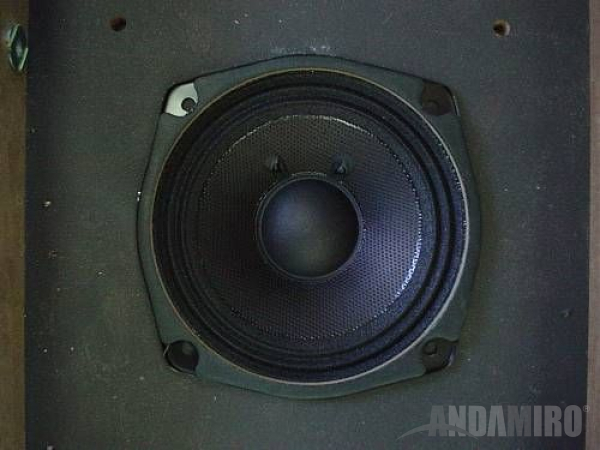

3	SPEAKER PIU TX 5.25" MID P-C-119 F BK	SPEAKER MZZZ0SPE027	Part picture

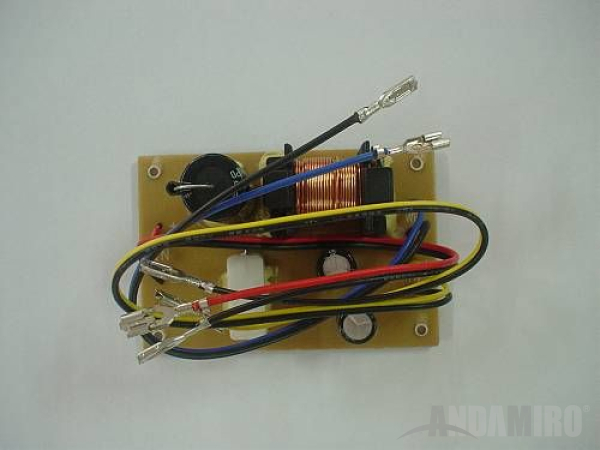

4	SPEAKER NETWORK PCB ASS'Y PIU TX	SPEAKER NETWORK PCB ASS'Y APUT0PCB007	Part picture

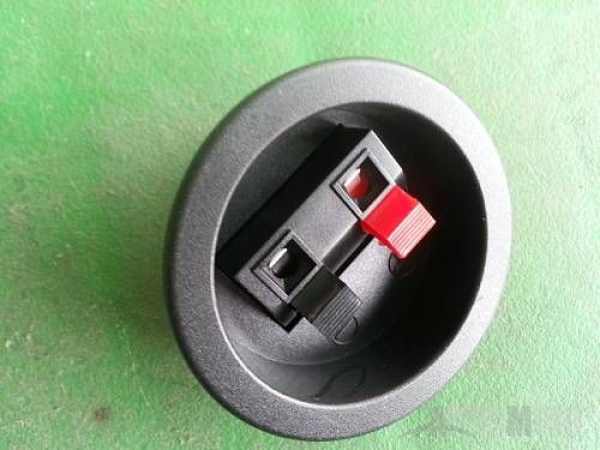

5	SPEAKER TERMINAL DJ-025	SPEAKER TERMINAL MZZZ0SPE034	Part picture

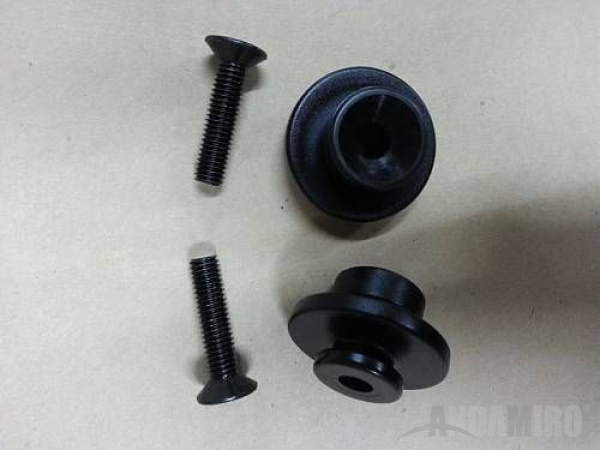

6	WALL MOUNT GUIDE HOLDER 38_23_21_ 25 5T	WALL MOUNT GUIDE HOLDER MPUJ0ZZZ003	Part picture
1.6	[WALL MOUNT GUIDE HOLDER] FUSE 10A 0218010.MXP 250V,10A,4PA	[WALL MOUNT GUIDE HOLDER] FUSE 10A MELE0FUS018	Part picture
7	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture

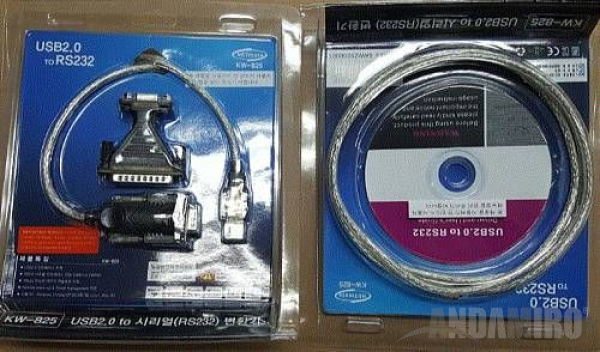

8	USB TO SERIAL KW-825	USB TO SERIAL MZZZ0000605	Part picture

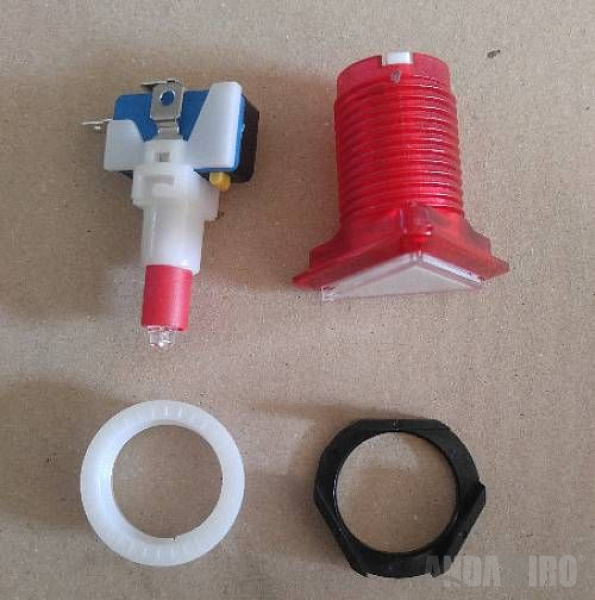

9	BUTTON SWITCH GMPB-128NEWEST (삼각-RED)	BUTTON SWITCH MZZZ0BUT116	Part picture

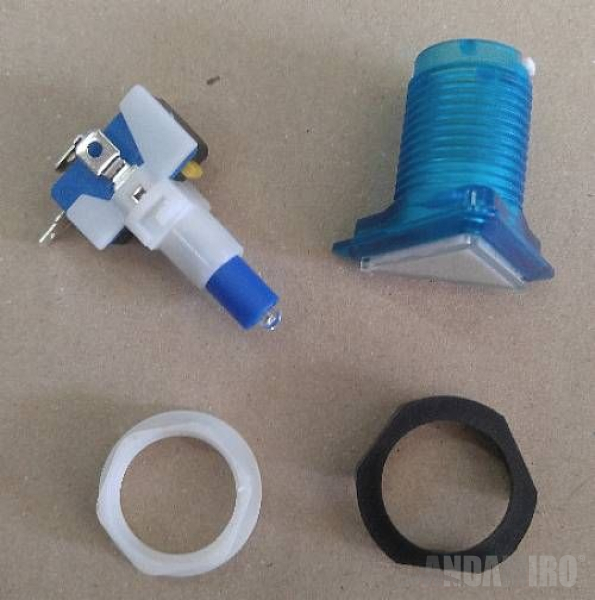

10	BUTTON SWITCH GMPB-128NEWEST (삼각-BLUE)	BUTTON SWITCH MZZZ0BUT117	Part picture
11	BUTTON SWITCH ILLUMINATED BUTTON SWITCH (사각-YELLOW)	BUTTON SWITCH MZZZ0BUT118	Part picture
1.11	[BUTTON SWITCH] FOOT LED PCB ASS'Y V2	[BUTTON SWITCH] FOOT LED PCB ASS'Y APUT0PCB031	Part picture
1.11.1	[BUTTON SWITCH] LX STEP ACRTL-L-RED ACRTL 8T	[BUTTON SWITCH] LX STEP ACRTL-L-RED MPLS0ACR001	Part picture
1.11.2	[BUTTON SWITCH] LX STEP ACRTL-R-RED ACRTL 8T	[BUTTON SWITCH] LX STEP ACRTL-R-RED MPLS0ACR002	Part picture
1.11.3	[BUTTON SWITCH] LX STEP ACRTL-L-BLUE ACRTL 8T	[BUTTON SWITCH] LX STEP ACRTL-L-BLUE MPLS0ACR003	Part picture
1.11.4	[BUTTON SWITCH] LX STEP ACRTL-R-BLUE ACRTL 8T	[BUTTON SWITCH] LX STEP ACRTL-R-BLUE MPLS0ACR004	Part picture
1.11.5	[BUTTON SWITCH] LX STEP ACRTL-CENTER ACRTL 8T	[BUTTON SWITCH] LX STEP ACRTL-CENTER MPLS0ACR005	Part picture
2.11	[BUTTON SWITCH] ACRYL & SHEET ASS'Y 2017_13품목	[BUTTON SWITCH] ACRYL & SHEET ASS'Y APUT0ACR010	Part picture
2.11.1	[BUTTON SWITCH] LX STEP CORNER SHEET-R-RED SHEET	[BUTTON SWITCH] LX STEP CORNER SHEET-R-RED MPLS0SHE001	Part picture
2.11.2	[BUTTON SWITCH] LX STEP CORNER SHEET-L-BLUE SHEET	[BUTTON SWITCH] LX STEP CORNER SHEET-L-BLUE MPLS0SHE002	Part picture

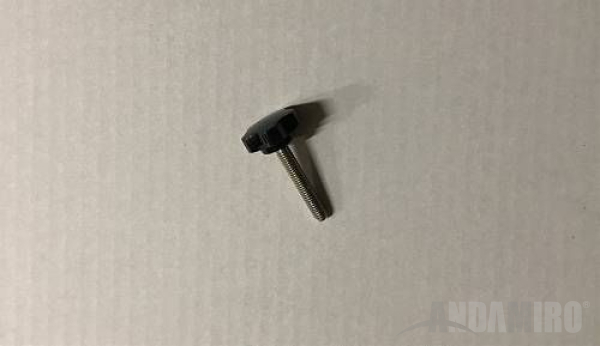

12	HAND BOLT 6*35	HAND BOLT BHAB0060002	Part picture
1.12.2	[HAND BOLT] STEP L,R MEP ASS'Y .	[HAND BOLT] STEP L,R MEP ASS'Y APUT0ASS016	Part picture

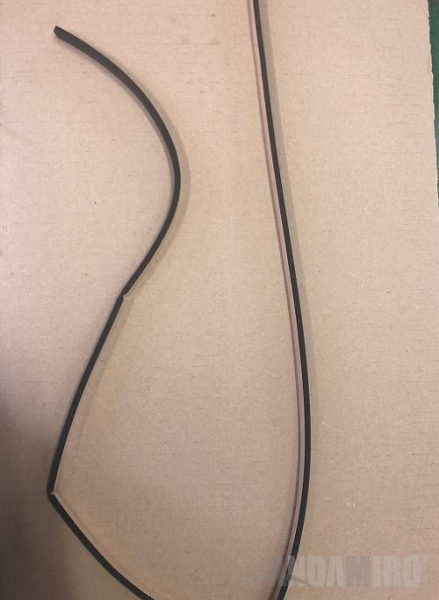

13	SPONGE_10X1000 4T BLACK	SPONGE_10X1000 4T MPCX0PLA007	Part picture

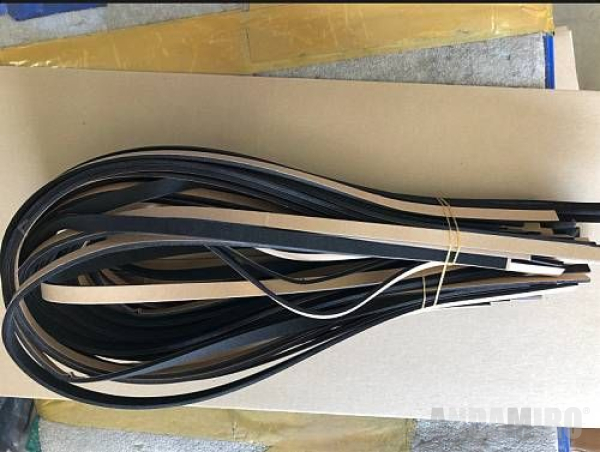

14	SPONGE MONITOR FRAME 10X800 2T	SPONGE MONITOR FRAME MPLX0PLA001	Part picture

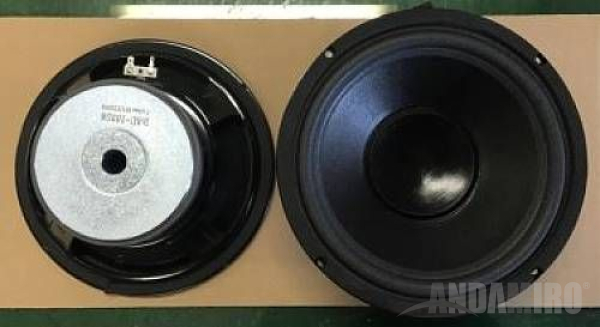

15	SPEAKER 10 INCH 4 OHM DAU-1025W 60개_다나	SPEAKER MZZZ0SPE040	Part picture

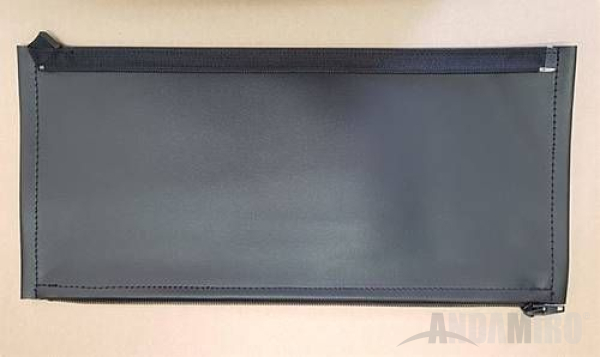

1.15.1	[SPEAKER] PIPE COVER	[SPEAKER] PIPE COVER MPUD0PIP002	Part picture
16	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture

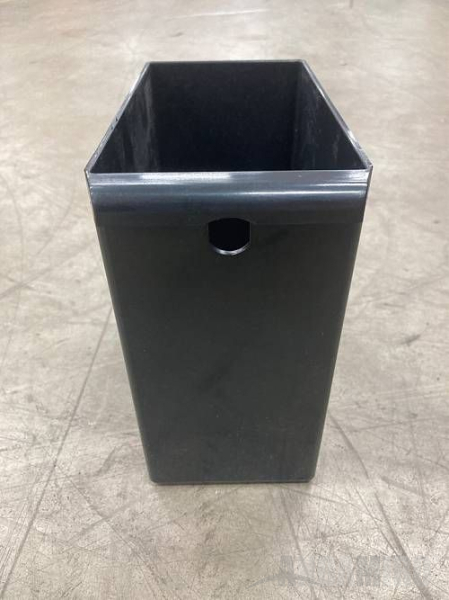

17	COIN BOX SMALL 200198107 BLACK	COIN BOX SMALL MDRE0PLA007	Part picture

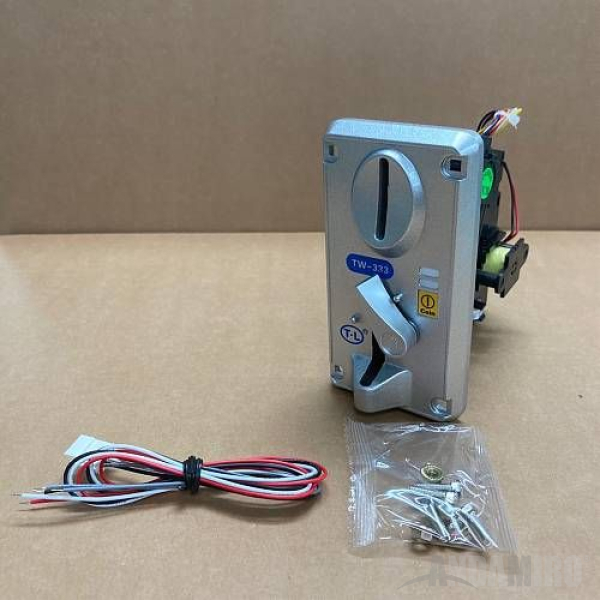

18	COIN SELECTOR TW-333_WITHOUT FND	COIN SELECTOR MZZZ0COS045	Part picture
19	PIU BILLBOARD XX_LX 조명지 696*352.38	PIU BILLBOARD XX_LX MPXB0SHE001	Part picture
20	ATXMEGA PIU IO PCB ASS'Y CODE CHANGE AZZZ0PCB243	ATXMEGA PIU IO PCB ASS'Y AZZZ0PCB145	Part picture

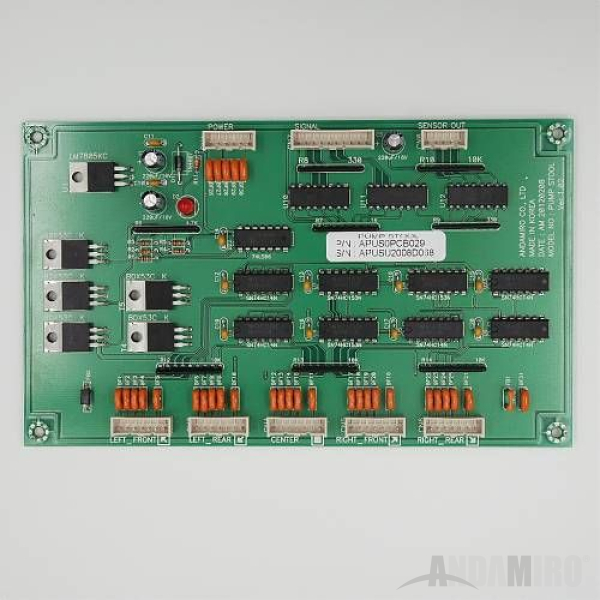

1.20.1	[ATXMEGA PIU IO PCB ASS'Y] FOOT PCB ASS'Y PUMP STOOL VER1.02	[ATXMEGA PIU IO PCB ASS'Y] FOOT PCB ASS'Y APUS0PCB029	Part picture
21	FLEX_2813B_1016_NWP_LR_61_20161125 LX	FLEX_2813B_1016_NWP_LR_61_20161125 MPLX0HAN093	Part picture
22	MONITOR CABLE HDMI_HDMI 2M	MONITOR CABLE MZZZ0HAN053	Part picture
23	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture

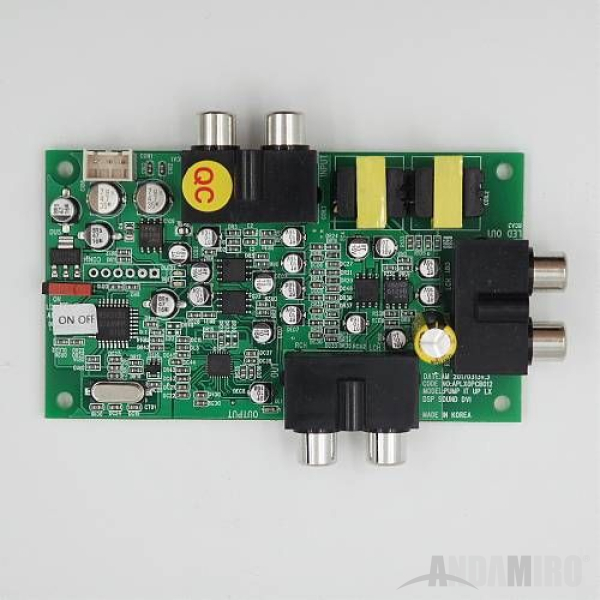

24	DSP SOUND DVI PCB ASS'Y PUMP IT UP LX	DSP SOUND DVI PCB ASS'Y APLX0PCB012	Part picture

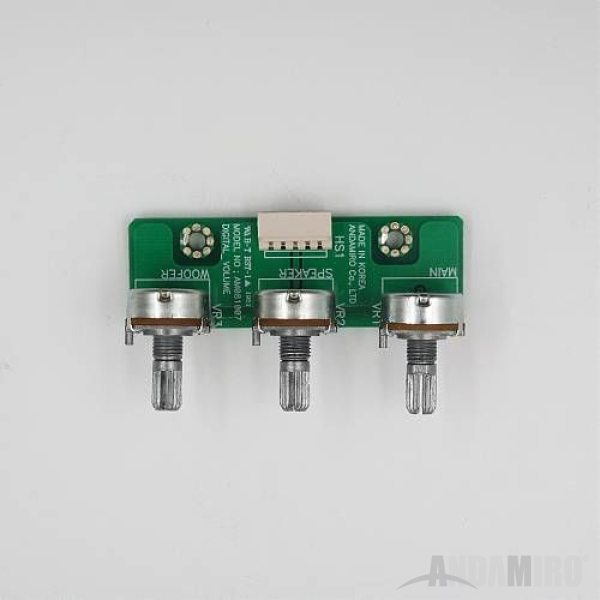

25	VOLUME PCB ASS'Y 3CH	VOLUME PCB ASS'Y APUJ0PCB005	Part picture

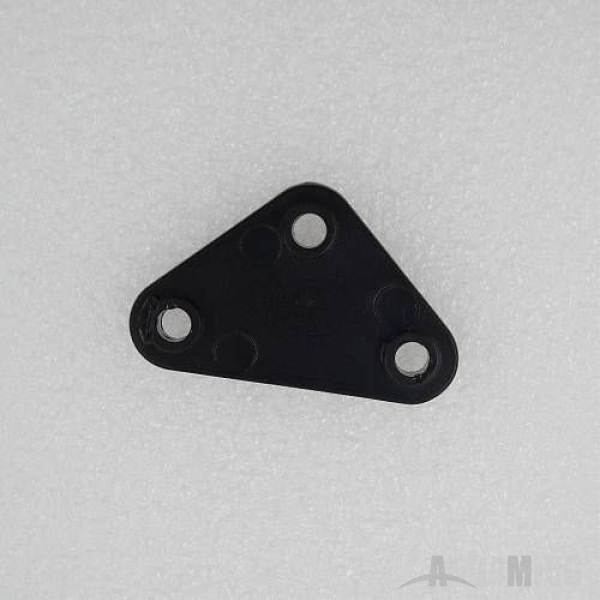

1.25.1	[VOLUME PCB ASS'Y] BRACKET SUPPORT STEP.PUMP.삼각대	[VOLUME PCB ASS'Y] BRACKET SUPPORT MPUS0PLA018	Part picture
2.25.1	[VOLUME PCB ASS'Y] SENSOR BRACKET TAPE 25*71MM 2T	[VOLUME PCB ASS'Y] SENSOR BRACKET TAPE MPUS0000001	Part picture

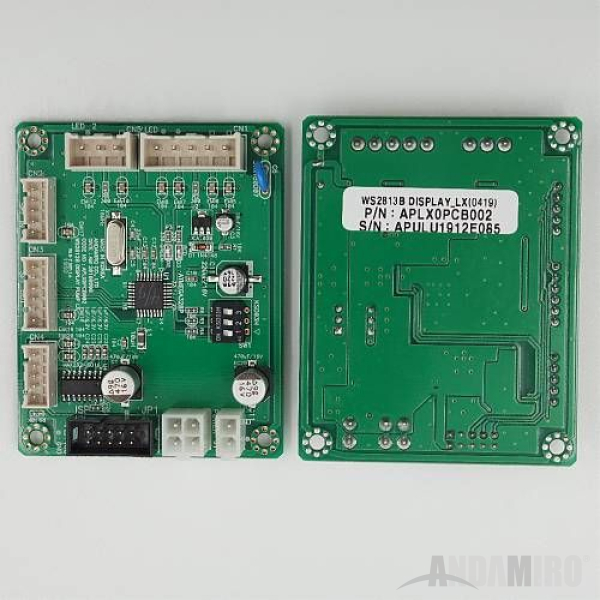

26	WS2813B DISPLAY PCB ASS PUMP LX SLAVE	WS2813B DISPLAY PCB ASS APLX0PCB002	Part picture
2.26.1	[WS2813B DISPLAY PCB ASS ] STEP CAUTION SHEET ENGLISH	[WS2813B DISPLAY PCB ASS ] STEP CAUTION SHEET MPUT0SHE007	Part picture
2.26.2	[WS2813B DISPLAY PCB ASS ] LX STEP FRONT SHEET-R-RED SHEET	[WS2813B DISPLAY PCB ASS ] LX STEP FRONT SHEET-R-RED MPLS0SHE005	Part picture
2.26.3	[WS2813B DISPLAY PCB ASS ] LX STEP FRONT SHEET-L-BLUE SHEET	[WS2813B DISPLAY PCB ASS ] LX STEP FRONT SHEET-L-BLUE MPLS0SHE006	Part picture
2.26.4	[WS2813B DISPLAY PCB ASS ] LX STEP SIDE SHEET-L-BLUE SHEET	[WS2813B DISPLAY PCB ASS ] LX STEP SIDE SHEET-L-BLUE MPLS0SHE004	Part picture
2.26.5	[WS2813B DISPLAY PCB ASS ] LX STEP SIDE SHEET-R-RED SHEET	[WS2813B DISPLAY PCB ASS ] LX STEP SIDE SHEET-R-RED MPLS0SHE003	Part picture
3.26	[WS2813B DISPLAY PCB ASS ] SENSOR RUBBER 경도60도23.7+-0.5	[WS2813B DISPLAY PCB ASS ] SENSOR RUBBER MPUS0PLA016	Part picture
27	CARD READER PCB ASS'Y TRM_800A CODE CHANGE AELE0CAD003	CARD READER PCB ASS'Y TRM_800A AELE0CAD002	Part picture

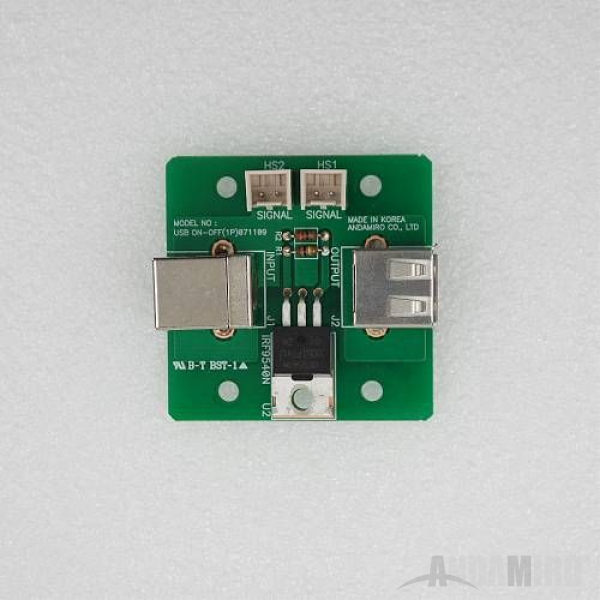

28	USB ON/OFF PCB ASS'Y-1P PUMP FX	USB ON/OFF PCB ASS'Y-1P APUF0PCB011	Part picture

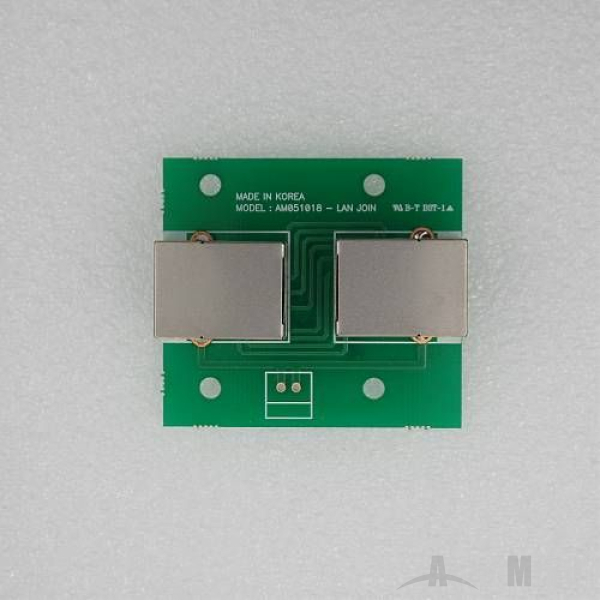

29	LAN JOIN PCB ASS'Y .	LAN JOIN PCB ASS'Y AZZZ0PCB096	Part picture
3.29.1	[LAN JOIN PCB ASS'Y] CONNECTOR SAFETY SHEET CONNECTOR BOX	[LAN JOIN PCB ASS'Y] CONNECTOR SAFETY SHEET MPUT0SHE008	Part picture
30	AC INPUT ASS'Y DAC-13H,WITH FUSE10A_2EA	AC INPUT ASS'Y AELE0FUS002	Part picture
31	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
32	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture

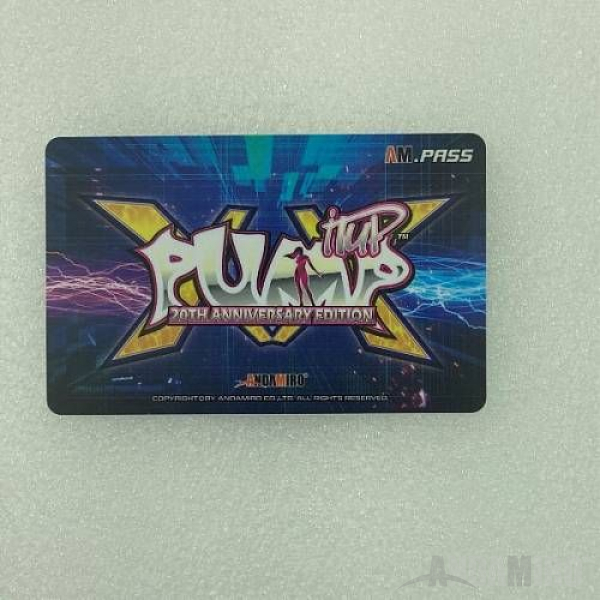

33	PUMP RFID CARD ASS'Y AMPASS-035	PUMP RFID CARD ASS'Y APRF0CAD010	Part picture

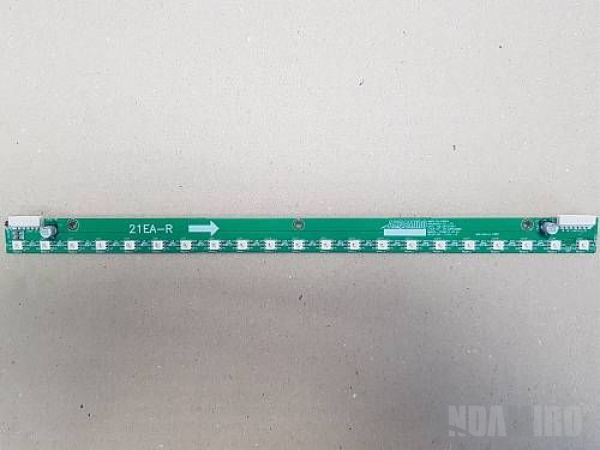

34	WS2813B LED PCB 21EA-R ASS'Y PUMP LX	WS2813B LED PCB 21EA-R ASS'Y APLX0PCB008	Part picture

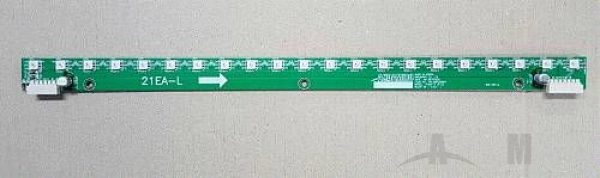

35	WS2813B LED PCB 21EA-L ASS'Y PUMP LX	WS2813B LED PCB 21EA-L ASS'Y APLX0PCB004	Part picture

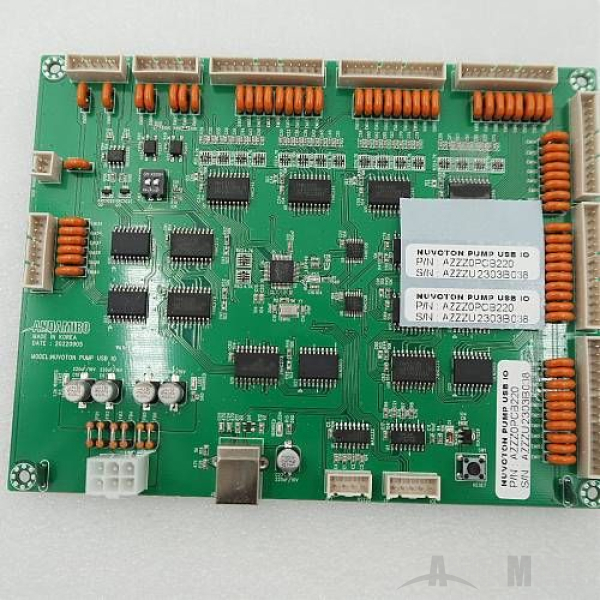

36	NUVOTON PUMP USB IO PCB ASS'Y CODE CHANGE AZZZ0PCB243	NUVOTON PUMP USB IO PCB ASS'Y AZZZ0PCB220	Part picture

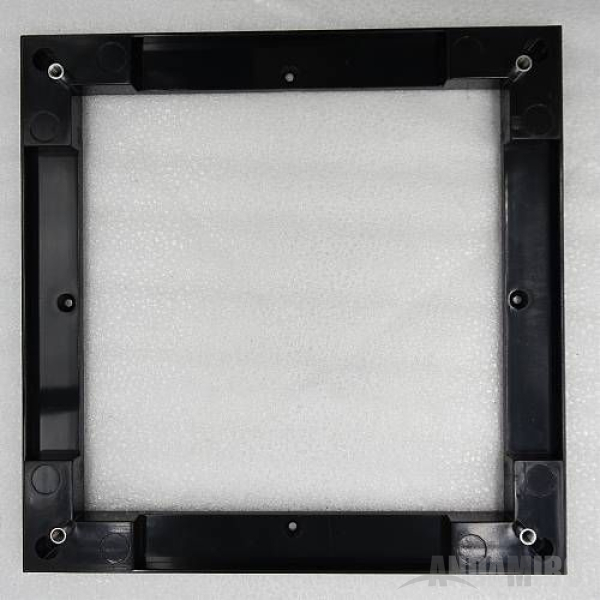

37	STEP L,R ASS'Y NEW PUMP VER 2017	STEP L,R ASS'Y APUT0ASS012	Part picture

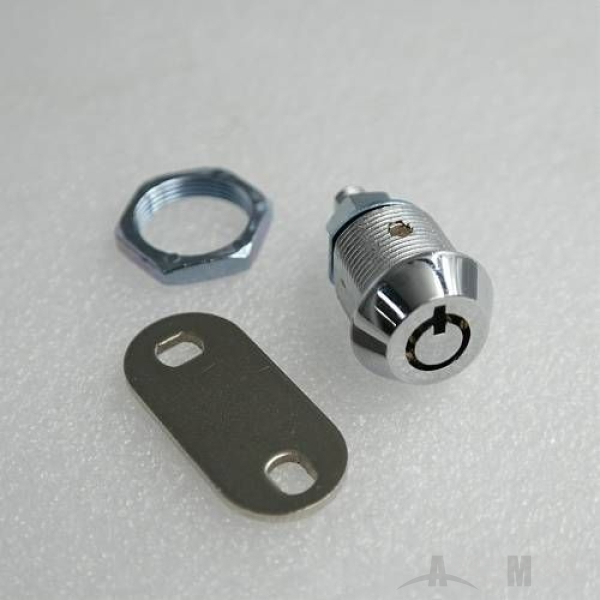

38	KEY ASS'Y 6001 6001 키뭉치만	KEY ASS'Y 6001 MZZZ0KEY075	Part picture
39	KEY ASS'Y 7001 7001 ONLY BODY	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
40	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
41	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture
42	FERRITE CORE RU(TU)1132	FERRITE CORE MELE0FER003	Part picture

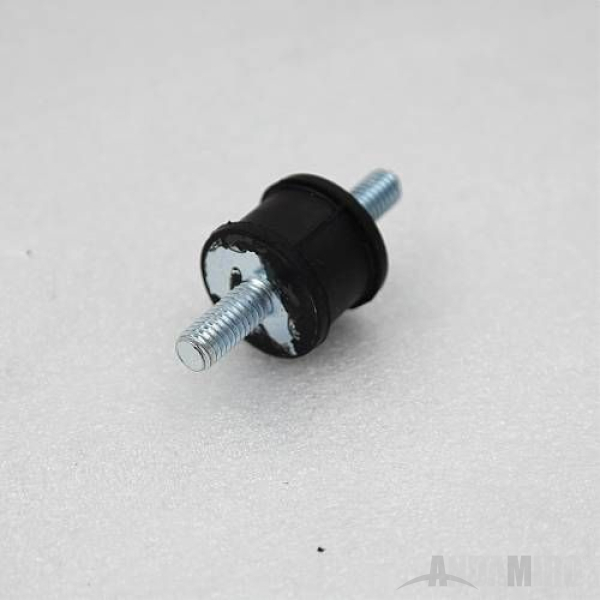

43	방진고무볼트 001605 20_18_15.5_ M6	방진고무볼트 001605 MZZZ0RUB009	Part picture
44	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
45	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture

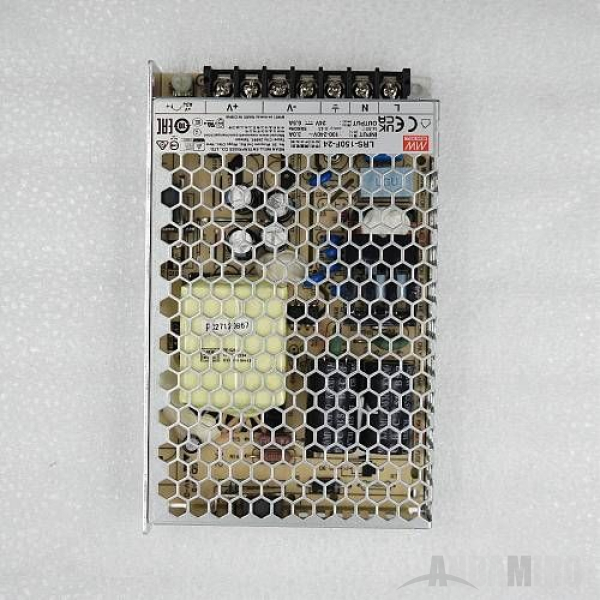

46	POWER SMPS LRS 150F_24	POWER SMPS MELE0SMP085	Part picture
3.46.1	[POWER SMPS] SWITCH FRAME PIN PUMP STEP 성형물삽입가공물	[POWER SMPS] SWITCH FRAME PIN MPUT0PRO001	Part picture
3.46.2	[POWER SMPS] SWITCH FRAME PIN PUMP STEP 성형물삽입가공물	[POWER SMPS] SWITCH FRAME PIN MPUT0PRO001	Part picture

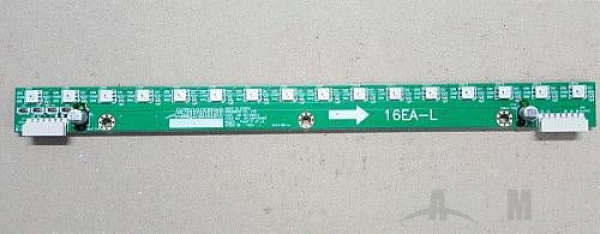

47	WS2813B LED PCB 16EA-L ASS'Y PUMP LX	WS2813B LED PCB 16EA-L ASS'Y APLX0PCB003	Part picture

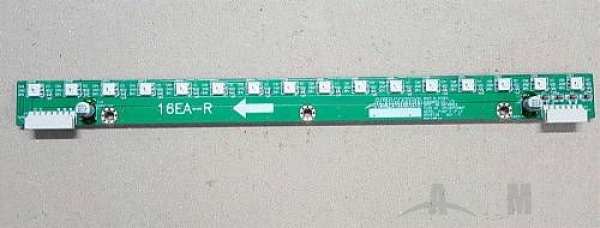

48	WS2813B LED PCB 16EA-R ASS'Y PUMP LX	WS2813B LED PCB 16EA-R ASS'Y APLX0PCB007	Part picture

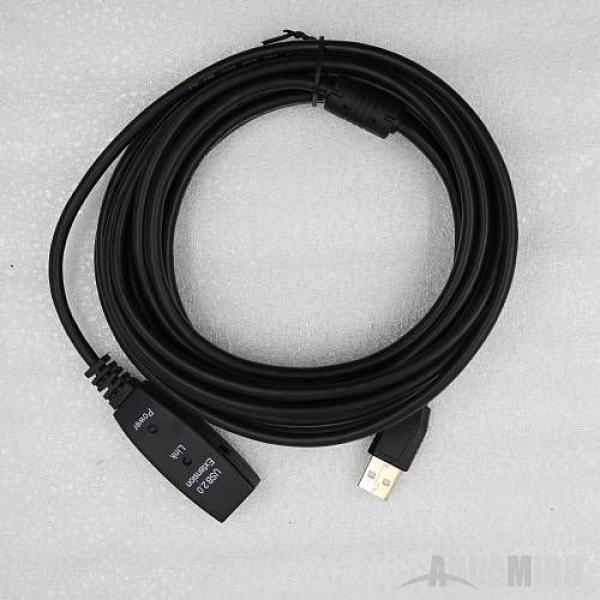

49	USB CABLE 리피터 USB X05	USB CABLE 리피터 MELE0USP002	Part picture

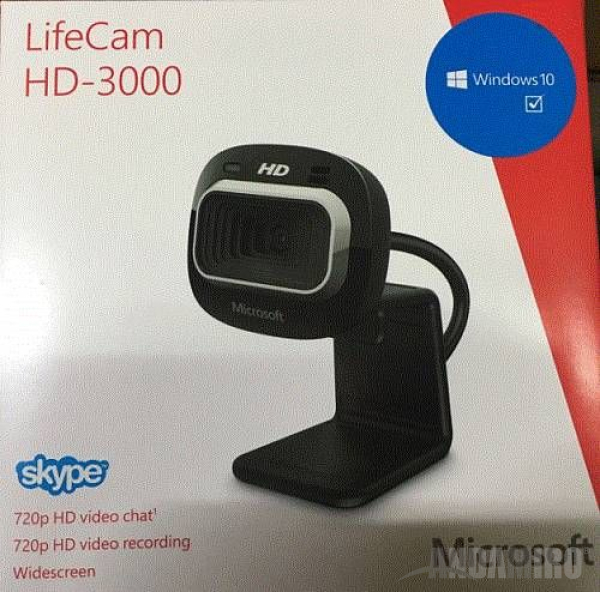

50	WEB CAM MICROSOFT LIFE CAM HD-3000	WEB CAM MZZZ0000604	Part picture
1.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_LX	[WEB CAM] PIU BILLBOARD V2 MPNX0SHE008	Part picture
2.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_GX_SX	[WEB CAM] PIU BILLBOARD V2 MPNX0SHE007	Part picture
3.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_SD	[WEB CAM] PIU BILLBOARD V2 MPNX0SHE009	Part picture
4.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_DX	[WEB CAM] PIU BILLBOARD V2 MPNX0SHE010	Part picture
5.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_FX	[WEB CAM] PIU BILLBOARD V2 MPNX0SHE011	Part picture
6.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_TX	[WEB CAM] PIU BILLBOARD V2 MPNX0SHE012	Part picture
7.50.2	[WEB CAM] PIU BILLBOARD V2 PHOENIX_CX	[WEB CAM] PIU BILLBOARD V2 MPNX0PRI002	Part picture
8.50.2	[WEB CAM] SWITCH FRAME-C ASS'Y .	[WEB CAM] SWITCH FRAME-C ASS'Y APUT0ASS011	Part picture
9.50.2	[WEB CAM] SWITCH FRAM-L,R ASS'Y .	[WEB CAM] SWITCH FRAM-L,R ASS'Y APUT0ASS010	Part picture
51	NUVOTON PUMP USB IO PCB ASS'Y V2.081_1 SMW250_14	NUVOTON PUMP USB IO PCB ASS'Y AZZZ0PCB243	Part picture
52	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
53	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
1.53.2	[VOLUME KNOB] SENSOR FOOT PUMP FOOT	[VOLUME KNOB] SENSOR FOOT MELE0SEN003	Part picture

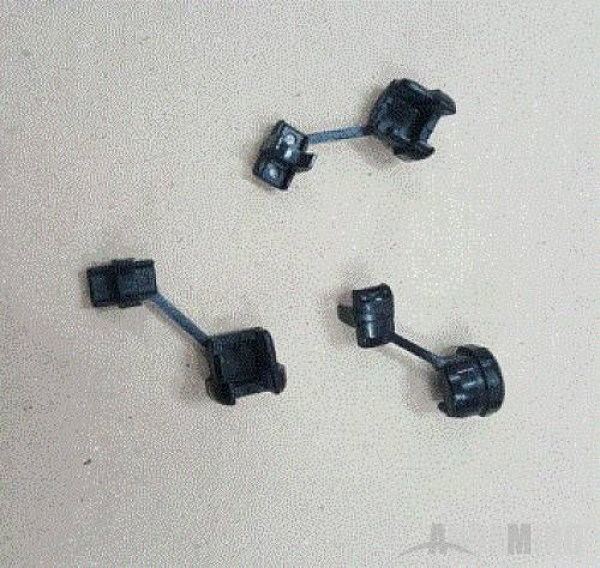

54	CABLE STOPPER 5NR-16	CABLE STOPPER MELE0CAB026	Part picture
55	POWER SMPS LRS 150F-5	POWER SMPS MELE0SMP096	Part picture

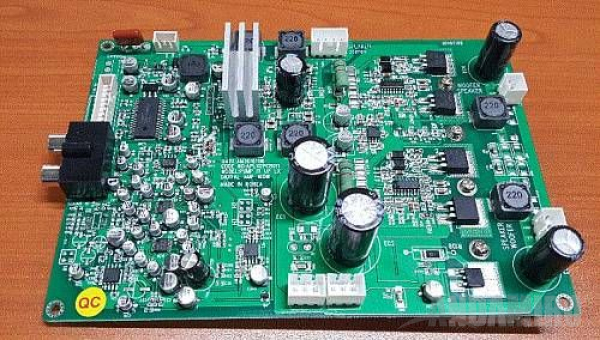

56	DIGITAL AMP 100W PCB ASS'Y PUMP IT UP LX	DIGITAL AMP 100W PCB ASS'Y APLX0PCB011	Part picture
57	SMPS BKT MEANWELL	SMPS BKT MZZZ0MEP048	Part picture

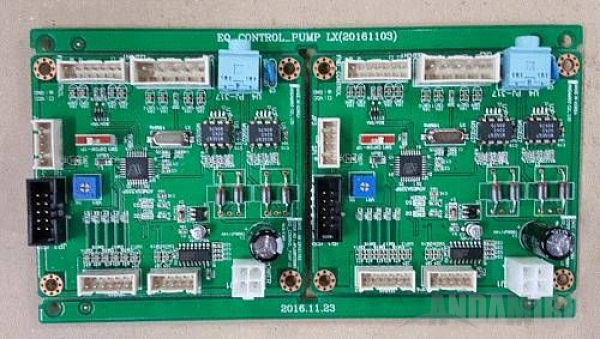

58	EQ CONTROL PUMP LX MASTER	EQ CONTROL PUMP LX APLX0PCB001	Part picture
1.58.2	[EQ CONTROL PUMP LX] MAIN FRONT WARNING SHEET-ENG 290 * 75	[EQ CONTROL PUMP LX] MAIN FRONT WARNING SHEET-ENG MPLX0SHE001	Part picture
59	MAIN FRONT WARNING SHEET-ENG 290 * 75	MAIN FRONT WARNING SHEET-ENG MPLX0SHE001	Part picture
1.59.2	[MAIN FRONT WARNING SHEET-ENG] MAIN FRONT WARNING SHEET-KOR 290 * 75	[MAIN FRONT WARNING SHEET-ENG] MAIN FRONT WARNING SHEET-KOR MPLX0SHE002	Part picture

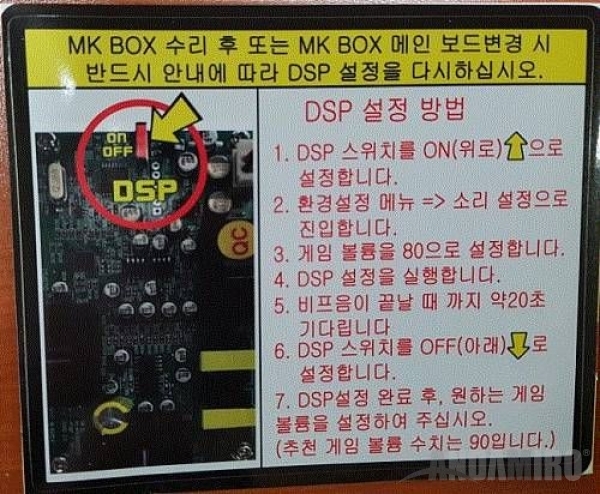

2.59.2	[MAIN FRONT WARNING SHEET-ENG] DSP SETTING_KOR 130 * 105	[MAIN FRONT WARNING SHEET-ENG] DSP SETTING_KOR MPLX0SHE004	Part picture

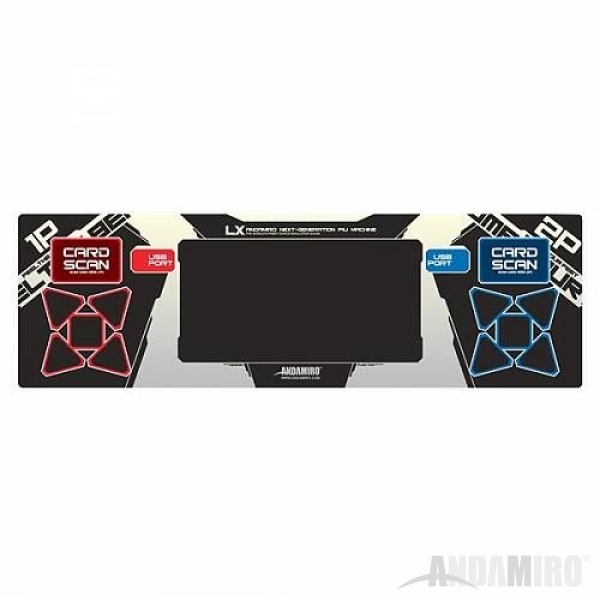

60	WEB ACRYL PART PLX WEB	WEB ACRYL PART APLX0PAT006	Part picture
61	WEB SHEET PART PLX WEB	WEB SHEET PART APLX0PAT007	Part picture

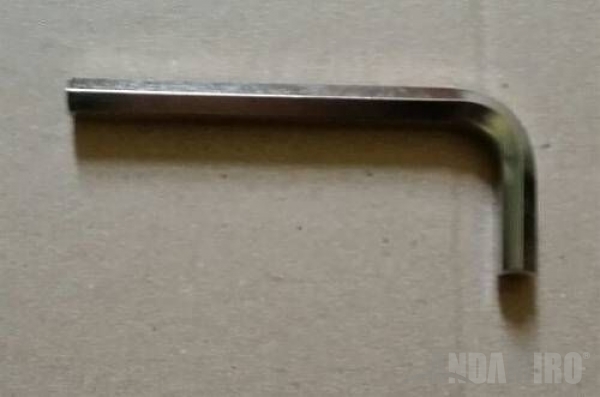

1.61.2	[WEB SHEET PART] FLAT_HEAD WRENCH(평머리) NI 6*12	[WEB SHEET PART] FLAT_HEAD WRENCH(평머리) NI BWRC0060008	Part picture
2.61.2	[WEB SHEET PART] DSP SETTING_ENG 130 * 105	[WEB SHEET PART] DSP SETTING_ENG MPLX0SHE003	Part picture
62	DSP SETTING_ENG 130 * 105	DSP SETTING_ENG MPLX0SHE003	Part picture
1.62.2	[DSP SETTING_ENG] BASE LIGHT DECO ACRYL .	[DSP SETTING_ENG] BASE LIGHT DECO ACRYL MPLX0ACR001	Part picture
2.62.2	[DSP SETTING_ENG] BILLBOARD TITLE BACK ACRYL .	[DSP SETTING_ENG] BILLBOARD TITLE BACK ACRYL MPLX0ACR003	Part picture
3.62.2	[DSP SETTING_ENG] BILLBOARD TITLE FRONT ACRYL .	[DSP SETTING_ENG] BILLBOARD TITLE FRONT ACRYL MPLX0ACR005	Part picture
4.62.2	[DSP SETTING_ENG] I.MIRROR BLACK MIRROR ACRYL .	[DSP SETTING_ENG] I.MIRROR BLACK MIRROR ACRYL MPLX0ACR007	Part picture
5.62.2	[DSP SETTING_ENG] LIGHT COLUMN LARGE COVER ACRYL .	[DSP SETTING_ENG] LIGHT COLUMN LARGE COVER ACRYL MPLX0ACR009	Part picture
6.62.2	[DSP SETTING_ENG] LIGHT COLUMN SMALL COVER ACRYL .	[DSP SETTING_ENG] LIGHT COLUMN SMALL COVER ACRYL MPLX0ACR011	Part picture
7.62.2	[DSP SETTING_ENG] PC BASE COVER .	[DSP SETTING_ENG] PC BASE COVER MPLX0ACR013	Part picture
8.62.2	[DSP SETTING_ENG] SPEAKER DECO SIDE LIGHT GUIDE ACRYL PLX	[DSP SETTING_ENG] SPEAKER DECO SIDE LIGHT GUIDE ACRYL MPLX0ACR025	Part picture
9.62.2	[DSP SETTING_ENG] SPEAKER DECO TOP ACRYL-R PLX	[DSP SETTING_ENG] SPEAKER DECO TOP ACRYL-R MPLX0ACR026	Part picture
10.62.2	[DSP SETTING_ENG] SPEAKER DECO TOP ACRYL-L PLX	[DSP SETTING_ENG] SPEAKER DECO TOP ACRYL-L MPLX0ACR027	Part picture
11.62.2	[DSP SETTING_ENG] I.MIRROR BACK ACRYL ACRYL 3T 실크	[DSP SETTING_ENG] I.MIRROR BACK ACRYL APLX0ACP003	Part picture
12.62.2	[DSP SETTING_ENG] LIGHT COLUMN LARGE ACRYL-R,L ACR008,019 PRI004,011	[DSP SETTING_ENG] LIGHT COLUMN LARGE ACRYL-R,L APLX0ACP016	Part picture
13.62.2	[DSP SETTING_ENG] LIGHT COLUMN SMALL ACRYL-R,L ACR014,022 PRI005,012	[DSP SETTING_ENG] LIGHT COLUMN SMALL ACRYL-R,L APLX0ACP017	Part picture
14.62.2	[DSP SETTING_ENG] MID SPEAKER FRONT COVER ACRYL ACRYL 5T 배접	[DSP SETTING_ENG] MID SPEAKER FRONT COVER ACRYL APLX0ACP006	Part picture
15.62.2	[DSP SETTING_ENG] SPEAKER DECO SIDE ACRYL-R,L ACR014,022 PRI007,013	[DSP SETTING_ENG] SPEAKER DECO SIDE ACRYL-R,L APLX0ACP018	Part picture
16.62.2	[DSP SETTING_ENG] SPEAKER DECO TOP ACRYL-R,L ACR015,023 PRI008,014	[DSP SETTING_ENG] SPEAKER DECO TOP ACRYL-R,L APLX0ACP019	Part picture
17.62.2	[DSP SETTING_ENG] WOOFER SPEAKER ACRYL-R,L ACR017,024 PRI009,015	[DSP SETTING_ENG] WOOFER SPEAKER ACRYL-R,L APLX0ACP020	Part picture
18.62.2	[DSP SETTING_ENG] BILLBOARD SIDE COVER ACRYL-R,L ACR002,018 PRI001,010	[DSP SETTING_ENG] BILLBOARD SIDE COVER ACRYL-R,L APLX0ACP021	Part picture

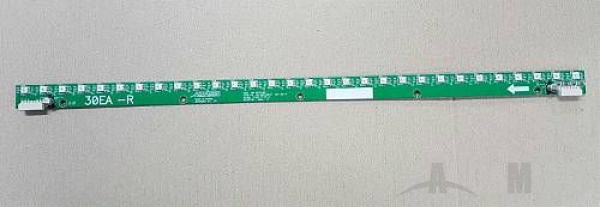

63	WS2813B LED PCB 30EA-R ASS'Y PUMP LX	WS2813B LED PCB 30EA-R ASS'Y APLX0PCB010	Part picture

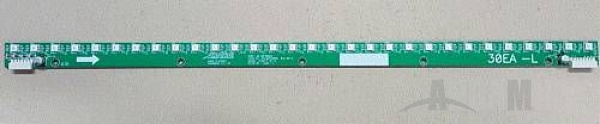

64	WS2813B LED PCB 30EA-L ASS'Y PUMP LX	WS2813B LED PCB 30EA-L ASS'Y APLX0PCB006	Part picture

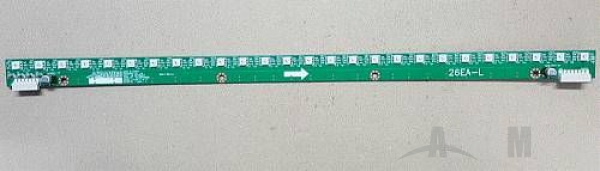

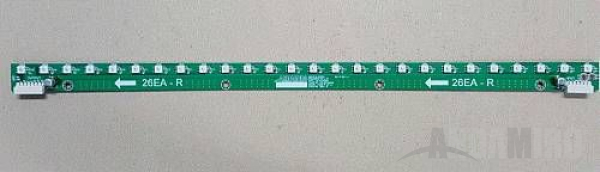

65	WS2813B LED PCB 26EA-L ASS'Y PUMP LX	WS2813B LED PCB 26EA-L ASS'Y APLX0PCB005	Part picture
66	WS2813B LED PCB 26EA-R ASS'Y PUMP LX	WS2813B LED PCB 26EA-R ASS'Y APLX0PCB009	Part picture
