Andamiro Co., Ltd.

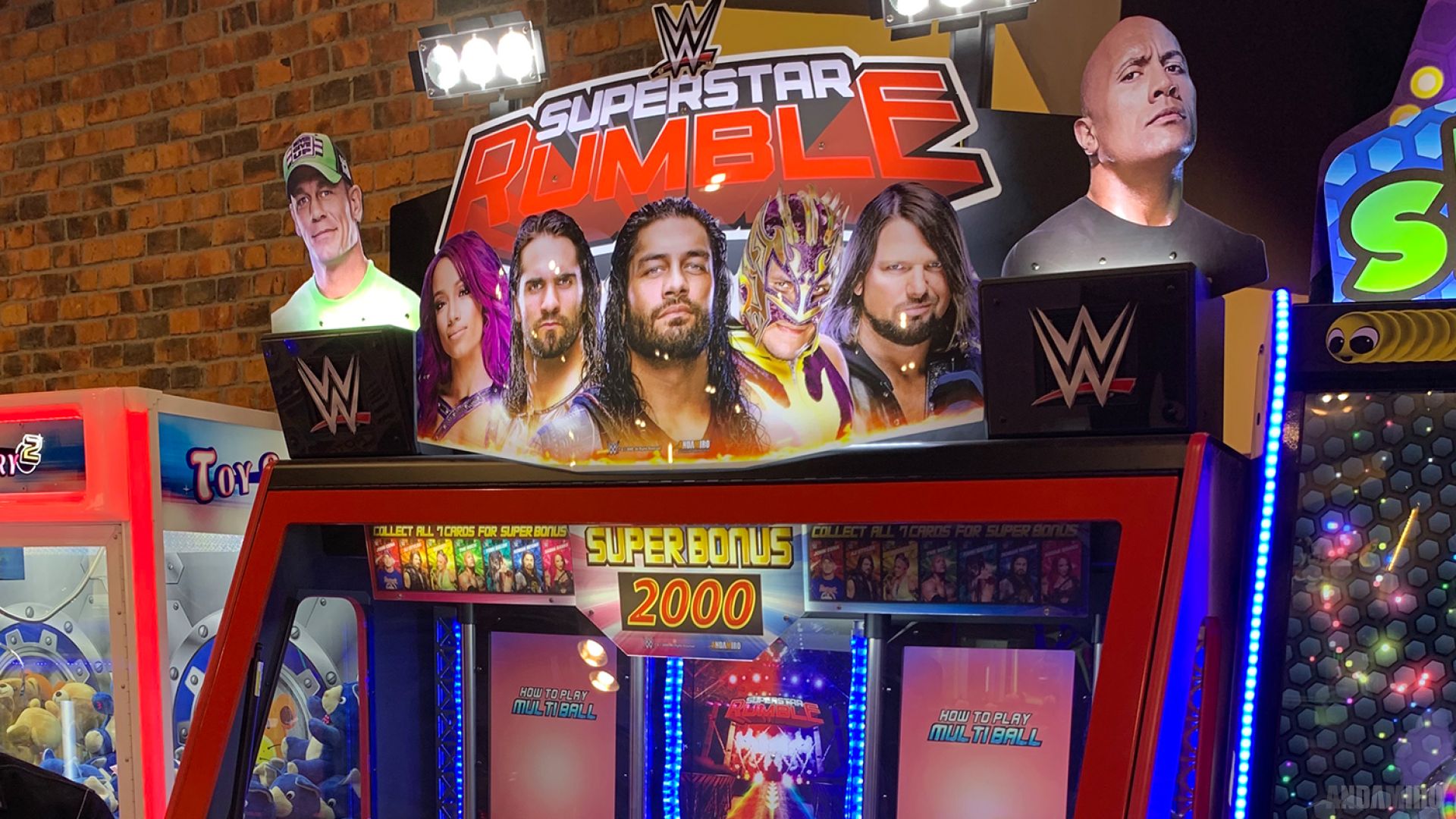

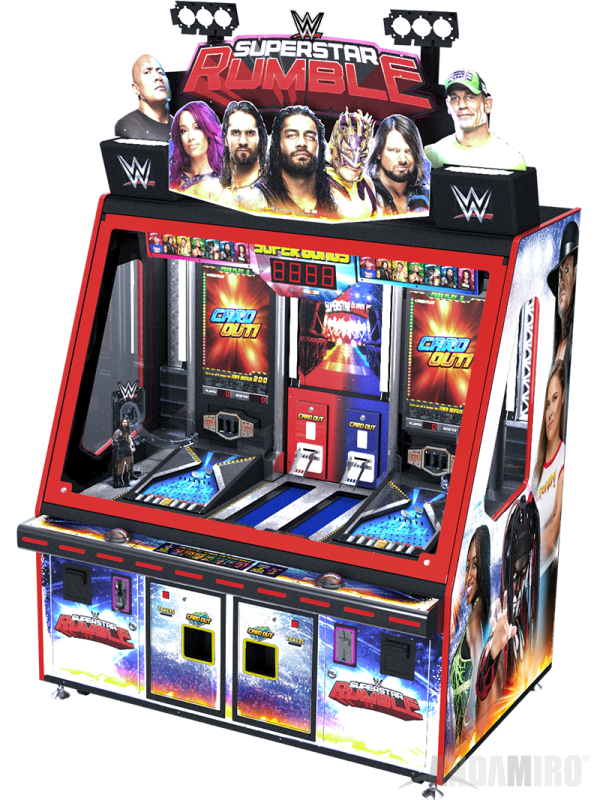

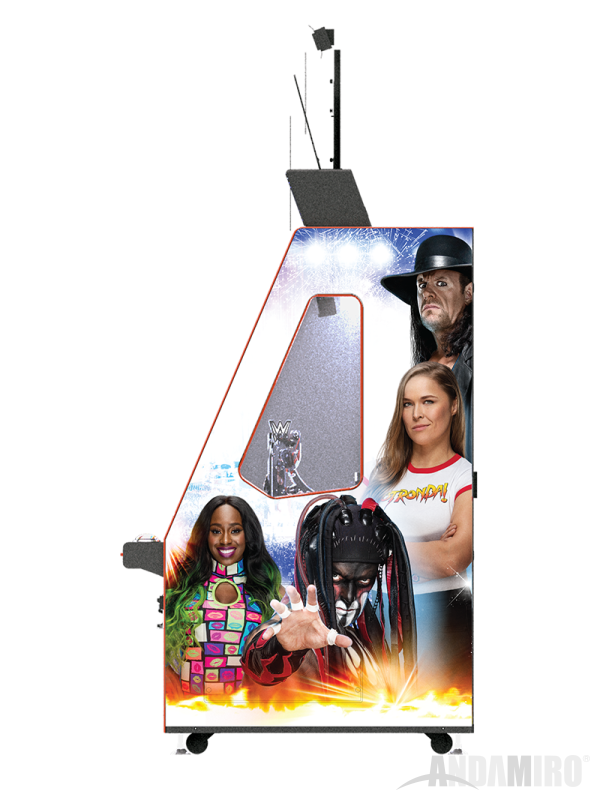

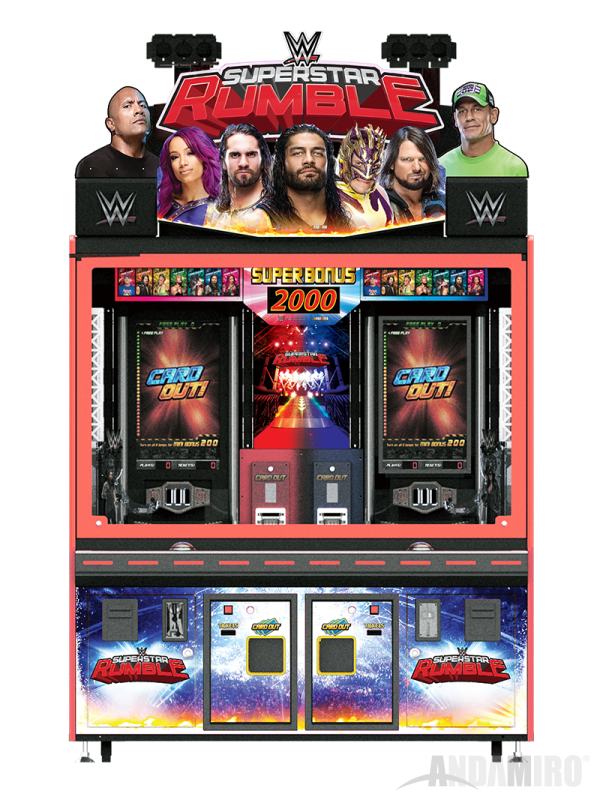

TICKET REDEMPTION WWE SUPERSTAR RUMBLE ALL THE CARDS ARE SUPERSTARS!

Short url COPY http://www.andamiro.com/games/wwesuperstar

Tags WweSuperstarRumble Ticket

Dimensions 1,582mm x 1,212mm x 2,460mm
62" x 48" x 97"

Packing Dimensions 1,700mm x 1,150mm x 2,200mm
67" x 45" x 87"

Product Weight 460 kg / 1,014 lbs

Packing Weight 515 kg / 1,135 lbs

Power 530W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (0)
Trouble shooting
Video List (0)

FEATURES

ALL THE CARDS ARE SUPERSTARS!

EASY AND EXITING PLAY

RAPID-FIRE EXCITEMENT

TWO PLAYER STATIONS

COLLECTIBLE CARD SET OF 7 FOR SUPER BONUS

COLLECTIBLE LEGEND CARD

GALLERY

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 223Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
2	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
3	AC POWER CORD UL 125V_10A_SVT 3/18AWG 1.8M	AC POWER CORD UL MELE0ACP001	Part picture
4	AC POWER CORD 250V 16A KKP-4819R CE 1.8M	AC POWER CORD MELE0ACP008	Part picture

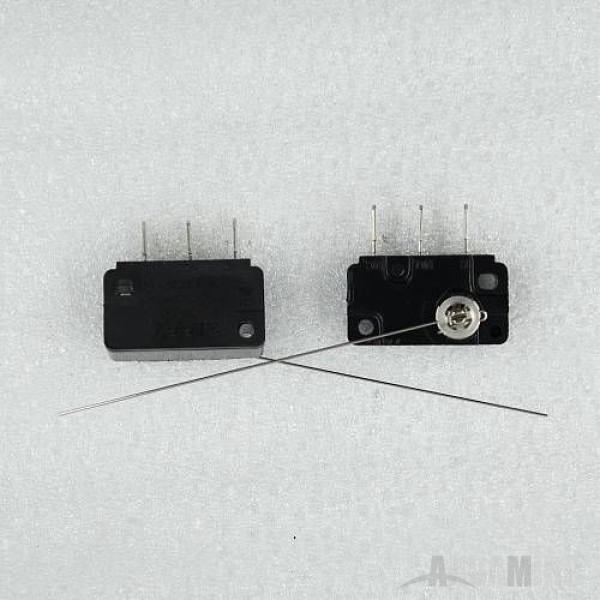

5	MICRO SWITCH CNR-05H-03 ZIPPY-FOR COIN	MICRO SWITCH MELE0MIC002	Part picture

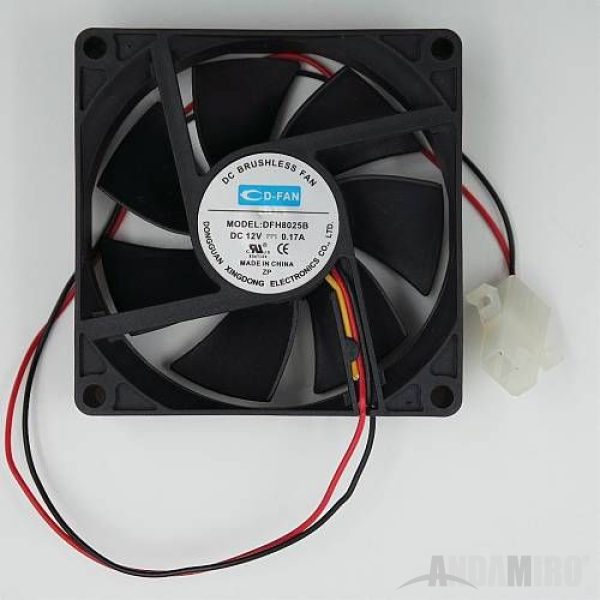

5.1	[MICRO SWITCH] DC FAN 80MM 2BALL DFH8025B12	[MICRO SWITCH] DC FAN 80MM 2BALL MZZZ0FAN015	Part picture

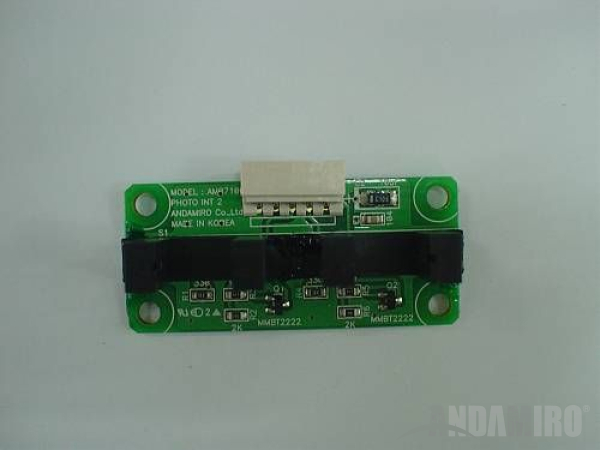

6	PHOTO INT-2 PCB ASS'Y WINNER,WON,CIR공용	PHOTO INT-2 PCB ASS'Y AWIW0PCB009	Part picture
7	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
8	FERRITE CORE RU(TU)1335	FERRITE CORE MELE0FER001	Part picture
9	방진고무볼트 001605 20_18_15.5_ M6	방진고무볼트 001605 MZZZ0RUB009	Part picture
10	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
11	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture

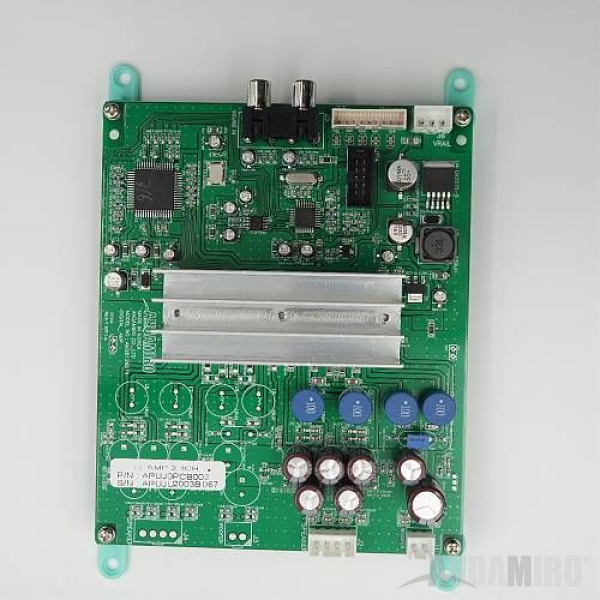

12	DIGITAL AMP PCB ASS'Y 2.1CH	DIGITAL AMP PCB ASS'Y APUJ0PCB002	Part picture

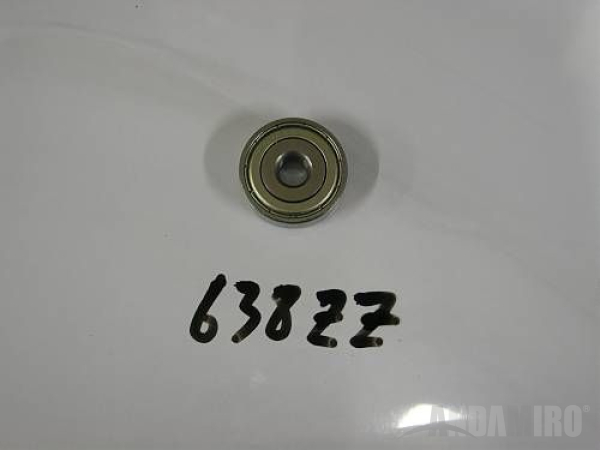

13	BEARING 638ZZ	BEARING MZZZ0BEA064	Part picture

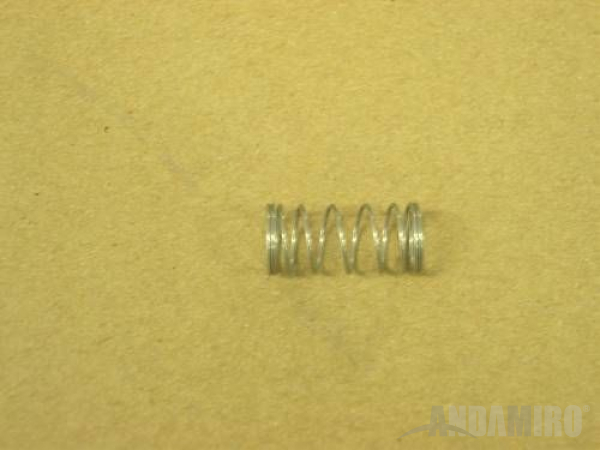

14	Z MOTOR PART TENSION SPRING .	Z MOTOR PART TENSION SPRING MWID0SPR001	Part picture
15	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture

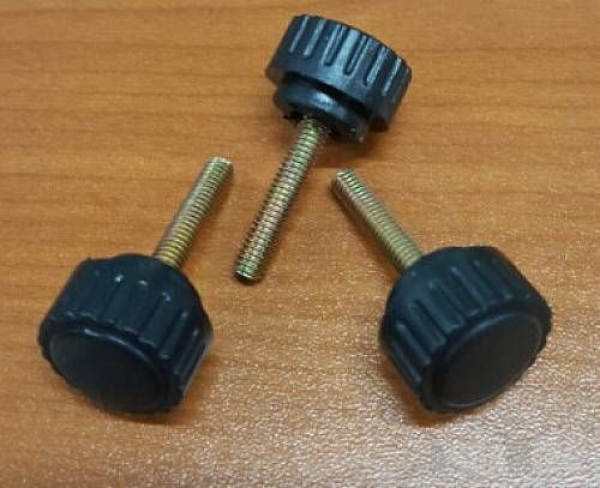

16	HAND BOLT M4, PKB4 4*10L	HAND BOLT MZZZ0PLA030	Part picture

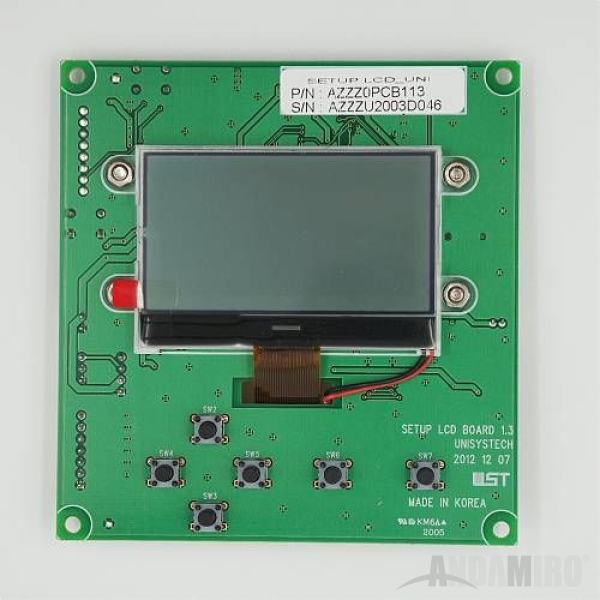

17	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
18	VOLUME PCB ASS'Y 3CH	VOLUME PCB ASS'Y APUJ0PCB005	Part picture
19	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture
20	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
21	SPONGE_10X1000 4T BLACK	SPONGE_10X1000 4T MPCX0PLA007	Part picture

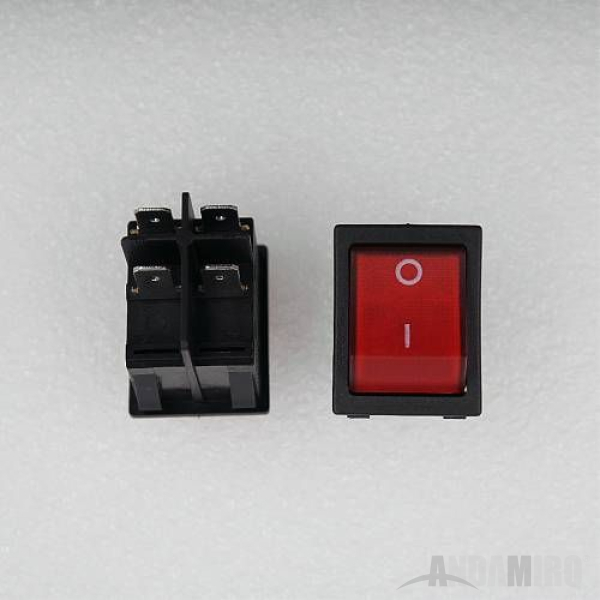

22	ROCKER SWITCH T-125 4P	ROCKER SWITCH MELE0SWI004	Part picture

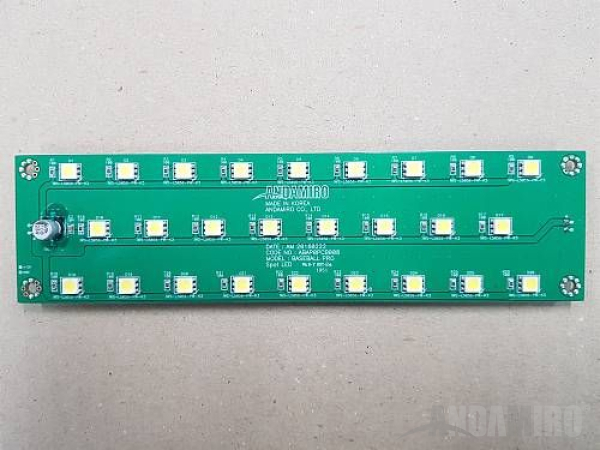

23	SPOT LED PCB ASS'Y WHITE	SPOT LED PCB ASS'Y ABAP0PCB008	Part picture

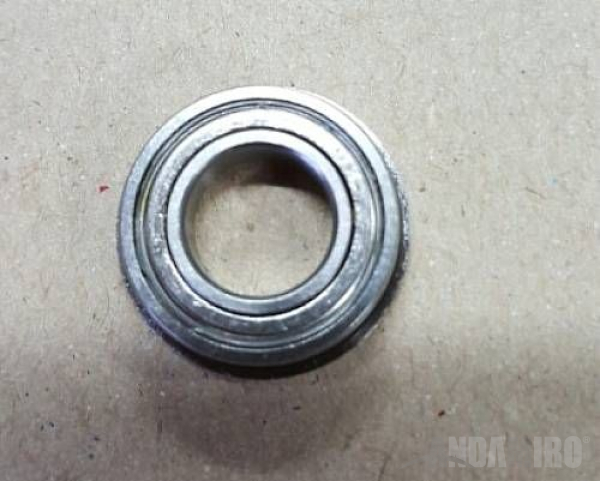

24	BEARING F6800ZZ, D10 D19 B5	BEARING MZZZ0BEA092	Part picture

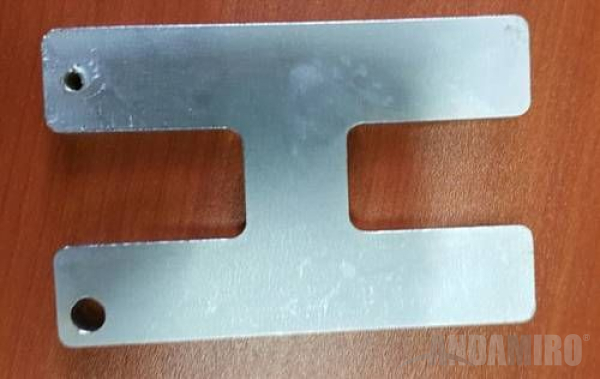

25	CARD HEAVY PUSH BKT .	CARD HEAVY PUSH BKT MSBP0MEP023	Part picture
25.1.1	[CARD HEAVY PUSH BKT] TIMMING BELT TENSION GUIDE BKT .	[CARD HEAVY PUSH BKT] TIMMING BELT TENSION GUIDE BKT MSBP0MEP153	Part picture

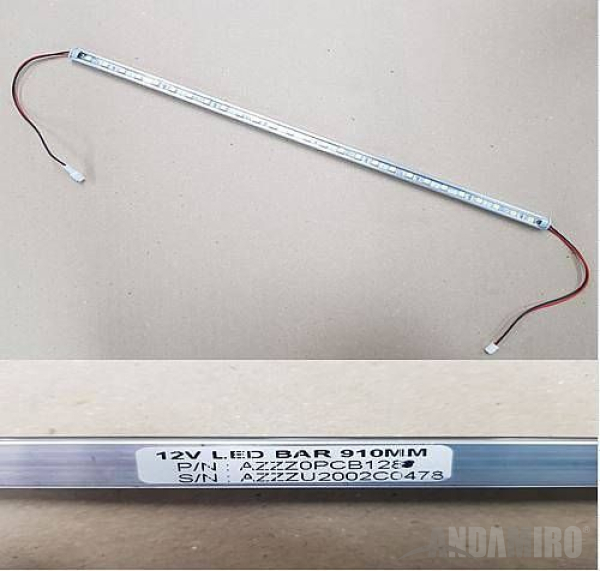

26	LED BAR 12V ASS'Y 910MM	LED BAR 12V ASS'Y AZZZ0PCB128	Part picture

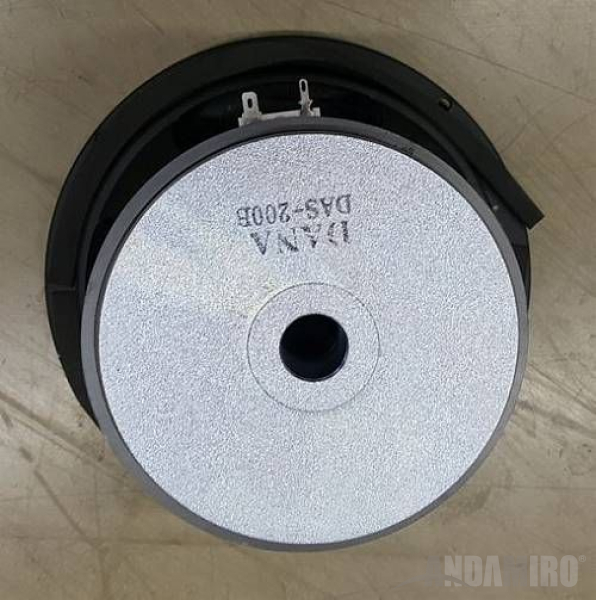

27	SPEAKER 8 INCH SUB W00FER DSU-205W	SPEAKER MZZZ0SPE036	Part picture
28	POWER SMPS LRS 150F_24	POWER SMPS MELE0SMP085	Part picture
29	POWER SMPS LRS 100-5	POWER SMPS MELE0SMP095	Part picture

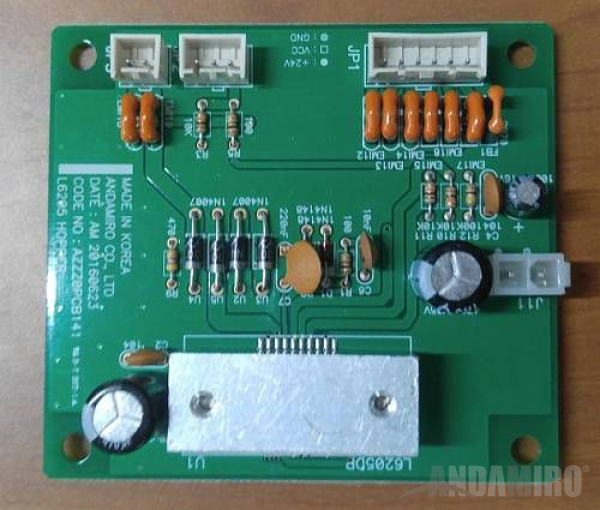

30	L6205 HOPPER PCB ASS'Y 공용	L6205 HOPPER PCB ASS'Y AZZZ0PCB141	Part picture
31	POWER SMPS LRS 150F-5	POWER SMPS MELE0SMP096	Part picture

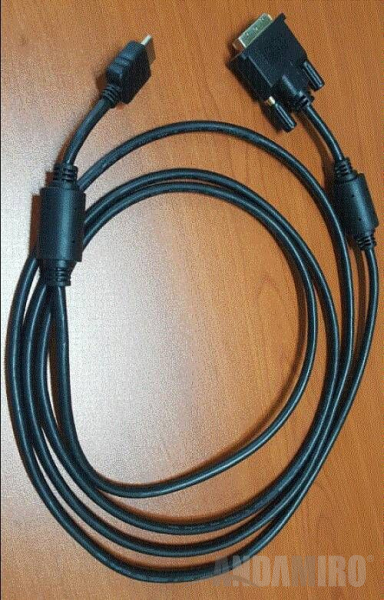

32	MONITOR CABLE NM-HD03GZ HDMI_DVI 3M	MONITOR CABLE NM-HD03GZ MZZZ0HAN064	Part picture
33	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture

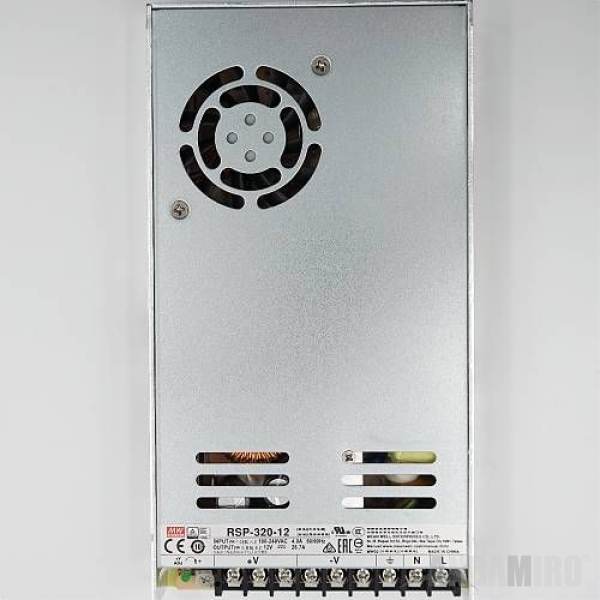

34	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture

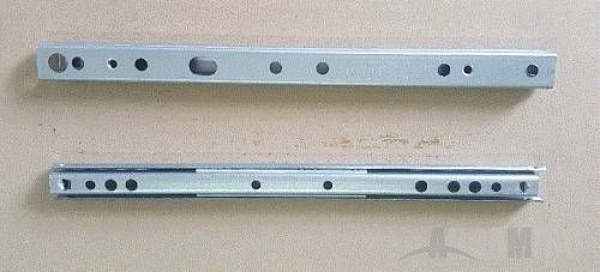

35	SLIDE RAIL S1000/1218B	SLIDE RAIL MDM30PAR001	Part picture

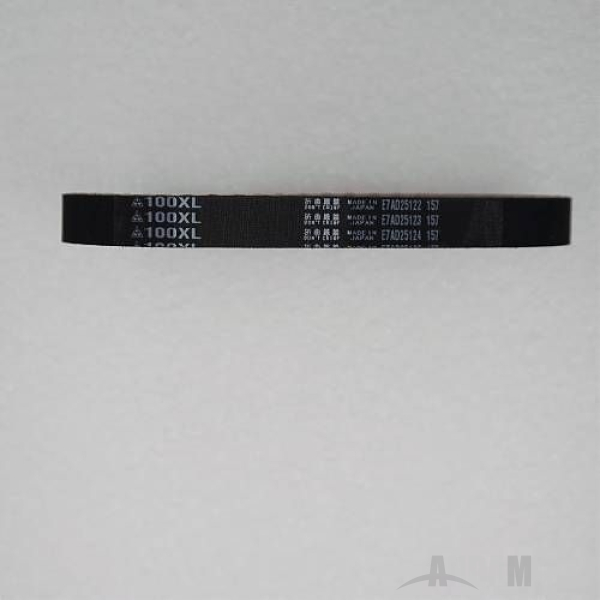

35.1.1	[SLIDE RAIL] TIMMING BELT 100XL-037	[SLIDE RAIL] TIMMING BELT MZZZ0BEL036	Part picture

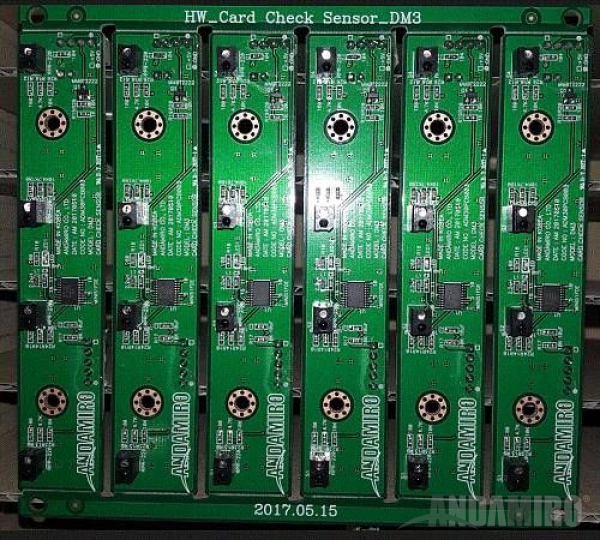

36	CARD CHECK SENSOR PCB ASS'Y DM3	CARD CHECK SENSOR PCB ASS'Y ADM30PCB003	Part picture
36.1.1	[CARD CHECK SENSOR PCB ASS'Y] CARD DISPENSER FRONT MASK-DM3 CARD DISPENSER 부품	[CARD CHECK SENSOR PCB ASS'Y] CARD DISPENSER FRONT MASK-DM3 MDM30ACR040	Part picture

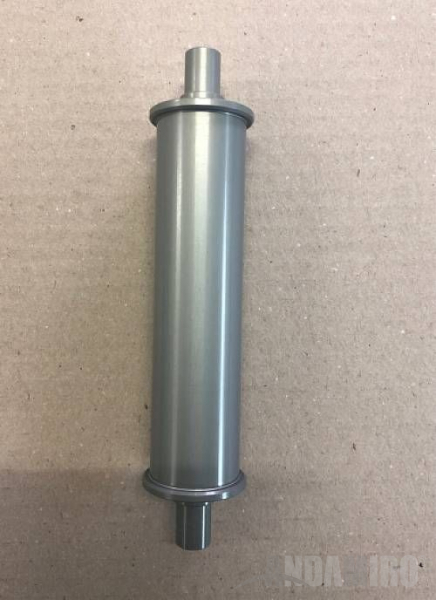

36.1.1	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR IDLE ROLLER .	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR IDLE ROLLER MDM30PRO003	Part picture

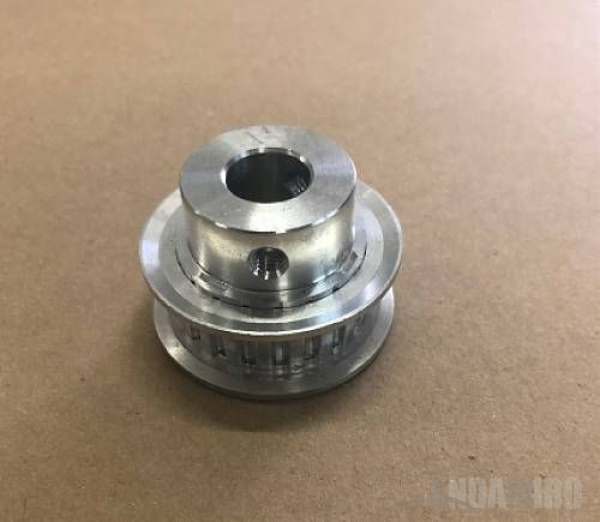

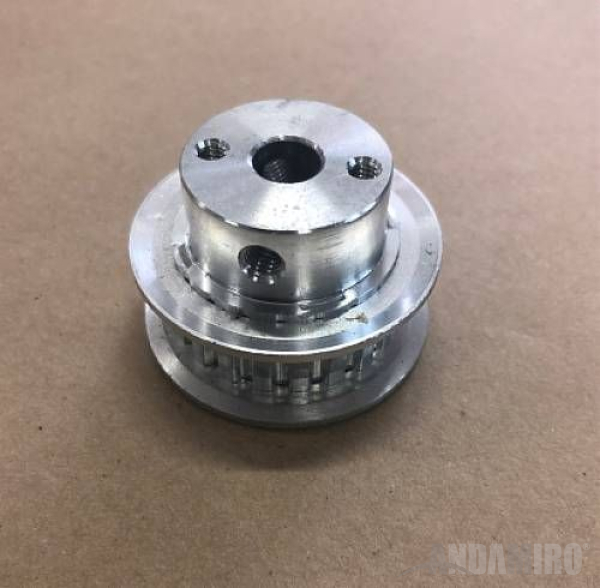

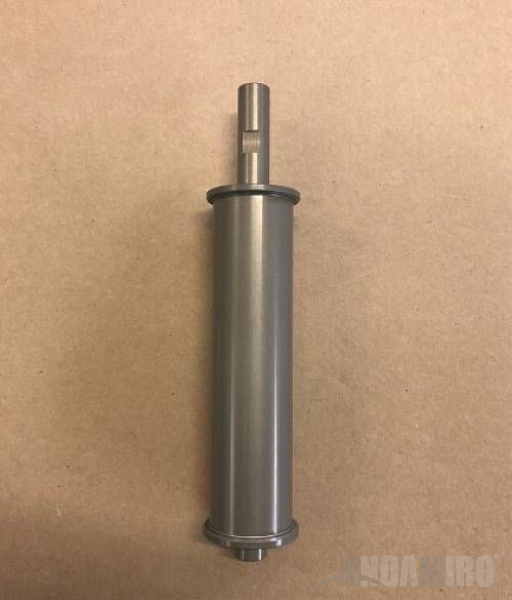

36.2.1	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR MOTOR PULLEY .	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR MOTOR PULLEY MDM30PRO004	Part picture
36.3.1	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR MOTOR ROLLER .	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR MOTOR ROLLER MDM30PRO005	Part picture

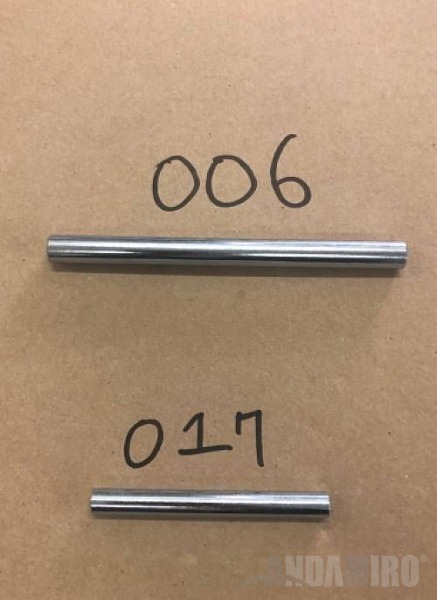

36.4.1	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR SUPPORT SHAFT .	[CARD CHECK SENSOR PCB ASS'Y] CARD CONVEYOR SUPPORT SHAFT MDM30PRO006	Part picture
36.5.1	[CARD CHECK SENSOR PCB ASS'Y] CONVEYOR IDLE PULLEY .	[CARD CHECK SENSOR PCB ASS'Y] CONVEYOR IDLE PULLEY MDM30PRO013	Part picture

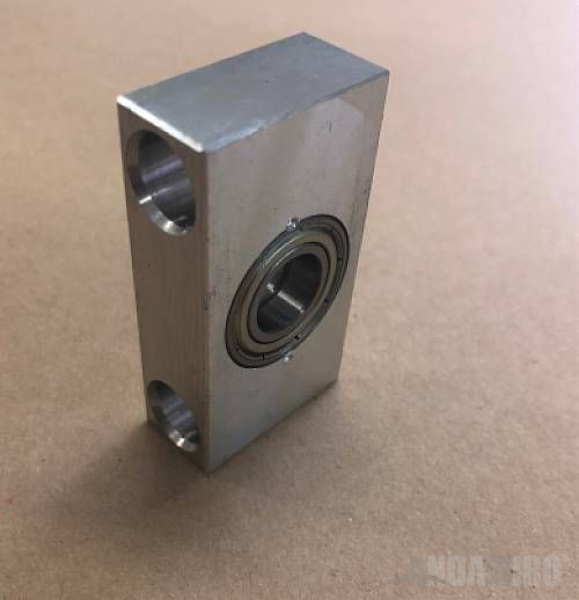

36.6.1	[CARD CHECK SENSOR PCB ASS'Y] CONVEYOR TENSION BEARING HOUSING .	[CARD CHECK SENSOR PCB ASS'Y] CONVEYOR TENSION BEARING HOUSING MDM30PRO014	Part picture
36.7.1	[CARD CHECK SENSOR PCB ASS'Y] CONVEYOR TENSION SHAFT BUSHING .	[CARD CHECK SENSOR PCB ASS'Y] CONVEYOR TENSION SHAFT BUSHING MDM30PRO016	Part picture

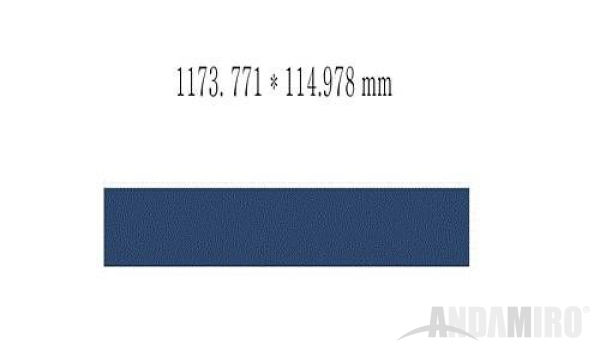

37	CARD CONVEYOR BELT ASS'Y 115*570(1141.6)	CARD CONVEYOR BELT ASS'Y ADM30ASS003	Part picture

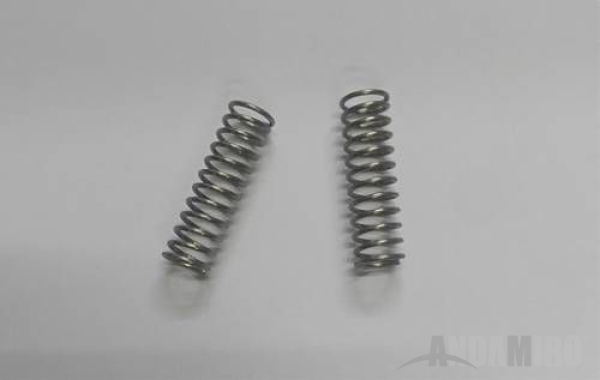

38	CONVEYOR TENSION SPRING SUS304-Ø1.2	CONVEYOR TENSION SPRING MDM30SPR001	Part picture

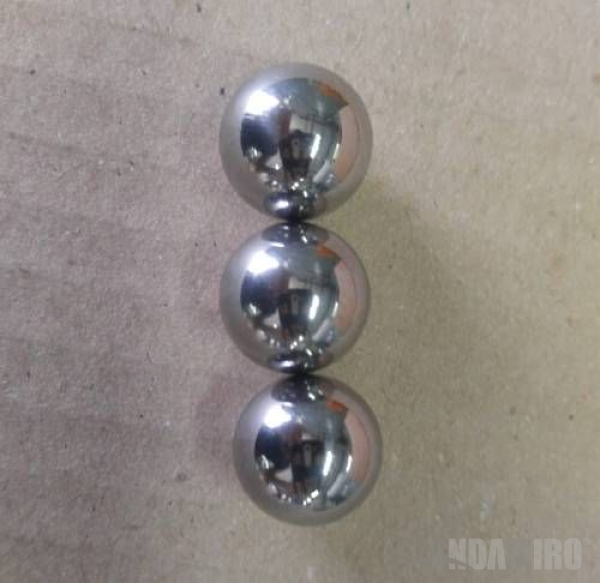

39	BALL 15.08MM PI STEEL	BALL MZZZ0BLL006	Part picture

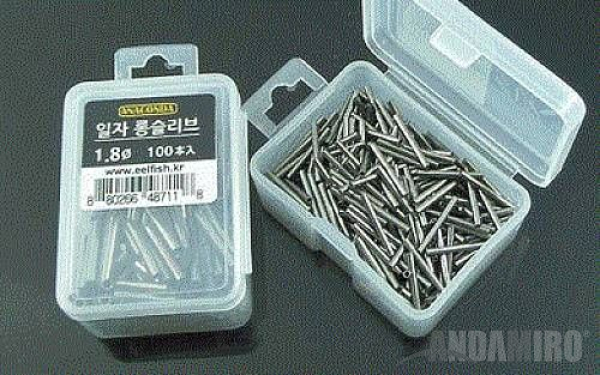

40	CARBON LONG SLIVE 3파이* 15MM 3파이* 길이15MM	CARBON LONG SLIVE 3파이* 15MM MZZZ0SLV003	Part picture

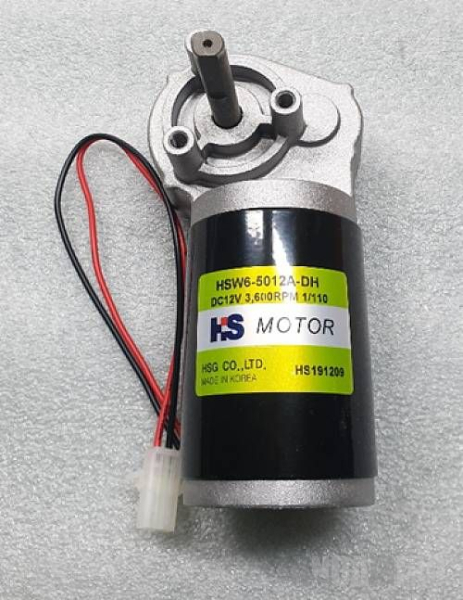

41	MOTOR HSW6-5012A-110D _DC12V_33RPM_DCUT	MOTOR MZZZ0MOT118	Part picture

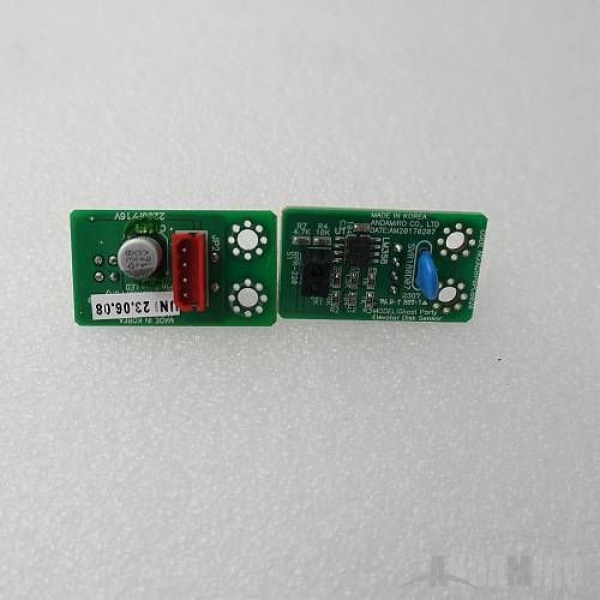

42	ELEVATOR DISK SENSOR PCB ASS'Y GHP_REZ	ELEVATOR DISK SENSOR PCB ASS'Y AGHP0PCB020	Part picture

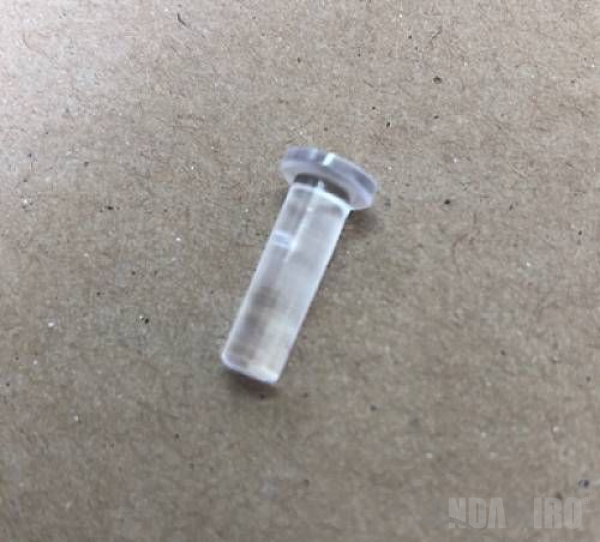

43	PIN SHAFT MOLD MOLD	PIN SHAFT MOLD MGHP0PLA004	Part picture

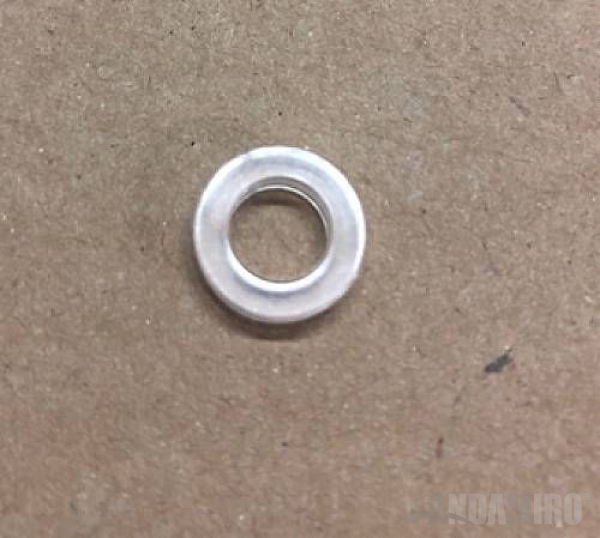

44	ELEVATOR WASHER MOLD MOLD	ELEVATOR WASHER MOLD MGHP0PLA005	Part picture

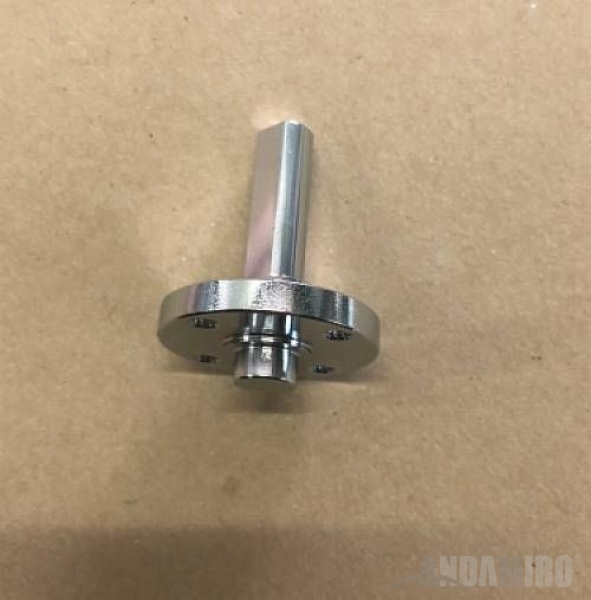

44.7.1	[ELEVATOR WASHER MOLD] ELEVATOR DISK SHAFT SM45C	[ELEVATOR WASHER MOLD] ELEVATOR DISK SHAFT MGHP0PRO003	Part picture

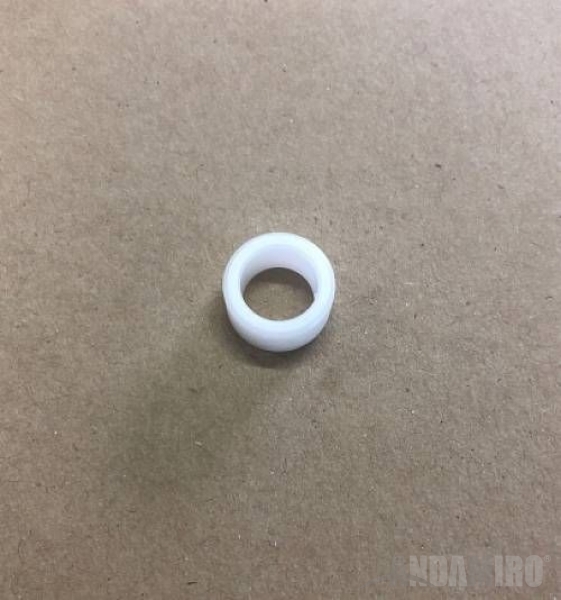

44.7.2	[ELEVATOR WASHER MOLD] ELEVATOR DISK BUSH ACETAL	[ELEVATOR WASHER MOLD] ELEVATOR DISK BUSH MGHP0PRO012	Part picture

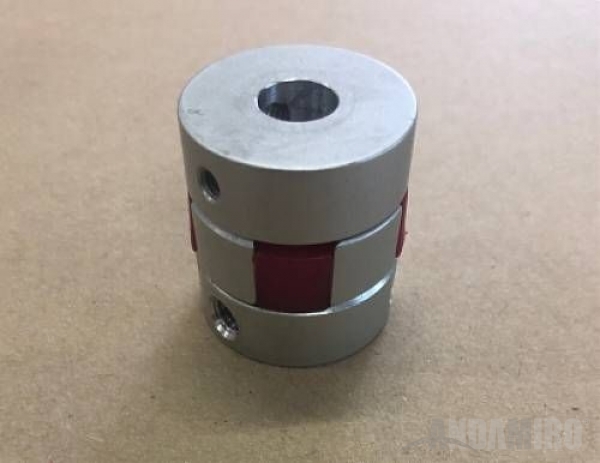

44.7.3	[ELEVATOR WASHER MOLD] ELEVATOR COUPLING_JOC30 COUPLING	[ELEVATOR WASHER MOLD] ELEVATOR COUPLING_JOC30 MGHP0PRO024	Part picture
44.7.4	[ELEVATOR WASHER MOLD] PIN SHAFT BRASS	[ELEVATOR WASHER MOLD] PIN SHAFT MGHP0PRO025	Part picture
44.7.5	[ELEVATOR WASHER MOLD] ELEVATOR BRAKE BUSHING ACETAL	[ELEVATOR WASHER MOLD] ELEVATOR BRAKE BUSHING MGHP0PRO031	Part picture
44.7.6	[ELEVATOR WASHER MOLD] ELEVATOR BRAKE SHAFT 열처리봉	[ELEVATOR WASHER MOLD] ELEVATOR BRAKE SHAFT MGHP0PRO032	Part picture
44.7.7	[ELEVATOR WASHER MOLD] ELEVATOR CENTER BUSHING ACETAL	[ELEVATOR WASHER MOLD] ELEVATOR CENTER BUSHING MGHP0PRO033	Part picture

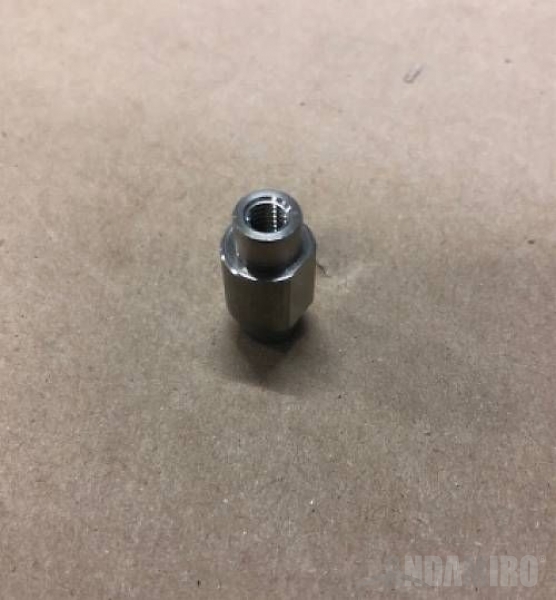

44.7.8	[ELEVATOR WASHER MOLD] CHUTE SPACER SHAFT SM45C	[ELEVATOR WASHER MOLD] CHUTE SPACER SHAFT MGHP0PRO039	Part picture
44.7.9	[ELEVATOR WASHER MOLD] CARD CONVEYOR PRO PART 9종 .	[ELEVATOR WASHER MOLD] CARD CONVEYOR PRO PART 9종 ADM30PAR010	Part picture

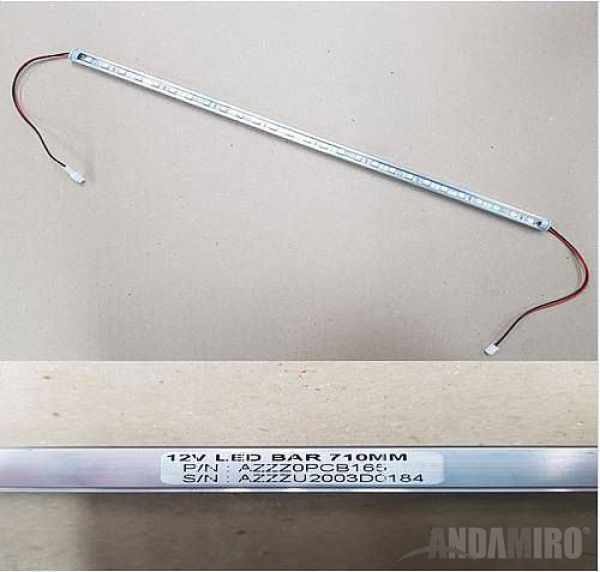

45	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture

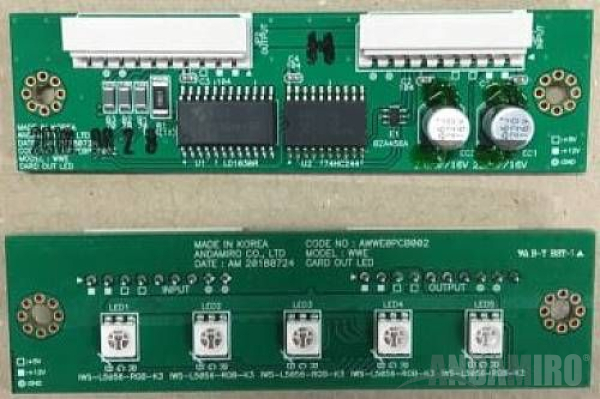

46	CARD OUT LED PCB ASS'Y .	CARD OUT LED PCB ASS'Y AWWE0PCB002	Part picture

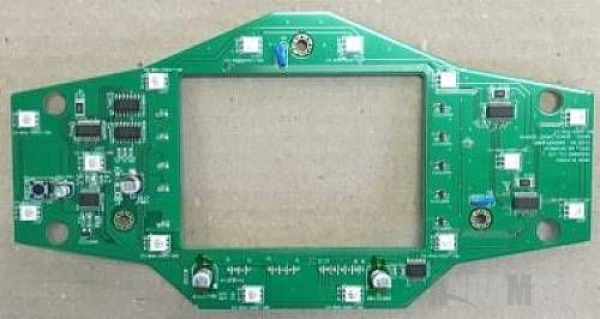

47	MIDDLE DISPLAY FRONT LED PCB ASS'Y .	MIDDLE DISPLAY FRONT LED PCB ASS'Y AWWE0PCB003	Part picture

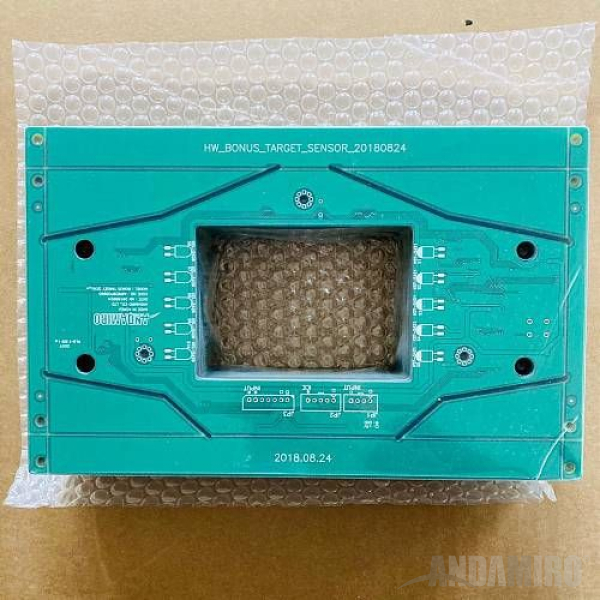

48	BONUS TARGET SENSOR PCB ASS'Y .	BONUS TARGET SENSOR PCB ASS'Y AWWE0PCB005	Part picture

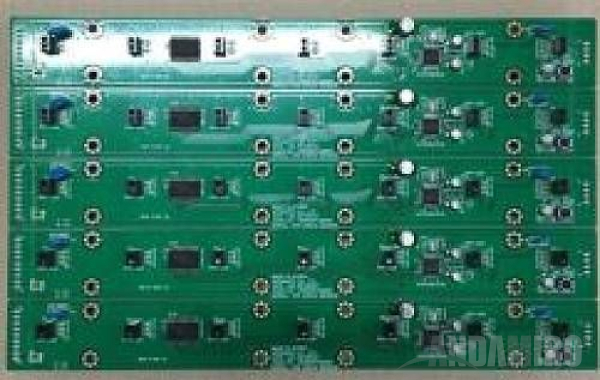

49	PIN CHECK SENSOR PCB ASS'Y .	PIN CHECK SENSOR PCB ASS'Y AWWE0PCB006	Part picture

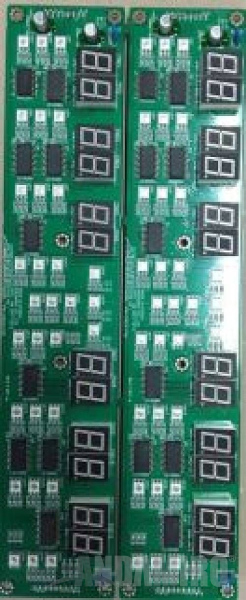

50	PIN CHECK FND PCB ASS'Y .	PIN CHECK FND PCB ASS'Y AWWE0PCB007	Part picture

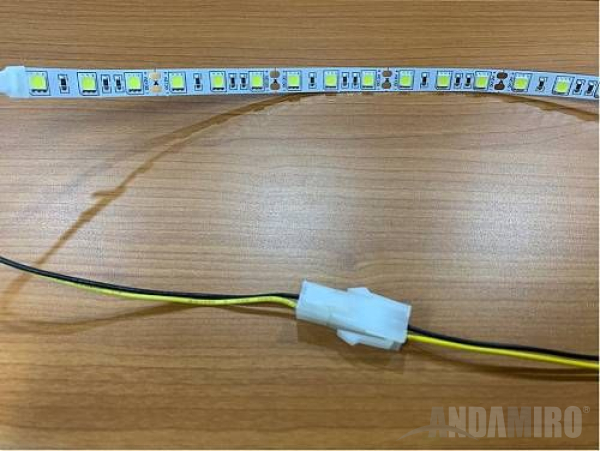

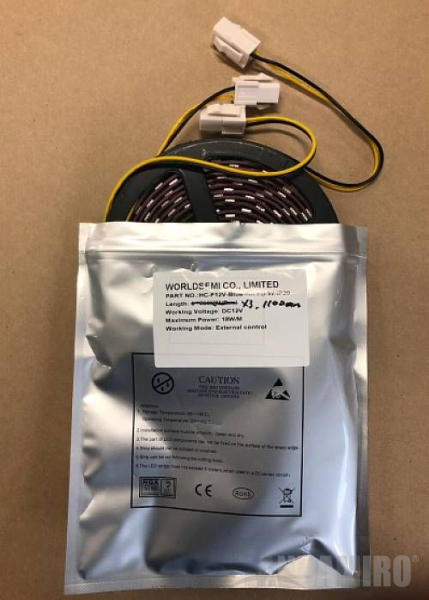

51	FLEX_5050_BLUE_1100_NWP_L_66 T5050 TOP 300구 66알	FLEX_5050_BLUE_1100_NWP_L_66 MELE0LED053	Part picture

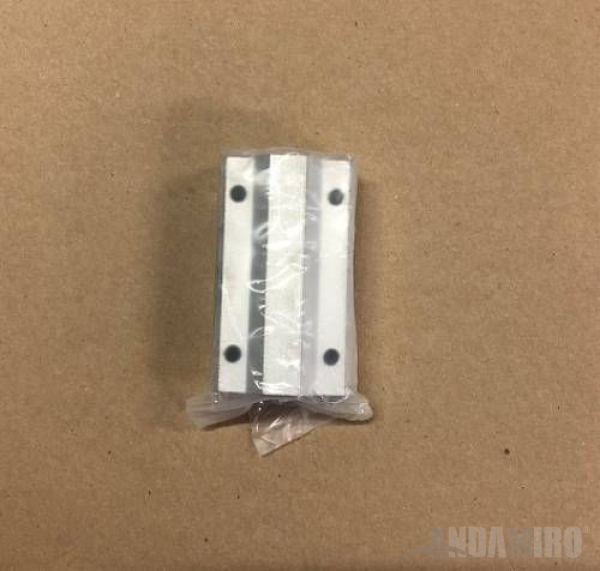

52	LM BEARING SL10UU	LM BEARING MZZZ0BEA125	Part picture

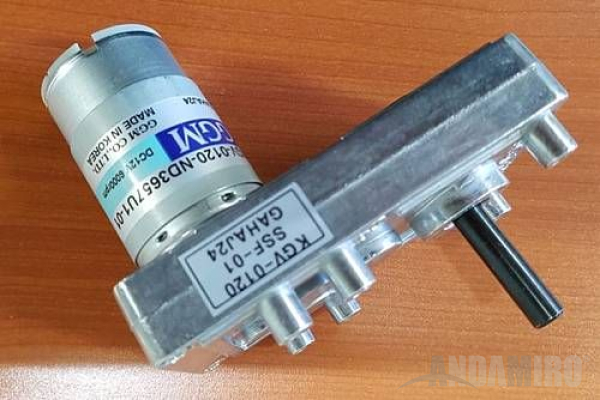

53	MOTOR KGV-0120-ND3657 U1	MOTOR MZZZ0MOT141	Part picture

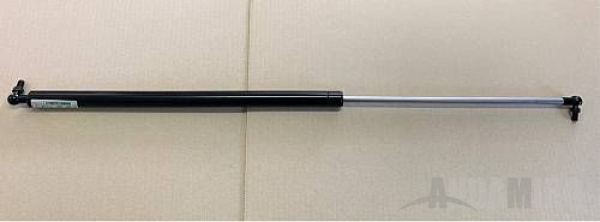

54	GAS SPRING GSB-22X761-30KG	GAS SPRING MZZZ0SHO014	Part picture
54.7.1	[GAS SPRING] BILLBOARD FRONT ACRYL MIDDLE FIX SHAFT .	[GAS SPRING] BILLBOARD FRONT ACRYL MIDDLE FIX SHAFT MWWE0PRO001	Part picture
54.7.2	[GAS SPRING] BILLBOARD FRONT ACRYL SIDE FIX SHAFT .	[GAS SPRING] BILLBOARD FRONT ACRYL SIDE FIX SHAFT MWWE0PRO002	Part picture
54.7.3	[GAS SPRING] BILLBOARD TITLE ACRYL FIX SHAFT .	[GAS SPRING] BILLBOARD TITLE ACRYL FIX SHAFT MWWE0PRO003	Part picture
54.7.4	[GAS SPRING] BONUS TAREGT GATE BUSHING	[GAS SPRING] BONUS TAREGT GATE BUSHING MWWE0PRO004	Part picture
54.7.5	[GAS SPRING] BONUS TARGET LM SHAFT .	[GAS SPRING] BONUS TARGET LM SHAFT MWWE0PRO007	Part picture
54.7.6	[GAS SPRING] BONUS TARGET SHAFT BUSHING .	[GAS SPRING] BONUS TARGET SHAFT BUSHING MWWE0PRO008	Part picture
54.7.7	[GAS SPRING] MONITOR SIDE PIPE CAP SHAFT .	[GAS SPRING] MONITOR SIDE PIPE CAP SHAFT MWWE0PRO011	Part picture
54.7.8	[GAS SPRING] MONITOR SIDE PIPE .	[GAS SPRING] MONITOR SIDE PIPE MWWE0PRO012	Part picture

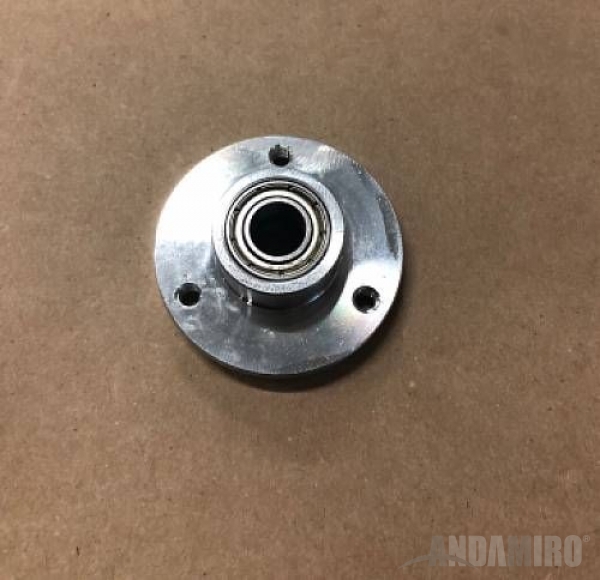

54.7.9	[GAS SPRING] PIN BASE CAM BEARING HOUSING .	[GAS SPRING] PIN BASE CAM BEARING HOUSING MWWE0PRO013	Part picture
54.7.10	[GAS SPRING] PIN BASE CAM ENCODER BUSHING .	[GAS SPRING] PIN BASE CAM ENCODER BUSHING MWWE0PRO015	Part picture
54.7.11	[GAS SPRING] BILLBOARD SPOT LED PCB ACRYL POINT ACRYL-3.0T (CLEAR)	[GAS SPRING] BILLBOARD SPOT LED PCB ACRYL MWWE0ACR002	Part picture
54.7.12	[GAS SPRING] BONUS FND FRONT COVER ACRYL ACRYL-2.7T (CLEAR)	[GAS SPRING] BONUS FND FRONT COVER ACRYL MWWE0ACR008	Part picture
54.7.13	[GAS SPRING] BONUS FND LED FIX ACRYL PET-1.0T (CLEAR)	[GAS SPRING] BONUS FND LED FIX ACRYL MWWE0ACR009	Part picture
54.7.14	[GAS SPRING] BONUS FND REAR COVER ACRYL PET-1.0T (CLEAR)	[GAS SPRING] BONUS FND REAR COVER ACRYL MWWE0ACR010	Part picture
54.7.15	[GAS SPRING] BUTTON PLATE FLEXIBLE LED COVER ACRYL PET-1.0T (CLEAR)	[GAS SPRING] BUTTON PLATE FLEXIBLE LED COVER ACRYL MWWE0ACR013	Part picture
54.7.16	[GAS SPRING] BUTTON PLATE FRONT ACRYL ACRYL-10T (백색 스리)	[GAS SPRING] BUTTON PLATE FRONT ACRYL MWWE0ACR014	Part picture
54.7.17	[GAS SPRING] CABINET BOTTOM LED FIX ACRYL PET-1.0T (CLEAR)	[GAS SPRING] CABINET BOTTOM LED FIX ACRYL MWWE0ACR016	Part picture
54.7.18	[GAS SPRING] CARD OUT LED PCB COVER ACRYL PET-1.0T (CLEAR)	[GAS SPRING] CARD OUT LED PCB COVER ACRYL MWWE0ACR021	Part picture
54.7.19	[GAS SPRING] MIDDLE PLATE FRONT LED PCB COVER ACRYL POINT ACRYL-3.0T (CLEAR)	[GAS SPRING] MIDDLE PLATE FRONT LED PCB COVER ACRYL MWWE0ACR024	Part picture
54.7.20	[GAS SPRING] PIN BASE MIDDLE CUSHION ACRYL PC-2.0T (CLEAR)	[GAS SPRING] PIN BASE MIDDLE CUSHION ACRYL MWWE0ACR029	Part picture
54.7.21	[GAS SPRING] SPEAKER LED PCB COVER ACRYL PET-1.0T (CLEAR)	[GAS SPRING] SPEAKER LED PCB COVER ACRYL MWWE0ACR035	Part picture
54.7.22	[GAS SPRING] CARD OUT DISPLAY ACRYL ACRYL-8T (CLEAR)	[GAS SPRING] CARD OUT DISPLAY ACRYL MWWE0ACR036	Part picture
54.7.23	[GAS SPRING] MONITOR BEZEL ACRYL ACRYL-4.5T (BLACK)	[GAS SPRING] MONITOR BEZEL ACRYL MWWE0ACR037	Part picture
54.7.24	[GAS SPRING] SIDE DISPLAY LED COVER ACRYL ACRYL-3.0T (백색 스리)	[GAS SPRING] SIDE DISPLAY LED COVER ACRYL MWWE0ACR038	Part picture
54.7.25	[GAS SPRING] BALL ELEVATOR BRAKE GUIDE ACRYL ACRYL-8.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR BRAKE GUIDE ACRYL MWWE0ACR039	Part picture
54.7.26	[GAS SPRING] BALL ELEVATOR CHUTE SIDE ACRYL-L ACRYL-5.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR CHUTE SIDE ACRYL-L MWWE0ACR040	Part picture
54.7.27	[GAS SPRING] BALL ELEVATOR CHUTE SIDE ACRYL-R ACRYL-5.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR CHUTE SIDE ACRYL-R MWWE0ACR041	Part picture
54.7.28	[GAS SPRING] BALL ELEVATOR HOUSING COVER ACRYL ACRYL-2.7T (CLEAR)	[GAS SPRING] BALL ELEVATOR HOUSING COVER ACRYL MWWE0ACR042	Part picture
54.7.29	[GAS SPRING] BALL ELEVATOR HOUSING INNER ACRYL-L PET-2.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR HOUSING INNER ACRYL-L MWWE0ACR043	Part picture
54.7.30	[GAS SPRING] BALL ELEVATOR HOUSING INNER ACRYL-R PET-2.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR HOUSING INNER ACRYL-R MWWE0ACR044	Part picture
54.7.31	[GAS SPRING] BALL ELEVATOR MOVEMENT COVER ACRYL-L PC-5.0T (CLEAR) & 대칭품	[GAS SPRING] BALL ELEVATOR MOVEMENT COVER ACRYL-L MWWE0ACR045	Part picture
54.7.32	[GAS SPRING] BALL ELEVATOR MOVEMENT COVER ACRYL-R PC-5.0T (CLEAR) & 대칭품	[GAS SPRING] BALL ELEVATOR MOVEMENT COVER ACRYL-R MWWE0ACR046	Part picture
54.7.33	[GAS SPRING] BALL ELEVATOR MOVEMENT SPACER ACRYL ACRYL-8.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR MOVEMENT SPACER ACRYL MWWE0ACR047	Part picture
54.7.34	[GAS SPRING] BALL ELEVATOR RAIL SIDE ACRYL PC-5.0T (CLEAR)	[GAS SPRING] BALL ELEVATOR RAIL SIDE ACRYL MWWE0ACR048	Part picture
54.7.35	[GAS SPRING] PIN BASE BALL CUSHION ACRYL PC-2.0T (CLEAR)	[GAS SPRING] PIN BASE BALL CUSHION ACRYL MWWE0ACR053	Part picture
54.7.36	[GAS SPRING] PIN CHECKER BONUS ACRYL-L PATTERN POINT ACRYL-10.0T (CLEAR)	[GAS SPRING] PIN CHECKER BONUS ACRYL-L MWWE0ACR059	Part picture
54.7.37	[GAS SPRING] PIN CHECKER MIDDLE INNER ACRYL PATTERN POINT ACRYL-10.0T (CLEAR)	[GAS SPRING] PIN CHECKER MIDDLE INNER ACRYL MWWE0ACR061	Part picture
54.7.38	[GAS SPRING] PIN CHECKER MIDDLE OUTER ACRYL PATTERN POINT ACRYL-10.0T (CLEAR)	[GAS SPRING] PIN CHECKER MIDDLE OUTER ACRYL MWWE0ACR062	Part picture
54.7.39	[GAS SPRING] PIN CHECKER SIDE ACRYL-L PATTERN POINT ACRYL-10.0T (CLEAR)	[GAS SPRING] PIN CHECKER SIDE ACRYL-L MWWE0ACR063	Part picture
54.7.40	[GAS SPRING] PIN CHECKER SIDE ACRYL-R PATTERN POINT ACRYL-10.0T (CLEAR)	[GAS SPRING] PIN CHECKER SIDE ACRYL-R MWWE0ACR064	Part picture

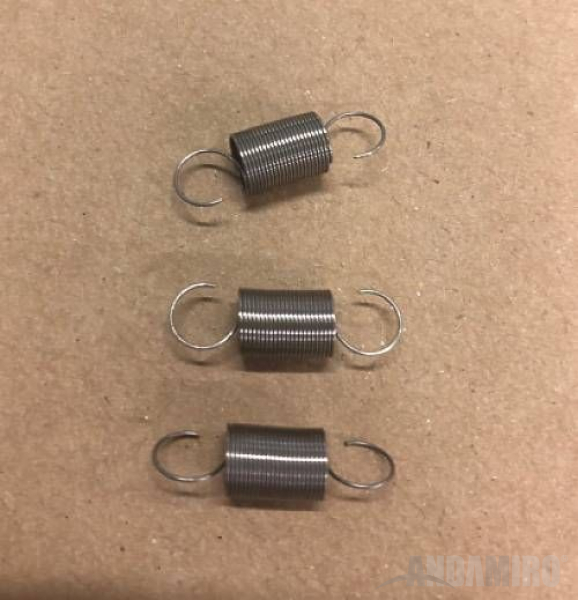

55	BONUS TARGET GATE SPRING SUS304-Ø0.4	BONUS TARGET GATE SPRING MWWE0SPR001	Part picture
56	BILLBOARD ASS'Y	BILLBOARD ASS'Y AWWE0ASS003	Part picture
57	BONUS TARGET ASS'Y	BONUS TARGET ASS'Y AWWE0ASS004	Part picture
58	CONVEYOR ASS'Y	CONVEYOR ASS'Y AWWE0ASS005	Part picture
59	MONITOR ASS'Y	MONITOR ASS'Y AWWE0ASS006	Part picture
60	PIN BASE ASS'Y	PIN BASE ASS'Y AWWE0ASS007	Part picture
61	BALL ELEVATOR ASS'Y	BALL ELEVATOR ASS'Y AWWE0ASS008	Part picture

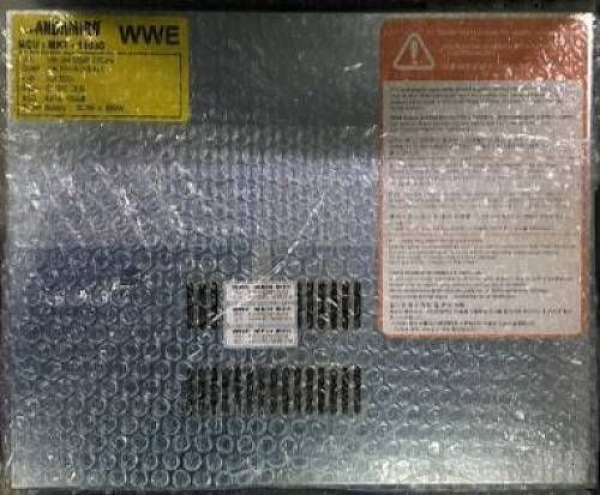

62	MAIN BOX ASS'Y WWE_MK7	MAIN BOX ASS'Y AWWE0SYS001	Part picture
62.7.1	[MAIN BOX ASS'Y] CARD OUT LED PCB PART	[MAIN BOX ASS'Y] CARD OUT LED PCB PART AWWE0PAR011	Part picture

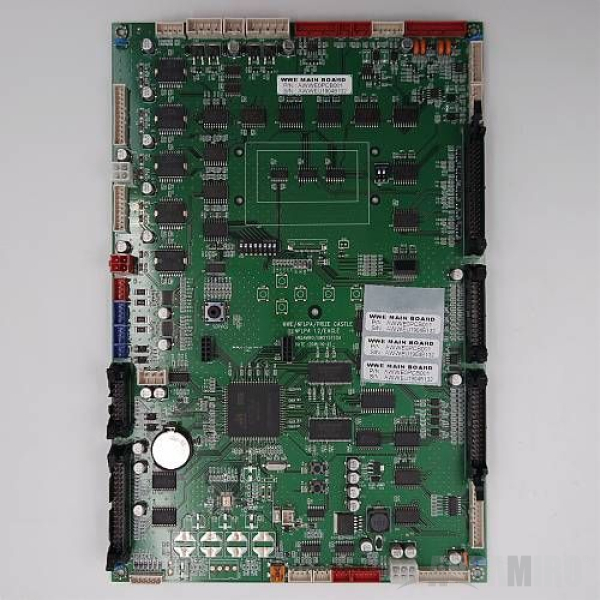

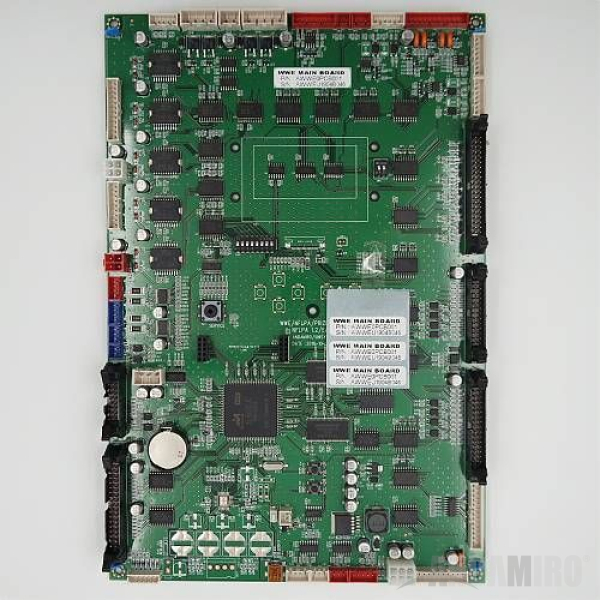

62.7.2	[MAIN BOX ASS'Y] MAIN BOARD PCB ASS'Y NO CPU	[MAIN BOX ASS'Y] MAIN BOARD PCB ASS'Y AWWE0PCB008	Part picture
62.7.3	[MAIN BOX ASS'Y] SSD HP S700 120	[MAIN BOX ASS'Y] SSD MZZZ0MEM025	Part picture
62.1.3	[MAIN BOX ASS'Y] BUTTON PLATE SIDE ACRYL-R .	[MAIN BOX ASS'Y] BUTTON PLATE SIDE ACRYL-R MWWE0PRI008	Part picture
62.4	[MAIN BOX ASS'Y] BONUS 1000 FND COVER SHEET .	[MAIN BOX ASS'Y] BONUS 1000 FND COVER SHEET MWWE0SHE001	Part picture
62.5	[MAIN BOX ASS'Y] BONUS 2000 FND COVER SHEET .	[MAIN BOX ASS'Y] BONUS 2000 FND COVER SHEET MWWE0SHE002	Part picture
62.6	[MAIN BOX ASS'Y] BUTTON SHEET .	[MAIN BOX ASS'Y] BUTTON SHEET MWWE0SHE003	Part picture
62.7	[MAIN BOX ASS'Y] FRONT WINDOW 3 BALL MULTI BALL SHEET .	[MAIN BOX ASS'Y] FRONT WINDOW 3 BALL MULTI BALL SHEET MWWE0SHE004	Part picture
62.8	[MAIN BOX ASS'Y] FRONT WINDOW 3 BALL TARGET SHEET .	[MAIN BOX ASS'Y] FRONT WINDOW 3 BALL TARGET SHEET MWWE0SHE005	Part picture
62.9	[MAIN BOX ASS'Y] FRONT WINDOW 5 BALL TARGET SHEET .	[MAIN BOX ASS'Y] FRONT WINDOW 5 BALL TARGET SHEET MWWE0SHE006	Part picture
62.10	[MAIN BOX ASS'Y] FRONT WINDOW 8 SWIPE CARD SHEET .	[MAIN BOX ASS'Y] FRONT WINDOW 8 SWIPE CARD SHEET MWWE0SHE007	Part picture
62.11	[MAIN BOX ASS'Y] FRONT WINDOW 10 SWIPE CARD SHEET .	[MAIN BOX ASS'Y] FRONT WINDOW 10 SWIPE CARD SHEET MWWE0SHE008	Part picture
62.12	[MAIN BOX ASS'Y] RONT WINDOW 12 SWIPE CARD SHEET .	[MAIN BOX ASS'Y] RONT WINDOW 12 SWIPE CARD SHEET MWWE0SHE009	Part picture
62.13	[MAIN BOX ASS'Y] MONITOR 3 TARGET SHEET .	[MAIN BOX ASS'Y] MONITOR 3 TARGET SHEET MWWE0SHE010	Part picture
62.14	[MAIN BOX ASS'Y] MONITOR 5 TARGET SHEET .	[MAIN BOX ASS'Y] MONITOR 5 TARGET SHEET MWWE0SHE011	Part picture
62.15	[MAIN BOX ASS'Y] SIDE L SHEET .	[MAIN BOX ASS'Y] SIDE L SHEET MWWE0SHE012	Part picture
62.16	[MAIN BOX ASS'Y] SIDE R SHEET .	[MAIN BOX ASS'Y] SIDE R SHEET MWWE0SHE013	Part picture
62.17	[MAIN BOX ASS'Y] MAIN BOX .	[MAIN BOX ASS'Y] MAIN BOX AWWE0SYS002	Part picture
62.18	[MAIN BOX ASS'Y] FRONT SHEETS .	[MAIN BOX ASS'Y] FRONT SHEETS MWWE0SHE014	Part picture

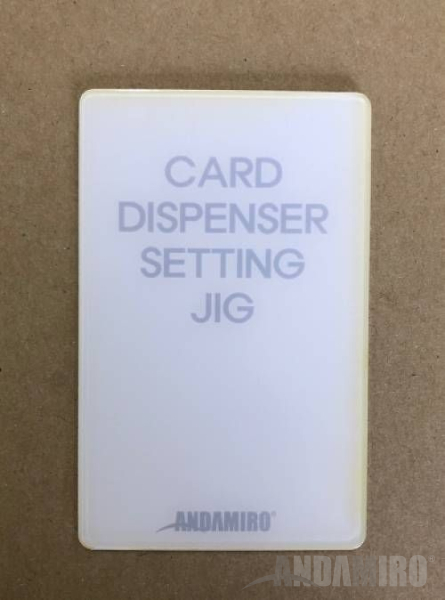

63	CARD DISPENSER SETTING JIG SBP_DC_WWE	CARD DISPENSER SETTING JIG AZZZ0ACP002	Part picture

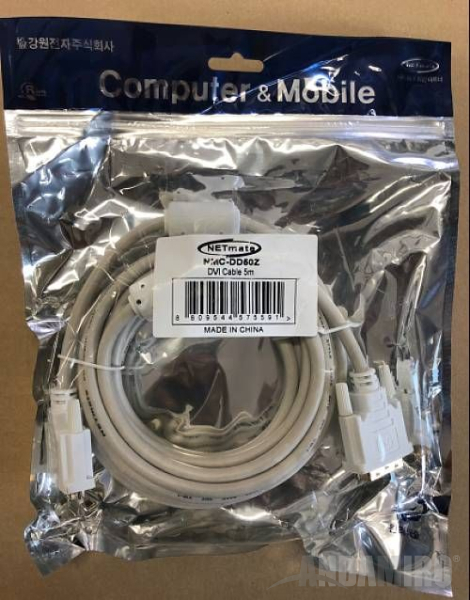

64	MONITOR CABLE NMC-DD50Z DVI_DVI 5M	MONITOR CABLE NMC-DD50Z MZZZ0HAN097	Part picture
64.18.1	[MONITOR CABLE NMC-DD50Z] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[MONITOR CABLE NMC-DD50Z] RAM_V1 MZZZ0000698	Part picture
64.18.2	[MONITOR CABLE NMC-DD50Z] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[MONITOR CABLE NMC-DD50Z] RAM_V1 MZZZ0000698	Part picture
64.19	[MONITOR CABLE NMC-DD50Z] FRONT WINDOW 7 BALLS TAGET SHEET .	[MONITOR CABLE NMC-DD50Z] FRONT WINDOW 7 BALLS TAGET SHEET MWWE0SHE015	Part picture
64.20	[MONITOR CABLE NMC-DD50Z] MONITOR 7 TARGET SHEET .	[MONITOR CABLE NMC-DD50Z] MONITOR 7 TARGET SHEET MWWE0SHE016	Part picture
64.21	[MONITOR CABLE NMC-DD50Z] FRONT WINDOW 6 BALL TARGET SHEET .	[MONITOR CABLE NMC-DD50Z] FRONT WINDOW 6 BALL TARGET SHEET MWWE0SHE017	Part picture
64.22	[MONITOR CABLE NMC-DD50Z] MONITOR 6 TARGET SHEET .	[MONITOR CABLE NMC-DD50Z] MONITOR 6 TARGET SHEET MWWE0SHE018	Part picture
64.23	[MONITOR CABLE NMC-DD50Z] FRONT WINDOW 4 BALL TARGET SHEET .	[MONITOR CABLE NMC-DD50Z] FRONT WINDOW 4 BALL TARGET SHEET MWWE0SHE019	Part picture
64.24	[MONITOR CABLE NMC-DD50Z] MONITOR 4 TARGET SHEET .	[MONITOR CABLE NMC-DD50Z] MONITOR 4 TARGET SHEET MWWE0SHE020	Part picture
64.25	[MONITOR CABLE NMC-DD50Z] BILLBOARD FRONT ACRYL	[MONITOR CABLE NMC-DD50Z] BILLBOARD FRONT ACRYL AWWE0ACP001	Part picture
64.26	[MONITOR CABLE NMC-DD50Z] BILLBOARD TITLE ACRYL	[MONITOR CABLE NMC-DD50Z] BILLBOARD TITLE ACRYL AWWE0ACP002	Part picture
64.27	[MONITOR CABLE NMC-DD50Z] BONUS TARGET FRONT ACRYL_TYPE_20+22_3H	[MONITOR CABLE NMC-DD50Z] BONUS TARGET FRONT ACRYL_TYPE_20+22_3H AWWE0ACP004	Part picture
64.28	[MONITOR CABLE NMC-DD50Z] BUTTON PLATE SIDE ACRYL-L	[MONITOR CABLE NMC-DD50Z] BUTTON PLATE SIDE ACRYL-L AWWE0ACP007	Part picture
64.29	[MONITOR CABLE NMC-DD50Z] BUTTON PLATE SIDE ACRYL-R	[MONITOR CABLE NMC-DD50Z] BUTTON PLATE SIDE ACRYL-R AWWE0ACP008	Part picture
64.30	[MONITOR CABLE NMC-DD50Z] BUTTON PLATE MIDDLE ACRYL	[MONITOR CABLE NMC-DD50Z] BUTTON PLATE MIDDLE ACRYL AWWE0ACP009	Part picture
64.31	[MONITOR CABLE NMC-DD50Z] CARD CONVEYOR COVER ACRYL-L	[MONITOR CABLE NMC-DD50Z] CARD CONVEYOR COVER ACRYL-L AWWE0ACP010	Part picture
64.32	[MONITOR CABLE NMC-DD50Z] CARD CONVEYOR COVER ACRYL-R	[MONITOR CABLE NMC-DD50Z] CARD CONVEYOR COVER ACRYL-R AWWE0ACP011	Part picture
64.33	[MONITOR CABLE NMC-DD50Z] CARD DISPENSER COVER ACRYL	[MONITOR CABLE NMC-DD50Z] CARD DISPENSER COVER ACRYL AWWE0ACP012	Part picture
64.34	[MONITOR CABLE NMC-DD50Z] CONTROL PANEL COVER ACRYL	[MONITOR CABLE NMC-DD50Z] CONTROL PANEL COVER ACRYL AWWE0ACP015	Part picture
64.35	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY FRONT COVER ACRYL-L	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY FRONT COVER ACRYL-L AWWE0ACP017	Part picture
64.36	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY FRONT COVER ACRYL-R	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY FRONT COVER ACRYL-R AWWE0ACP018	Part picture
64.37	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY SIDE COVER ACRYL-L	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY SIDE COVER ACRYL-L AWWE0ACP019	Part picture
64.38	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY SIDE COVER ACRYL-R	[MONITOR CABLE NMC-DD50Z] PIN BASE ASSY SIDE COVER ACRYL-R AWWE0ACP020	Part picture
64.39	[MONITOR CABLE NMC-DD50Z] SIDE DISPLAY LOWER ACRYL-L	[MONITOR CABLE NMC-DD50Z] SIDE DISPLAY LOWER ACRYL-L AWWE0ACP021	Part picture
64.40	[MONITOR CABLE NMC-DD50Z] SPEAKER COVER ACRYL	[MONITOR CABLE NMC-DD50Z] SPEAKER COVER ACRYL AWWE0ACP023	Part picture
64.41	[MONITOR CABLE NMC-DD50Z] BALL ELEVATOR DECO-L	[MONITOR CABLE NMC-DD50Z] BALL ELEVATOR DECO-L AWWE0ACP024	Part picture
64.42	[MONITOR CABLE NMC-DD50Z] BALL ELEVATOR DECO-R	[MONITOR CABLE NMC-DD50Z] BALL ELEVATOR DECO-R AWWE0ACP025	Part picture
64.43	[MONITOR CABLE NMC-DD50Z] BALL ELEVATOR TOP SIDE DECO ACRYL-R	[MONITOR CABLE NMC-DD50Z] BALL ELEVATOR TOP SIDE DECO ACRYL-R AWWE0ACP027	Part picture
64.44	[MONITOR CABLE NMC-DD50Z] PIN BASE BOTTOM ACRYL	[MONITOR CABLE NMC-DD50Z] PIN BASE BOTTOM ACRYL AWWE0ACP028	Part picture
64.45	[MONITOR CABLE NMC-DD50Z] PIN BASE CAM UPPER ACRYL	[MONITOR CABLE NMC-DD50Z] PIN BASE CAM UPPER ACRYL AWWE0ACP029	Part picture
64.46	[MONITOR CABLE NMC-DD50Z] PIN BASE CHECKER UPPER COVER ACRYL	[MONITOR CABLE NMC-DD50Z] PIN BASE CHECKER UPPER COVER ACRYL AWWE0ACP030	Part picture
64.47	[MONITOR CABLE NMC-DD50Z] PIN BASE SIDE ACRYL-L	[MONITOR CABLE NMC-DD50Z] PIN BASE SIDE ACRYL-L AWWE0ACP031	Part picture
64.48	[MONITOR CABLE NMC-DD50Z] PIN BASE SIDE ACRYL-R	[MONITOR CABLE NMC-DD50Z] PIN BASE SIDE ACRYL-R AWWE0ACP032	Part picture
64.49	[MONITOR CABLE NMC-DD50Z] BUTTON COVER ACRYL-L	[MONITOR CABLE NMC-DD50Z] BUTTON COVER ACRYL-L AWWE0ACP033	Part picture
64.50	[MONITOR CABLE NMC-DD50Z] BUTTON COVER ACRYL-R	[MONITOR CABLE NMC-DD50Z] BUTTON COVER ACRYL-R AWWE0ACP034	Part picture
64.51	[MONITOR CABLE NMC-DD50Z] CARD DISPENSER FRONT COVER ACRYL-L	[MONITOR CABLE NMC-DD50Z] CARD DISPENSER FRONT COVER ACRYL-L AWWE0ACP035	Part picture
64.52	[MONITOR CABLE NMC-DD50Z] CARD DISPENSER FRONT COVER ACRYL-R	[MONITOR CABLE NMC-DD50Z] CARD DISPENSER FRONT COVER ACRYL-R AWWE0ACP036	Part picture
65	BUTTON SWITCH CWB 401-WHITE 100MM LED	BUTTON SWITCH MZZZ0BUT080	Part picture
66	SPEAKER TERMINAL DJ-025	SPEAKER TERMINAL MZZZ0SPE034	Part picture

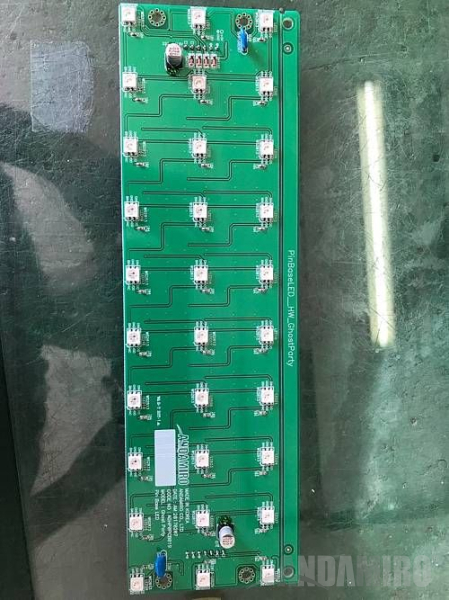

67	PIN BASE LED PCB ASS'Y GHOST PARTY	PIN BASE LED PCB ASS'Y AGHP0PCB019	Part picture
67.1	[PIN BASE LED PCB ASS'Y ] PIN CHECKER BONUS ACRYL-R PATTERN POINT ACRYL-10.0T (CLEAR)	[PIN BASE LED PCB ASS'Y ] PIN CHECKER BONUS ACRYL-R MWWE0ACR060	Part picture
67.2	[PIN BASE LED PCB ASS'Y ] BILLBOARD CHARACTER FOMAX-R	[PIN BASE LED PCB ASS'Y ] BILLBOARD CHARACTER FOMAX-R AWWE0ACP006	Part picture
67.3	[PIN BASE LED PCB ASS'Y ] MIDDLE DISPLAY COVER ACRYL	[PIN BASE LED PCB ASS'Y ] MIDDLE DISPLAY COVER ACRYL AWWE0ACP016	Part picture
67.4	[PIN BASE LED PCB ASS'Y ] BALL ELEVATOR TOP SIDE DECO ACRYL-L	[PIN BASE LED PCB ASS'Y ] BALL ELEVATOR TOP SIDE DECO ACRYL-L AWWE0ACP026	Part picture
67.5	[PIN BASE LED PCB ASS'Y ] BONUS CARD ACRYL	[PIN BASE LED PCB ASS'Y ] BONUS CARD ACRYL AWWE0ACP037	Part picture
67.6	[PIN BASE LED PCB ASS'Y ] BILLBOARD CHARACTER FOMAX-L	[PIN BASE LED PCB ASS'Y ] BILLBOARD CHARACTER FOMAX-L AWWE0ACP005	Part picture

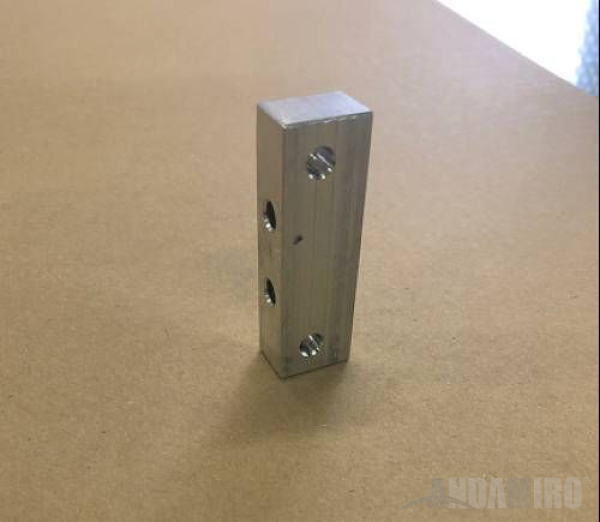

67.6.1	[PIN BASE LED PCB ASS'Y ] CONVEYOR TENSION BLOCK .	[PIN BASE LED PCB ASS'Y ] CONVEYOR TENSION BLOCK MDM30PRO015	Part picture

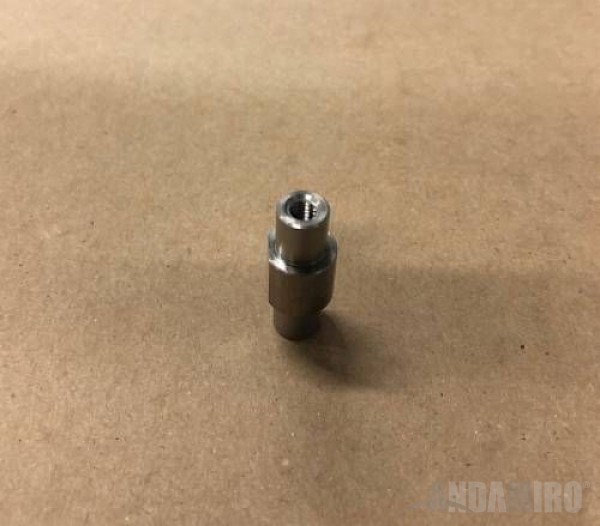

67.7	[PIN BASE LED PCB ASS'Y ] ELEVATOR SPACER SHAFT SM45C	[PIN BASE LED PCB ASS'Y ] ELEVATOR SPACER SHAFT MGHP0PRO036	Part picture

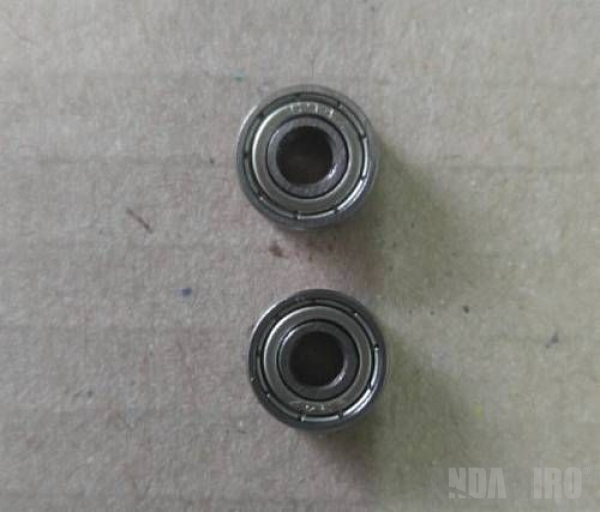

68	BEARING 694Z	BEARING MZZZ0BEA011	Part picture
68.1	[BEARING] BONUS TARGET SENSOR PCB 20180824	[BEARING] BONUS TARGET SENSOR PCB PPCB0DOU542	Part picture

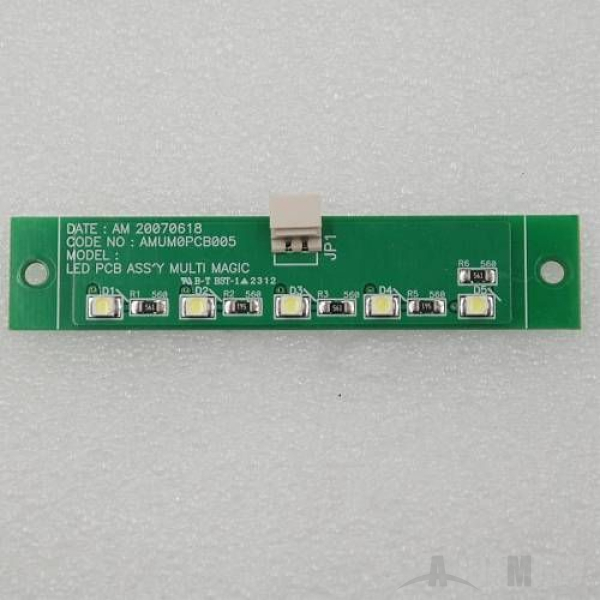

69	LED PCB ASS'Y MULTI MAGIC 070618	LED PCB ASS'Y AMUM0PCB005	Part picture
69.1	[LED PCB ASS'Y] BILLBOARD TOP LOGO ACRYL	[LED PCB ASS'Y] BILLBOARD TOP LOGO ACRYL AWWE0ACP003	Part picture
69.2	[LED PCB ASS'Y] SIDE DISPLAY LOWER ACRYL-R	[LED PCB ASS'Y] SIDE DISPLAY LOWER ACRYL-R AWWE0ACP022	Part picture

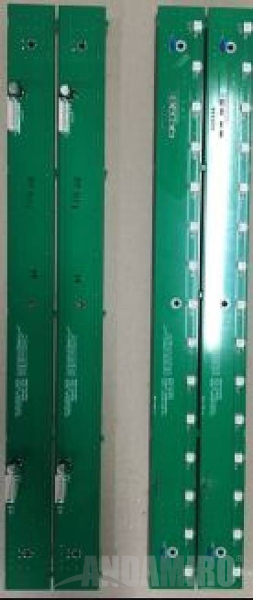

70	PIN BASE SIDE LED PCB ASS'Y .	PIN BASE SIDE LED PCB ASS'Y AWWE0PCB004	Part picture
71	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture

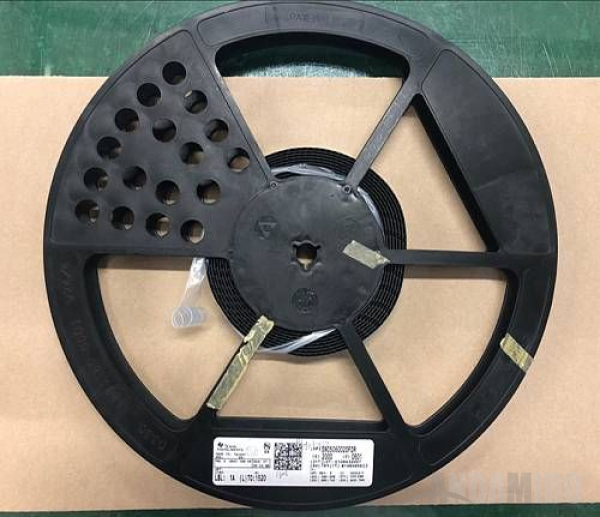

71.1	[COUNTER] IC NSP5112 NSP5112	[COUNTER] IC NSP5112 PICS0AMP005	Part picture
72	FLEX_5050_WHITE_350_NWP_LR_21 21알	FLEX_5050_WHITE_350_NWP_LR_21 MELE0LED028	Part picture

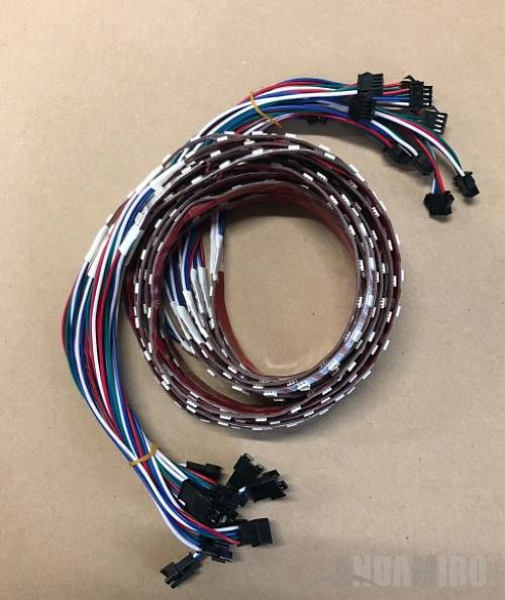

73	FLEX_WS2813B_700_NWP_LR_42 WS2813 TOP300구 42알	FLEX_WS2813B_700_NWP_LR_42 MELE0LED054	Part picture
74	MAIN BOARD PCB ASS'Y WWE WITH CPU	MAIN BOARD PCB ASS'Y AWWE0PCB001	Part picture
75	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
75.1.1	[PHOTO INT-1 PCB ASS'Y] CONVEYOR TENSION SHAFT .	[PHOTO INT-1 PCB ASS'Y] CONVEYOR TENSION SHAFT MDM30PRO017	Part picture

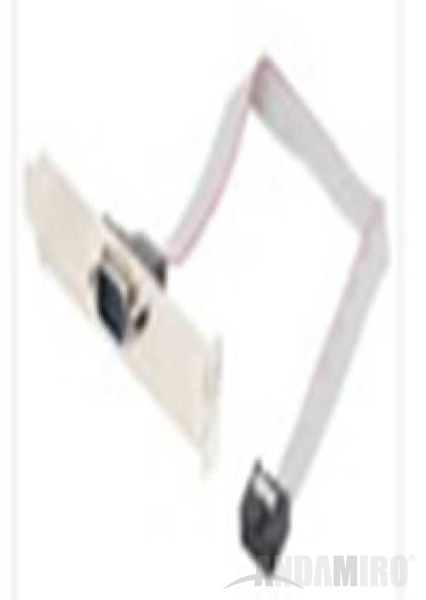

75.1.2	[PHOTO INT-1 PCB ASS'Y] SERIAL 1PORT .	[PHOTO INT-1 PCB ASS'Y] SERIAL 1PORT MZZZ0000786	Part picture

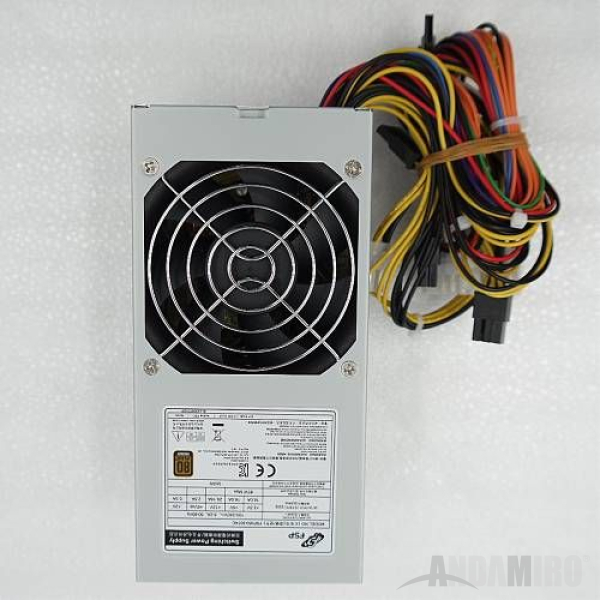

75.2	[PHOTO INT-1 PCB ASS'Y] ATX POWER SUPPLY FSP350-50TAC	[PHOTO INT-1 PCB ASS'Y] ATX POWER SUPPLY MELE0SMP149	Part picture
75.2.1	[PHOTO INT-1 PCB ASS'Y] MAIN BOARD GIGA-H510M H	[PHOTO INT-1 PCB ASS'Y] MAIN BOARD MZZZ0PCB096	Part picture
75.3	[PHOTO INT-1 PCB ASS'Y] MAIN BOARD GIGA-H510M H	[PHOTO INT-1 PCB ASS'Y] MAIN BOARD MZZZ0PCB096	Part picture
75.3.1	[PHOTO INT-1 PCB ASS'Y] VGA CARD GV-N 1030D5-2GL	[PHOTO INT-1 PCB ASS'Y] VGA CARD MZZZ0PCB097	Part picture
75.4	[PHOTO INT-1 PCB ASS'Y] VGA CARD GV-N 1030D5-2GL	[PHOTO INT-1 PCB ASS'Y] VGA CARD MZZZ0PCB097	Part picture
75.5	[PHOTO INT-1 PCB ASS'Y] BUTTON PLATE MIDDLE ACRYL SHEET+ACRYL	[PHOTO INT-1 PCB ASS'Y] BUTTON PLATE MIDDLE ACRYL AWWE0ACP110	Part picture
75.6	[PHOTO INT-1 PCB ASS'Y] CARD DISPLAY COVER ACRYL-L 백라이트 용지	[PHOTO INT-1 PCB ASS'Y] CARD DISPLAY COVER ACRYL-L AWWE0ACP111	Part picture
75.7	[PHOTO INT-1 PCB ASS'Y] CARD DISPLAY COVER ACRYL-R 백라이트 용지	[PHOTO INT-1 PCB ASS'Y] CARD DISPLAY COVER ACRYL-R AWWE0ACP112	Part picture
75.8	[PHOTO INT-1 PCB ASS'Y] BONUS CARD ACRYL SHEET+ACRYL	[PHOTO INT-1 PCB ASS'Y] BONUS CARD ACRYL AWWE0ACP113	Part picture

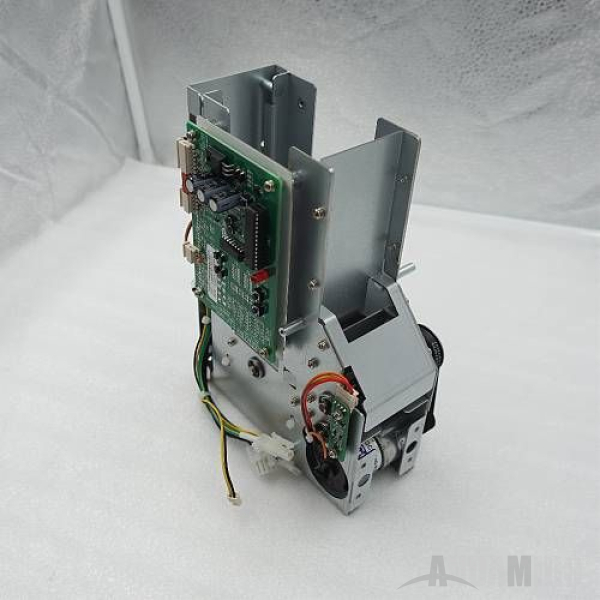

76	A_CARD DISPENSER_COMMON L CODE CHANGE AZZZ0ASS115	A_CARD DISPENSER_COMMON L AZZZ0ASS081	Part picture
76.1	[A_CARD DISPENSER_COMMON L] BUTTON PLATE MIDDLE SHEET .	[A_CARD DISPENSER_COMMON L] BUTTON PLATE MIDDLE SHEET MWWE0SHE021	Part picture
77	CARD ASS'Y_RFID_WWE 2 150EA 1BOX	CARD ASS'Y_RFID_WWE 2 AWWE0RFC005	Part picture
77.1	[CARD ASS'Y_RFID_WWE 2] CARDS LIST STICKER .	[CARD ASS'Y_RFID_WWE 2] CARDS LIST STICKER MWWE0SHE022	Part picture
77.2	[CARD ASS'Y_RFID_WWE 2] CARD WINDOW DECAL SHEET .	[CARD ASS'Y_RFID_WWE 2] CARD WINDOW DECAL SHEET MWWE0SHE023	Part picture
78	WS2812B IO PCB ASS'Y V3 WWE SUPERSTAR RUMBLE	WS2812B IO PCB ASS'Y V3 AWWE0PCB011	Part picture
78.1	[WS2812B IO PCB ASS'Y V3] BALL ELEVATOR CHUTE SIDE DECO ACRYL-L .	[WS2812B IO PCB ASS'Y V3] BALL ELEVATOR CHUTE SIDE DECO ACRYL-L AWWE0ACP114	Part picture
78.2	[WS2812B IO PCB ASS'Y V3] BALL ELEVATOR CHUTE SIDE DECO ACRYL-R .	[WS2812B IO PCB ASS'Y V3] BALL ELEVATOR CHUTE SIDE DECO ACRYL-R AWWE0ACP115	Part picture
78.3	[WS2812B IO PCB ASS'Y V3] BONUS TARGET FRONT ACRYL_TYPE_UK .	[WS2812B IO PCB ASS'Y V3] BONUS TARGET FRONT ACRYL_TYPE_UK AWWE0ACP116	Part picture
79	WEB ACR ACP SHEET PART WWE	WEB ACR ACP SHEET PART AWWE0PAT004	Part picture
