Andamiro Co., Ltd.

PRIZE REDEMPTION

NEW

Soccer Safari (Vending) Go! Go! Go! Soccer Safari Is Fun, Fast And Compulsive.

Short url COPY http://www.andamiro.com/games/soccersafari

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (0)
Manuals (1)
Document (1)
Trouble shooting
Video List (5)

FEATURES

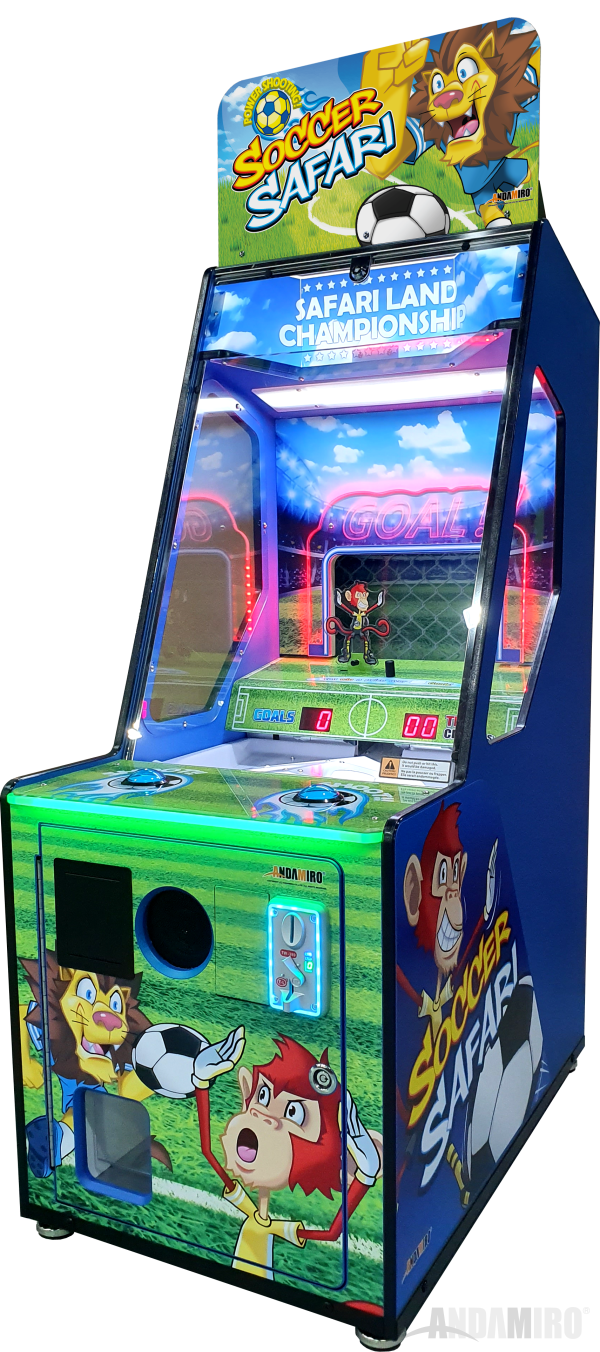

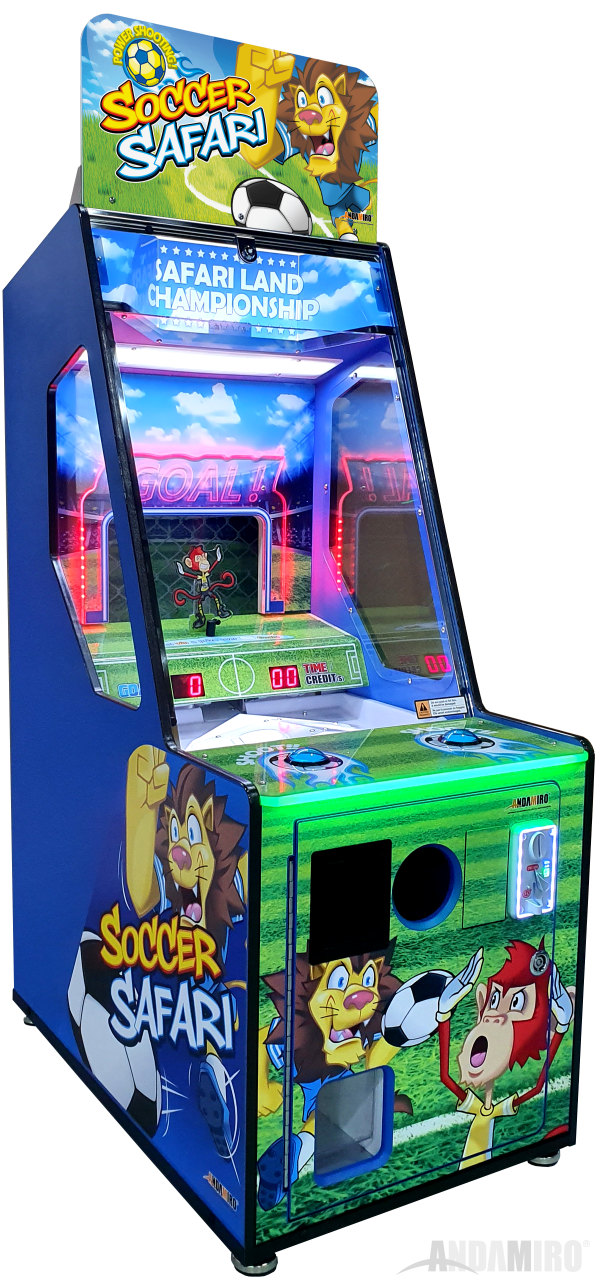

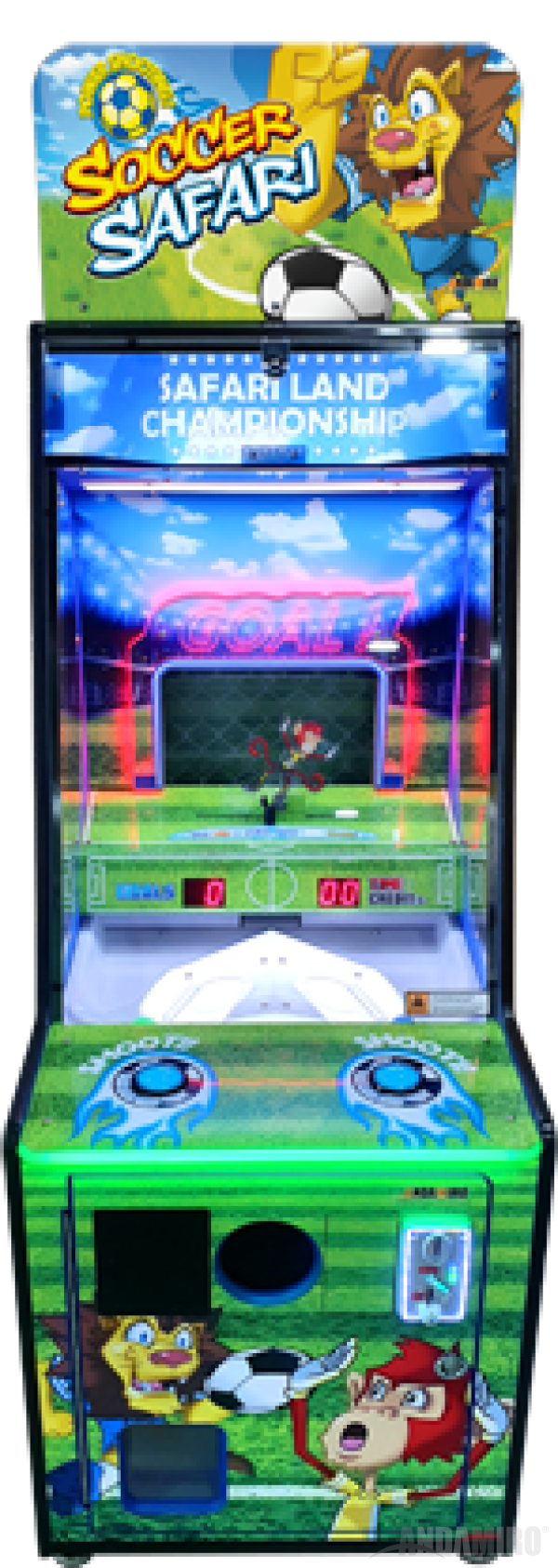

Go! Go! Go! Soccer Safari Is Fun, Fast And Compulsive. Reach The Winning Score To Win A Prize.

This compact power-shooting game deck out in colorful “safari graphics is ideal for bulk vending locations,

route operations and FECs. Soccer Safari is bill acceptor ready and includes dual coin comparitors.

It vends 2” round capsules or novelty balls and holds up to 200 prize units. Prizes are “self-transporting,”

descending on delivery ramp from the storage bin to the prize door. Soccer Safari is fast, fun and compulsive.

The player fires mini soccer balls using two buttons (tapping with both hands).

The objective is to shoot the balls past the moving goalkeeper to score as many points as possible.

Game time and winning points are adjustable, allowing operators to tailor gameplay.

Interactive lights and background audio enhance gameplay.

GALLERY

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 60Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

PARTS INQUIRY

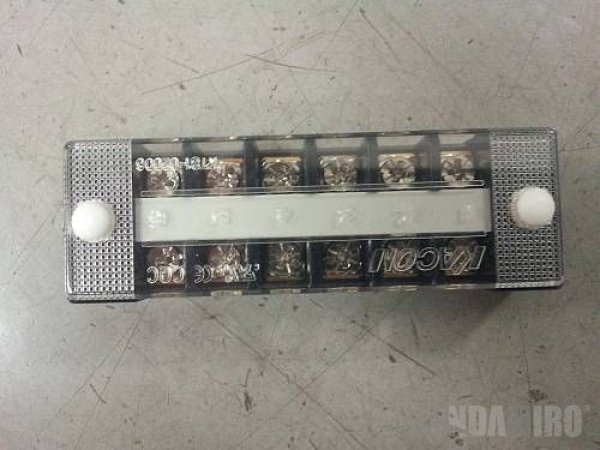

1	TERMINAL BLOCK KTB1-020 6P UL_CE	TERMINAL BLOCK MELE0TEB001	Part picture
2	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
3	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
4	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture
5	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
6	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture

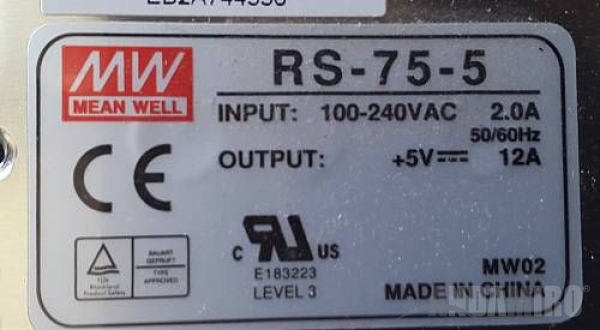

7	POWER SMPS RS-75-5	POWER SMPS MELE0SMP040	Part picture
7.1	[POWER SMPS] KEY ASS'Y 6001 6001 ONLY BODY	[POWER SMPS] KEY ASS'Y 6001 MZZZ0KEY075	Part picture
8	KEY ASS'Y 7001 7001 ONLY BODY	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
8.1	[KEY ASS'Y 7001] AC INPUT DAC-13H	[KEY ASS'Y 7001] AC INPUT MELE0SWI015	Part picture
9	HAND BOLT M4, PKB4 4*10L	HAND BOLT MZZZ0PLA030	Part picture
10	AC INPUT ASS'Y DAC-13H,WITH FUSE10A_2EA	AC INPUT ASS'Y AELE0FUS002	Part picture
10.1	[AC INPUT ASS'Y] FUSE 10A 0218010.MXP 250V,10A,4PA	[AC INPUT ASS'Y] FUSE 10A MELE0FUS018	Part picture
11	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture

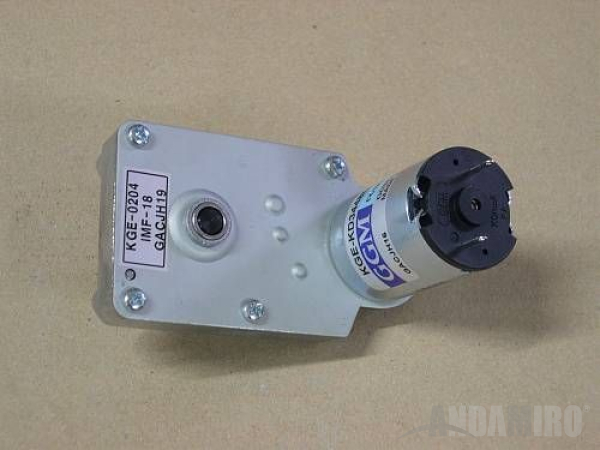

12	MOTOR KGE-3448-050-12V_1/204 F-TYPE	MOTOR MZZZ0MOT072	Part picture
13	BUTTON SWITCH P&H_0.0.0.203-10	BUTTON SWITCH MZZZ0BUT090	Part picture

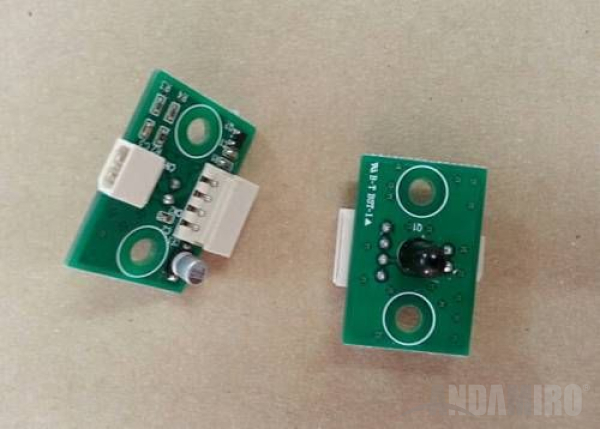

14	SENSOR_R PCB ASS'Y .	SENSOR_R PCB ASS'Y MEIF0PAR014	Part picture
15	FND PCB ASS'Y 2941-2(STRAIGHT)	FND PCB ASS'Y AFND0PCB003	Part picture
16	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
17	SPONGE_10X1000 4T BLACK	SPONGE_10X1000 4T MPCX0PLA007	Part picture
17.1	[SPONGE_10X1000 4T] COIN BOX SMALL 200198107 BLACK	[SPONGE_10X1000 4T] COIN BOX SMALL MDRE0PLA007	Part picture
18	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
19	MOTOR KGC-040-3429C	MOTOR MZZZ0MOT089	Part picture
20	BEARING F686ZZ	BEARING MZZZ0BEA094	Part picture
21	TIMMING PULLEY MXL-29	TIMMING PULLEY MZZZ0PLA040	Part picture
22	POWER SMPS LRS 150F_24	POWER SMPS MELE0SMP085	Part picture
23	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture

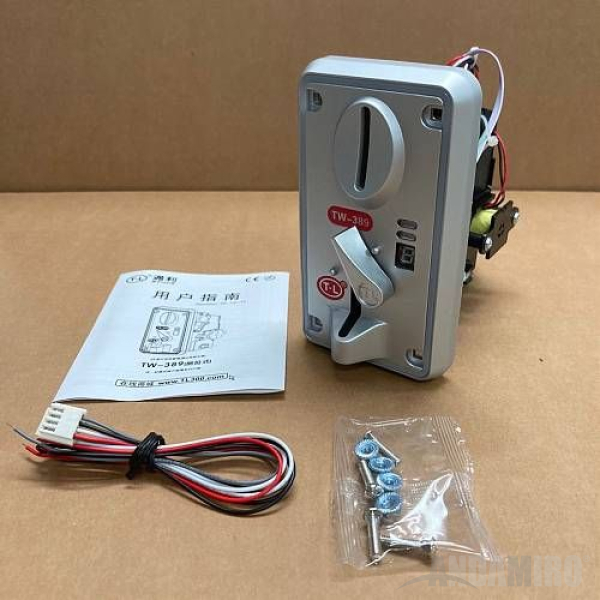

24	COIN SELECTOR TW-389	COIN SELECTOR MZZZ0COS052	Part picture
25	COIN BOX ASS WITH 6001 SMALL 200198107	COIN BOX ASS WITH 6001 AZZZ0ASS002	Part picture

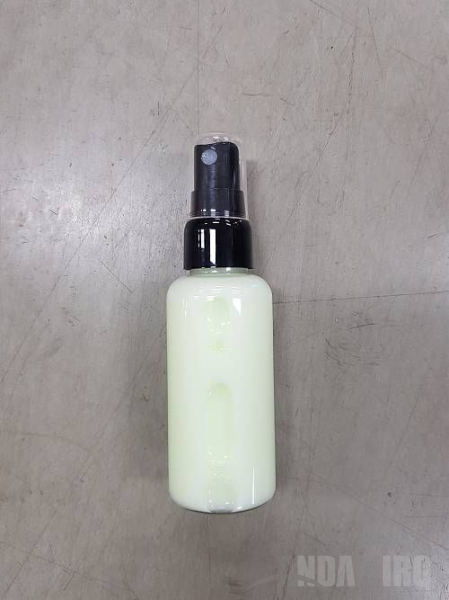

26	STATIC OFF SPRAY .	STATIC OFF SPRAY AZZZ0000110	Part picture
27	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
28	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture

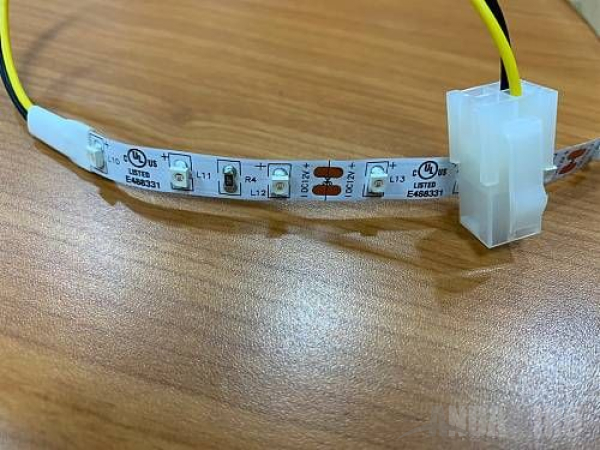

29	FLEX_3528_GREEN_450_NWP_L_27 T3528 TOP300구 27알	FLEX_3528_GREEN_450_NWP_L_27 MELE0LED062	Part picture

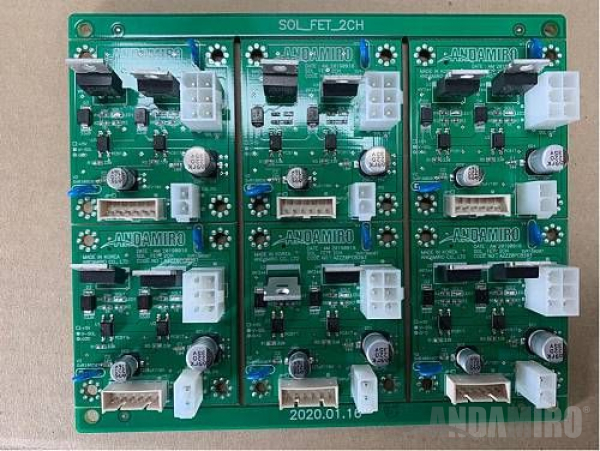

30	SOL FET 2CH PCB ASS'Y V2	SOL FET 2CH PCB ASS'Y AZZZ0PCB203	Part picture

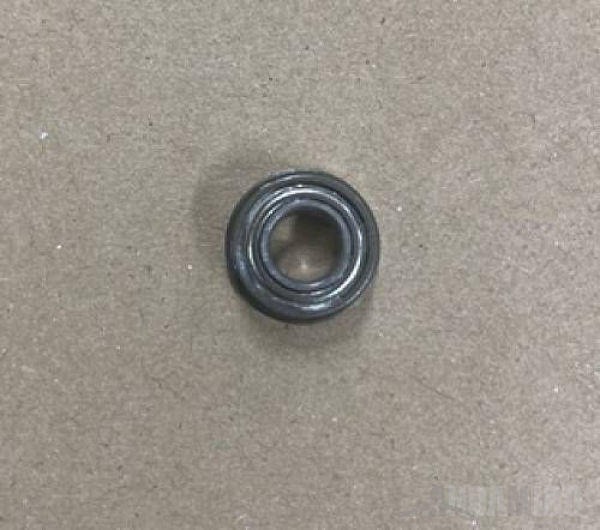

31	BEARING MF126ZZ	BEARING MZZZ0BEA137	Part picture

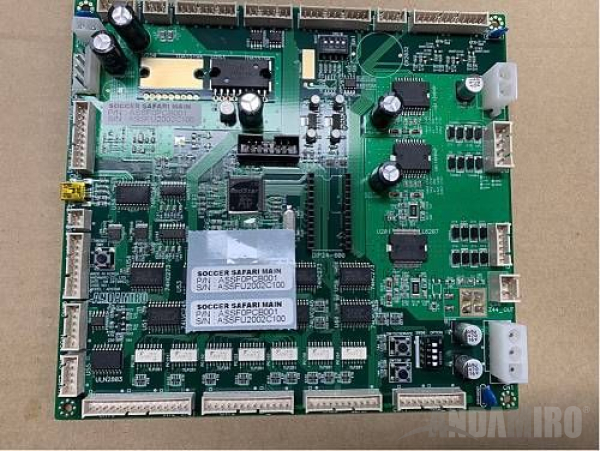

32	MAIN PCB ASS'Y ADSTAR	MAIN PCB ASS'Y ASSF0PCB001	Part picture

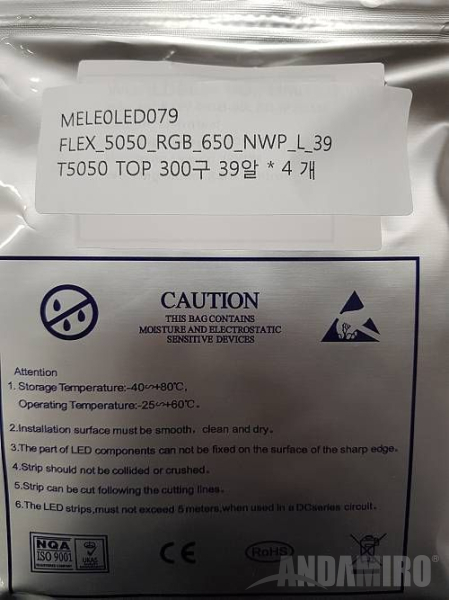

33	FLEX_5050_RGB_650_NWP_L_39 T5050 TOP300구 39알	FLEX_5050_RGB_650_NWP_L_39 MELE0LED079	Part picture

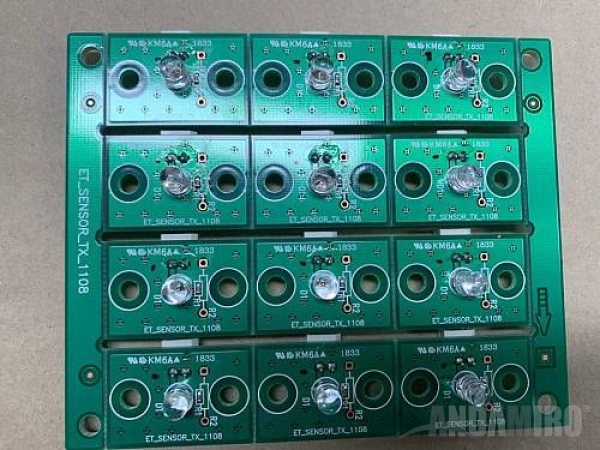

34	SENSOR_T PCB ASS'Y CODE CHANGE AAV20PCB011	SENSOR_T PCB ASS'Y ASSF0PCB002	Part picture

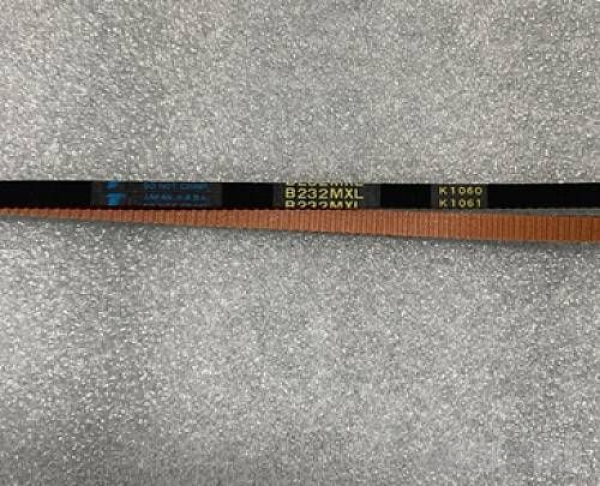

35	TIMMING BELT 232MXL,W4.8 RUBBER	TIMMING BELT MZZZ0BEL048	Part picture

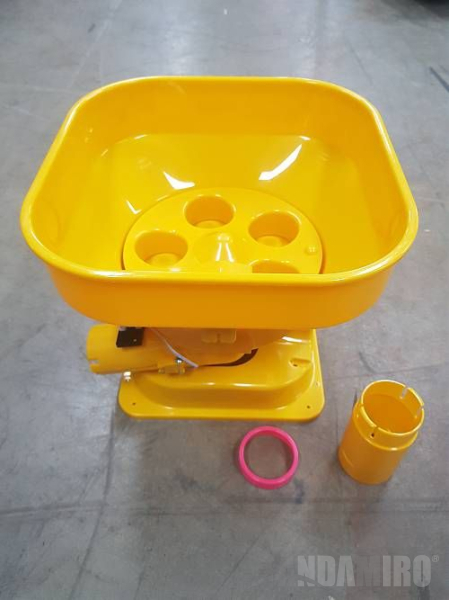

36	CAPSULE HOPPER .	CAPSULE HOPPER MZZZ0HOP075	Part picture

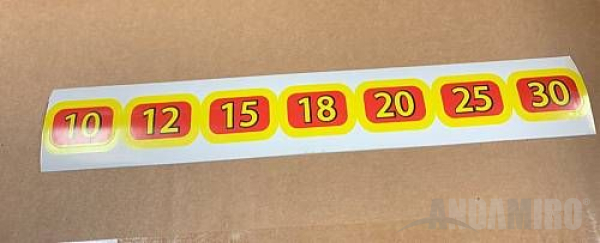

37	PLAYFIELD NUMBER STICKER 일반향/스펀지밥향 공용	PLAYFIELD NUMBER STICKER MSSF0STI001	Part picture

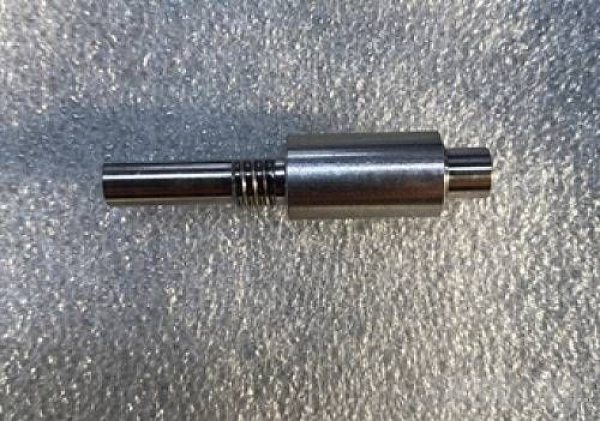

38	BALL TRAFFIC JAM SHAFT	BALL TRAFFIC JAM SHAFT MSSF0PRO005	Part picture

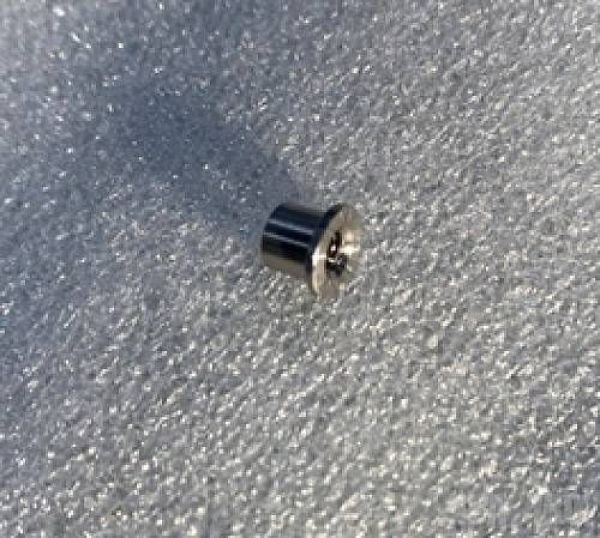

39	BEARING BUSHING	BEARING BUSHING MSSF0PRO006	Part picture

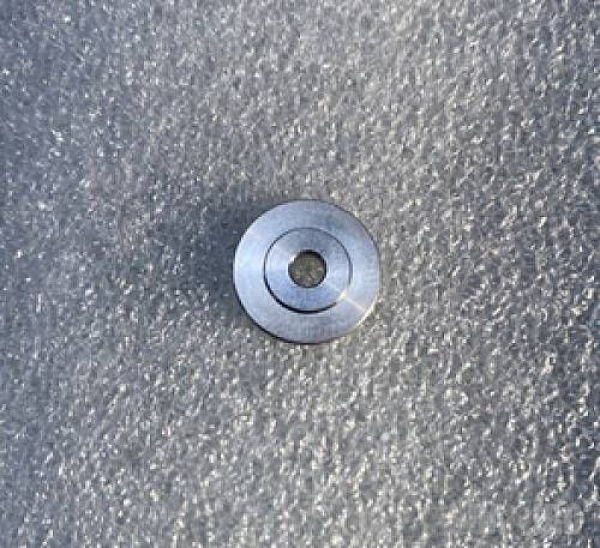

40	BEARING FIX WASHER	BEARING FIX WASHER MSSF0PRO007	Part picture

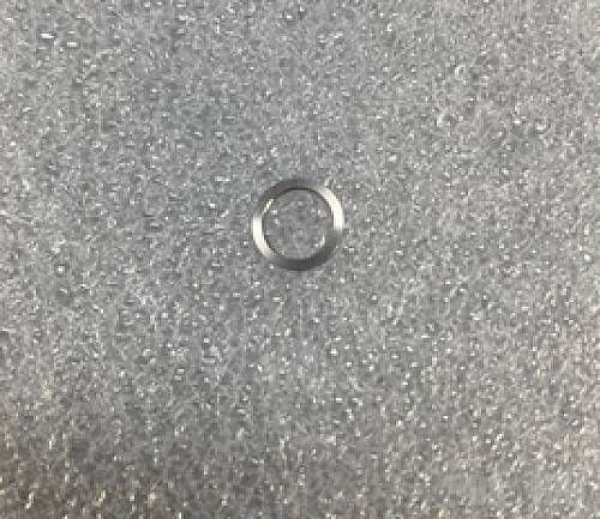

41	BEARING WASHER	BEARING WASHER MSSF0PRO008	Part picture

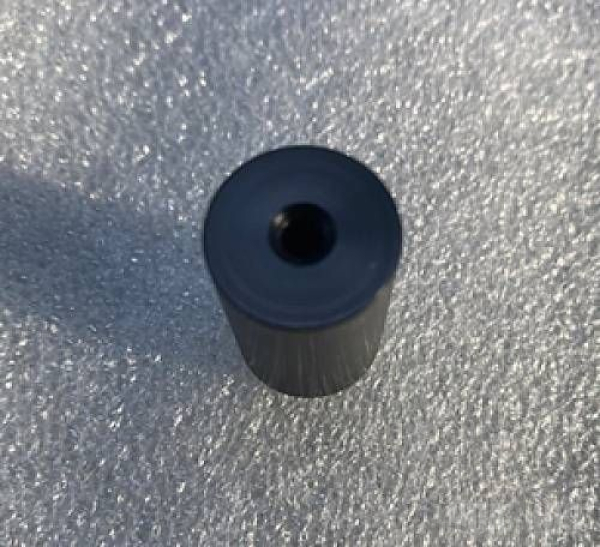

42	PIN	PIN MSSF0PRO011	Part picture

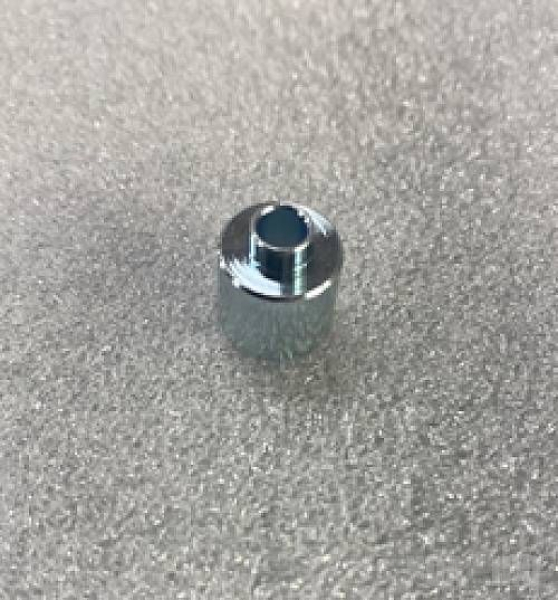

42.1	[PIN] SOLENOID CORE	[PIN] SOLENOID CORE MSSF0PRO012	Part picture

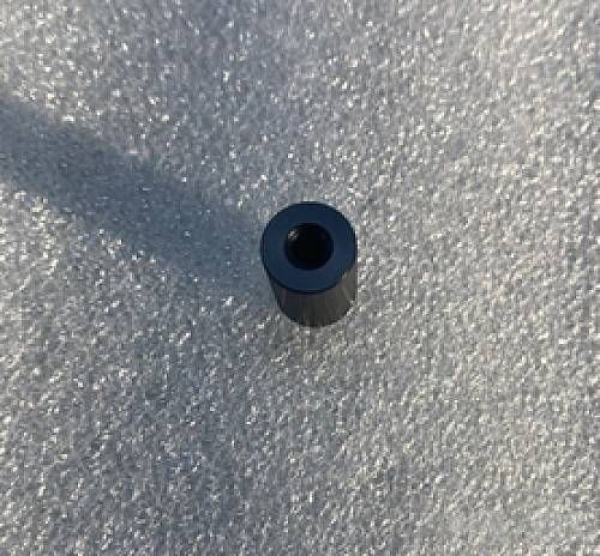

43	WEIGHT	WEIGHT MSSF0PRO016	Part picture

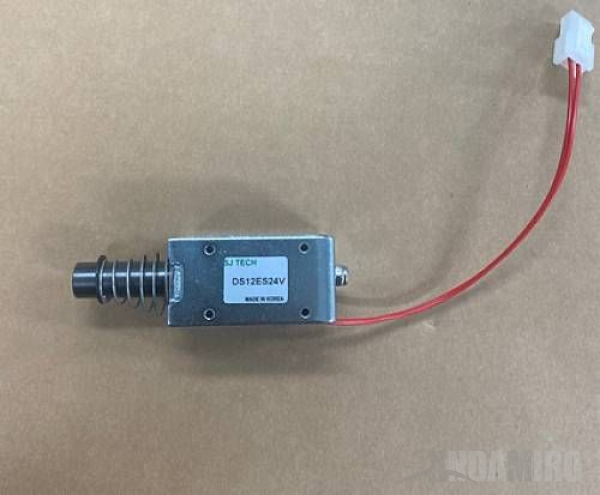

44	SOLENOID ASS'Y ASSF0PRO001,MSSF0PRO012,MSSF0SPR001,MELE	SOLENOID ASS'Y ASSF0SOL001	Part picture

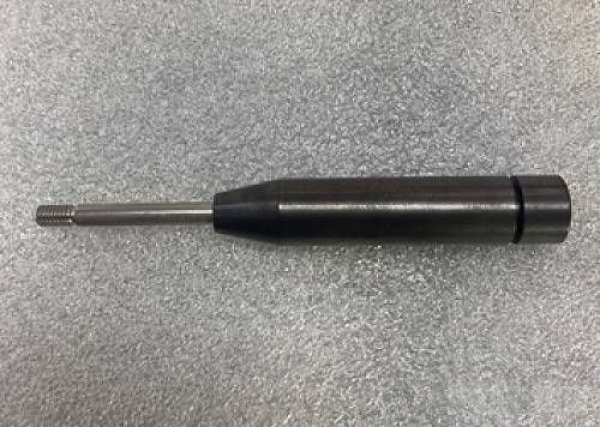

44.1	[SOLENOID ASS'Y] SOLENOID SHAFT ASS'Y MSSF0PRO013,014	[SOLENOID ASS'Y] SOLENOID SHAFT ASS'Y ASSF0PRO001	Part picture

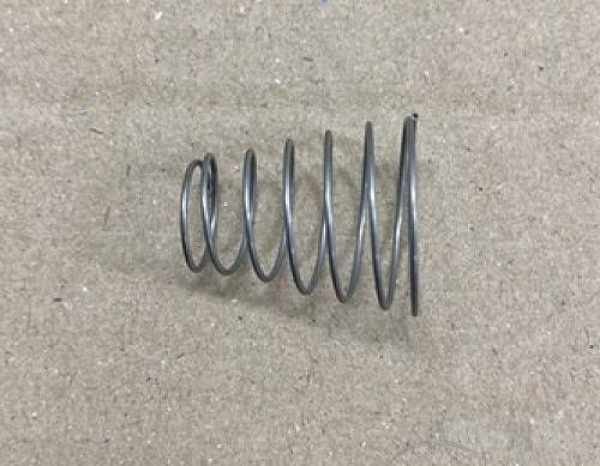

44.2	[SOLENOID ASS'Y] SOLENOID SPRING .	[SOLENOID ASS'Y] SOLENOID SPRING MSSF0SPR001	Part picture

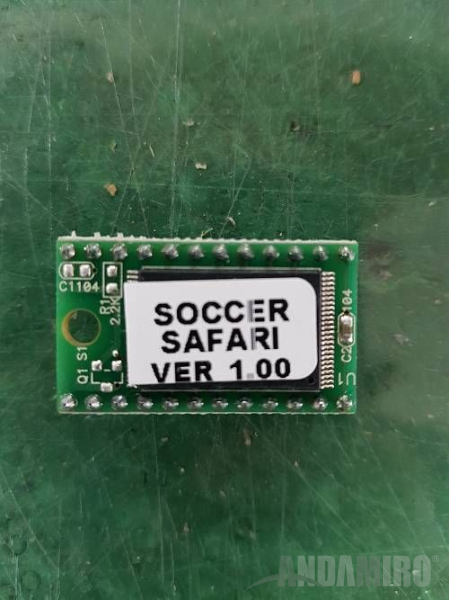

45	CPU PCB ASS'Y ADSTAR	CPU PCB ASS'Y ASSF0PCB005	Part picture

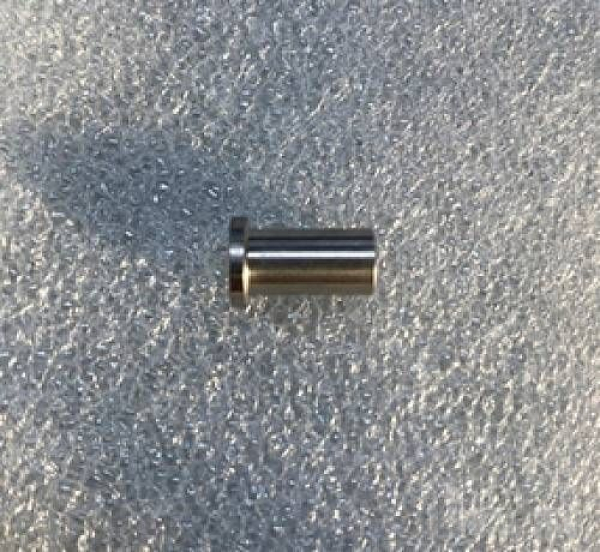

46	GOALKEEPER ACRYL FIX HOLDER	GOALKEEPER ACRYL FIX HOLDER MSSF0PRO009	Part picture
47	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
48	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture

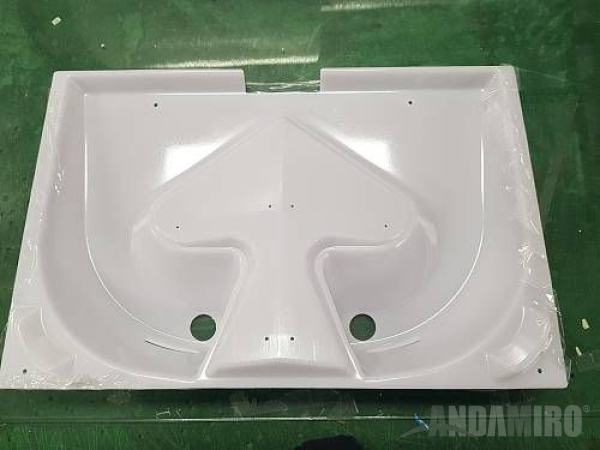

49	MOLD-BALL GROUND .	MOLD-BALL GROUND MSSF0PLA001	Part picture
50	STATIC BRUSH L80-9.5-9-0.8P	STATIC BRUSH MZZZ0BRU001	Part picture
51	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture

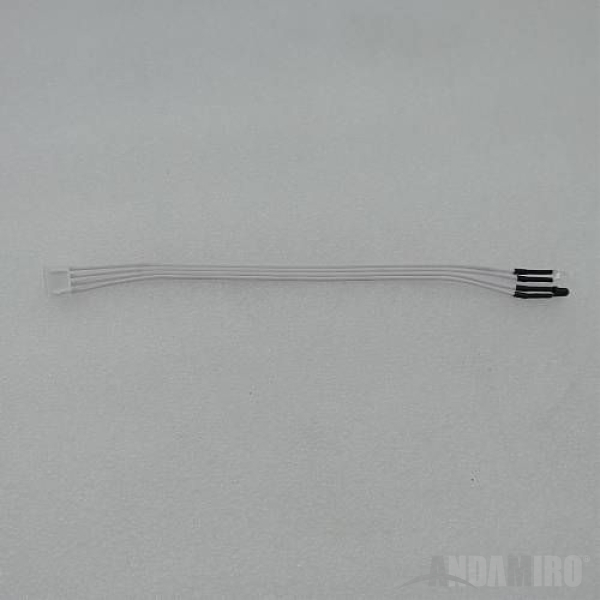

51.1	[PHOTO INT-1 PCB ASS'Y] HANESS CAPSULE HOPPER SSF	[PHOTO INT-1 PCB ASS'Y] HANESS MZZZ0HAN131	Part picture

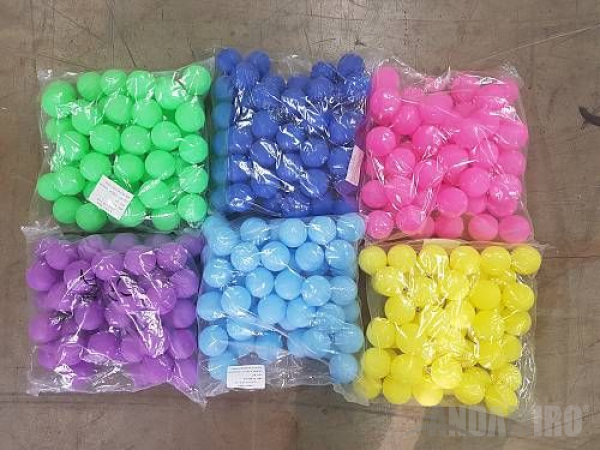

52	BALL COLOR_SAFARI6종 1SET 12PCS 노랑 하늘 연두 분홍 보라 파랑	BALL COLOR_SAFARI6종 1SET 12PCS AZZZ0ASS116	Part picture
