Andamiro Co., Ltd.

TICKET REDEMPTION WWE SUPERSTAR RUMBLE ALL THE CARDS ARE SUPERSTARS!

Short url COPY http://www.andamiro.com/games/wwesuperstar

Tags WweSuperstarRumble Ticket

Dimensions 1,582mm x 1,212mm x 2,460mm
62" x 48" x 97"

Packing Dimensions 1,700mm x 1,150mm x 2,200mm
67" x 45" x 87"

Product Weight 460 kg / 1,014 lbs

Packing Weight 515 kg / 1,135 lbs

Power 530W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (0)
Trouble shooting
Video List (0)

FEATURES

ALL THE CARDS ARE SUPERSTARS!

EASY AND EXITING PLAY

RAPID-FIRE EXCITEMENT

TWO PLAYER STATIONS

COLLECTIBLE CARD SET OF 7 FOR SUPER BONUS

COLLECTIBLE LEGEND CARD

GALLERY

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 103Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

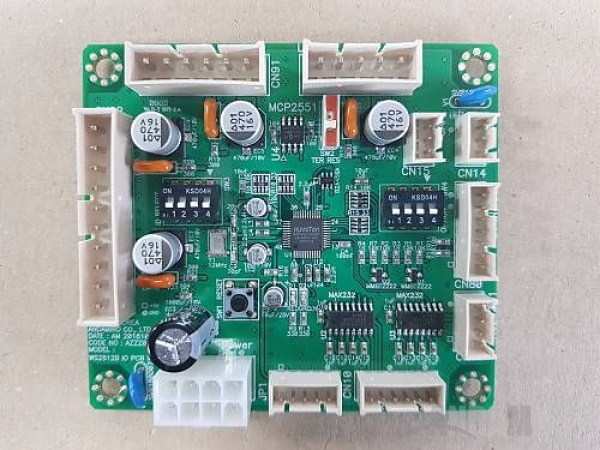

1	WS2812B IO PCB ASS'Y V3 WWE SUPERSTAR RUMBLE	WS2812B IO PCB ASS'Y V3 AWWE0PCB011	Part picture
2	A_CARD DISPENSER_COMMON CODE CHANGE AZZZ0ASS093	A_CARD DISPENSER_COMMON AZZZ0ASS081	Part picture
2.1	[A_CARD DISPENSER_COMMON] BEARING F686ZZ	[A_CARD DISPENSER_COMMON] BEARING MZZZ0BEA094	Part picture
2.2	[A_CARD DISPENSER_COMMON] TIMMING PULLEY MXL-47	[A_CARD DISPENSER_COMMON] TIMMING PULLEY MZZZ0PLA039	Part picture
2.3	[A_CARD DISPENSER_COMMON] MOTOR KGC-040-3429C	[A_CARD DISPENSER_COMMON] MOTOR MZZZ0MOT089	Part picture
2.4	[A_CARD DISPENSER_COMMON] DU BUSH 0608DU	[A_CARD DISPENSER_COMMON] DU BUSH MZZZ0BEA096	Part picture
2.5	[A_CARD DISPENSER_COMMON] CARD OUTLET GUIDE BLOCK ABS	[A_CARD DISPENSER_COMMON] CARD OUTLET GUIDE BLOCK MZZZ0PLA042	Part picture
2.6	[A_CARD DISPENSER_COMMON] TIMMING BELT TENSION ROLLER .	[A_CARD DISPENSER_COMMON] TIMMING BELT TENSION ROLLER MSBP0PRO017	Part picture
2.7	[A_CARD DISPENSER_COMMON] TIMMING BELT 52MXL,W4.8 RUBBER	[A_CARD DISPENSER_COMMON] TIMMING BELT MZZZ0BEL018	Part picture
2.8	[A_CARD DISPENSER_COMMON] TIMMING BELT 147MXL,W4.8 RUBBER	[A_CARD DISPENSER_COMMON] TIMMING BELT MZZZ0BEL019	Part picture
2.9	[A_CARD DISPENSER_COMMON] CARD DISPENSER RUBBER HOUSING-A	[A_CARD DISPENSER_COMMON] CARD DISPENSER RUBBER HOUSING-A MZZZ0RUB017	Part picture
2.10	[A_CARD DISPENSER_COMMON] CARD DISPENSER RUBBER HOUSING-B 실리콘	[A_CARD DISPENSER_COMMON] CARD DISPENSER RUBBER HOUSING-B MZZZ0RUB018	Part picture
2.11	[A_CARD DISPENSER_COMMON] PHOTO INT-1 PCB ASS'Y ANGLE TYPE	[A_CARD DISPENSER_COMMON] PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
2.12	[A_CARD DISPENSER_COMMON] CARD DISPENSOR I/O PCB ASS'Y CARD DISPENSOR	[A_CARD DISPENSER_COMMON] CARD DISPENSOR I/O PCB ASS'Y ASBP0PCB008	Part picture
2.13	[A_CARD DISPENSER_COMMON] TIMMING PULLEY MXL-29	[A_CARD DISPENSER_COMMON] TIMMING PULLEY MZZZ0PLA040	Part picture
2.14	[A_CARD DISPENSER_COMMON] TIMMING BELT TENSION GUIDE BKT .	[A_CARD DISPENSER_COMMON] TIMMING BELT TENSION GUIDE BKT MSBP0MEP153	Part picture
3	PIN SHAFT MOLD MOLD	PIN SHAFT MOLD MGHP0PLA004	Part picture

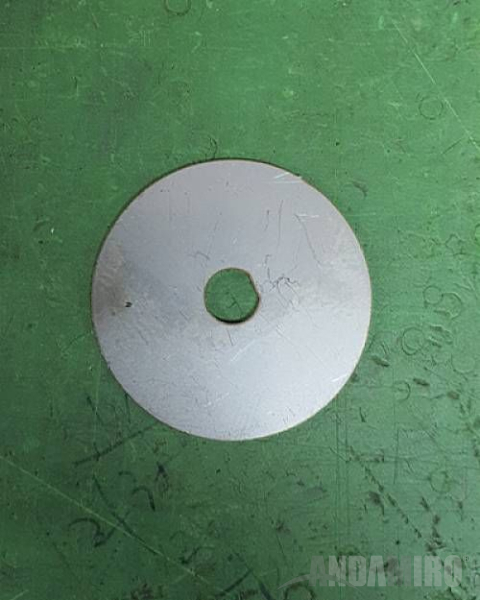

4	ELEVATOR WASHER MOLD MOLD	ELEVATOR WASHER MOLD MGHP0PLA005	Part picture
5	CARD CONVEYOR BELT ASS'Y 115*570(1141.6)	CARD CONVEYOR BELT ASS'Y ADM30ASS003	Part picture
6	CONVEYOR TENSION SPRING SUS304-Ø1.2	CONVEYOR TENSION SPRING MDM30SPR001	Part picture
7	Z MOTOR PART TENSION SPRING .	Z MOTOR PART TENSION SPRING MWID0SPR001	Part picture
8	BONUS TARGET GATE SPRING SUS304-Ø0.4	BONUS TARGET GATE SPRING MWWE0SPR001	Part picture
9	MAIN BOARD PCB ASS'Y WWE WITH CPU	MAIN BOARD PCB ASS'Y AWWE0PCB001	Part picture
9.1	[MAIN BOARD PCB ASS'Y] MAIN BOARD PCB ASS'Y NO CPU	[MAIN BOARD PCB ASS'Y] MAIN BOARD PCB ASS'Y AWWE0PCB008	Part picture
10	LED PCB ASS'Y MULTI MAGIC 070618	LED PCB ASS'Y AMUM0PCB005	Part picture
11	CARD OUT LED PCB ASS'Y .	CARD OUT LED PCB ASS'Y AWWE0PCB002	Part picture
11.1	[CARD OUT LED PCB ASS'Y] CARD OUT LED PCB PART	[CARD OUT LED PCB ASS'Y] CARD OUT LED PCB PART AWWE0PAR011	Part picture
12	SPOT LED PCB ASS'Y WHITE	SPOT LED PCB ASS'Y ABAP0PCB008	Part picture
13	MIDDLE DISPLAY FRONT LED PCB ASS'Y .	MIDDLE DISPLAY FRONT LED PCB ASS'Y AWWE0PCB003	Part picture
14	CARD CHECK SENSOR PCB ASS'Y DM3	CARD CHECK SENSOR PCB ASS'Y ADM30PCB003	Part picture
15	ELEVATOR DISK SENSOR PCB ASS'Y GHP_REZ	ELEVATOR DISK SENSOR PCB ASS'Y AGHP0PCB020	Part picture

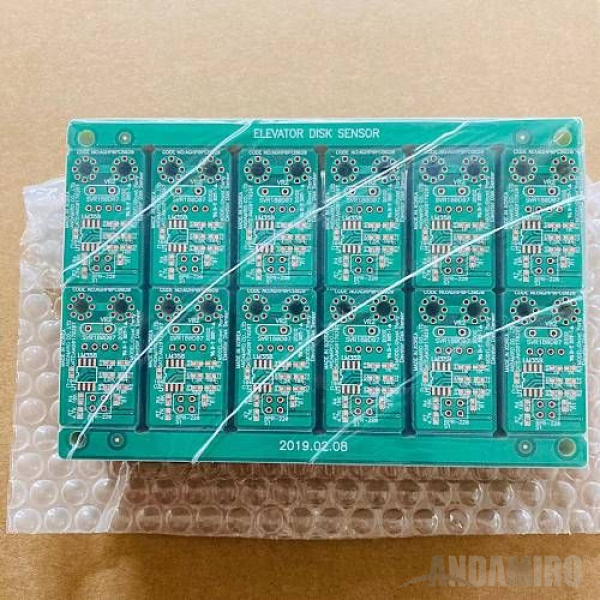

15.1	[ELEVATOR DISK SENSOR PCB ASS'Y ] ELEVATOR DISK SENSOR PCB 20170207	[ELEVATOR DISK SENSOR PCB ASS'Y ] ELEVATOR DISK SENSOR PCB PPCB0DOU501	Part picture
16	PIN BASE LED PCB ASS'Y GHOST PARTY	PIN BASE LED PCB ASS'Y AGHP0PCB019	Part picture
17	PIN BASE SIDE LED PCB ASS'Y .	PIN BASE SIDE LED PCB ASS'Y AWWE0PCB004	Part picture
18	BONUS TARGET SENSOR PCB ASS'Y .	BONUS TARGET SENSOR PCB ASS'Y AWWE0PCB005	Part picture
18.1	[BONUS TARGET SENSOR PCB ASS'Y] BONUS TARGET SENSOR PCB 20180824	[BONUS TARGET SENSOR PCB ASS'Y] BONUS TARGET SENSOR PCB PPCB0DOU542	Part picture
19	PIN CHECK SENSOR PCB ASS'Y .	PIN CHECK SENSOR PCB ASS'Y AWWE0PCB006	Part picture
20	PIN CHECK FND PCB ASS'Y .	PIN CHECK FND PCB ASS'Y AWWE0PCB007	Part picture
21	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
22	PHOTO INT-2 PCB ASS'Y WINNER,WON,CIR공용	PHOTO INT-2 PCB ASS'Y AWIW0PCB009	Part picture
23	DIGITAL AMP PCB ASS'Y 2.1CH	DIGITAL AMP PCB ASS'Y APUJ0PCB002	Part picture
23.1	[DIGITAL AMP PCB ASS'Y] IC NSP5112 NSP5112	[DIGITAL AMP PCB ASS'Y] IC NSP5112 PICS0AMP005	Part picture
24	VOLUME PCB ASS'Y 3CH	VOLUME PCB ASS'Y APUJ0PCB005	Part picture
25	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
26	L6205 HOPPER PCB ASS'Y 공용	L6205 HOPPER PCB ASS'Y AZZZ0PCB141	Part picture
27	FLEX_5050_BLUE_1100_NWP_L_66 T5050 TOP 300구 66알	FLEX_5050_BLUE_1100_NWP_L_66 MELE0LED053	Part picture
28	FLEX_5050_WHITE_350_NWP_LR_21 21알	FLEX_5050_WHITE_350_NWP_LR_21 MELE0LED028	Part picture
29	FLEX_WS2813B_700_NWP_LR_42 WS2813 TOP300구 42알	FLEX_WS2813B_700_NWP_LR_42 MELE0LED054	Part picture
30	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture
31	LED BAR 12V ASS'Y 910MM	LED BAR 12V ASS'Y AZZZ0PCB128	Part picture
32	MAIN BOX ASS'Y WWE_MK7	MAIN BOX ASS'Y AWWE0SYS001	Part picture
32.1	[MAIN BOX ASS'Y] MAIN BOX .	[MAIN BOX ASS'Y] MAIN BOX AWWE0SYS002	Part picture
32.1.1	[MAIN BOX ASS'Y] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[MAIN BOX ASS'Y] RAM_V1 MZZZ0000698	Part picture
32.1.2	[MAIN BOX ASS'Y] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[MAIN BOX ASS'Y] RAM_V1 MZZZ0000698	Part picture
32.1.3	[MAIN BOX ASS'Y] DC FAN 80MM 2BALL DFH8025B12	[MAIN BOX ASS'Y] DC FAN 80MM 2BALL MZZZ0FAN015	Part picture
32.1.4	[MAIN BOX ASS'Y] MAIN BOARD GIGA-H510M H	[MAIN BOX ASS'Y] MAIN BOARD MZZZ0PCB096	Part picture
32.1.5	[MAIN BOX ASS'Y] VGA CARD GV-N 1030D5-2GL	[MAIN BOX ASS'Y] VGA CARD MZZZ0PCB097	Part picture
32.1.6	[MAIN BOX ASS'Y] SERIAL 1PORT .	[MAIN BOX ASS'Y] SERIAL 1PORT MZZZ0000786	Part picture
32.2	[MAIN BOX ASS'Y] MAIN BOARD GIGA-H510M H	[MAIN BOX ASS'Y] MAIN BOARD MZZZ0PCB096	Part picture
32.3	[MAIN BOX ASS'Y] VGA CARD GV-N 1030D5-2GL	[MAIN BOX ASS'Y] VGA CARD MZZZ0PCB097	Part picture
32.4	[MAIN BOX ASS'Y] SSD HP S700 120	[MAIN BOX ASS'Y] SSD MZZZ0MEM025	Part picture
32.5	[MAIN BOX ASS'Y] ATX POWER SUPPLY FSP350-50TAC	[MAIN BOX ASS'Y] ATX POWER SUPPLY MELE0SMP149	Part picture
33	MOTOR HSW6-5012A-110D _DC12V_33RPM_DCUT	MOTOR MZZZ0MOT118	Part picture
34	MOTOR KGV-0120-ND3657 U1	MOTOR MZZZ0MOT141	Part picture
35	LM BEARING SL10UU	LM BEARING MZZZ0BEA125	Part picture
36	BEARING 638ZZ	BEARING MZZZ0BEA064	Part picture
37	BEARING F6800ZZ, D10 D19 B5	BEARING MZZZ0BEA092	Part picture
38	BEARING 694Z	BEARING MZZZ0BEA011	Part picture
39	BALL 15.08MM PI STEEL	BALL MZZZ0BLL006	Part picture
40	HAND BOLT M4, PKB4 4*10L	HAND BOLT MZZZ0PLA030	Part picture
41	방진고무볼트 001605 20_18_15.5_ M6	방진고무볼트 001605 MZZZ0RUB009	Part picture
42	GAS SPRING GSB-22X761-30KG	GAS SPRING MZZZ0SHO014	Part picture
43	SLIDE RAIL S1000/1218B	SLIDE RAIL MDM30PAR001	Part picture
44	BUTTON SWITCH CWB 401-WHITE 100MM LED	BUTTON SWITCH MZZZ0BUT080	Part picture
45	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
46	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
47	ROCKER SWITCH T-125 4P	ROCKER SWITCH MELE0SWI004	Part picture
48	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
49	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
50	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture
51	SPEAKER 8 INCH SUB W00FER DSU-205W	SPEAKER MZZZ0SPE036	Part picture
52	SPEAKER TERMINAL DJ-025	SPEAKER TERMINAL MZZZ0SPE034	Part picture
53	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
54	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
55	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
56	POWER SMPS LRS 150F-5	POWER SMPS MELE0SMP096	Part picture
57	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture
58	POWER SMPS LRS 150F_24	POWER SMPS MELE0SMP085	Part picture
59	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
60	AC POWER CORD 250V 16A KKP-4819R CE 1.8M	AC POWER CORD MELE0ACP008	Part picture
61	MONITOR CABLE NM-HD03GZ HDMI_DVI 3M	MONITOR CABLE NM-HD03GZ MZZZ0HAN064	Part picture
62	CARBON LONG SLIVE 3파이* 15MM 3파이* 길이15MM	CARBON LONG SLIVE 3파이* 15MM MZZZ0SLV003	Part picture
63	CARD HEAVY PUSH BKT .	CARD HEAVY PUSH BKT MSBP0MEP023	Part picture
64	AC POWER CORD UL 125V_10A_SVT 3/18AWG 1.8M	AC POWER CORD UL MELE0ACP001	Part picture
65	MONITOR CABLE NMC-DD50Z DVI_DVI 5M	MONITOR CABLE NMC-DD50Z MZZZ0HAN097	Part picture
66	CARD ASS'Y_WWE_BASIC 150EA 1BOX	CARD ASS'Y_WWE_BASIC AWWE0ZZZ002	Part picture
67	MICRO SWITCH CNR-05H-03 ZIPPY-FOR COIN	MICRO SWITCH MELE0MIC002	Part picture
68	SPONGE_10X1000 4T BLACK	SPONGE_10X1000 4T MPCX0PLA007	Part picture
69	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
70	POWER SMPS LRS 100-5	POWER SMPS MELE0SMP095	Part picture
71	FERRITE CORE RU(TU)1335	FERRITE CORE MELE0FER001	Part picture
72	CARD ASS'Y_RFID_WWE 150EA 1BOX	CARD ASS'Y_RFID_WWE AWWE0RFC001	Part picture
73	CARD DISPENSER SETTING JIG SBP_DC_WWE	CARD DISPENSER SETTING JIG AZZZ0ACP002	Part picture
